Phoenix LED lowbay

Introducing the Phoenix LED low-bay range

A high output high wattage IP65 product available in both 150w and 180w fitting

Application

The Phoenix LED low-bay range is a slimline surface or rod mounted fitting supplied with a 110° optic and wattage options of 150w and 180w. With a range of mounting options the Phoenix LED high-bay range is suited to:

♦ Industrial warehousing

♦ Carparks

♦ Manufacturing facilities

♦ Service stations



Design Specifications

  • Two lumen package options within the same form factor: 150w and 180w, both supplied with 110° optics, CRI80 and 4000k CCT

  • SMD LED chips, L70 - 50,000 hours

    12kV surge protection device fitted as standard

  • Frosted UV stabilised polycarbonate lens

  • In-built non-dimmable driver for surface mount as standard

  • Remote drivers available for sandwich panel mounting arrangement



  • Available Options

    • 5000K and 5700K
    • Dimmable driver options

  • 4000KCCT
  • 5000KCCT
  • 4000KCCT
  • 5000KCCT

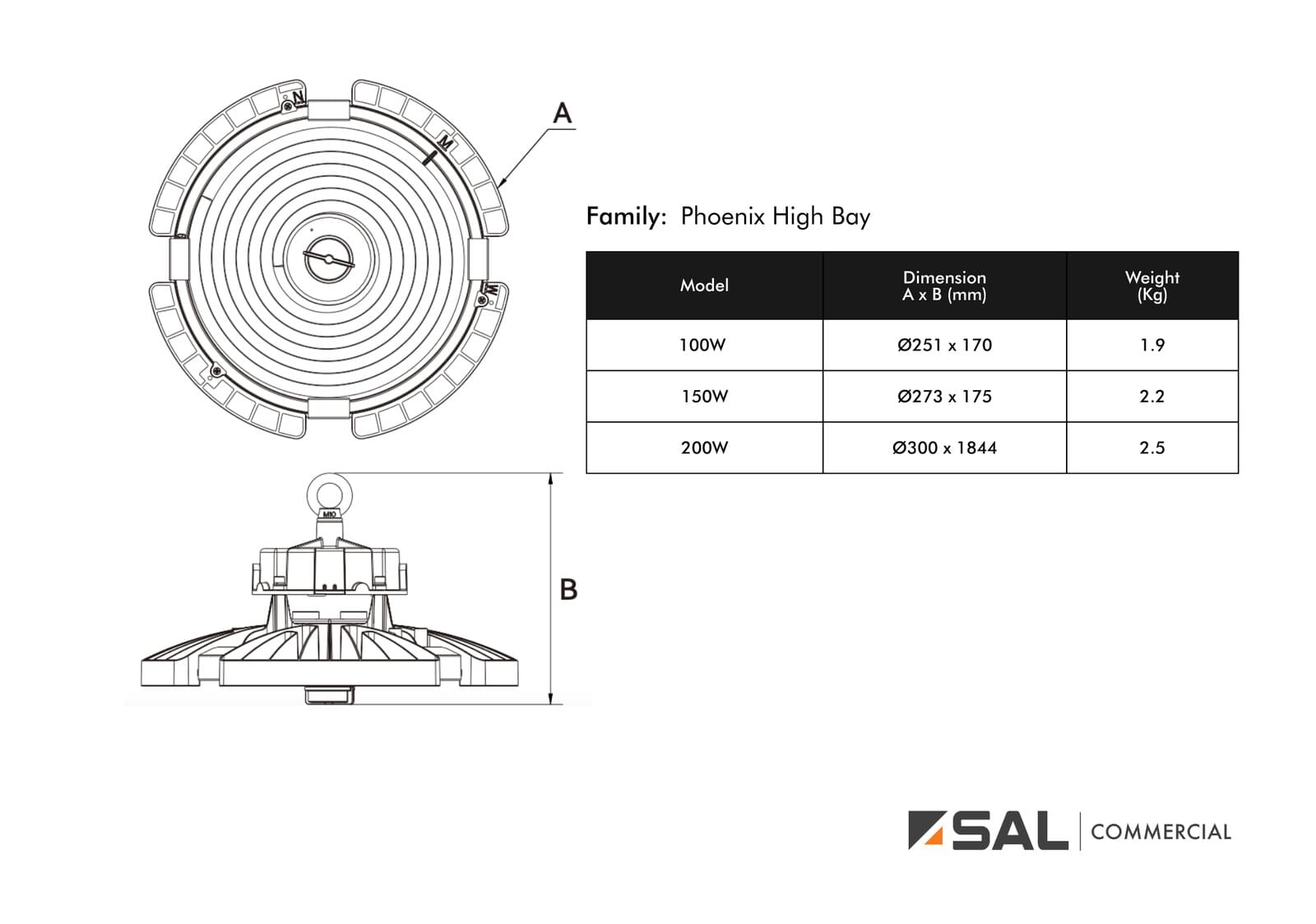

  • Dimensions - Wiring Diagrams
  • Design Options

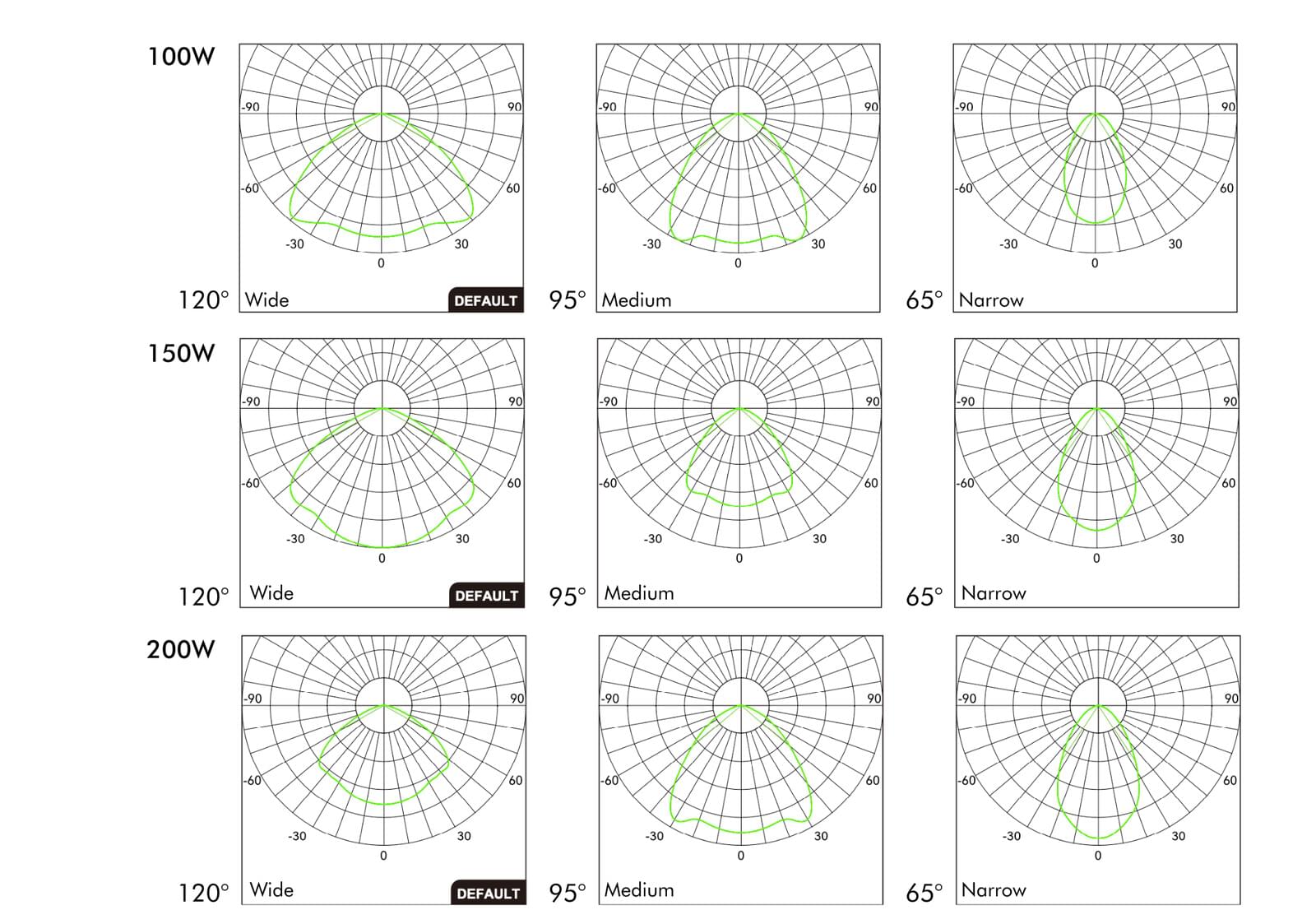

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Colour Temp. Lumens Beam Angle CRI Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.IPX15040N DescriptionPhoenix LED surface mount Lowbay, non dimmable, white body Power150 Colour Temp.4000 Lumens19000 Beam Angle110° CRI80 Dim480(L) x 480(W) Add to Enquiry Add Remove Remove
    Model No.IPX15050N DescriptionPhoenix LED surface mount Lowbay, non dimmable, white body Power150 Colour Temp.5000 Lumens19000 Beam Angle110° CRI80 Dim480(L) x 480(W) Add to Enquiry Add Remove Remove
    Model No.IPX18040N DescriptionPhoenix LED surface mount Lowbay, non dimmable, white body Power180 Colour Temp.4000 Lumens23000 Beam Angle110° CRI80 Dim480(L) x 480(W) Add to Enquiry Add Remove Remove
    Model No.IPX18050N DescriptionPhoenix LED surface mount Lowbay, non dimmable, white body Power180 Colour Temp.5000 Lumens23000 Beam Angle110° CRI80 Dim480(L) x 480(W) Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
