• Commercial LED Downlights

Milano S 110

110mm IP65 Surface Mount UGR Low Glare LED Downlight

Milano S is part of the Milano range of performance LED recessed and surface mount downlights. The Milano family is available in four sizes and multiple performance selections





Application

Designed completely in house , this IP65 LED downlight is suited to a wide range of applications, including - commercial buildings. distribution warehouses, education and sporting precincts, health and aged facilities

Design Specifications

  • 110mm Ø lightweight die-cast aluminium body for efficient heat dissipation

  • High performanace COB LED chip - L90 > 50,000 hours, SDCM<3, CRI 90 and 4000K as standard

  • Excellent UGR glare control with set back optical design, 60° beam optic as standard

  • Integral non-dimmable or DALI2 dimmable LED driver as standard

  • Extruded aluminium body with excellent heat dissipation qualities

  • Black or white powdercoat as standard


  • 4000KCCT
  • 4000KCCT

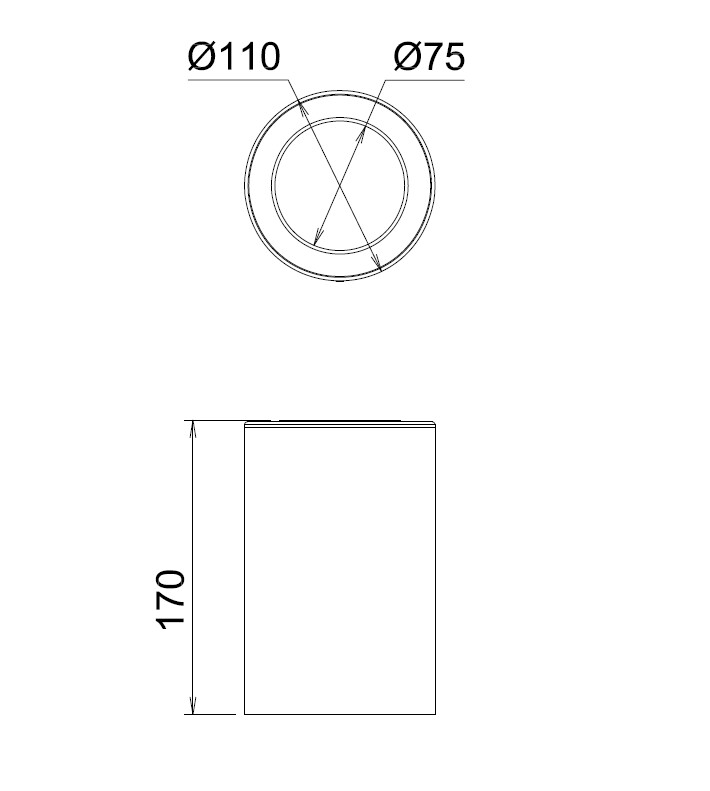

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black
    Colour 2 White
    Dimmer DALI YES
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Dimmable Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DMLS110840NBK DescriptionMilano S 110 IP65 Surface Mount Downlight with Non-Dimmable Driver, Black Powdercoat Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable NO Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.DMLS110840NWH DescriptionMilano S 110 IP65 Surface Mount Downlight with Non-Dimmable Driver, White Powdercoat Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable NO Body ColourWhite Add to Enquiry Add Remove Remove
    Model No.DMLS110840DBK DescriptionMilano S 110 IP65 Surface Mount Downlight with DALI2 Dimmable Driver, Black Powdercoat Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable YES Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.DMLS110840DWH DescriptionMilano S 110 IP65 Surface Mount Downlight with DALI2 Dimmable Driver, White Powdercoat Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable YES Body ColourWhite Add to Enquiry Add Remove Remove
    Model No.DMLS110840PBK DescriptionMilano S 110 IP65 Surface Mount Downlight with Phase Dimmable Driver, Black Powdercoat Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable YES Body ColourBlack Add to Enquiry Add Remove Remove
    Model No.DMLS110840PWH DescriptionMilano S 110 IP65 Surface Mount Downlight with Phase Dimmable Driver, White Powdercoat Power8 Lumens800 CCT4000 Beam Angle60 CRI90 Dimmable YES Body ColourWhite Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
