Milano S 170

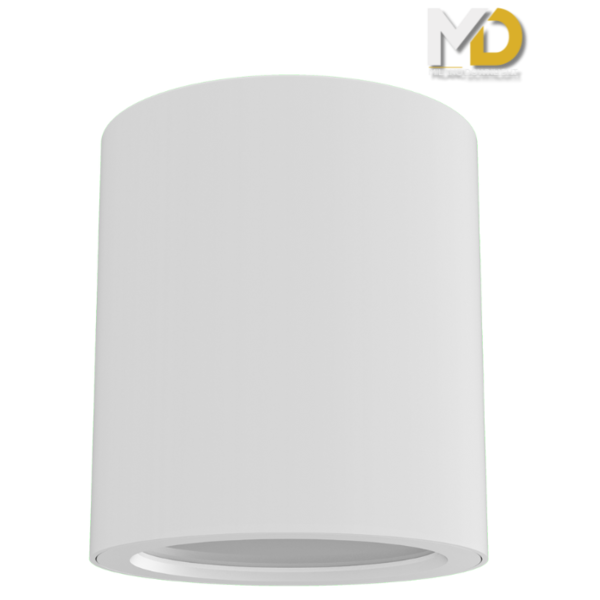

170mm IP65 Surface Mount UGR Low Glare LED Downlight

Designed for performance and visual comfort, the Milano Surface LED Downlight offers a clean architectural aesthetic, low-glare illumination, and versatile configurations to suit commercial and healthcare environments. With a focus on reliability, optical control, and seamless integration, Milano is an ideal choice for projects requiring both form and function.

Application

Developed in-house for demanding commercial environments, this IP65-rated LED downlight offers exceptional protection against dust and water ingress. Built to perform in a range of environemnts, the Milano LED downlight delivers durable, high-performance illumination, ideal for - commercial buildings. distribution warehouses, education and sporting precincts, health and aged facilities.

Design Specifications

  • 170mm Ø lightweight die-cast aluminium body for efficient heat dissipation

  • High performanace Leds L90B10 > 70,000 hours, SDCM<3, CRI 90 and 4000K as standard

    3000K and 3500K available

    RGBW available

    Tuneable White available

  • Excellent UGR glare control with set back optical design, 60° beam optic as standard

  • Integral non-dimmable or DALI-2 dimmable LED driver as standard

  • Extruded aluminium body with excellent heat dissipation qualities

  • Black or white powdercoat as standard


  • 4000KCCT
  • 4000KCCT

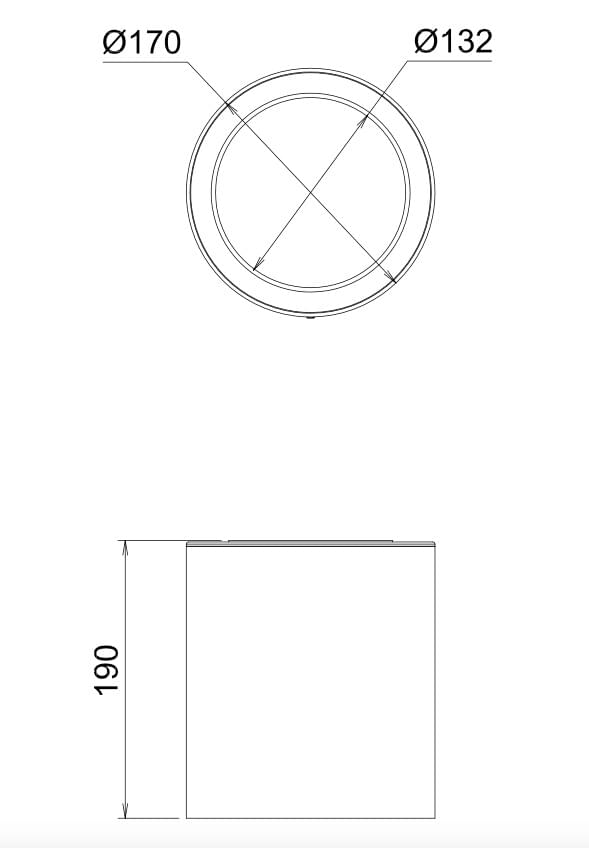

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 Black
    Colour 2 White
    Dimmer DALI YES
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DMLS171040DWH DescriptionMilano S 170 Surface Mount IP65 Downlight with DALI-2 Driver, White Power10 Lumens1000 CCT4000 Beam Angle60 CRI90 Body ColourWhite Add to Enquiry Add Remove Remove
    Model No.DMLS171440DWH DescriptionMilano S 170 Surface Mount IP65 Downlight with DALI-2 Driver, White Power14 Lumens1400 CCT4000 Beam Angle60 CRI90 Body ColourWhite Add to Enquiry Add Remove Remove
    Model No.DMLS172040DWH DescriptionMilano S 170 Surface Mount IP65 Downlight with DALI-2 Driver, White Power20 Lumens2000 CCT4000 Beam Angle60 CRI90 Body ColourWhite Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
