• Commercial LED Floodlights

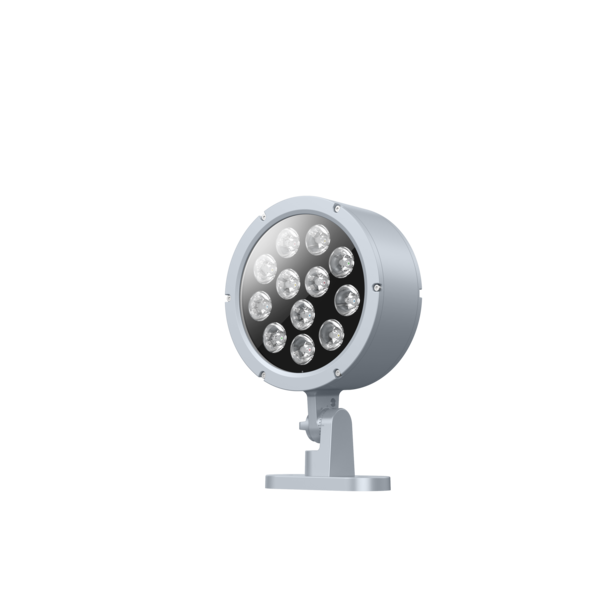

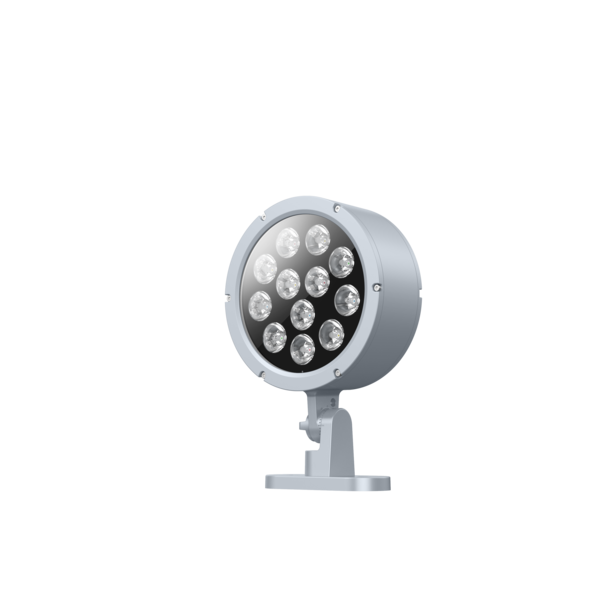

ALICANTE 35

Single CCT and Multi Optic IP66 LED Floodlight

Alicante LED Floodlight range - a stylish LED Floodlight family with multiple beam angle options and colour temperatures

Application

Available in a variety of outputs, control methods and mounting options, and suited to the below applications;

  • Facades and buildings
  • Columns and statues
  • Parks and gardens

Design Specifications

  • Silver powdercoat aluminium body and tempered glass lens

  • CRI 80 as standard - CRI 90 available upon request

  • Integral driver - Non-Dimmable or DALI2

  • 4000K as standard - 2200K / 3000K and 5000K available upon request

  • Ambient operating temperature from -30° to 50°

  • Available Options

    • RGB / RGBW with DMX driver (see website)
    • Tuneable White - 2200K to 4000K with DMX driver (see website)

  • 4000KCCT
  • 3000KCCT
  • 5000KCCT
  • 4000KCCT
  • 3000KCCT
  • 5000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FOA03540N3.8 DescriptionAlicante IP66 LED Floodlight 3.8° Symmetrical Optic with Non-Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540D3.8 DescriptionAlicante IP66 LED Floodlight 3.8° Symmetrical Optic with DALI2 Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540N08 DescriptionAlicante IP66 LED Floodlight 8° Symmetrical Optic with Non-Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540D08 DescriptionAlicante IP66 LED Floodlight 8° Symmetrical Optic with DALI2 Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540N12 DescriptionAlicante IP66 LED Floodlight 12° Symmetrical Optic with Non-Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540D12 DescriptionAlicante IP66 LED Floodlight 12° Symmetrical Optic with DALI2 Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540N30 DescriptionAlicante IP66 LED Floodlight 30° Symmetrical Optic with Non-Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540D30 DescriptionAlicante IP66 LED Floodlight 30° Symmetrical Optic with DALI2 Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540N60 DescriptionAlicante IP66 LED Floodlight 60° Symmetrical Optic with Non-Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540D60 DescriptionAlicante IP66 LED Floodlight 60° Symmetrical Optic with DALI2 Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540N75 DescriptionAlicante IP66 LED Floodlight 75° Symmetrical Optic with Non-Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.FOA03540D75 DescriptionAlicante IP66 LED Floodlight 75° Symmetrical Optic with DALI2 Dimmable Driver Power35 Lumens2450 CCT4000 CRI80 Add to Enquiry Add Remove Remove

    CCT Variations Available:

    CCT: 40 = 4000K (supplied as standard / 22 = 2200K / 30 = 3000K / 50 = 5000K

    • Lumen output based on 4000K

    Accessories:

    Code: FOAGS-35 - In-ground mounting spike

    Code: FOAGV-35 - Visor
