• Commercial LED Floodlights

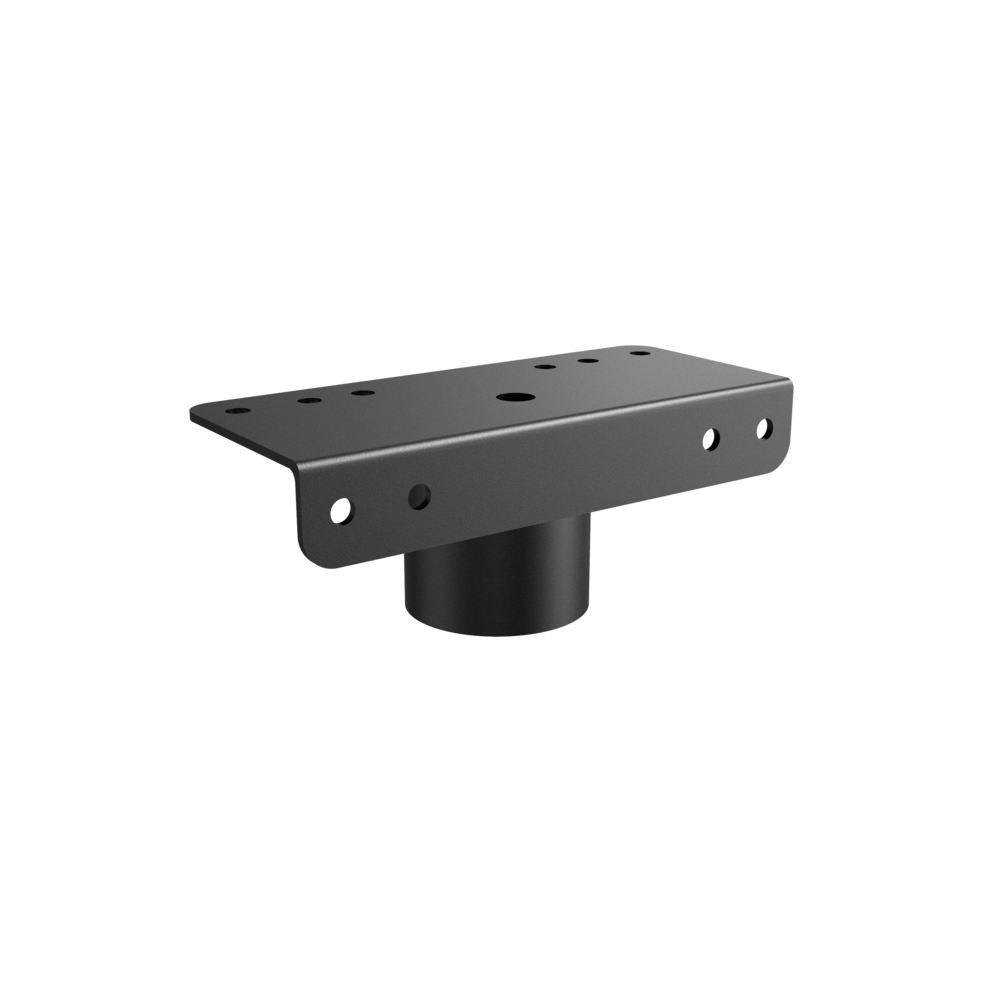

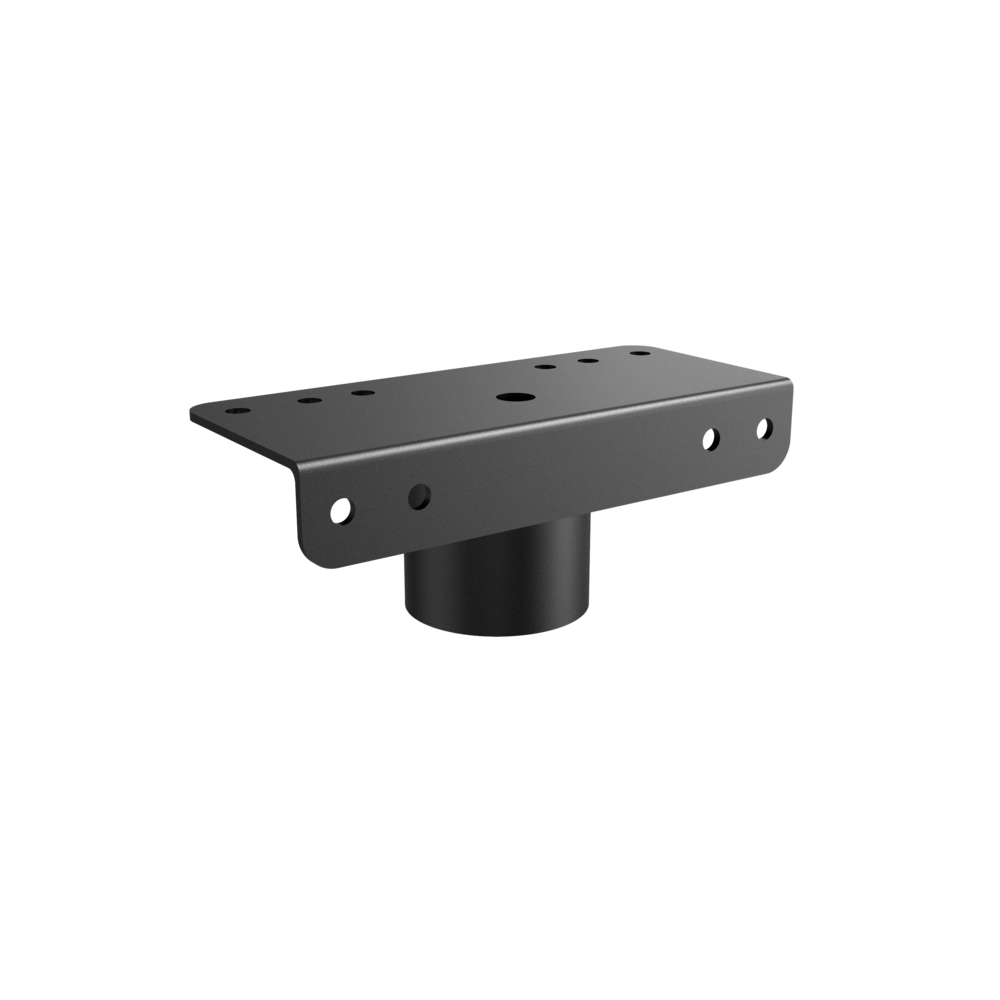

COLUMBUS POLE MOUNT BRACKET

60mm / 76mm Spigot Mount Floodlight Bracket

The Columbus floodlight family ranges from 50w to 400w. With Trunnion Arm mounting, the Pole Mount Bracket allows for installation to be completed on 60mm and 76mm poles

Application

Two sizes available - 60mm and 76mm

Design Specifications

  • Extruded aluminium with pre-drilled mounting holes

  • Black powdercoat finish as standard

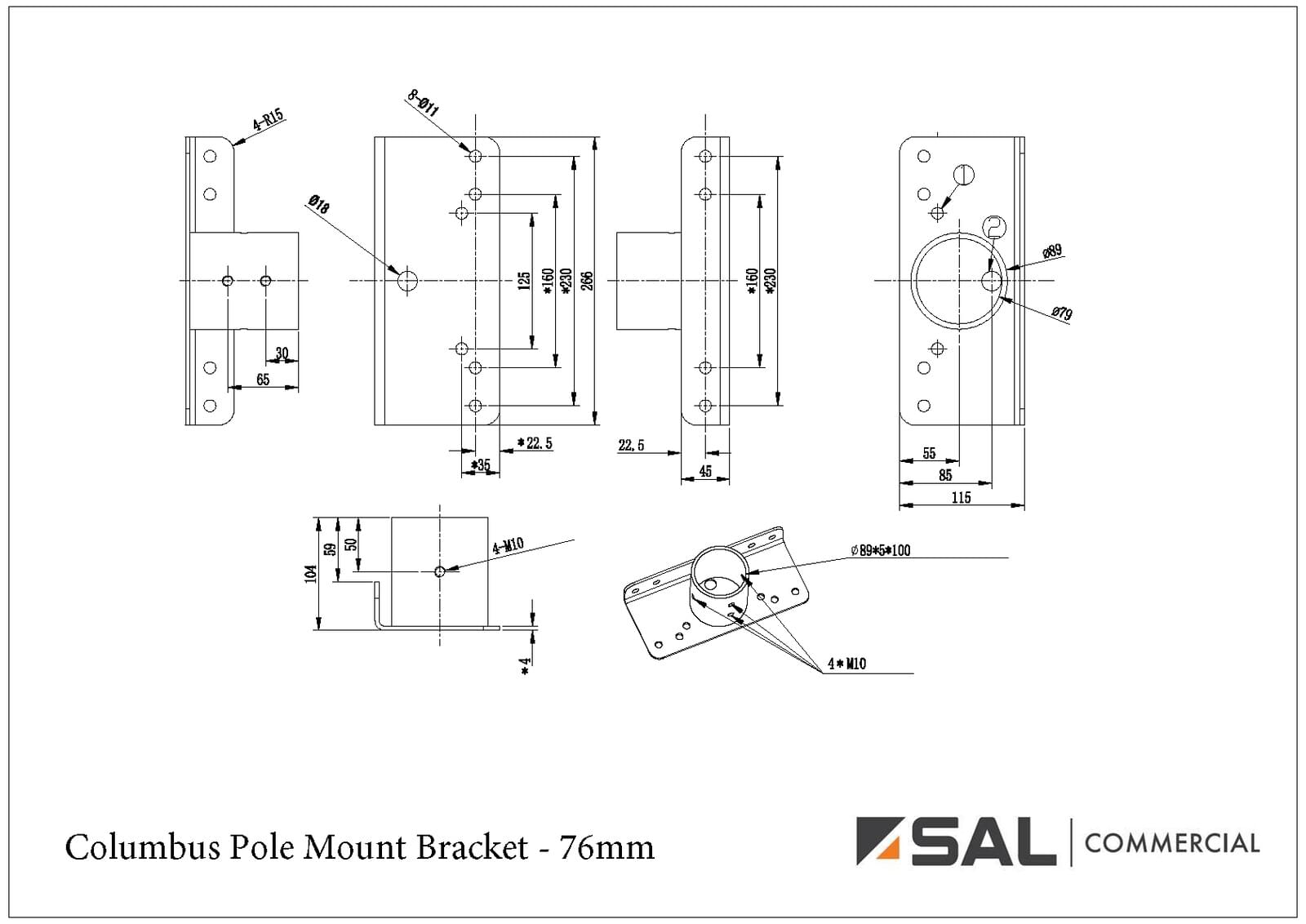

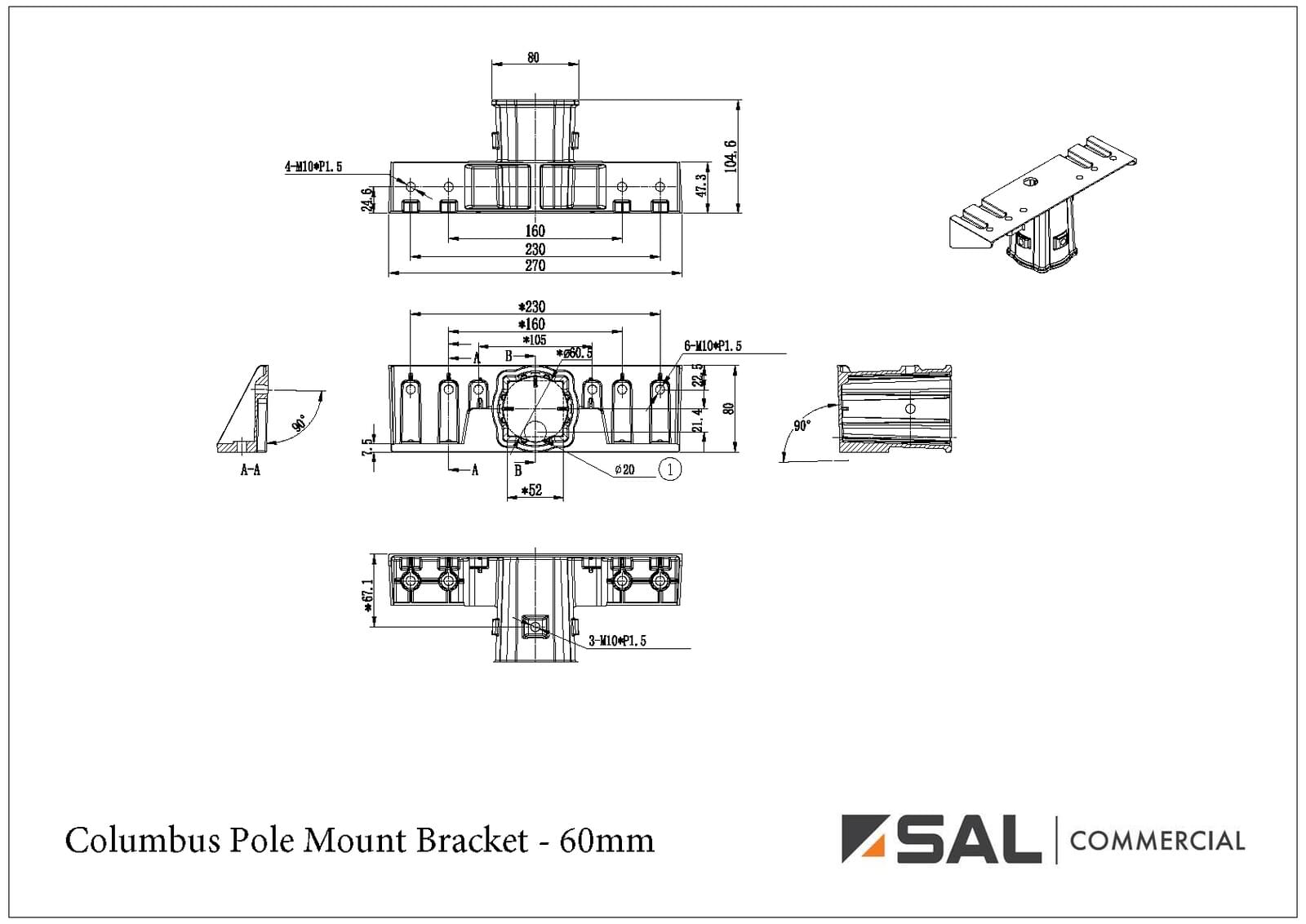

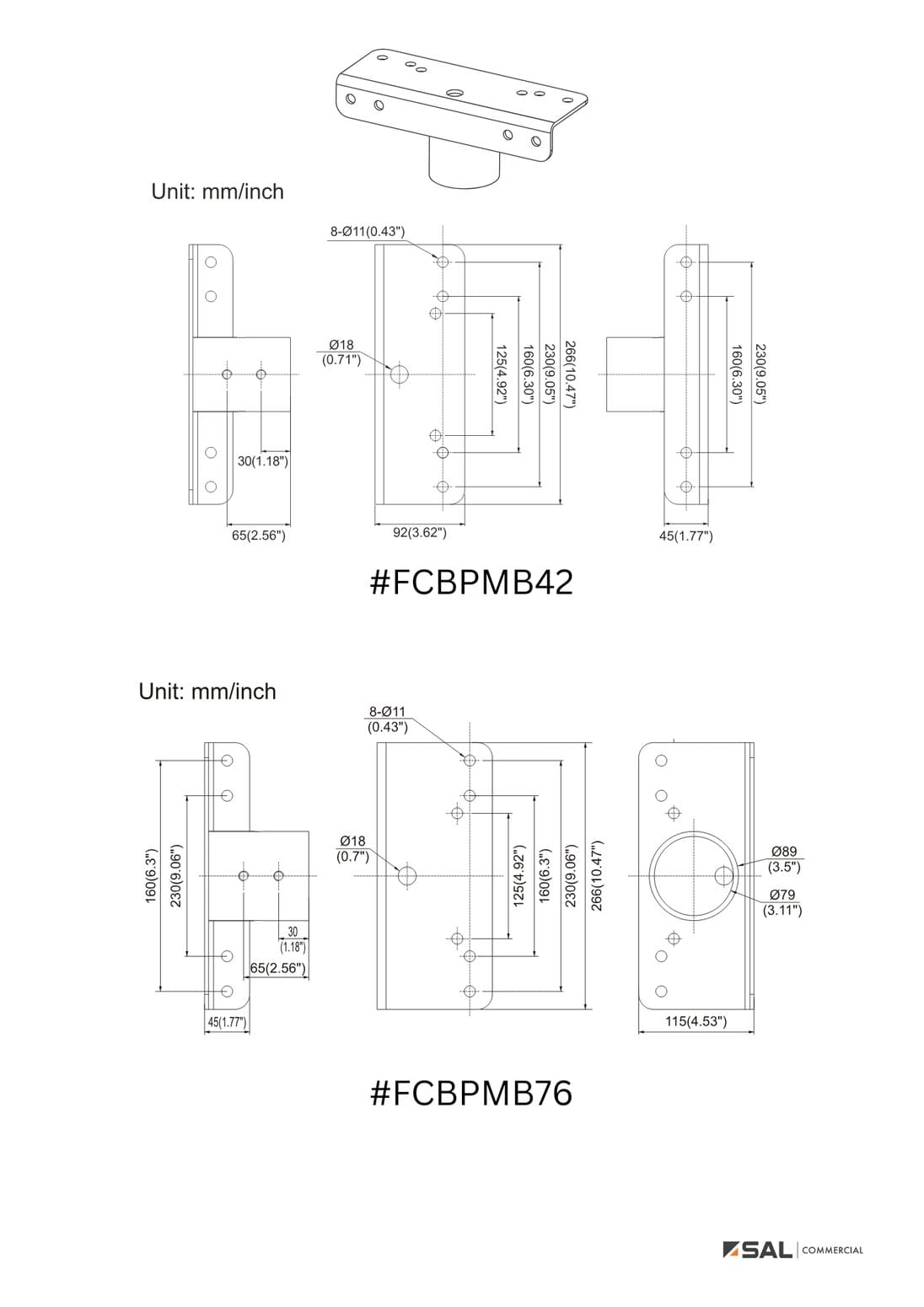

      • Dimensions - Wiring Diagrams
      • Design Options
      • Photometric Data
      • Model No. & Technical Specification
        Model No. Description Add to Enquiry
        • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
        Model No.FCBPMB60 DescriptionColumbus 60mm Post Mount Bracket Add to Enquiry Add Remove Remove
        Model No.FCBPMB76 DescriptionColumbus 76mm Post Mount Bracket Add to Enquiry Add Remove Remove
      Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
