RAPIX DALI-2

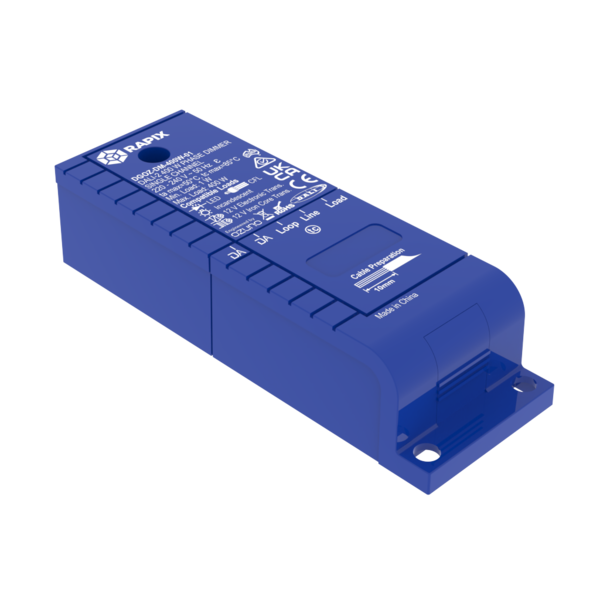

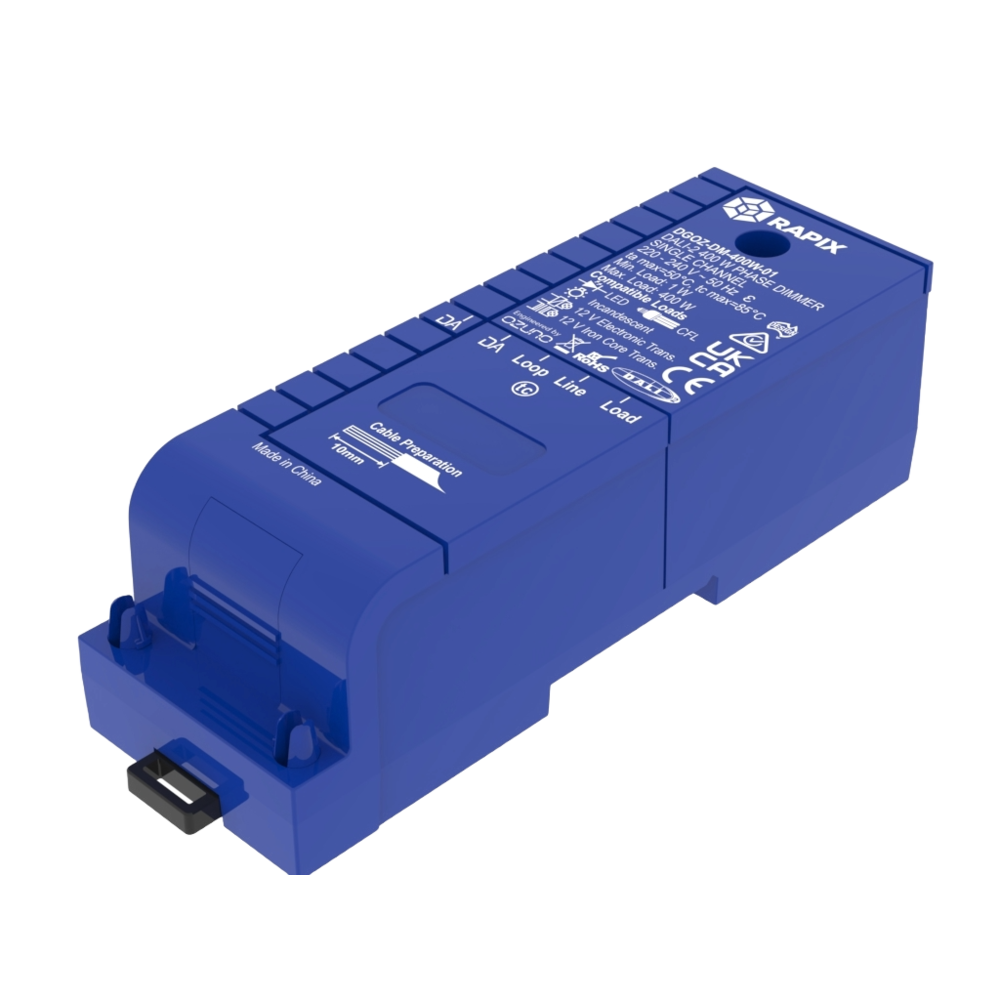

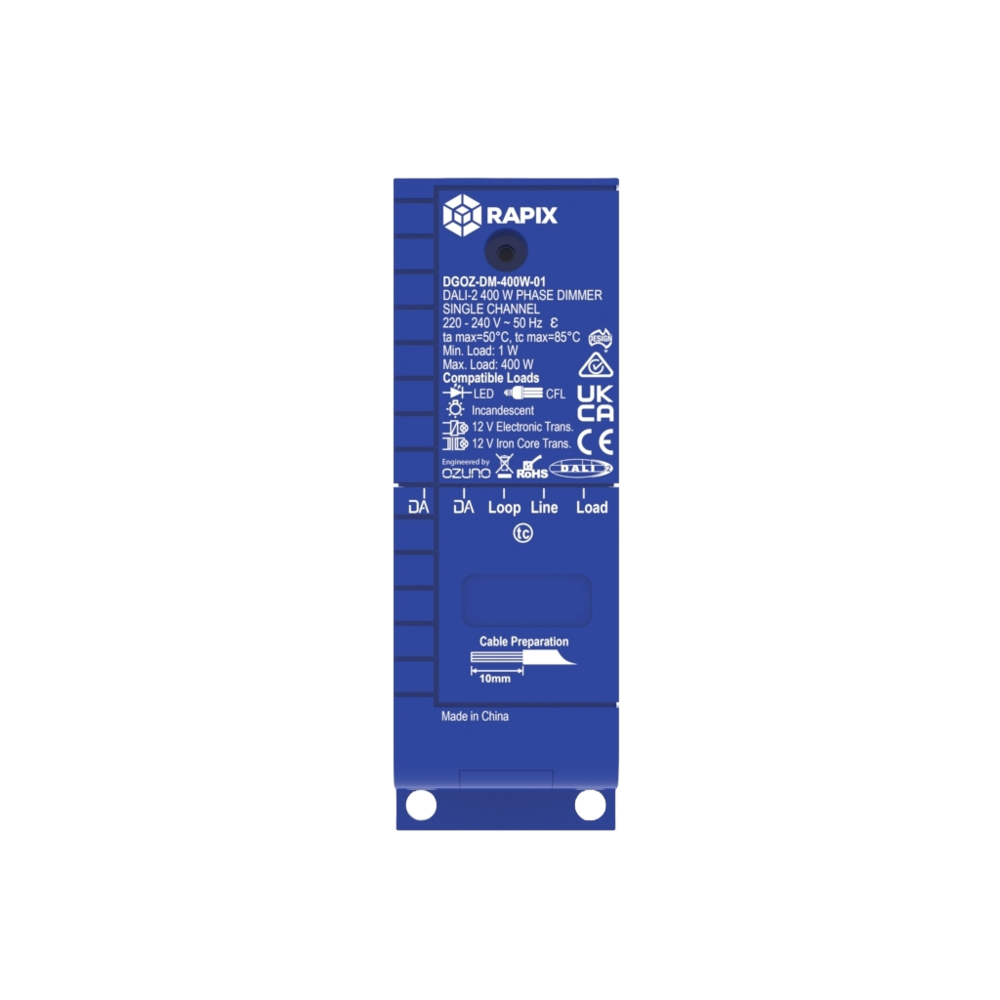

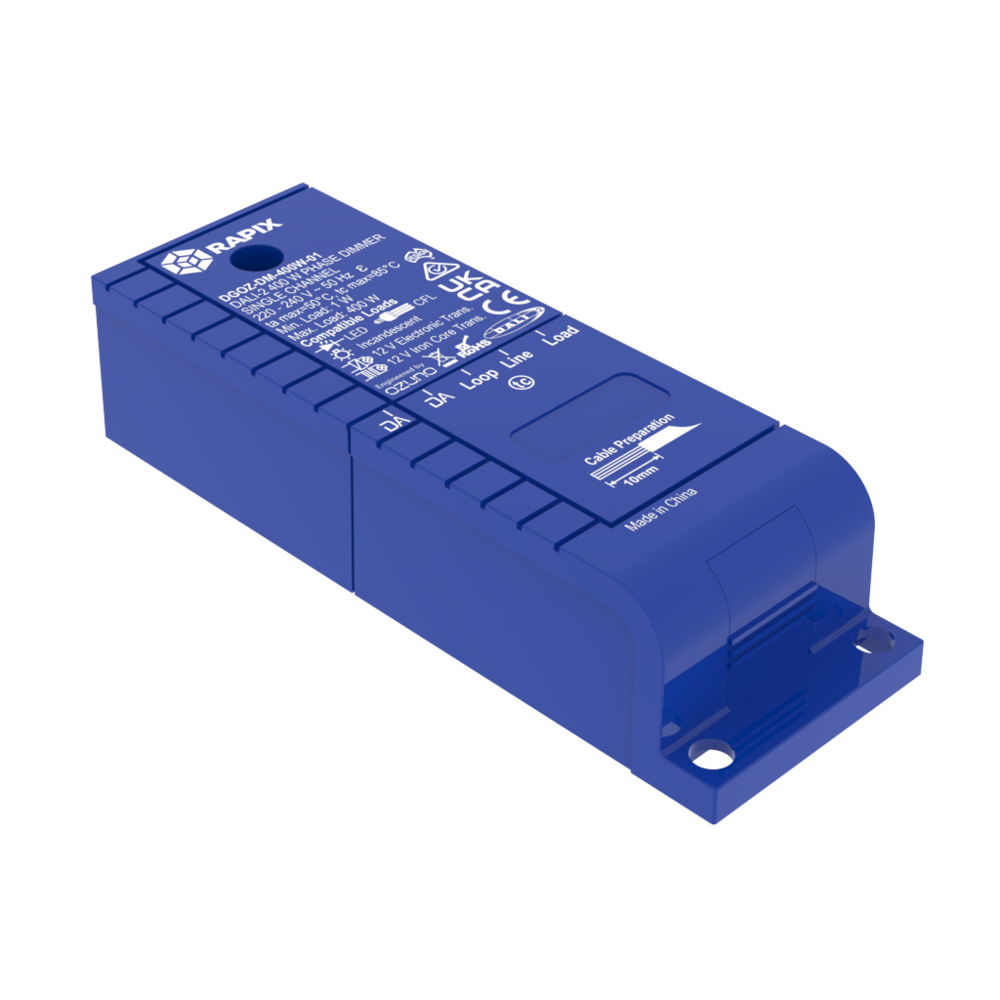

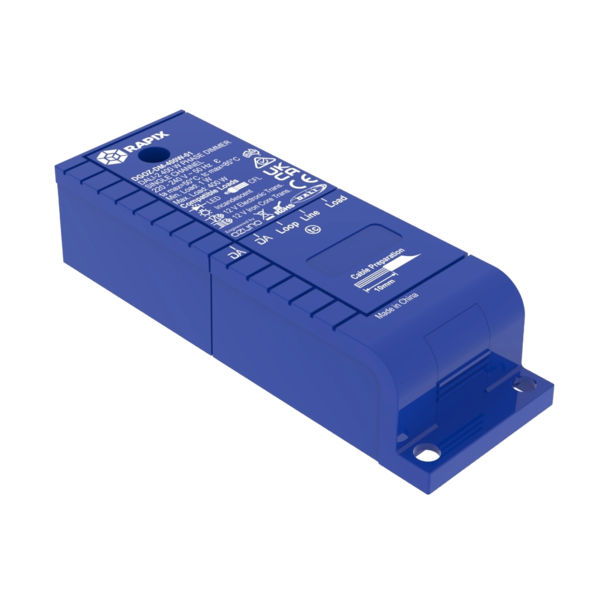

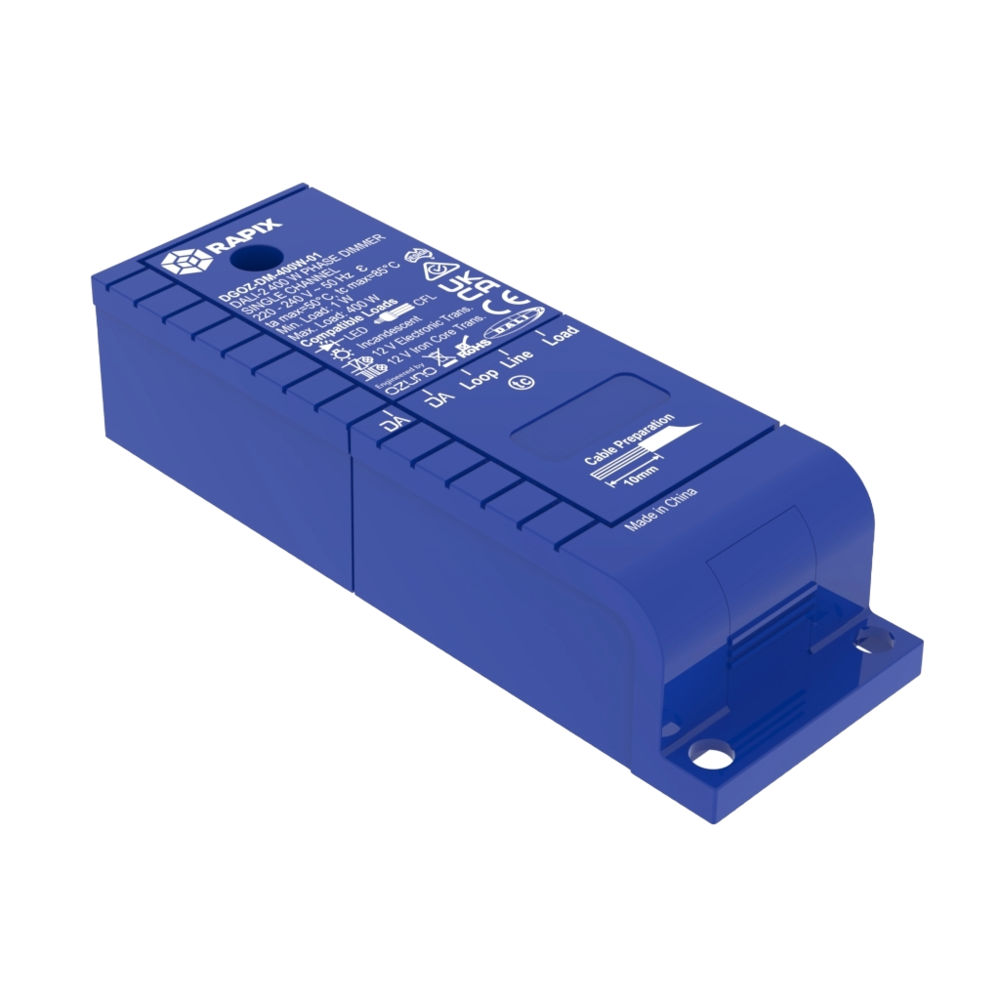

400W Phase Dimmer

Manufactured by Ozuno, a 100% Australian owned premium lighting control systems company based in Adelaide.

The RAPIX DALI-2 Trailing Edge Adaptive Phase Dimmer is suitable for dimming of mains-powered, phase dimmed loads. DALI commands are translated to mains trailing edge dimming. Typical loads are incandescent lamps, dimmable LED lamps, or dimmable Compact Fluorescent Lamps.



Application

  • Trailing Edge Phase dimming of lighting loads from received DALI commands

  • Suitable for most LED lighting loads

  • Draws under 2 mA from a DALI line

  • Optimised for phase dimmable LED loads, but also works with all common load types including Incandescent, dimmable CFL and halogen lighting with electronic or magnetic (iron-core) transformers.

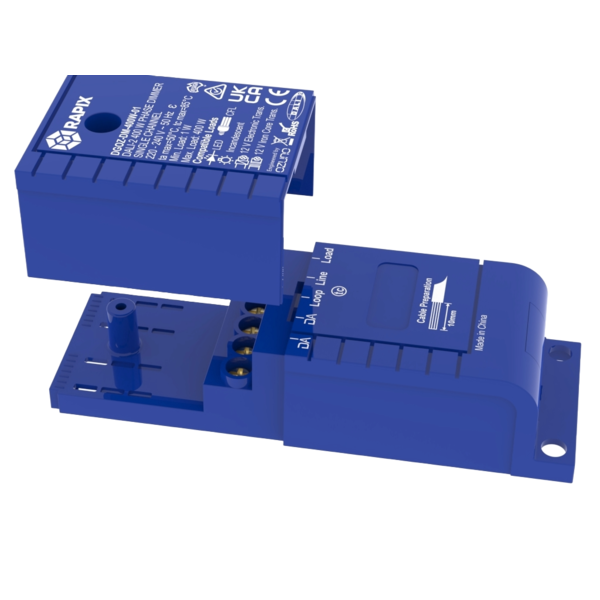

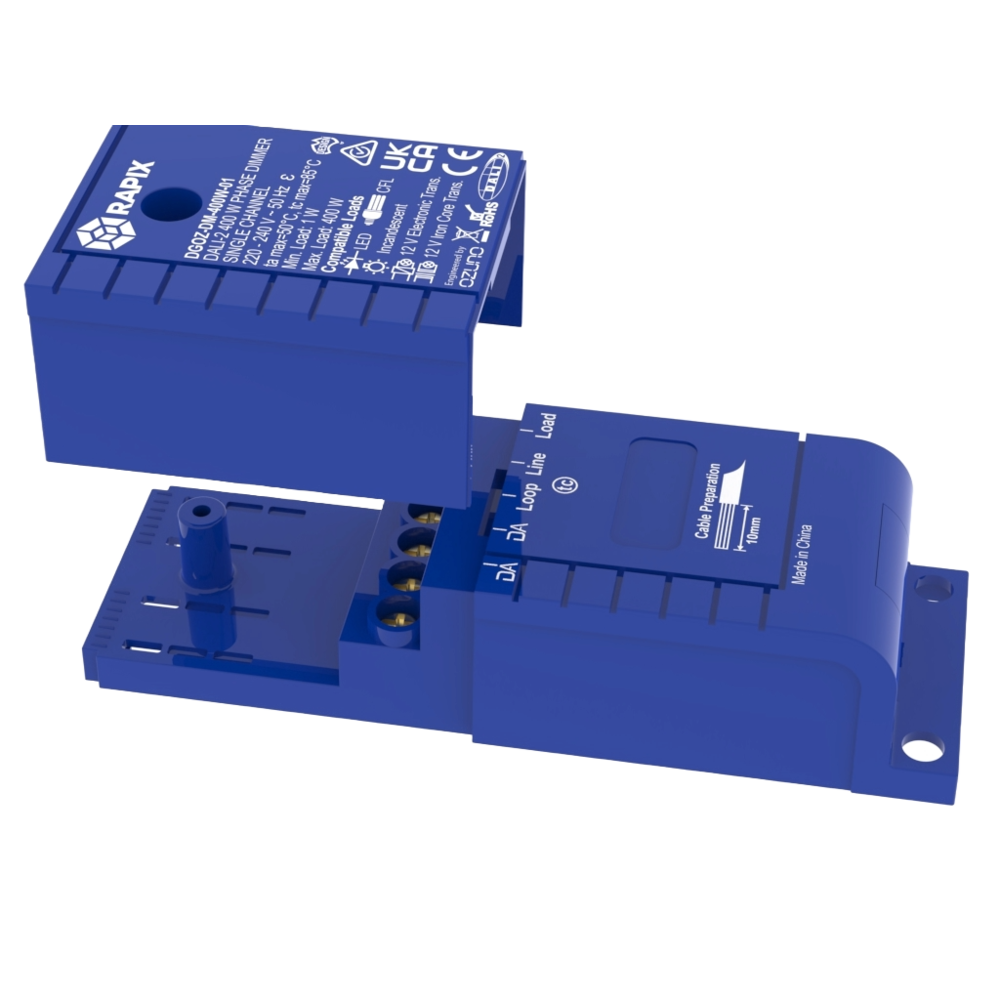

  • A large space is included for terminating 1.5 mm2 or 2.5 mm2 double insulated cables for the ac mains supply cable, switched load output and DALI cable.

Design Specifications

  • Suited to lighting loads up to 500 W (at 40 °C ambient) and 400 W (at 50°C ambient)

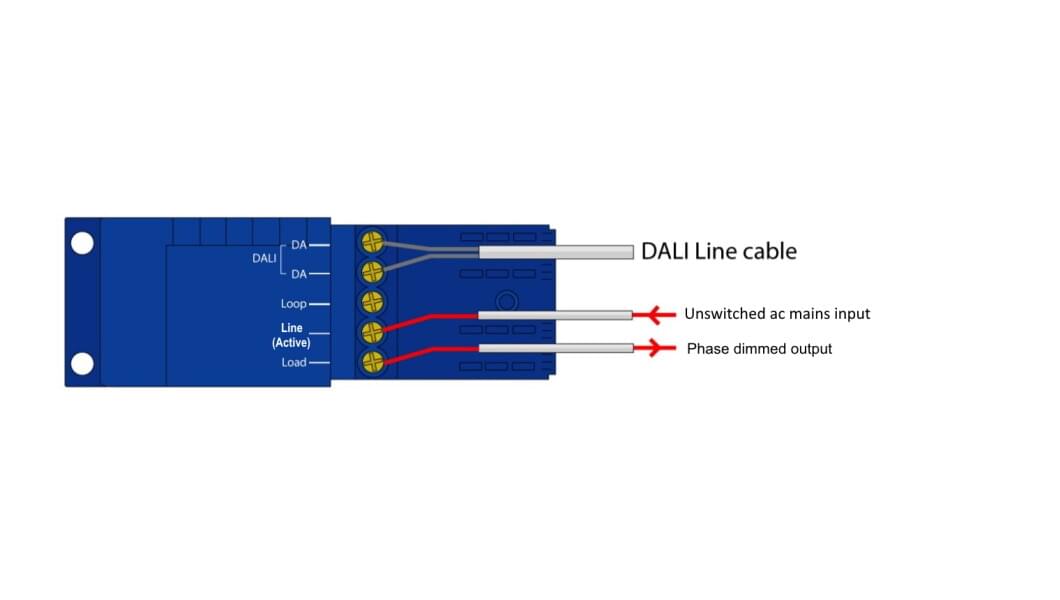

  • Two wire dimming device: no Neutral required, only the ac Line (Active) and Load is connected

  • Suitable for mounting in a ceiling void or on DIN rail using a DIN rail mounting bracket (Sold Separately )

  • Uses 1 DALI Short Address, and can be including in up to 16 DALI Group Addresses and/or up to 16 DALI Scenes

  • DALI Short Address, Group Addresses and DALI Scenes are configured using the RAPIX Addressing or RAPIX Integrator software

  • Available Accessories

    • DIN mount kit #DGOZ-SML-DINBKT

RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. SCR-DGOZ-DM-400W-01 Description RAPIX DALI-2 400W Phase Dimmer Power 400 Add to Enquiry Add Remove Remove
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
