RAPIX DALI-2

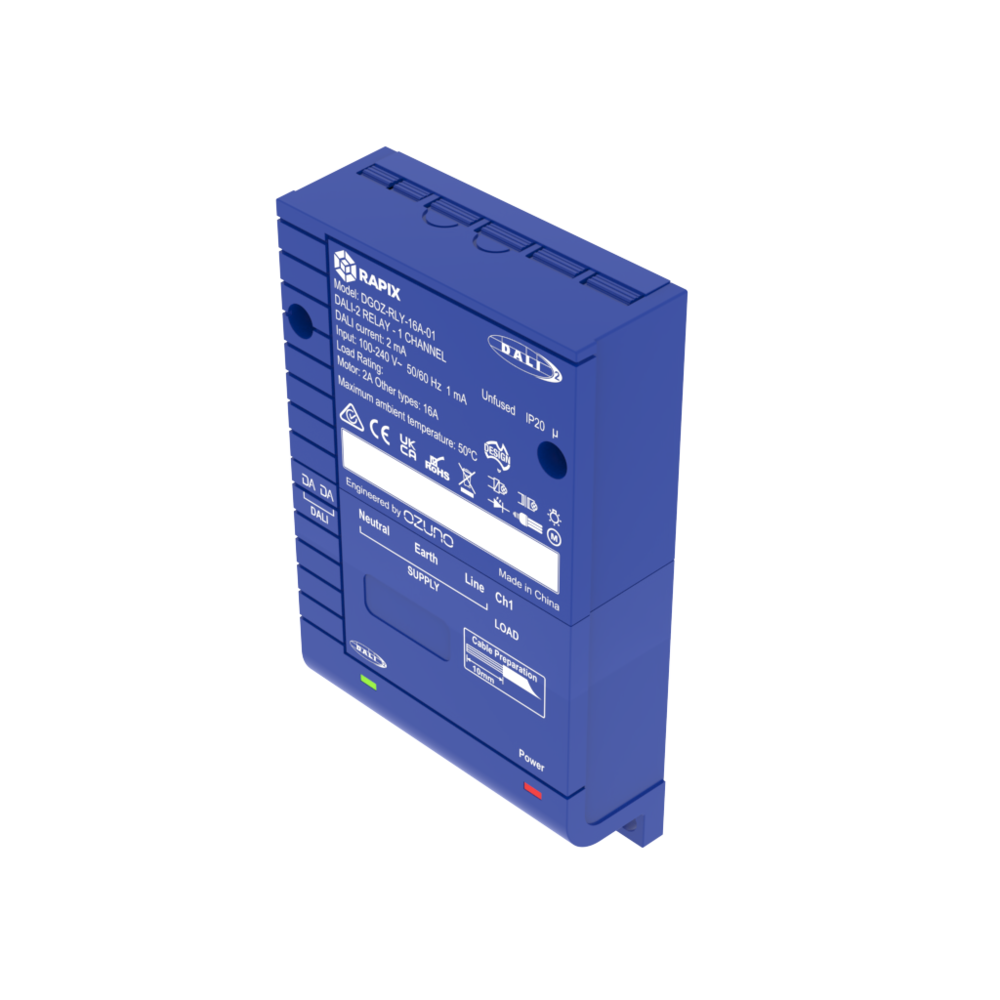

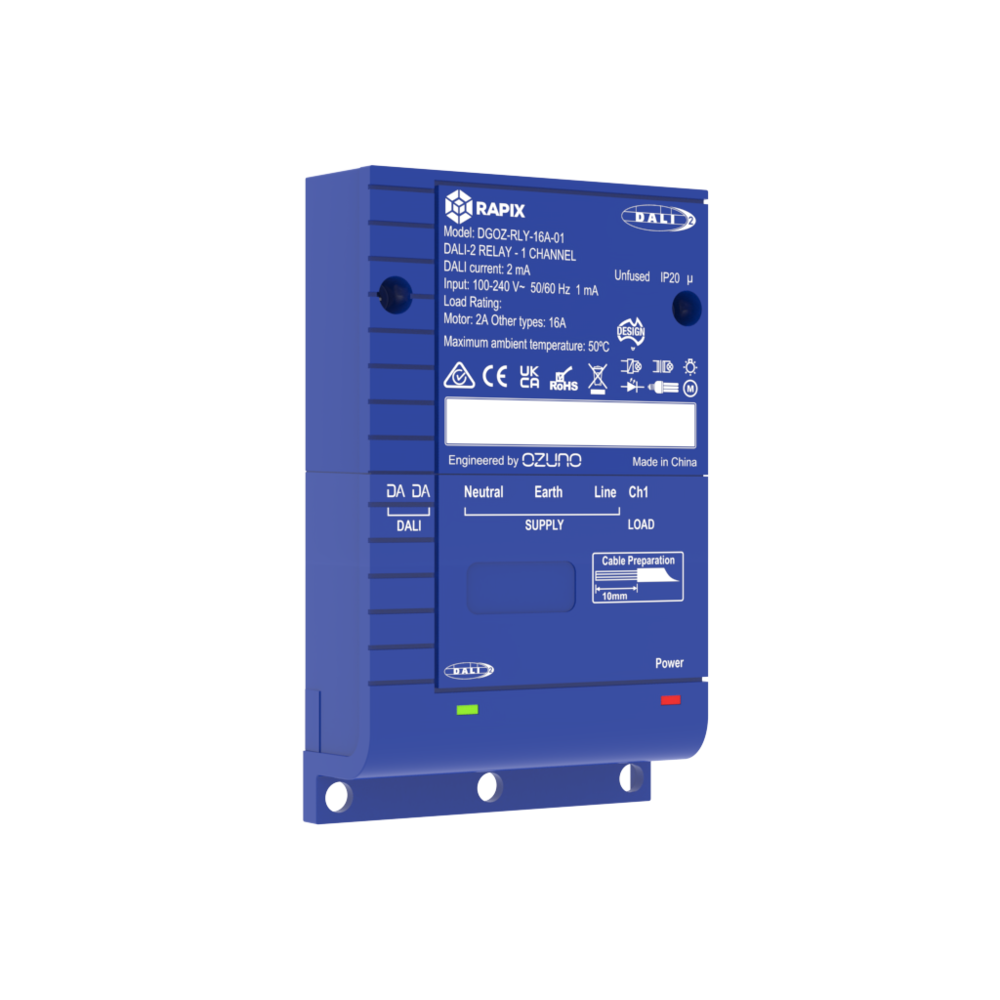

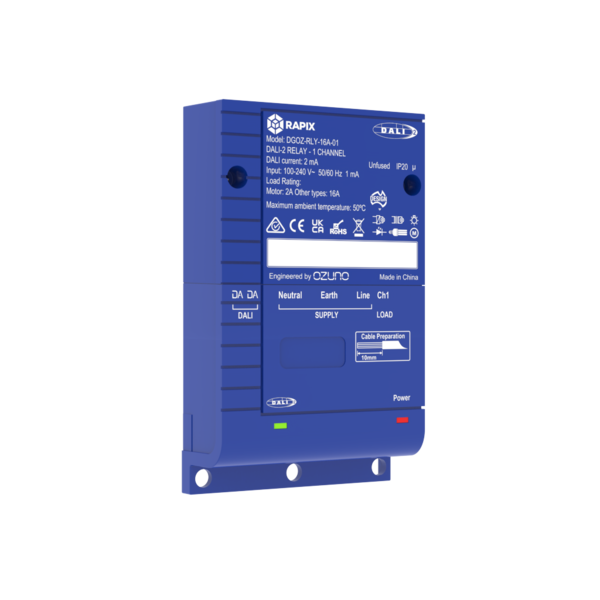

16A Flat Box Relay

Manufactured by Ozuno, a 100% Australian owned premium lighting control systems company based in Adelaide.

DALI One channel relay designed for on/off switching of up to 16 Amps of lighting load via DALI commands issued on a connected DALI line. The on-board 240 V ac rated relay is capable of switching a full 16 A of LED, fluorescent, incandescent and HID lighting loads, making it suitable for a wide range of commercial and industrial building applications.

Application

  • General purpose load switching (ON and OFF) using received DALI commands.

  • Ozuno proprietary zero cross detection feature to maximise life expectancy.

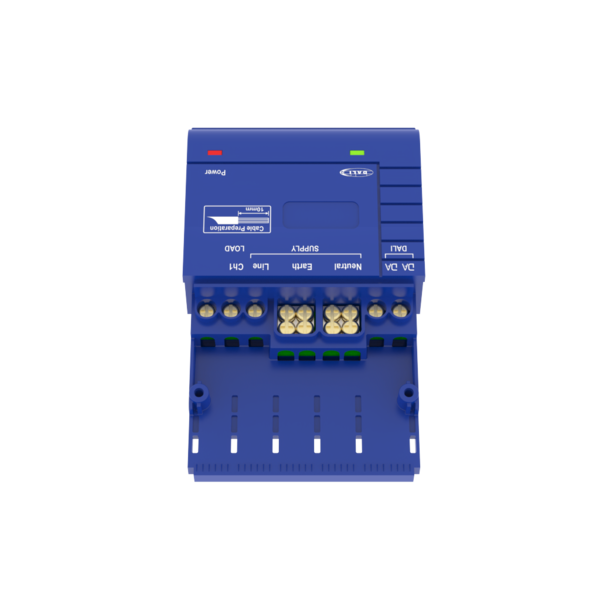

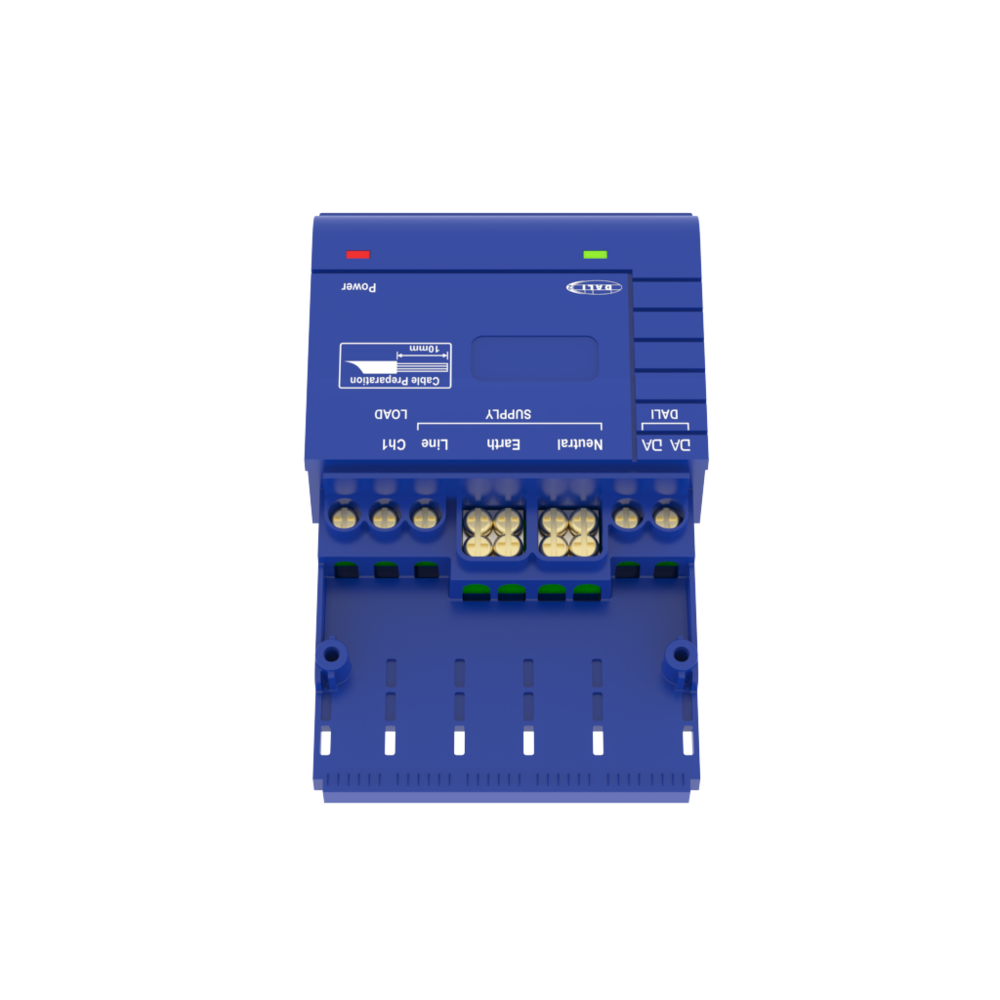

  • A large space is included for terminating 1.5 mm2 or 2.5 mm2 double insulated cables for the ac mains supply cable, switched load output and DALI cable.

  • Suitable for mounting in a ceiling void, or can be DIN rail mounted

Design Specifications

  • Fits through a 90 mm downlight hole

  • Uses a single DALI Short Address; can be included in up to 16 DALI Group Addresses and/or up to 16 DALI Scenes

  • Zero crossing detection to maximise relay contact life

  • DALI Short Address, Group Addresses and DALI Scenes are configured using the RAPIX Addressing or RAPIX Integrator software

  • Available Accessories

    • DIN mount kit #DGOZ-RLY-DINBKT

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SCR-DGOZ-RLY-16A-01 Description1 Channel RAPIX DALI-2 Flat Box 16A Relay Add to Enquiry Add Remove Remove
