RAPIX DALI-2

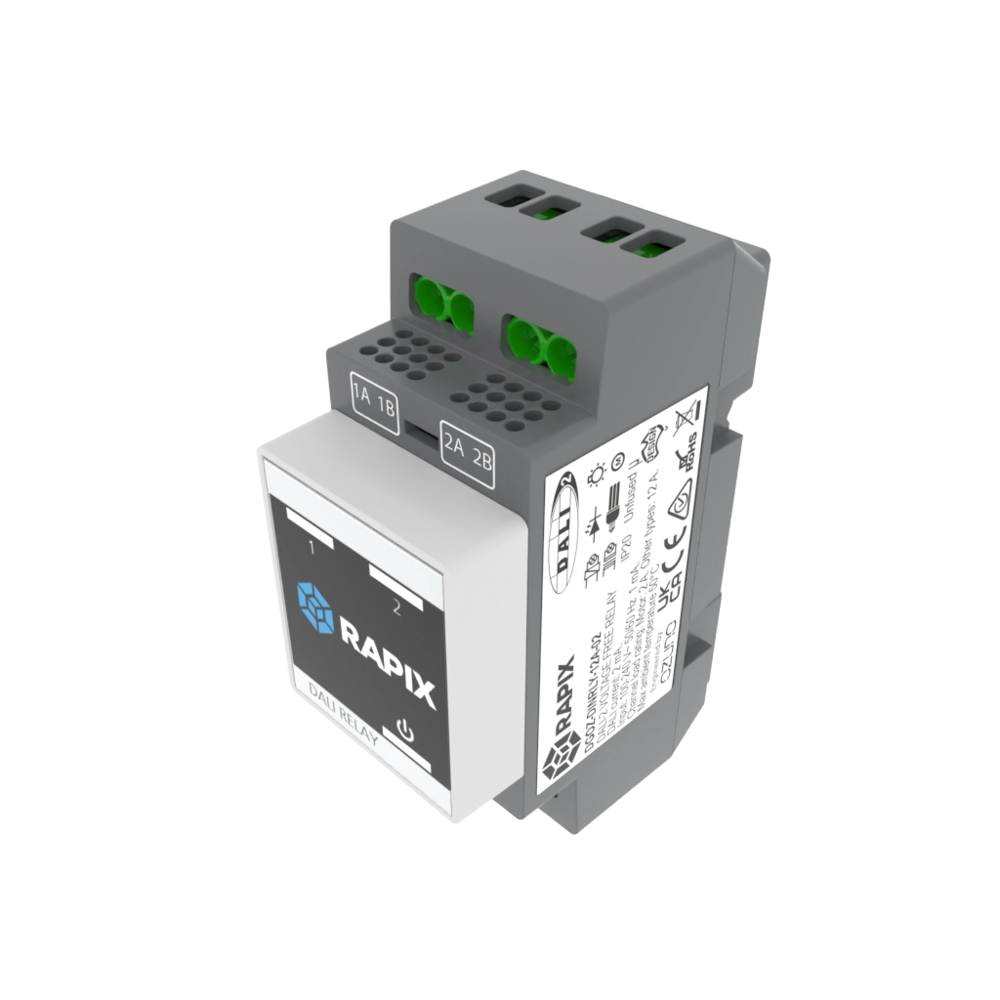

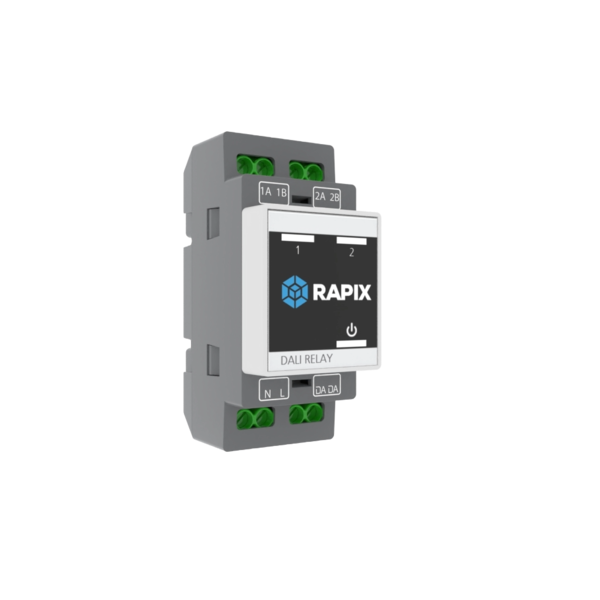

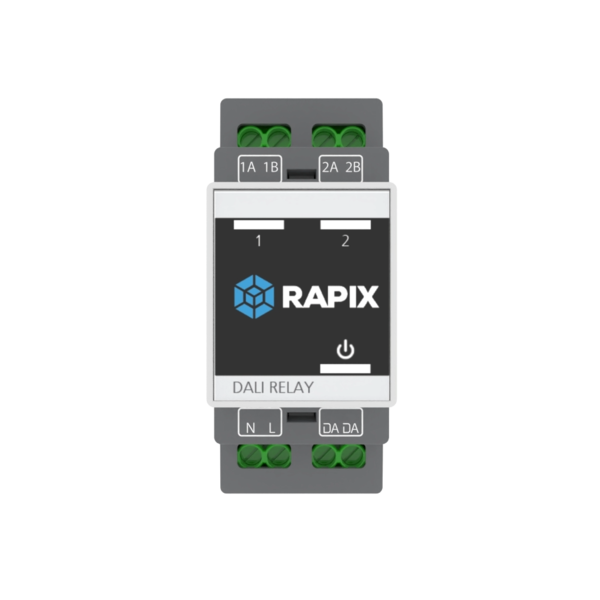

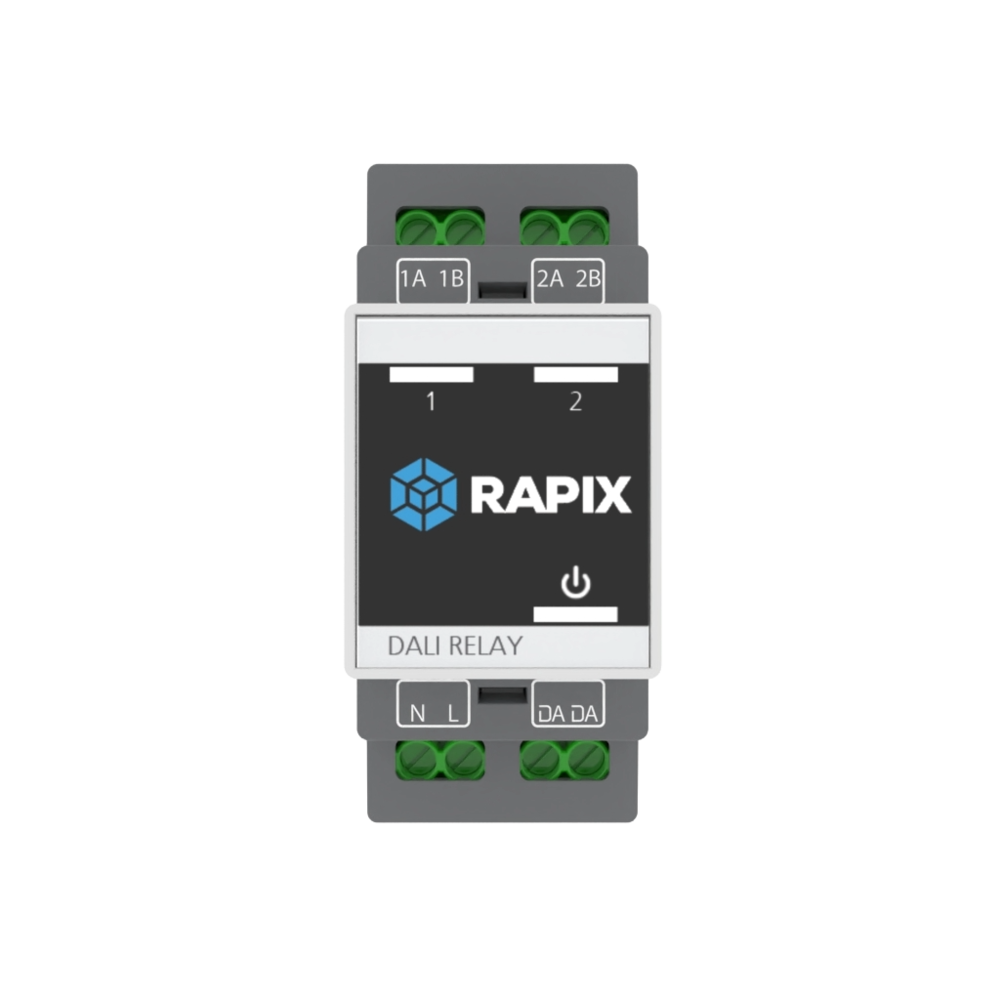

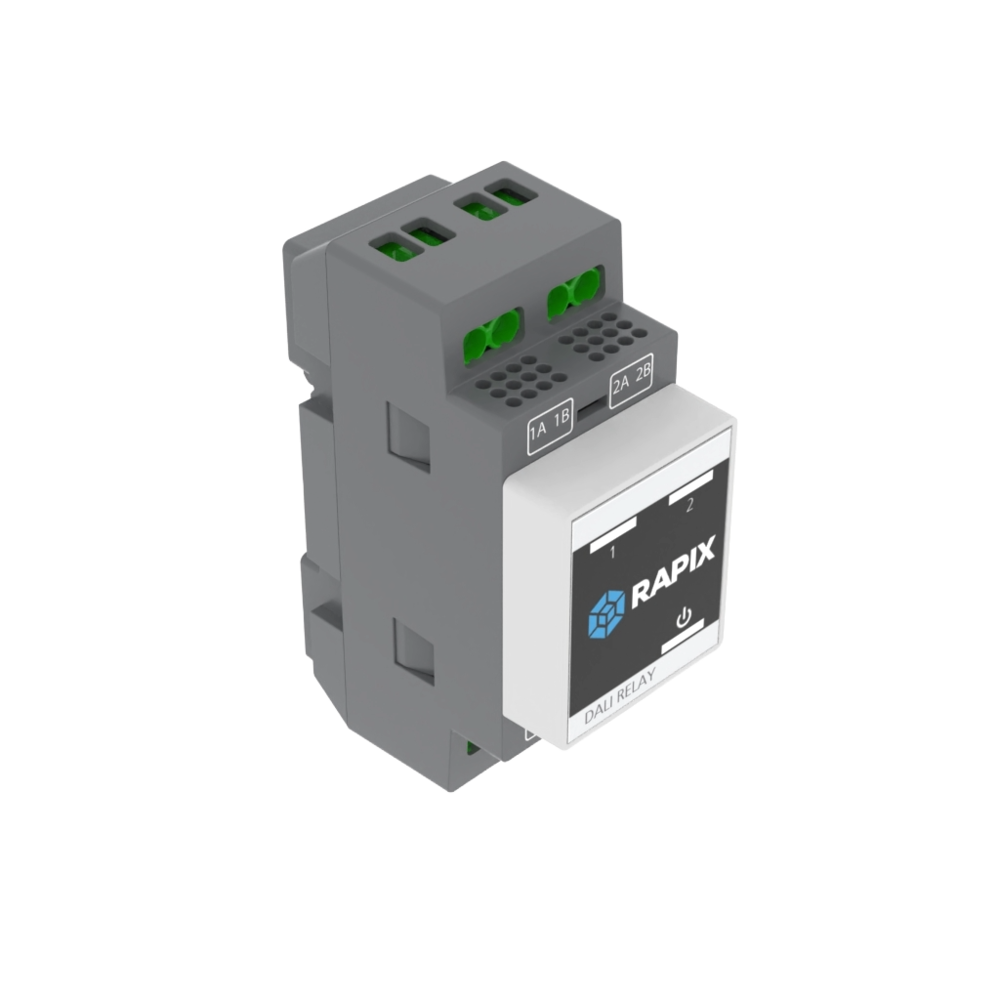

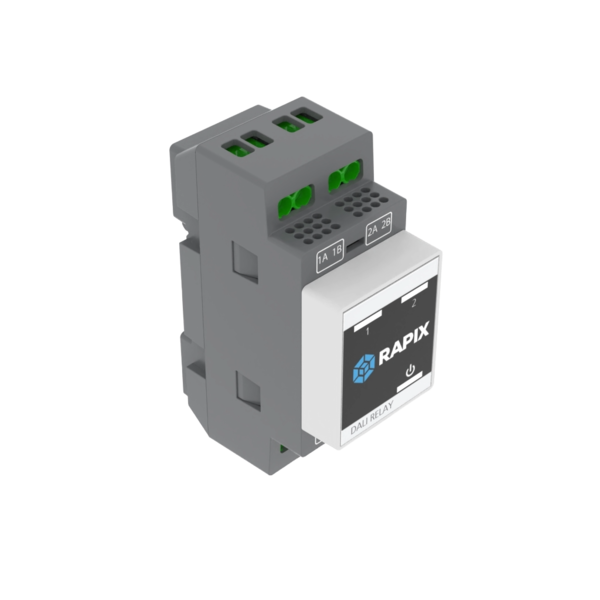

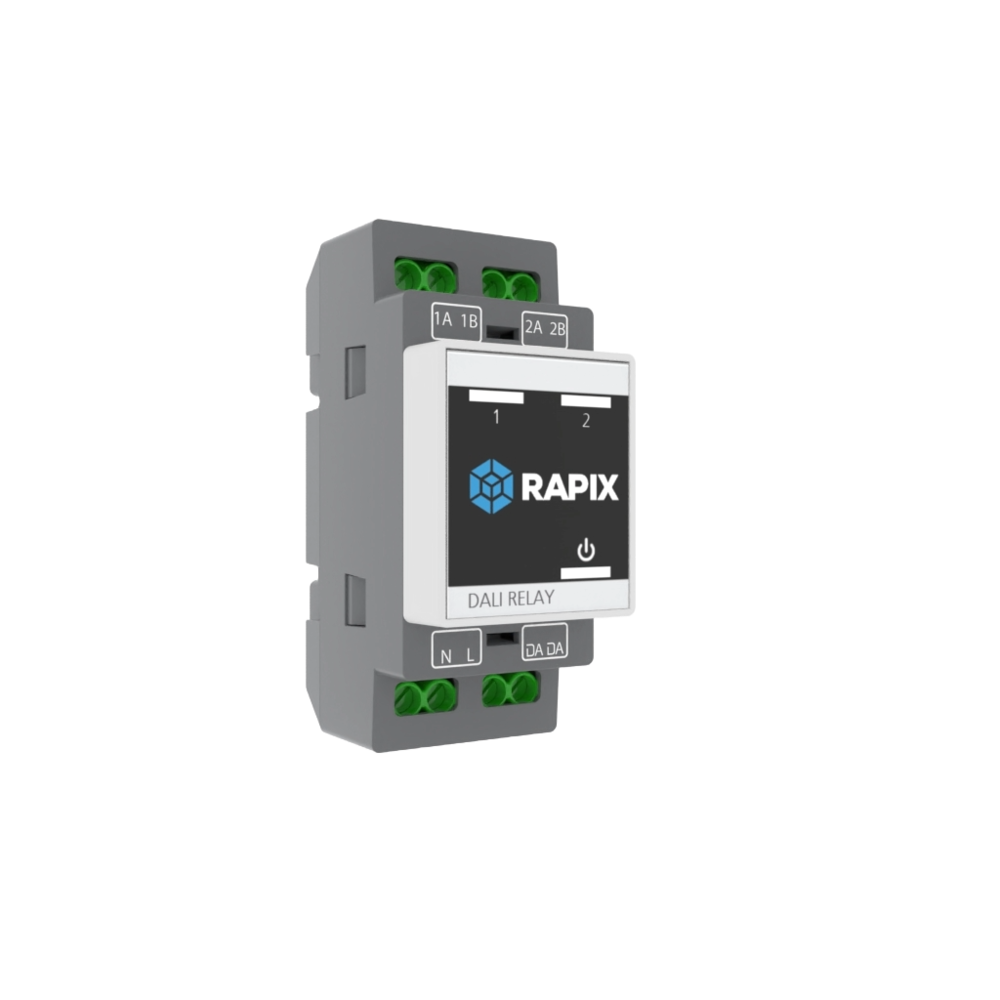

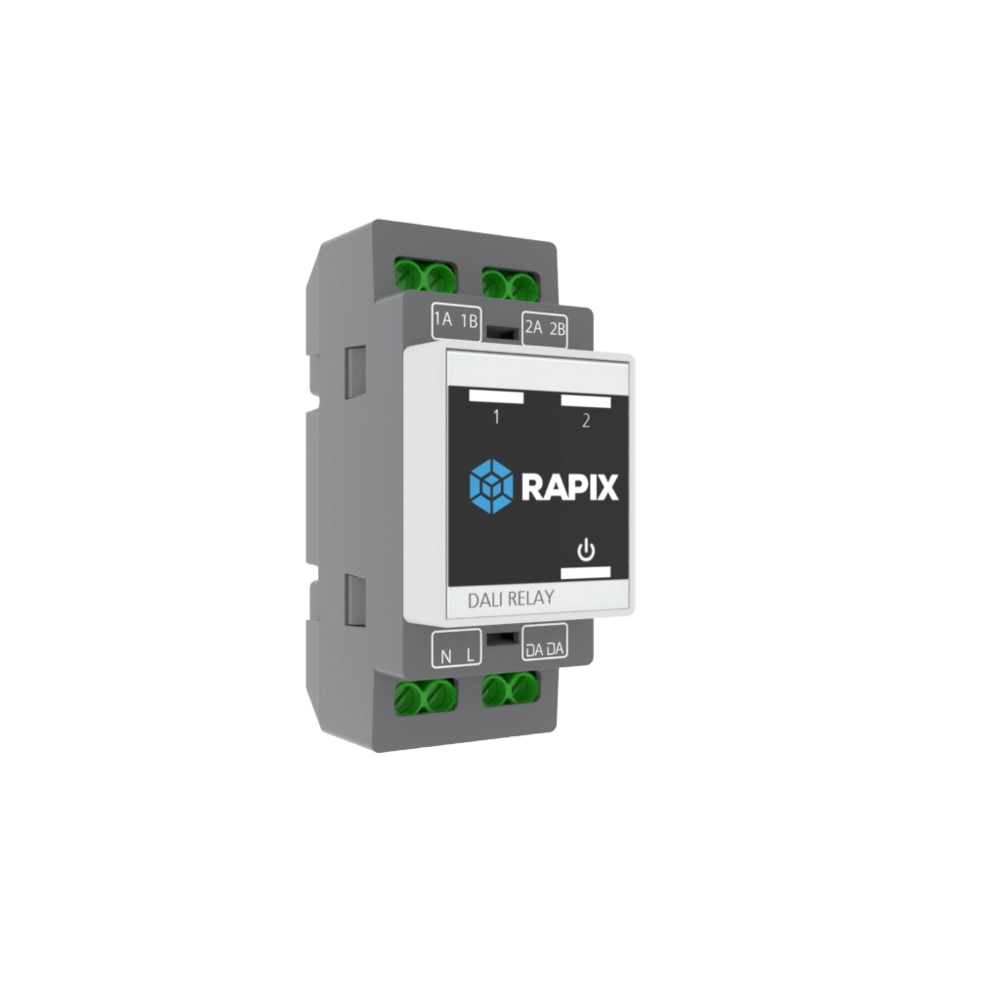

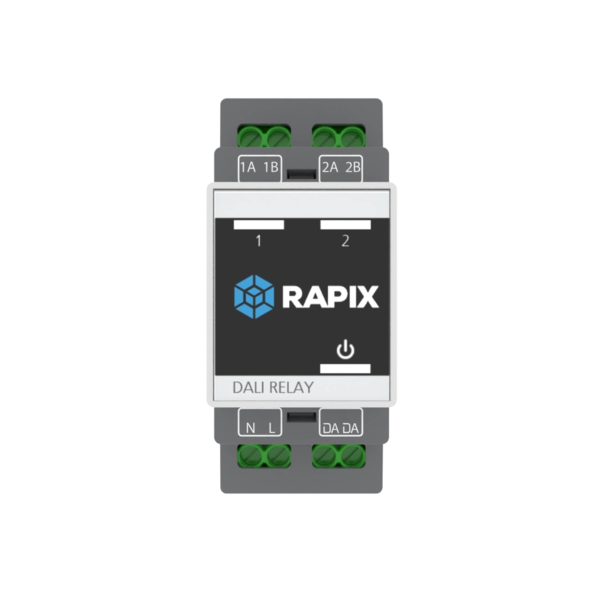

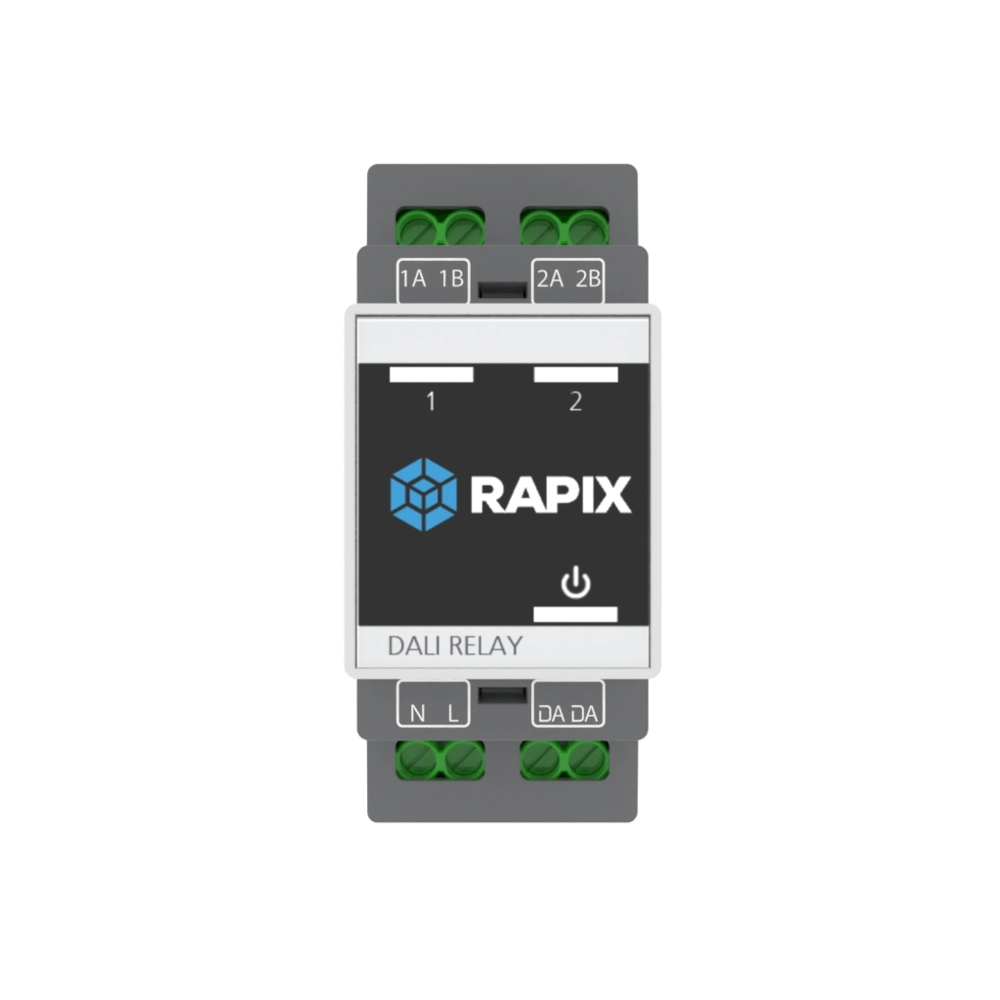

12A DIN Mount Relay

Manufactured by Ozuno, a 100% Australian owned premium lighting control systems company based in Adelaide.

These DALI one and two channel DIN mount Relays are designed for on/off switching of up to 12 Amps of lighting load via DALI commands issued on a connected DALI line.



Application

  • General purpose load switching (ON and OFF) using received DALI commands

  • Ozuno proprietary zero cross detection feature to maximise life expectancy

  • LED indicators (DALI, power, and for each load channel).

Design Specifications

  • Capable of switching 12 AX @ 240 V ac

  • Uses a single DALI Short Address; can be included in up to 16 DALI Group Addresses and/or up to 16 DALI Scenes

  • Zero crossing detection to maximise relay contact life

  • DALI Short Address, Group Addresses and DALI Scenes are configured using the RAPIX Addressing or RAPIX Integrator software


  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SCR-DGOZ-DINRLY-12A-01 Description1 Channel RAPIX DALI-2 DIN 12A Relay Add to Enquiry Add Remove Remove
    Model No.SCR-DGOZ-DINRLY-12A-02 Description2 Channel RAPIX DALI-2 DIN 12A Relay Add to Enquiry Add Remove Remove
