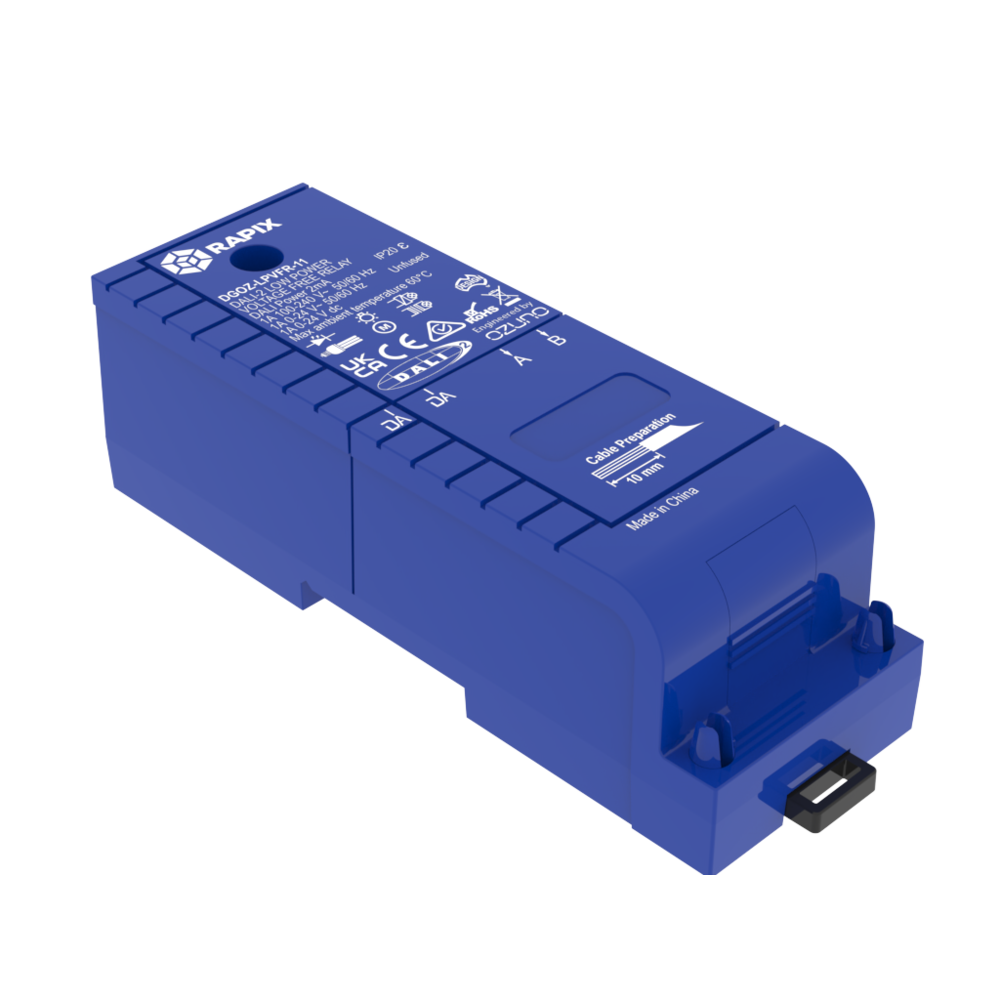

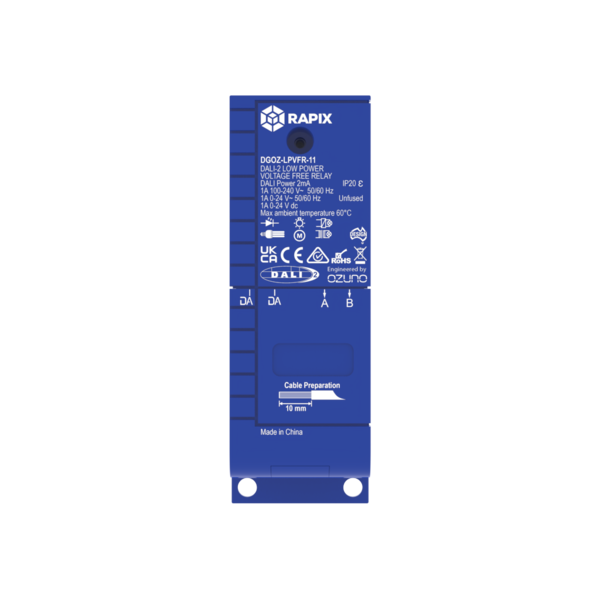

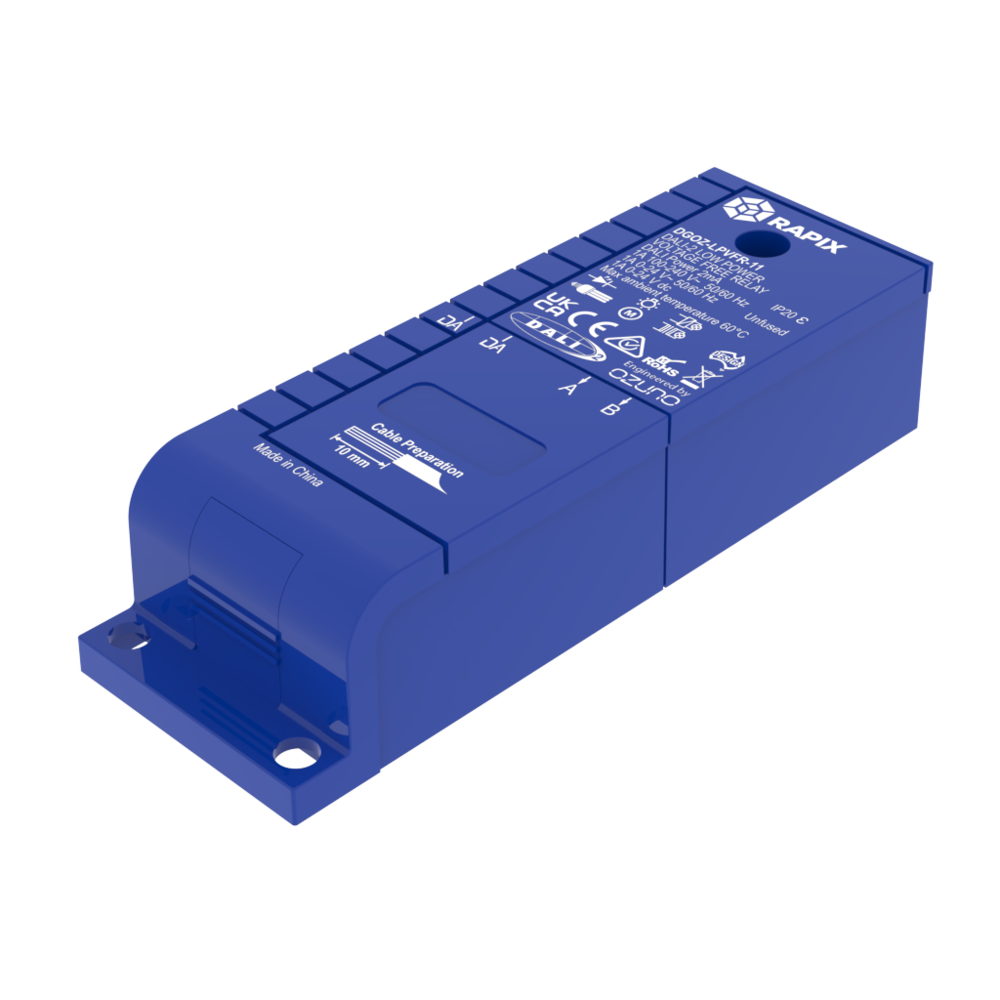

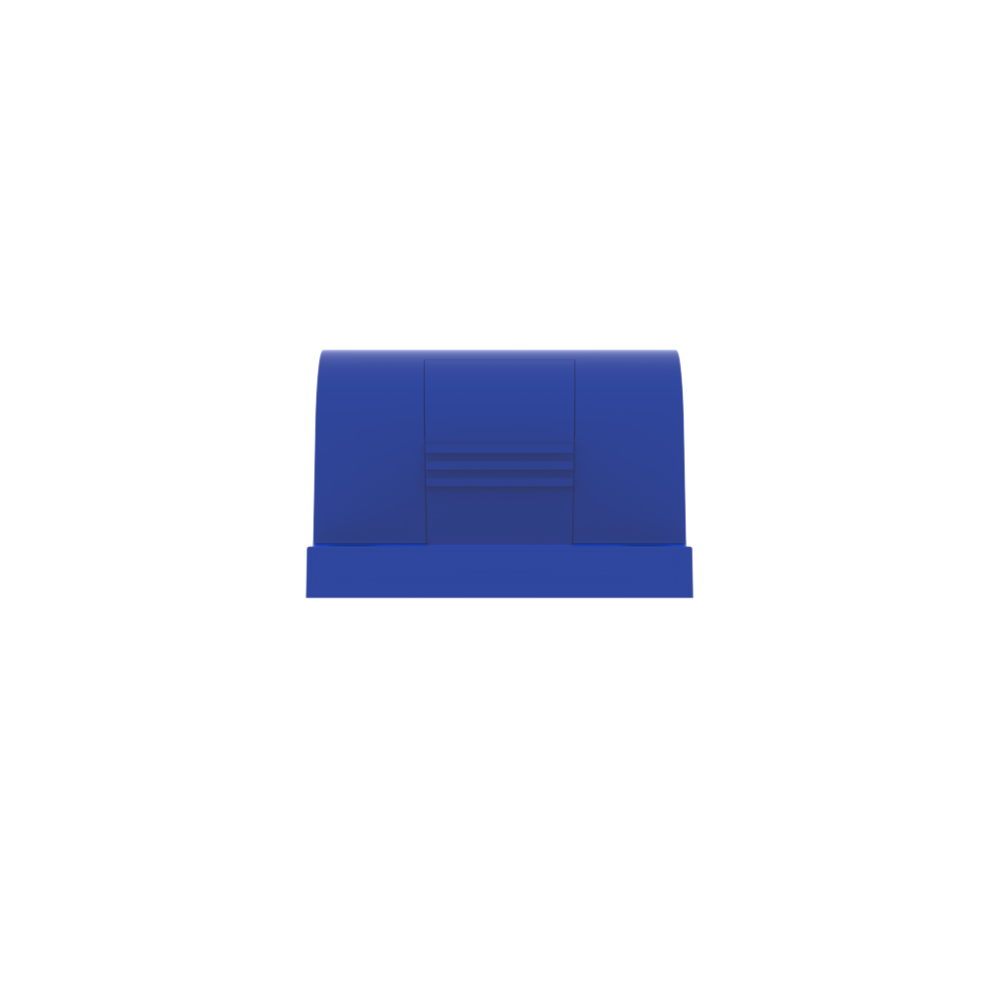

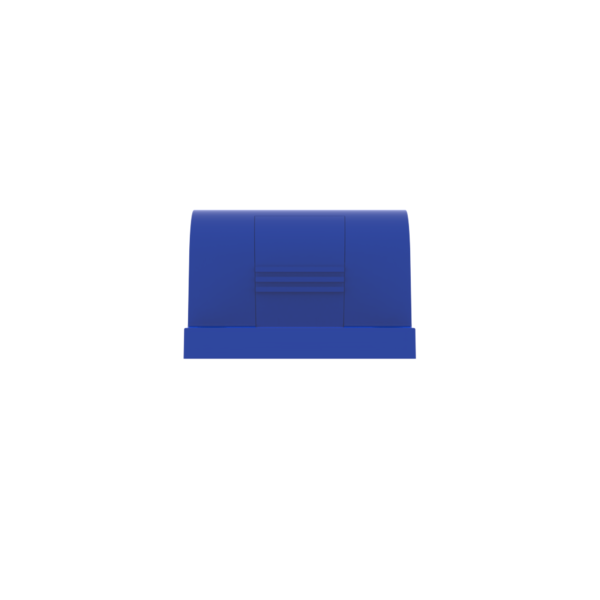

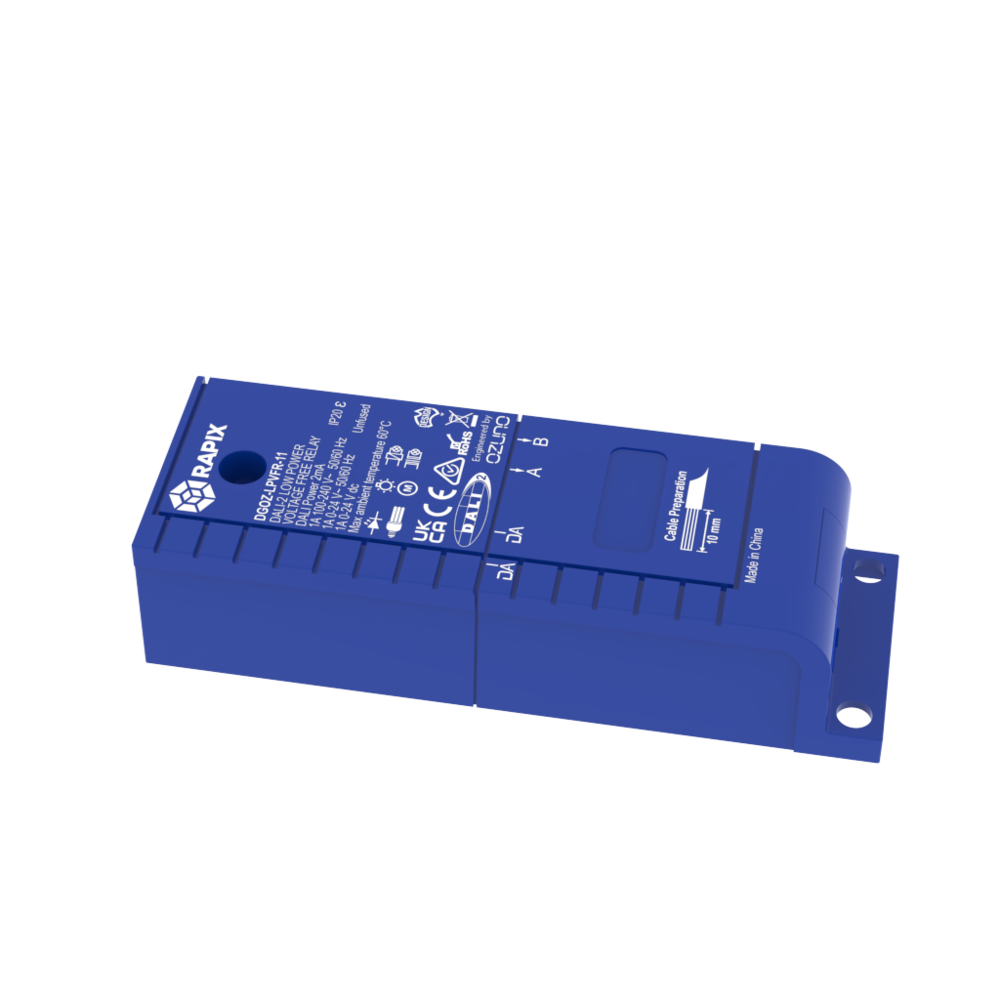

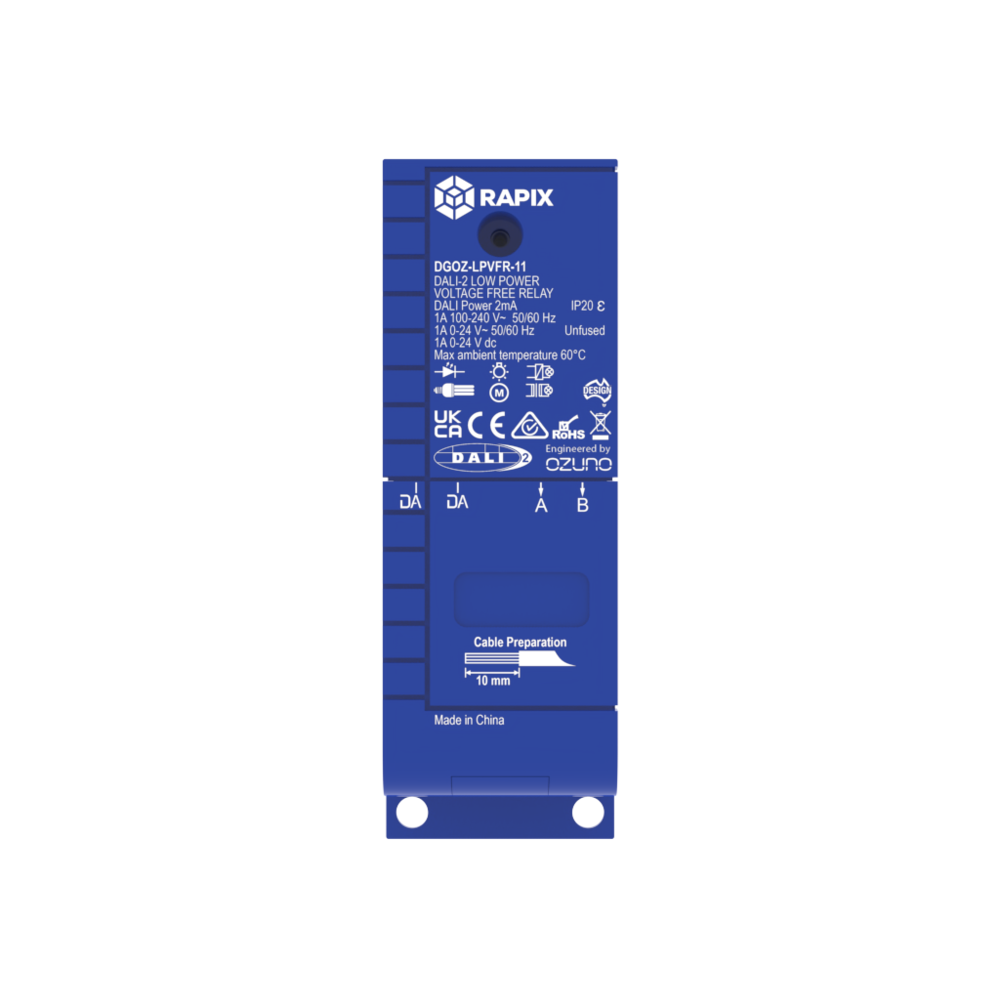

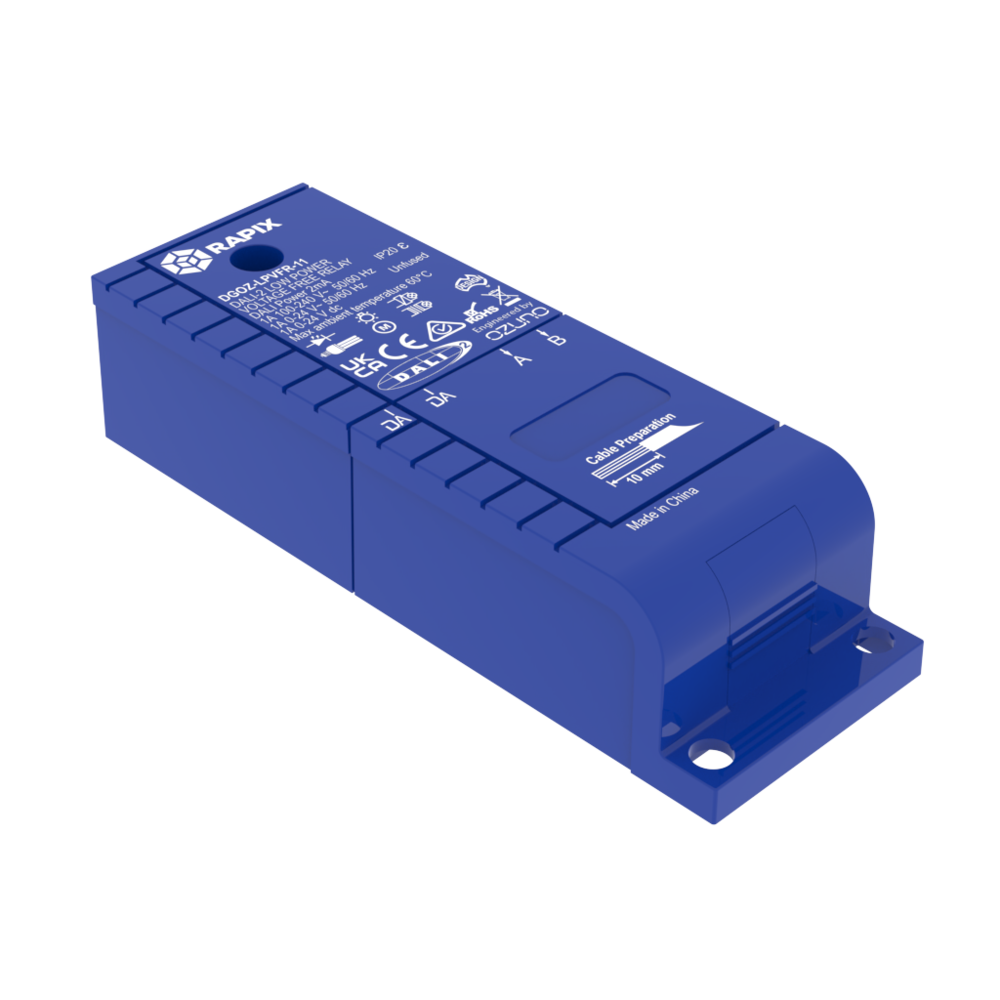

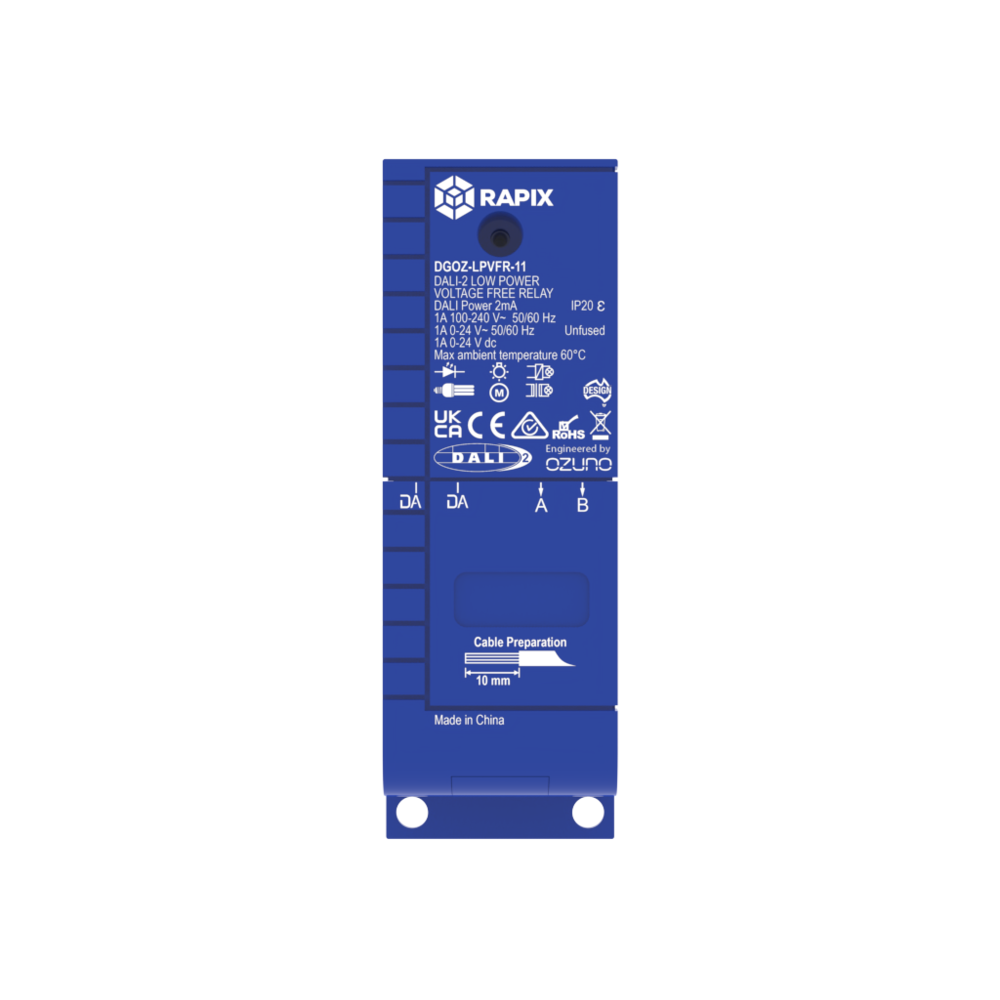

1Amp Volt Free Relay

Manufactured by Ozuno, a 100% Australian owned premium lighting control systems company based in Adelaide.

This Low Power, Voltage Free Relay is a solid-state relay switching device for use on DALI or DALI-2 systems. This relay has certified compliance to DALI-2 Device Type 7 (Switching Function) and includes support for the optional up/down switching thresholds.



Application

  • General purpose load switching (ON and OFF) using received DALI commands.

  • Suitable for ac and dc loads up to 1 Amp

  • A large space is included for terminating 1.5 mm2 or 2.5 mm2 double insulated cables for the ac mains supply cable, switched load output and DALI cable.

  • Suitable for mounting in a ceiling void, or can be DIN rail mounted

Design Specifications

  • Fits through a 90 mm downlight hole

  • Uses a single DALI Short Address; can be included in up to 16 DALI Group Addresses and/or up to 16 DALI Scenes

  • Can be used with SELV and dc loads up to 24 V dc

  • DALI Short Address, Group Addresses and DALI Scenes are configured using the RAPIX Addressing or RAPIX Integrator software

  • Available Accessories

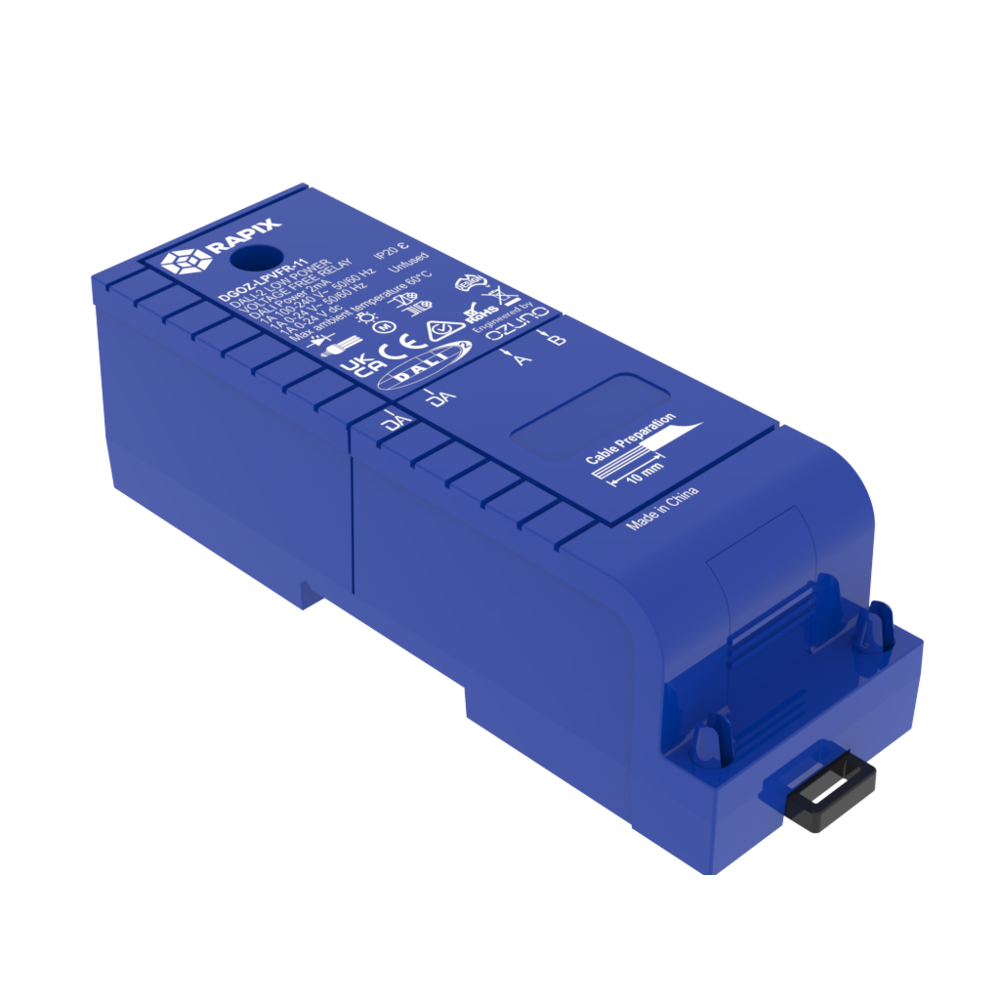

    • DIN mount kit #DGOZ-SML-DINBKT

RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
RAPIX DALI-2
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. SCR-DGOZ-LPVFR-11 Description 1 Channel RAPIX DALI-2 Voltage Free 1A Relay Add to Enquiry Add Remove Remove
