• Commercial LED Architectural

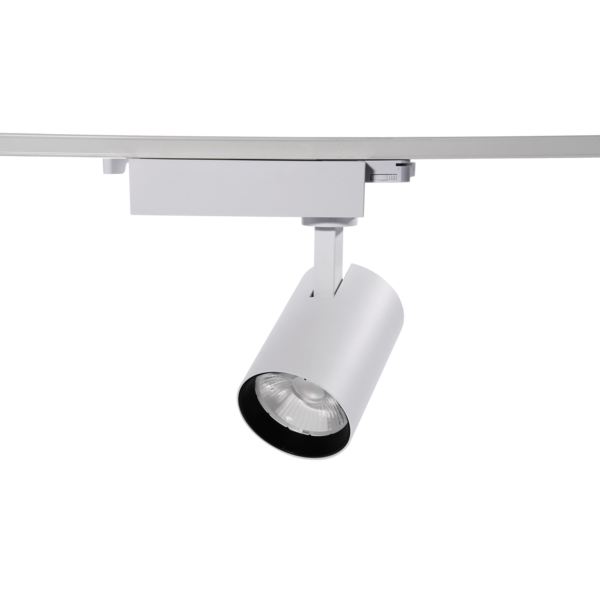

Corsica 80

3 Circuit LED Track Spot

Introducing the Corsica LED track spotlight family. Incorporating multiple sizes, with beam options from narrow to wide and a choice of outputs, there is a model in the Corsica LED track spotlight range to suit your project

Application

The Corsica 80 LED track spotlight model is rated at 38w and is available in a range of beam options from narrow to wide. Suited to applications:

♦ Commercial office fit-outs

♦ Building foyers

♦ Retail applications

♦ Break-out spaces

Design Specifications

  • High output COB LED chip - L70 > 50,000 hours

  • Precise aluminium reflector with 38° beam optic as standard

  • Constant current non-dimmable driver



  • Available Options

    • DALI dimmable driver
    • Phase dimmable driver
    • 2700k, 4000k, 5000k
    • 15°, 24° beam optics
    • Black, white finish
    • Lens options: Honeycomb, cross blade louvre, snoot lens, barn door louvre

Marbella three circuit LED track luminaire - commercial LED architectural lighting
Marbella three circuit LED track luminaire - commercial LED architectural lighting
  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens Colour Temp. Beam Angle CRI Diameter Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. SCS3C3830N38D Description Corsica 80 LED track spot, non dimmable, white finish Power 38 Lumens 3200 Colour Temp. 3000 Beam Angle 38 CRI 90 Diameter 79 Add to Enquiry Add Remove Remove

      Code Methodology: SCS = Model |  3C = 3 Circuit  |  38 = Wattage  |  30 = CCT  |  N = Dimming Type |  38D = Beam Optic
      Variants Available;

      Range Prefix - SCS
      3 Circuit - 3C
      Wattage - 38
      CCT - 30 = 3000K / 40 = 4000k / 27 = 2700k / 50 = 5000k
      Dimming type - N = Non Dim / D = DALI / P = Phase Dim
      Beam Angle (38° nominated as standard) - 15D = 15 Degree / 24D = 24 degree
      Finish (White as Standard) - BK = Black

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
