• Commercial LED Architectural

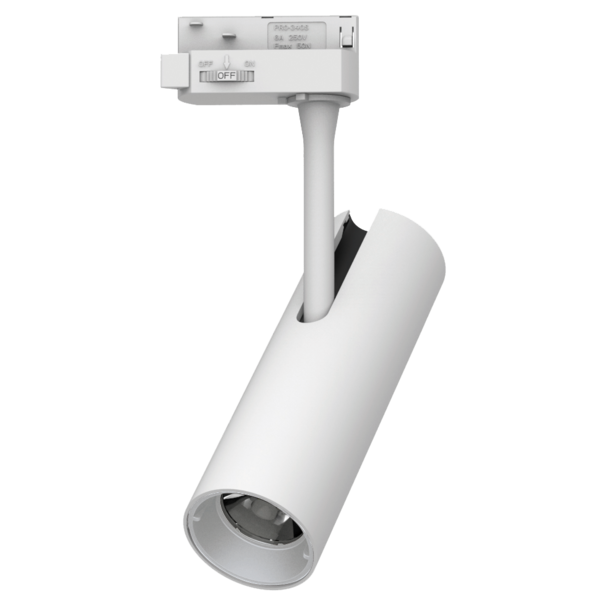

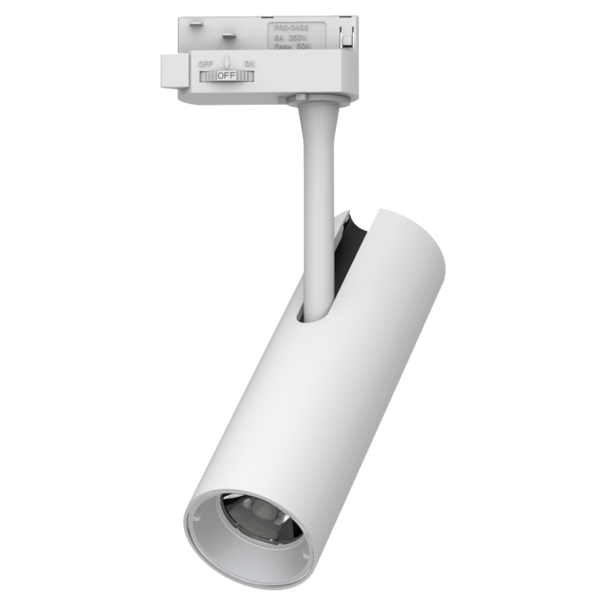

Corsica 55

3 Circuit LED Track Spot

Introducing the Corsica LED track spotlight family. Incorporating multiple sizes, with beam options from narrow to wide and a choice of outputs, there is a model in the Corsica LED track spotlight range to suit your project

Application

The Corsica 55 LED track spotlight model is rated at 20w and is available in a range of beam options from narrow to wide. Suited to applications:

♦ Commercial office fit-outs

♦ Building foyers

♦ Retail applications

♦ Break-out spaces

Design Specifications

  • High output COB LED chip - L70 > 50,000 hours

  • Soft diffusion lens with 38° beam optic as standard

  • Constant current non-dimmable driver



  • Available Options

    • DALI dimmable driver
    • Phase dimmable driver
    • 2700k, 4000k, 5000k
    • 15°, 24° and 55° beam optics
    • Black, white finish
    • Honeycomb lens

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer DALI YES
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens Colour Temp. Beam Angle CRI Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SCS3C2030N38D DescriptionCorsica 55 LED track spot, non dimmable, white finish Power20 Lumens1900 Colour Temp.3000 Beam Angle38 CRI90 Diameter55 Add to Enquiry Add Remove Remove

    Code Methodology: SCS = Model |  3C = 3 Circuit  |  20 = Wattage  |  30 = CCT  |  N = Dimming Type |  38D = Beam Optic
    Variants Available:

    Range Prefix - SCS
    3 Circuit - 3C
    Wattage - 20
    CCT - 30 = 3000K / 40 = 4000k / 27 = 2700k / 50 = 5000k
    Dimming type - N = Non Dim / D = DALI / P = Phase Dim
    Beam Angle (38° nominated as standard) - 15D = 15 Degree / 24D = 24 degree / 55D = 55 degree
    Finish (White as Standard) - BK = Black

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
