• Commercial LED Downlights

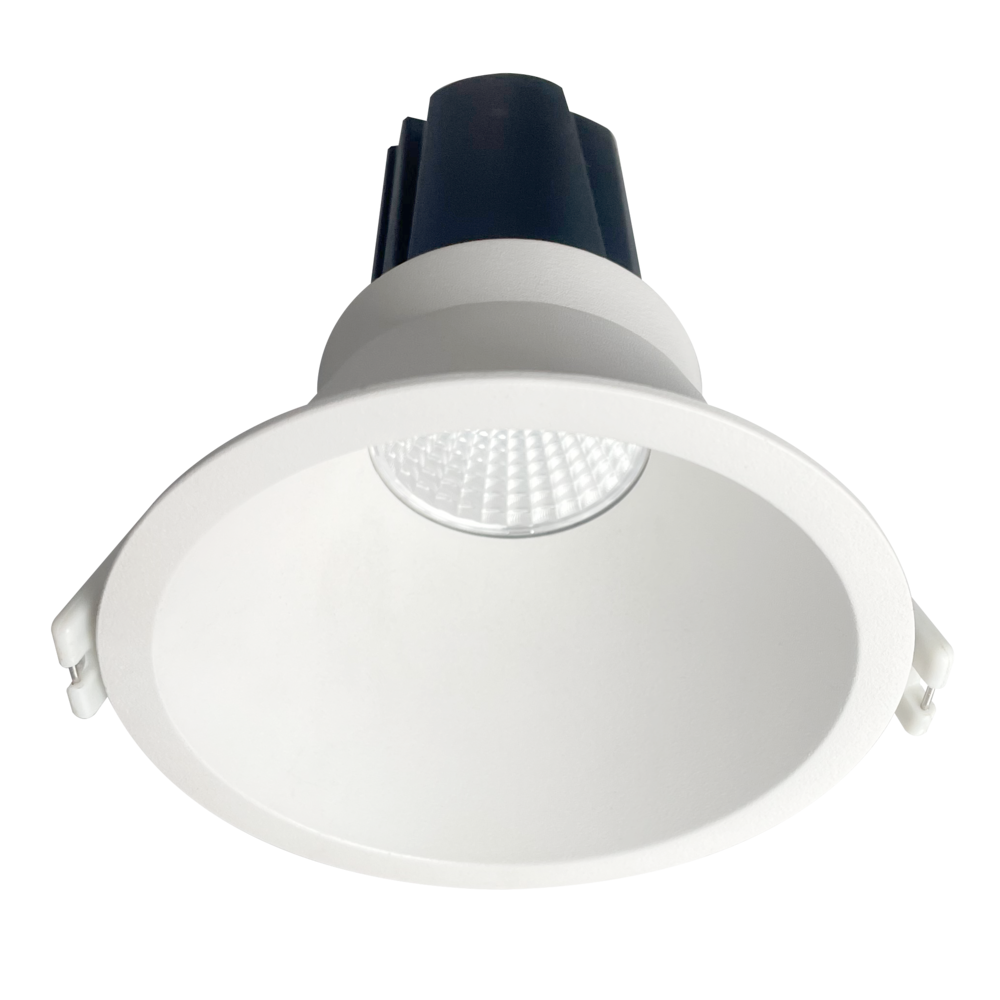

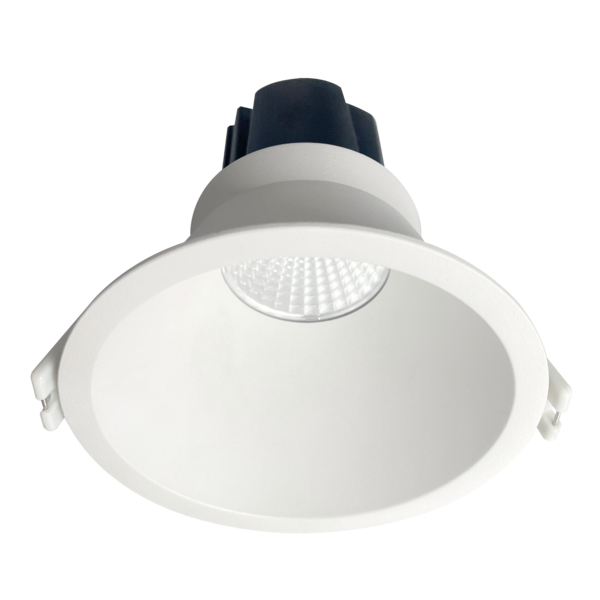

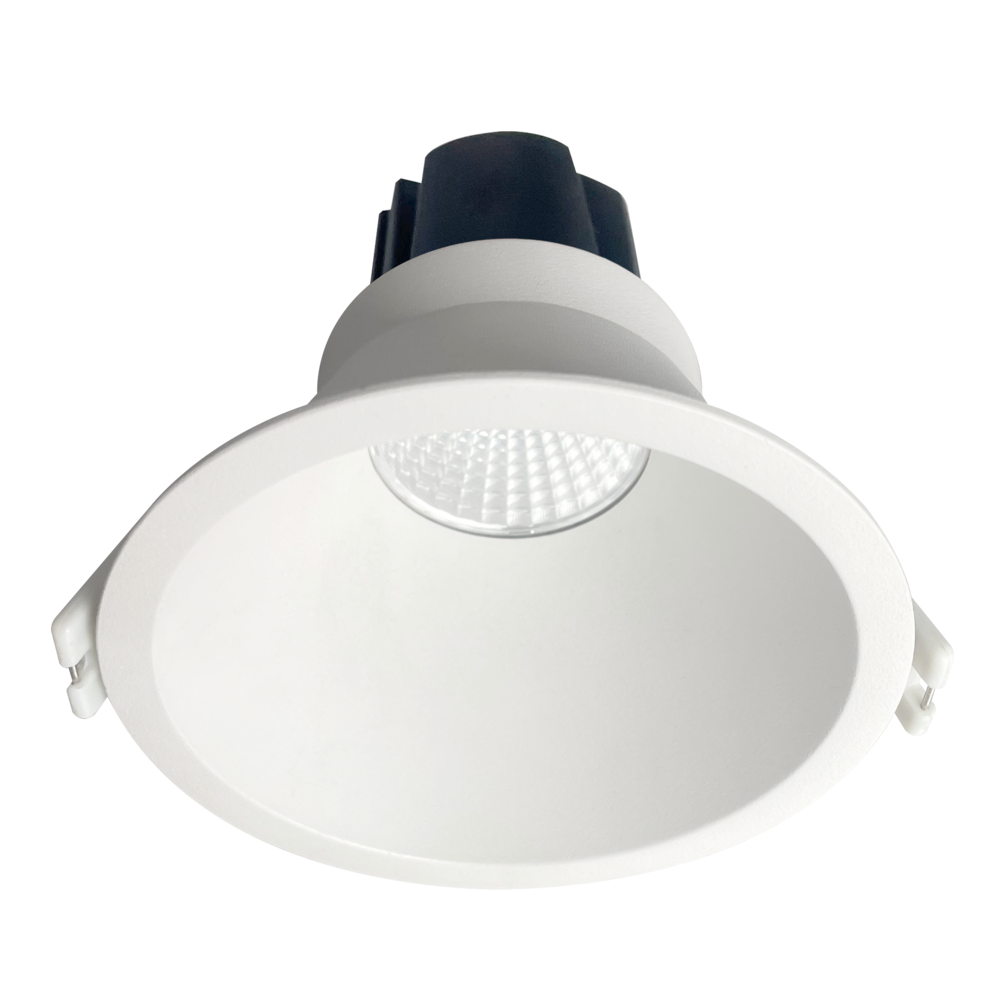

Bordeaux Gen II F90

Fixed 90mm Architectural LED Downlight

The Bordeaux F90 Architectural LED Downlight is an ideal choice for those seeking sophisticated lighting solutions that don’t compromise on performance. Renowned for its exceptional color rendering, this downlight enhances the beauty of any space while providing a warm and inviting ambiance.

With its low glare optics, the Bordeaux F90 ensures that the light is comfortable and unobtrusive, making it perfect for creating a serene atmosphere in any setting—be it a cozy home or a bustling commercial environment. This versatility allows it to seamlessly integrate into a variety of applications, including residential interiors, upscale foyers, and professional boardrooms.

Plus, its design is aligned with wellness standards, making it suitable for WELL Building projects, thereby supporting not only aesthetic appeal but also the health and well-being of occupants.

Transform your project with the Bordeaux F90 Architectural LED Downlight. Experience the blend of modern style, advanced engineering, and impeccable quality that can elevate the ambiance and functionality of any space.

Application

  • Residential properties
  • Aged care and Healthcare facilities
  • Commercial offices and foyers
  • Meeting and Boardrooms
  • Retail outlets
  • Amenity areas

Design Specifications

  • Dual CCT with selectable dip switch - 3000K and 4000K

  • R9 >50 Well Building Compliant

  • CRI 90+

  • Set-back Die-cast aluminium housing with excellent glare control

  • IP65 from below as standard

  • Standard with 60º aluminium reflector

    Available reflector options - 15º / 24º and 36º


  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

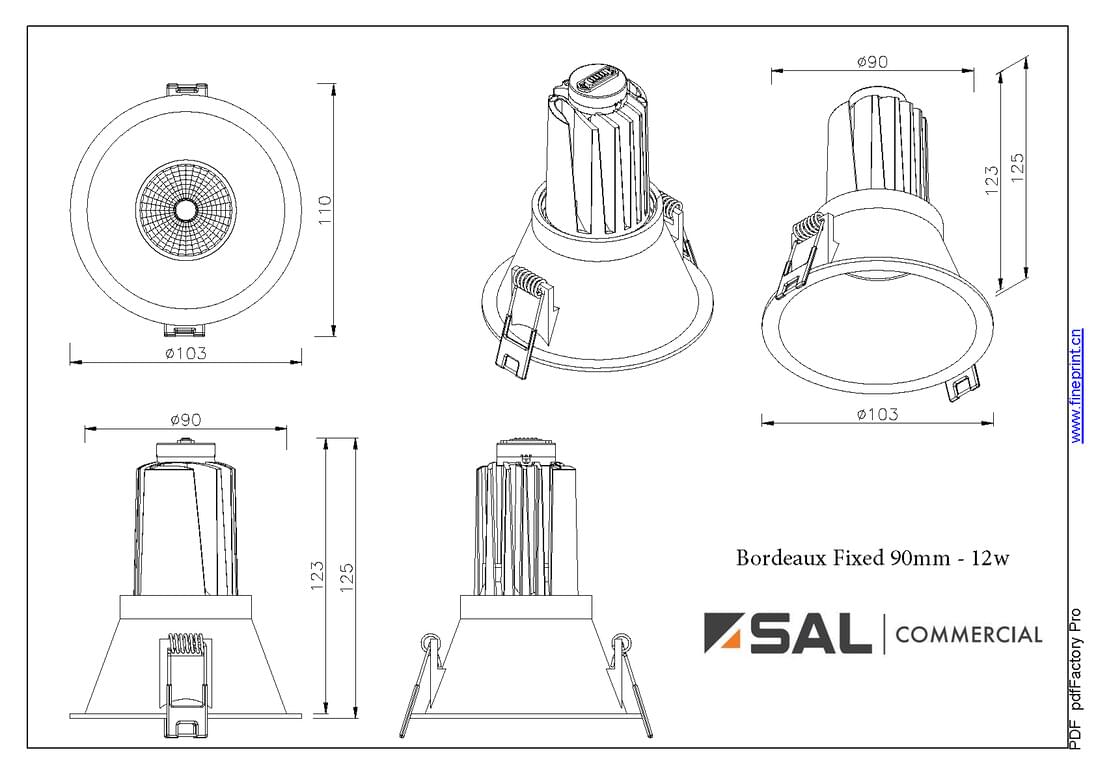

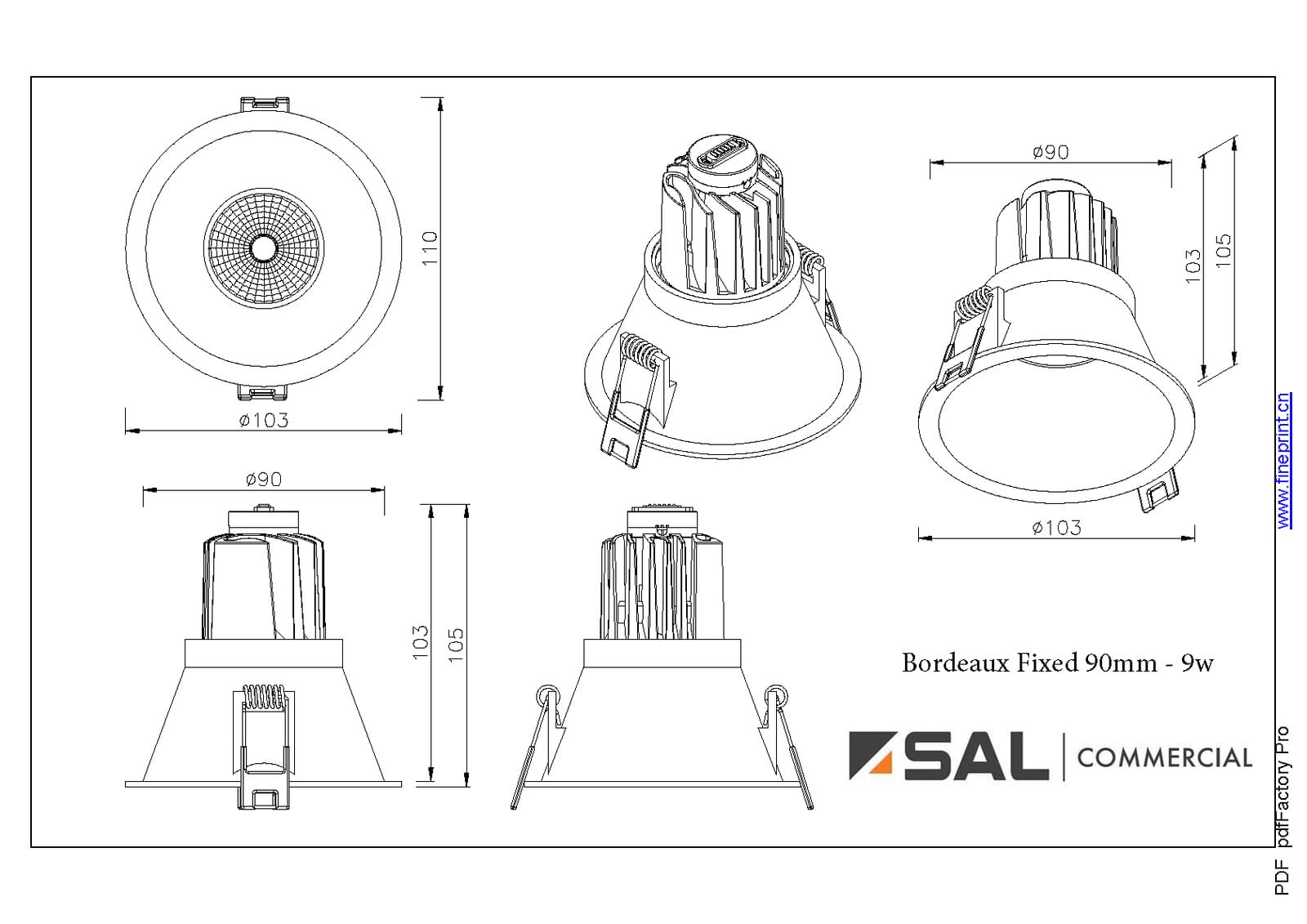

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer DALI YES
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.DBX09F9DCPWH DescriptionBordeaux Low Glare IP65 LED Downlight, Remote Phase Dimmable Driver, White Housing Power9 Lumens706/749 CCT3000/4000 Beam Angle60 R9>50 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DBX09F9DCDWH DescriptionBordeaux Low Glare IP65 LED Downlight, Remote DALI2 Dimmable Driver, White Housing Power9 Lumens706/749 CCT3000/4000 Beam Angle60 R9>50 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DBX09F12DCPWH DescriptionBordeaux Low Glare IP65 LED Downlight, Remote Phase Dimmable Driver, White Housing Power12 Lumens962/1008 CCT3000/4000 Beam Angle60 R9>50 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DBX09F12DCDWH DescriptionBordeaux Low Glare IP65 LED Downlight, Remote DALI2 Dimmable Driver, White Housing Power12 Lumens962/1008 CCT3000/4000 Beam Angle60 R9>50 CRI90 Dimmable YES Add to Enquiry Add Remove Remove
    Model No.DBX07FBKHS DescriptionBordeaux 70mm Fixed Black Housing *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBX07FWHHS DescriptionBordeaux 70mm Fixed White Housing *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBX09FBKHS DescriptionBordeaux 90mm Fixed Black Housing *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBX09GBKHS DescriptionBordeaux 90mm Gimble Black Housing *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBX09GWHHS DescriptionBordeaux 90mm Gimble White Housing *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBXREF15 DescriptionBordeaux 15 Degree Reflector *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBXREF24 DescriptionBordeaux 24 Degree Reflector *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
    Model No.DBXREF36 DescriptionBordeaux 36 Degree Reflector *ordered as a spare part Power Lumens CCT Beam Angle R9 CRI Dimmable Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
