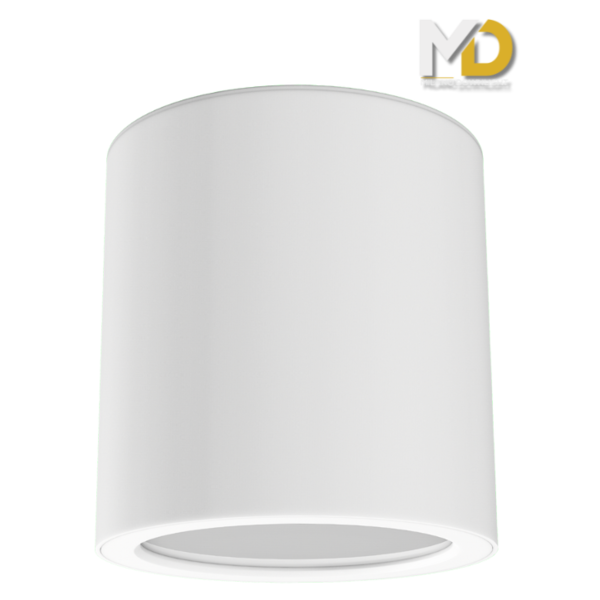

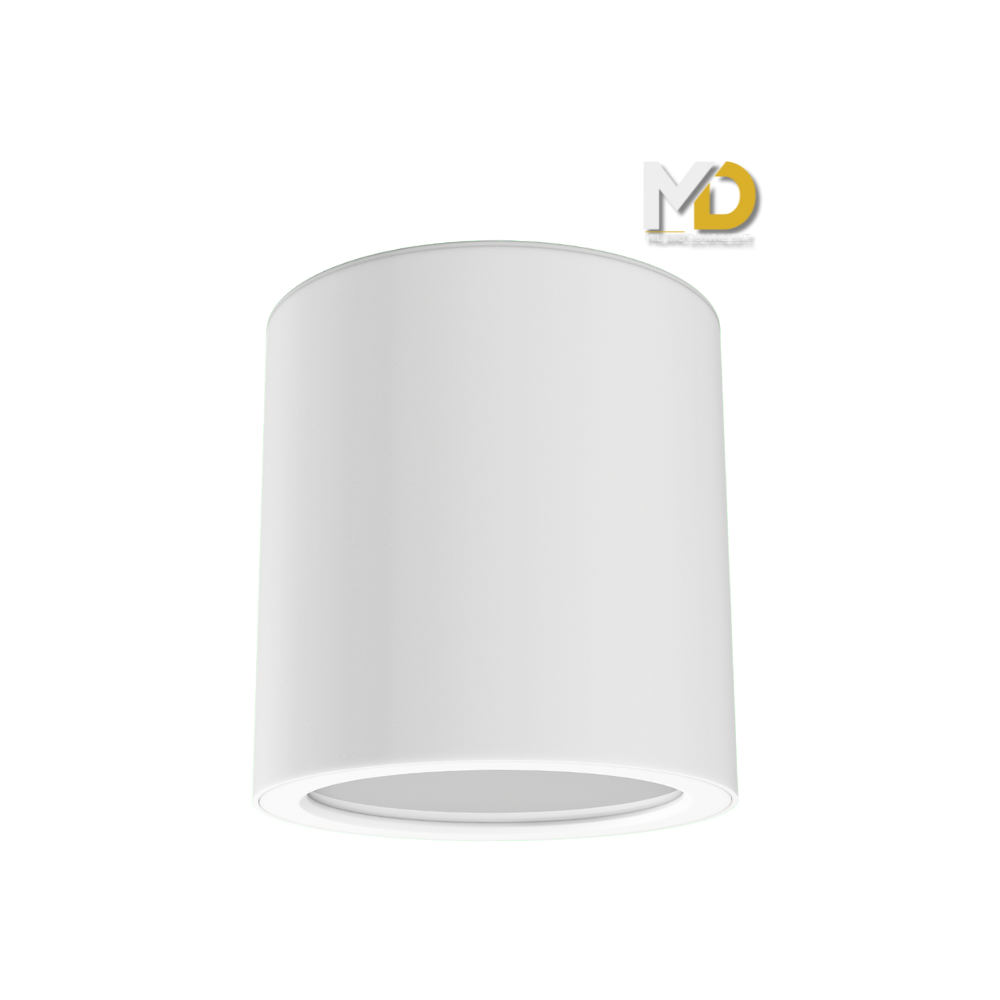

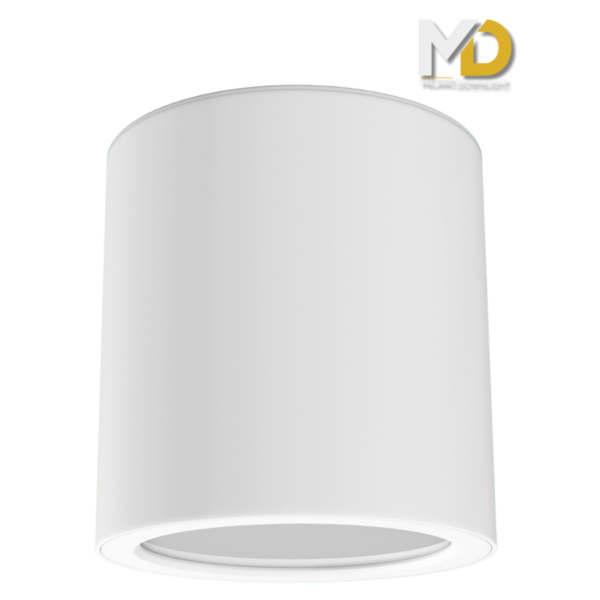

Milano S 200

200mm IP65 Surface Mount UGR <19 LED Downlight

Application

Designed for performance and visual comfort, the Milano Surface Mount LED Downlight offers a clean architectural aesthetic, low-glare illumination, and versatile configurations to suit commercial and healthcare environments. With a focus on reliability, optical control, and seamless integration, Milano is an ideal choice for projects requiring both form and function.

Developed in-house for demanding environments, this IK08, IP65-rated Surface Mounted LED downlight offers exceptional impact resistance and protection against dust and water ingress.

Built to perform in high-traffic or wet areas, it delivers durable, high-performance illumination, ideal for public spaces, amenities, commercial buildings, distribution warehouses, education and sporting precincts, health and aged facilities and other challenging applications.

Design Specifications

  • 200mm Ø lightweight die-cast aluminium body for efficient heat dissipation

  • High performanace Leds L90B10 > 70,000 hours, SDCM<3, CRI 90 and 4000K as standard

    3000K and 3500K available

    RGBW available

    Tuneable White availabl

  • Excellent UGR glare control with set back optical design, 60° beam optic as standard

  • Integral non-dimmable or DALI-2 dimmable LED driver as standard

  • Extruded aluminium body with excellent heat dissipation qualities available in a powdercoated White or Black finish

  • Available Options

    • Drivers:
      • DALI-2
      • Phase dimmable
      • DALI Type8
    • Black Trim (M17BTR)
    • Price On Application (subject to minimum order quantities)
      • 3500K
      • Tuneable White
      • Cyanosis compliant
      • RGBW
      • Rod or Wire suspension

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

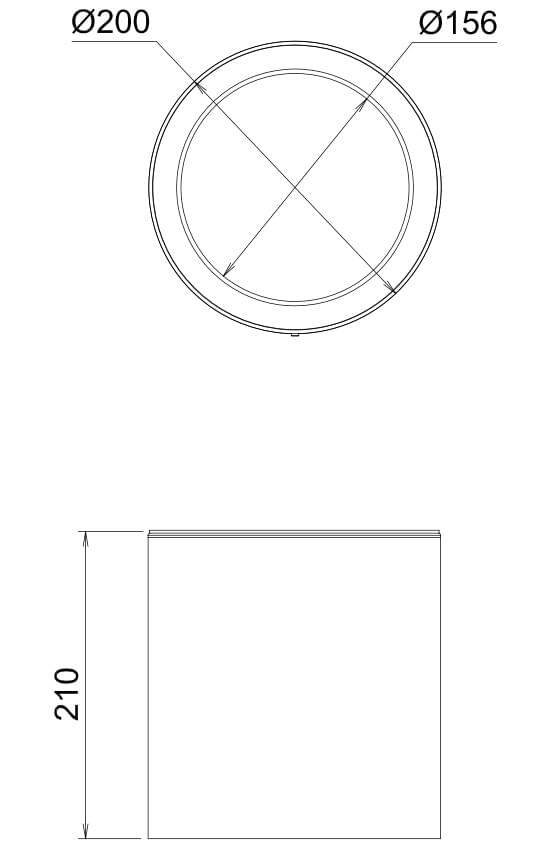

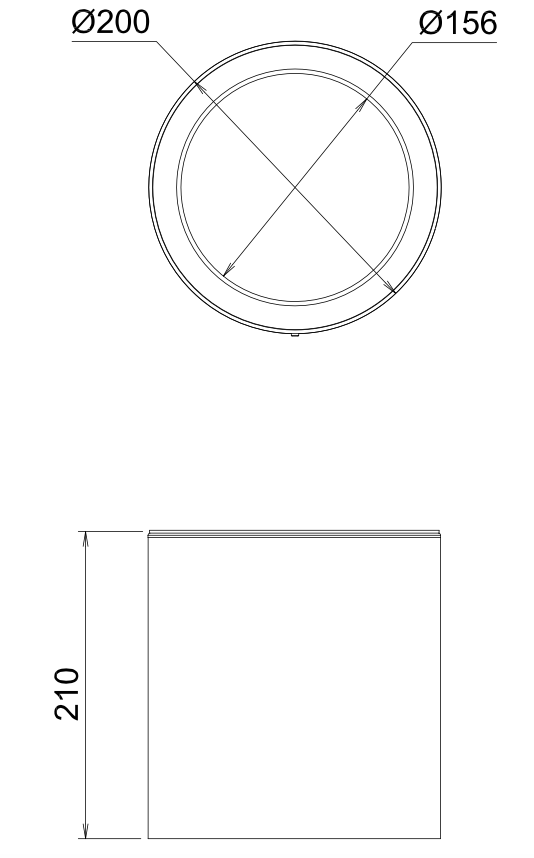

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle R9 CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DMLS201540DWH DescriptionMilano S 200 Surface Mount IP65 Downlight with DALI-2 Driver, White Power15 Lumens1500 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove
    Model No.DMLS202040DWH DescriptionMilano S 200 Surface Mount IP65 Downlight with DALI-2 Driver, White Power20 Lumens1900 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove
    Model No.DMLS202540DWH DescriptionMilano S 200 Surface Mount IP65 Downlight with DALI-2 Driver, White Power25 Lumens2400 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove
    Model No.DMLS203040DWH DescriptionMilano S 200 Surface Mount IP65 Downlight with DALI-2 Driver, White Power30 Lumens2900 CCT4000 Beam Angle60 R9>50 CRI90 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
