• Commercial LED Troffers

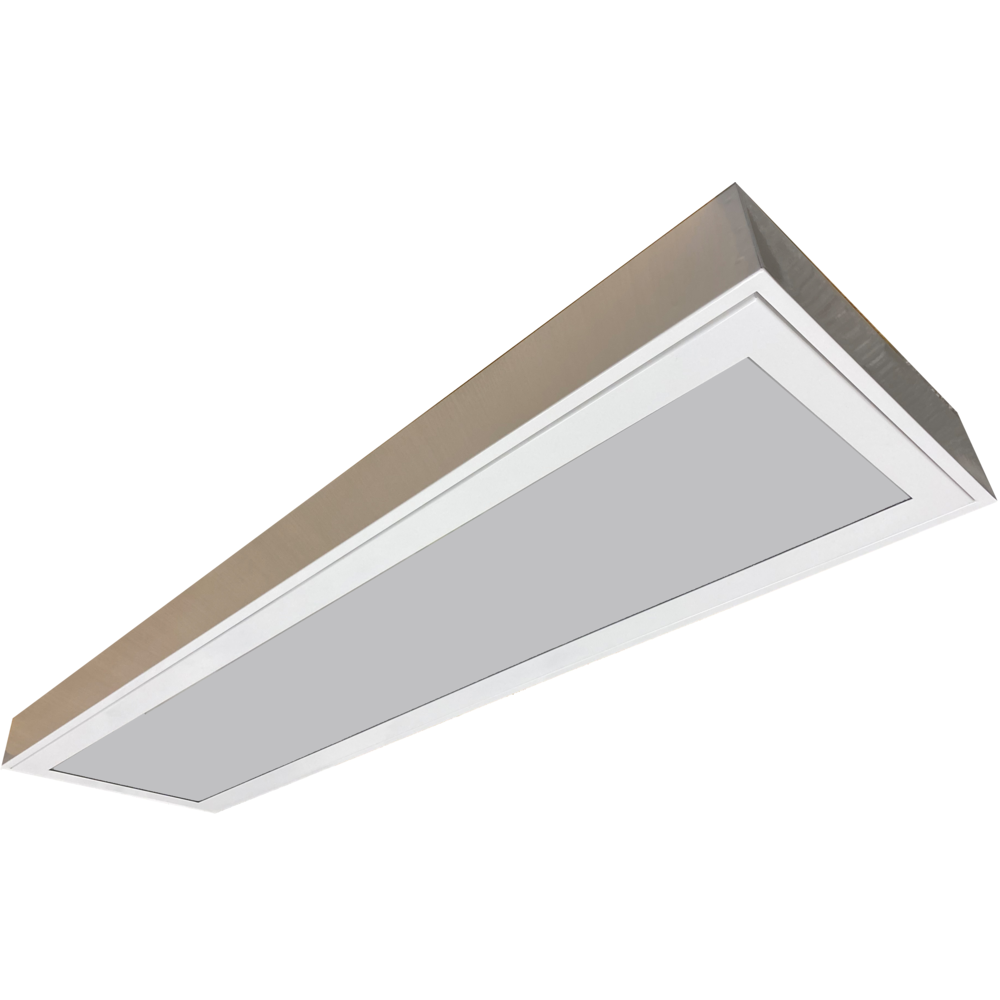

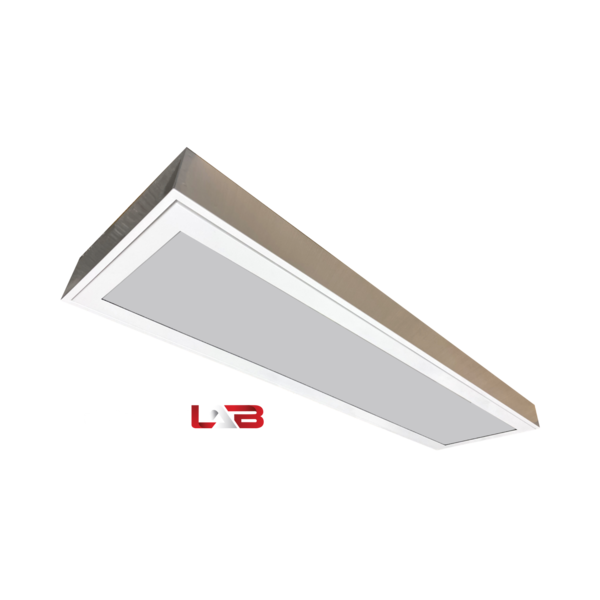

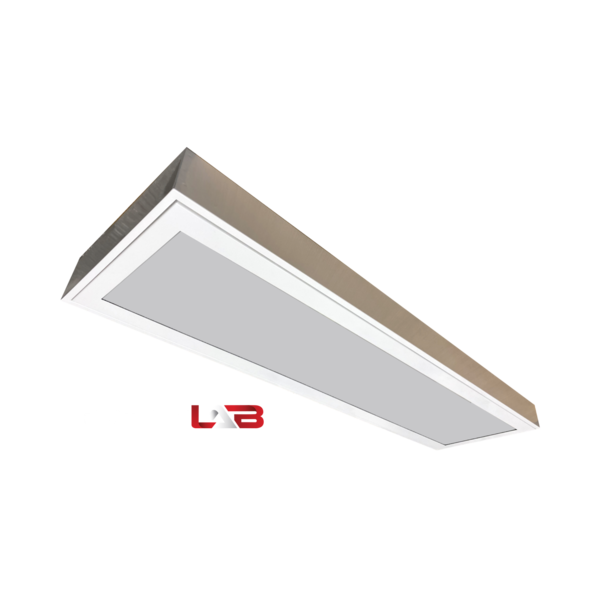

Platinum LAB Surface Mount

Commercial IP65 LED Cleanroom / Laboratory / Theatre / Pharmaceutical Troffer

The Platinum LAB™ is a purpose made surface mount commercial plaster troffer suited to medical and cleanroom environments. Constructed from high grade steel and finished off with a low glare LED optimised diffuser and integrated clamp brackets, the Platinum LAB™ is packed full of design features.

​​​​​

Application

Developed as a lighting solution to meet the requirements of specialist applications in medical and hygienic environments. Platinum LAB™ is rated at IP65 from all angles and COI complaint as standard.

Suited to applications:

  • Operating theatres
  • Cleanroom environments
  • Healthcare applications
  • Laboratories
  • Pharmaceutical manufacturing

Design Specifications

  • Sealed IP65 construction with screwless trim and wishbone safety lanyards

  • CRI 90, SDCM <3 4000K as standard

  • 100lm/w efficacy

  • Low glare LED optimised diffuser

  • White powdercoat body and frame

  • Straight sided construction for dust elimination


Platinum LAB Surface Mount
  • 4000KCCT
  • 4000KCCT

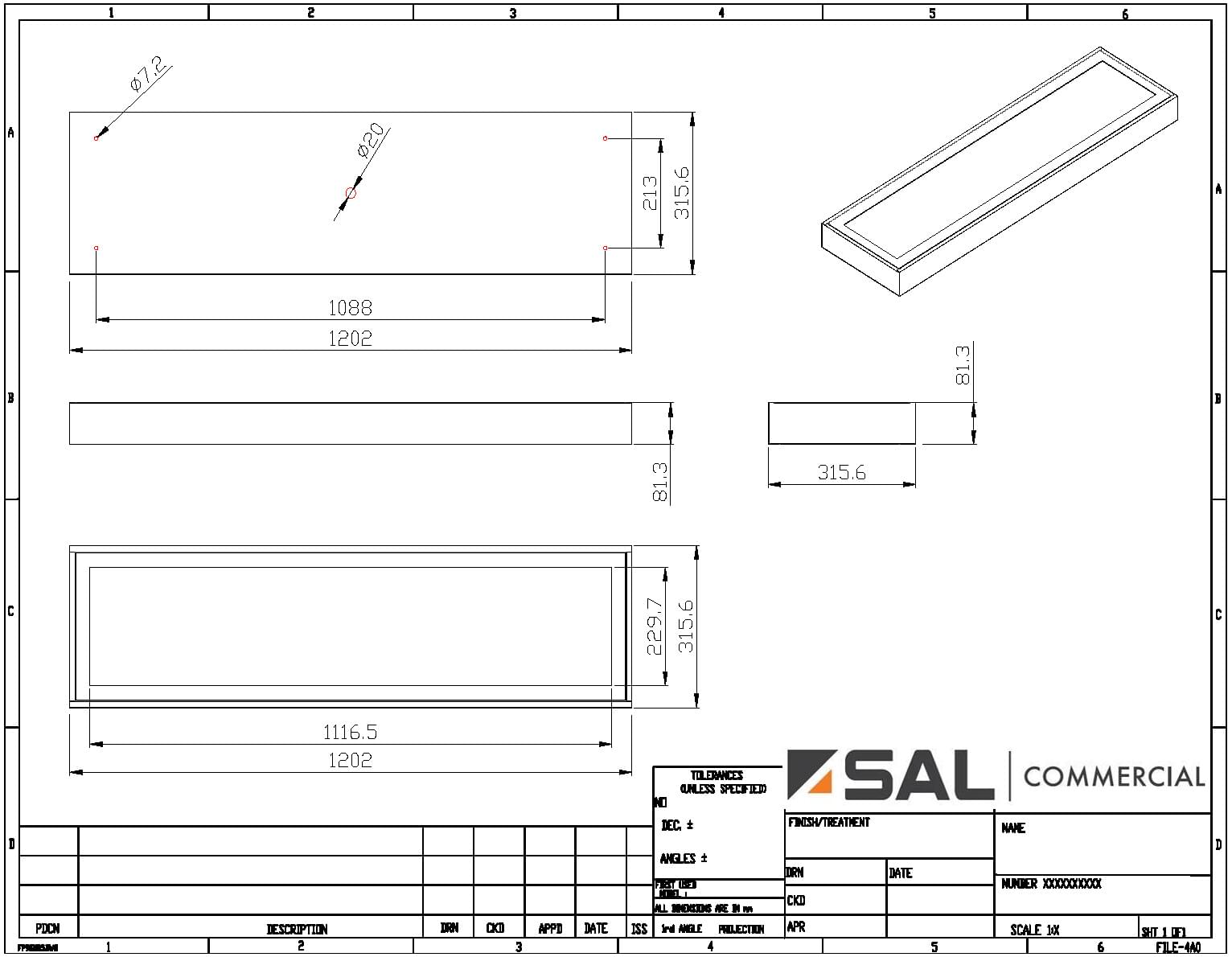

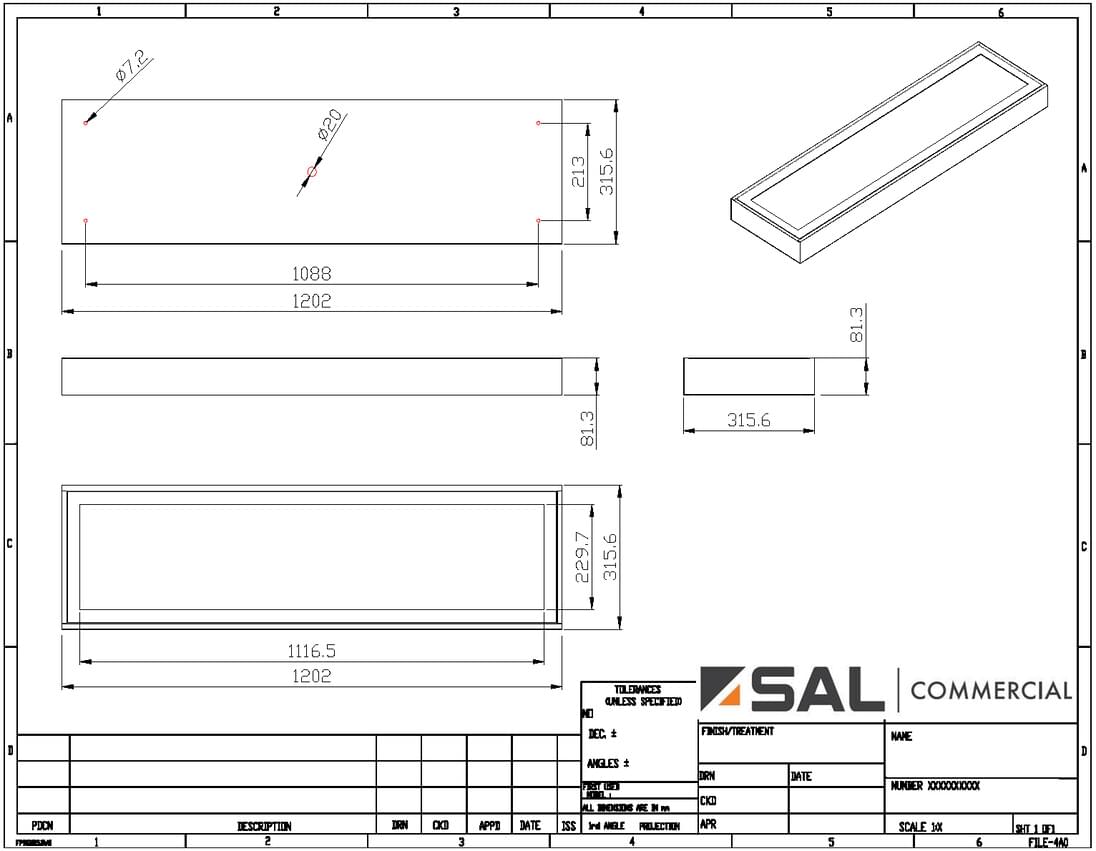

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. PLBASM4540N Description Platinum LAB Surface Mount Cleanrooom LED Diffused Troffer c/w Non-Dimmable Driver - 1200x300mm Power 45 Lumens 4500 CCT 4000 CRI 90 Add to Enquiry Add Remove Remove
      Model No. PLBASM4540D Description Platinum LAB Surface Mount Cleanrooom LED Diffused Troffer c/w DALI2 Dimmable Driver - 1200x300mm Power 45 Lumens 4500 CCT 4000 CRI 90 Add to Enquiry Add Remove Remove
      Model No. PLBBSM3040N Description Platinum LAB Surface Mount Cleanrooom LED Diffused Troffer c/w Non-Dimmable Driver - 600x300mm Power 30 Lumens 3000 CCT 4000 CRI 90 Add to Enquiry Add Remove Remove
      Model No. PLBBSM3040D Description Platinum LAB Surface Mount Cleanrooom LED Diffused Troffer c/w DALI2 Dimmable Driver - 600x300mm Power 30 Lumens 3000 CCT 4000 CRI 90 Add to Enquiry Add Remove Remove
      Model No. PLBCSM3440N Description Platinum LAB Surface Mount Cleanrooom LED Diffused Troffer c/w Non-Dimmable Dimmable Driver - 600mm x 600mm Power 34 Lumens 3400 CCT 4000 CRI 90 Add to Enquiry Add Remove Remove
      Model No. PLBCSM3440D Description Platinum LAB Surface Mount Cleanrooom LED Diffused Troffer c/w DALI2 Dimmable Dimmable Driver - 600mm x 600mm Power 34 Lumens 3400 CCT 4000 CRI 90 Add to Enquiry Add Remove Remove

      Available Options

      • 3000K, 3500K, 5000K
      • Cyanosis 4000K
      • Remote Driver c/w fly-Lead
      • Tuneable White w/ - DALI Type 8 Dimmable Driver
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
