Grandlux Night Light

LED Vandal Proof

Introducing Grandlux. A die-cast aluminium vandalproof LED luminaire designed to withstand the toughest Australian conditions.

NATA certified test reports available for IP66 ingress protection and IK10 impact protection rating. Available in both 2ft and 4ft. The Grandlux range includes Emergency, Integrated night light, In-built motion sensor and Multi-colour models.

Application

Designed for the most arduous environements with 40 re-inforced internal rib supports offering exceptional strength and rigidity, the Grandlux IP66 IK10 vandalproof LED luminaire is suitable for most hazardous locations

Suitable applications include - Correctional Facilities, Transport Tunnels, Railway Platforms, School Security & Walkways, Stairwells & Corridors, Maintenance Pits, Public Amenities, Public Carparks, Warhouse & Dock Yards

Design Specifications

  • Dual night light feature (red/white) selectable via internal switch

  • High lumen output > 130lm/w, 4000K (standard specification)

    Die-cast aluminium body (dark grey RAL7015) supplied with high transmission opal diffuser with anti-tamper captive screws

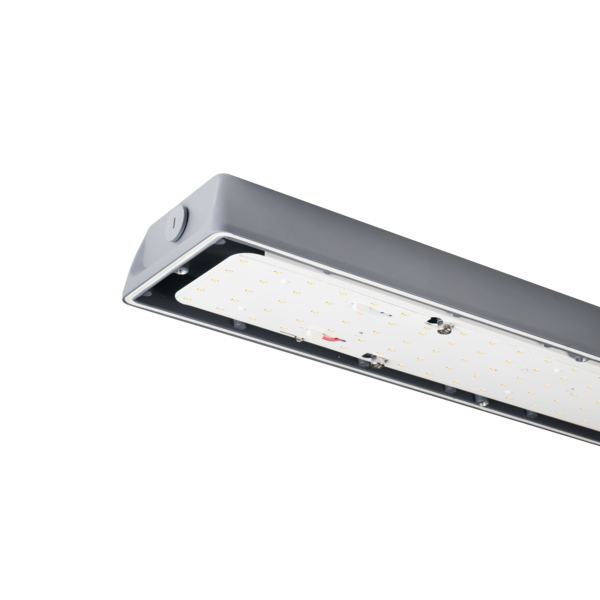

  • Removable LED gear tray, L90/B10 >50,000 hours, 10KV surge protection device fitted as standard, four lumen output selections on the driver

  • Terminal block to suit 6mm² cabling fitted as standard

    M20 cable gland supplied as standard

  • Accessories Available

    • Stainless steel suspension kit (CGXSSSK)
    • Surface mount bracket (CGXSMB)
    • Spigot adaptor plate (CGXOSB)

  • Available Options


  • 3000KCCT
  • 4000KCCT
  • 5700KCCT
  • 3000KCCT
  • 4000KCCT
  • 5700KCCT

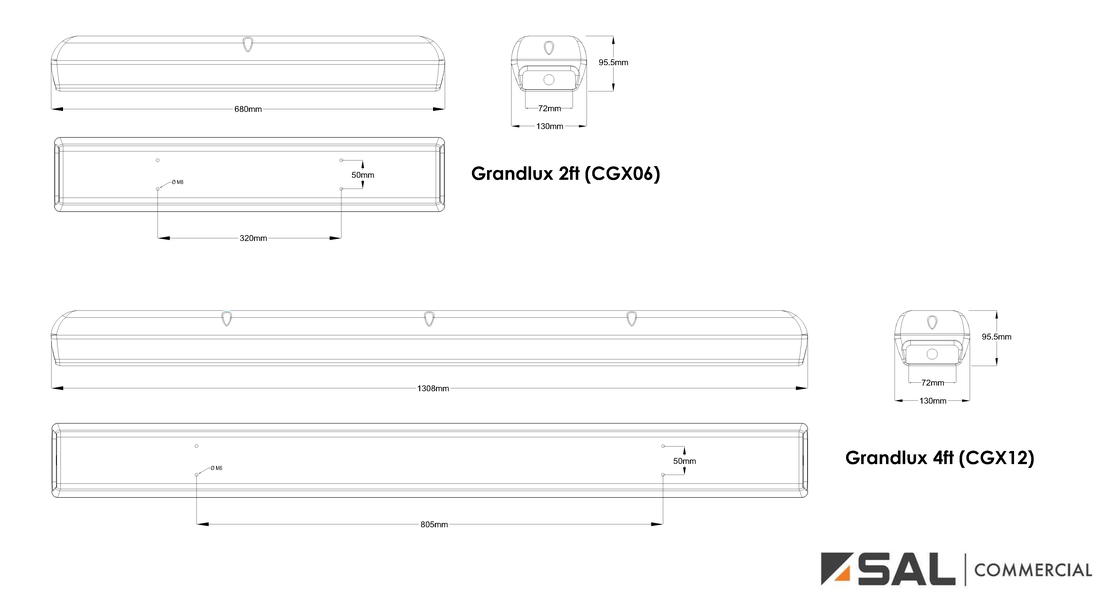

  • Dimensions - Wiring Diagrams
  • Design Options

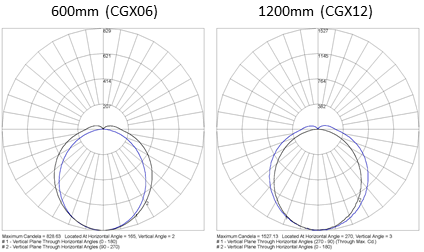

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Colour Temp. CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.CGX062540NNL DescriptionIP66 IK10 LED vandalproof luminaire with dual night light Power25 Lumens2700 CCT4000/4000 Colour Temp.4000 CRI80 Add to Enquiry Add Remove Remove
    Model No.CGX124240NNL DescriptionIP66 IK10 LED vandalproof luminaire with dual night light Power42 Lumens4900 CCT4000/4000 Colour Temp.4000 CRI80 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
