Chicago-S

IP66 LED Area Luminaire

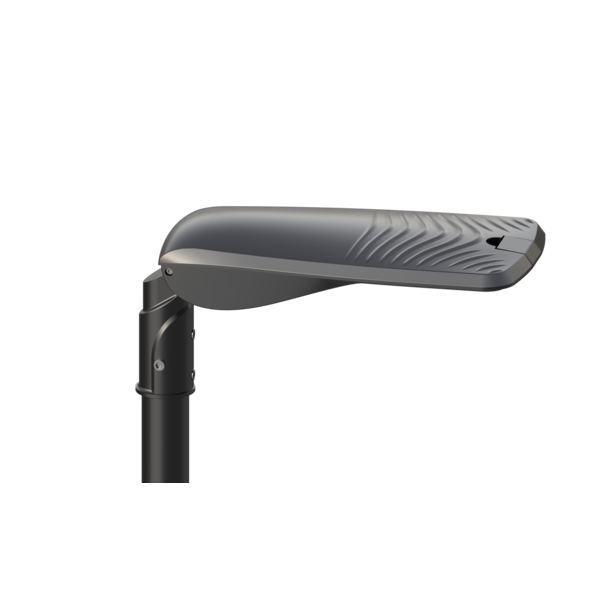

Introducing the Chicago floodlight range. A modern decorative exterior post top LED area luminaire.

Streamline die-cast aluminum body supplied with a durable powder coated finish in standard Black powder coat (RAL9017) or Grey (RAL9006)

Application

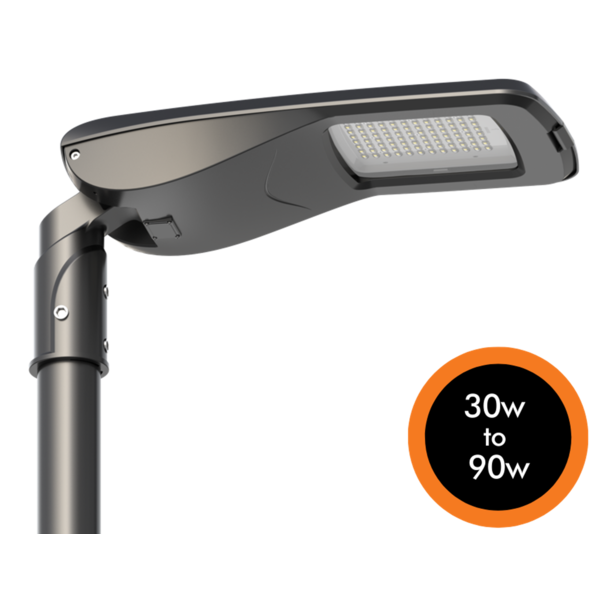

The Chicago-S floodlight range is available in type I and II optics with wattage options from 30w to 90w. Suited to the following applications:

♦ Industrial area lighting and facades

♦ Carpark applications

♦ General purpose post top/wall mounted area lighting

Design Specifications

  • High output >130lm/w LED performance chips

    L90/B10 >50,000 hours, CRI 80

  • Ø60mm pole mount spigot mounting bracket supplied as standard (compliant to standard 3G.ANSI C.136.31-2010)

  • Integral Non-Dimmable Constant Current LED Driver

    Integral 6kV SPD (Surge Protection Device)

  • High Efficiency Tempered Glass Lens

  • 800mm 3core Flexible Rubber Cable from Terminal Block for Connection

  • Available Options

    • (RAL 9006) Grey Powdercoat - Minimum Order Quantity May Apply
    • Integral DALI Dimmable LED Driver

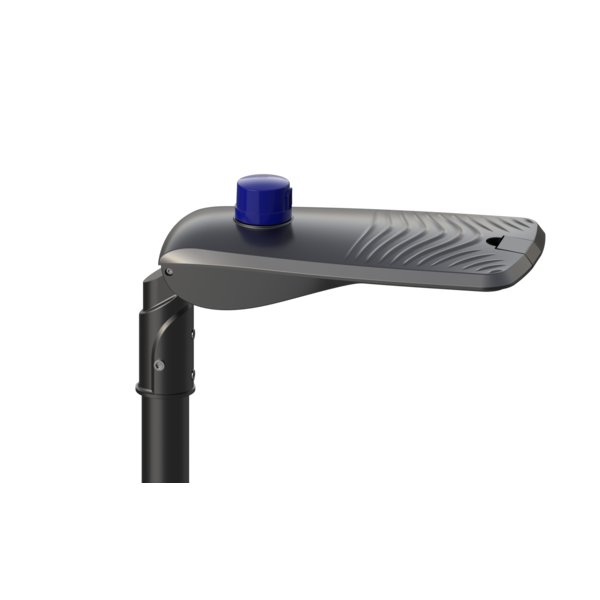

    • Photocell NEMA 3 / 5 / 7 pin - Fitted in Factory
    • Spigot Mount Options -  34mm / 42mm / 76mm
    • Mounting Bracket Options -  Wall / Corner / L-Adaptor / T-Adaptor

  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT

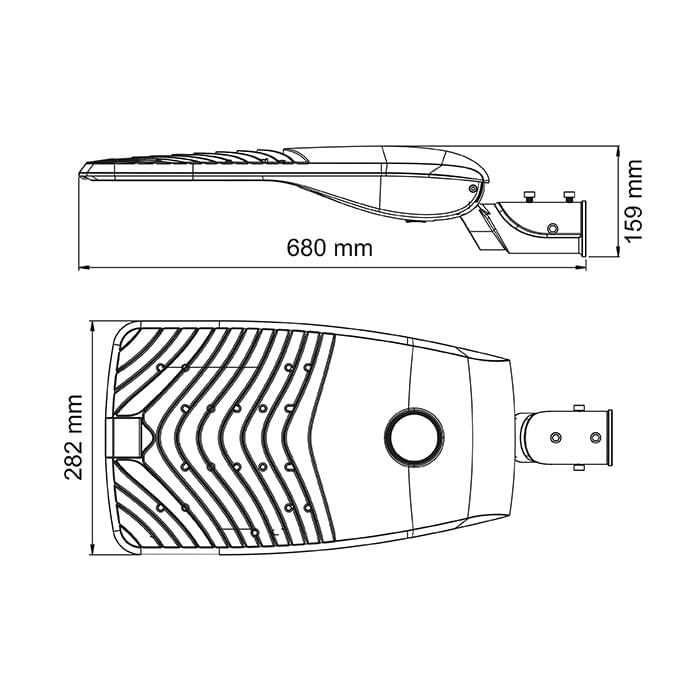

  • Dimensions - Wiring Diagrams
  • Design Options

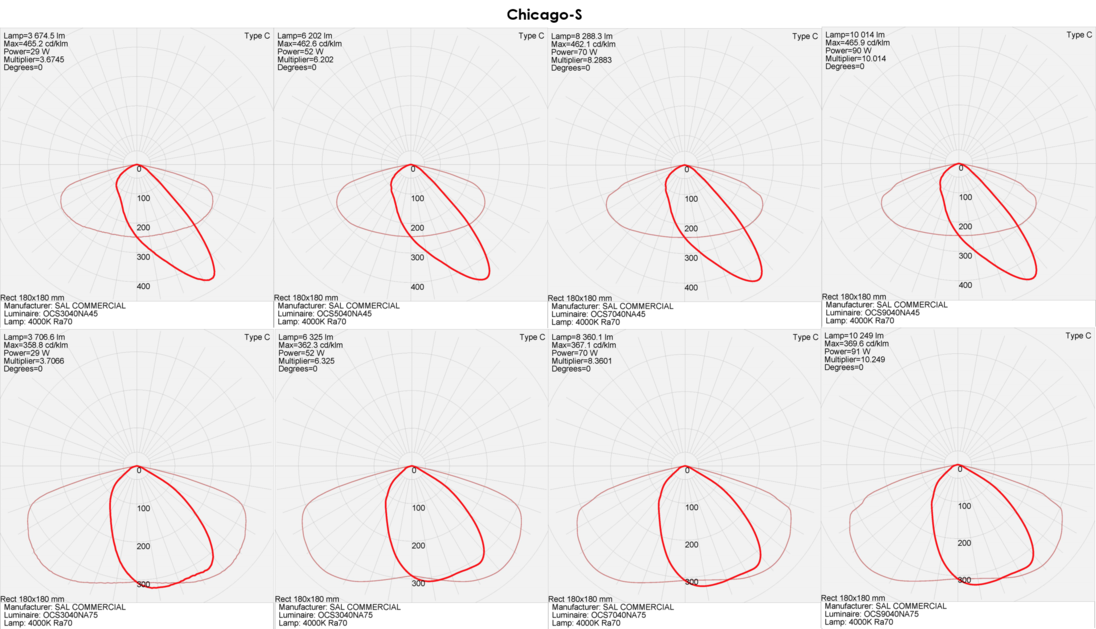

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CCT Lumens Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.OCS3040NA45 DescriptionChicago-S LED Non-Dim A45 Medium Asymmetric optic Power30 CCT4000 Lumens4000 Mass6.5 Add to Enquiry Add Remove Remove
    Model No.OCS5040NA45 DescriptionChicago-S LED Non-Dim A45 Medium Asymmetric optic Power50 CCT4000 Lumens7000 Mass6.5 Add to Enquiry Add Remove Remove
    Model No.OCS7040NA45 DescriptionChicago-S LED Non-Dim A45 Medium Asymmetric optic Power70 CCT4000 Lumens9500 Mass6.8 Add to Enquiry Add Remove Remove
    Model No.OCS9040NA45 DescriptionChicago-S LED Non-Dim A45 Medium Asymmetric optic Power90 CCT4000 Lumens12000 Mass6.8 Add to Enquiry Add Remove Remove

    Code methodology options: Replace A75 with A45/T2S/T2/T5; GY = Grey powdercoast finish (RAL9006)


Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
