• Commercial LED Architectural

Cleveland

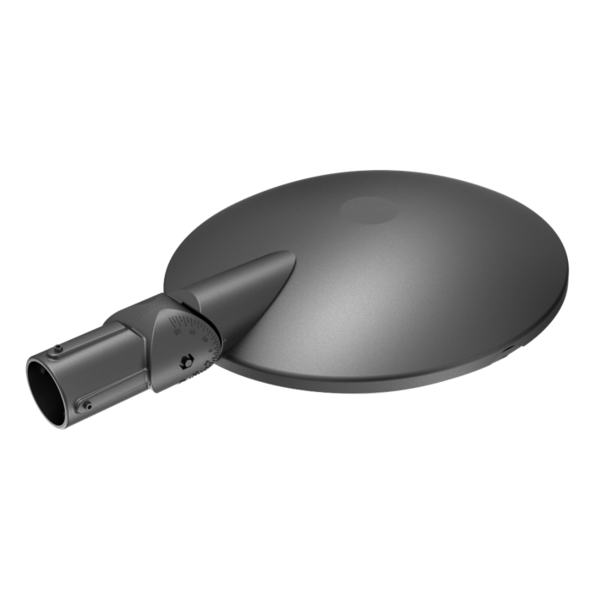

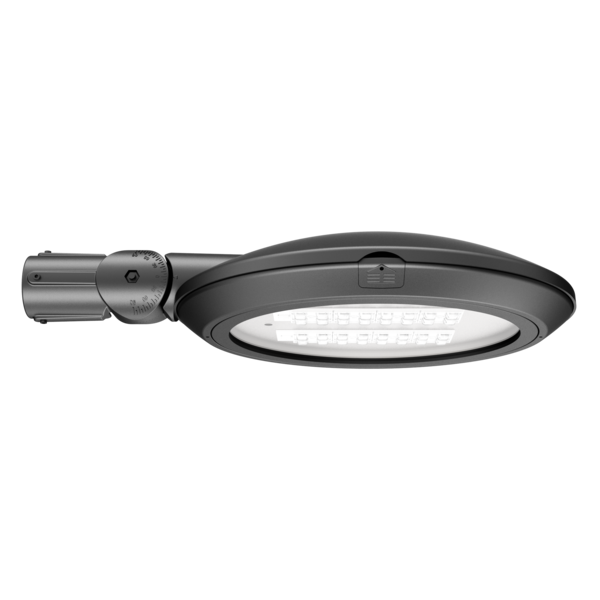

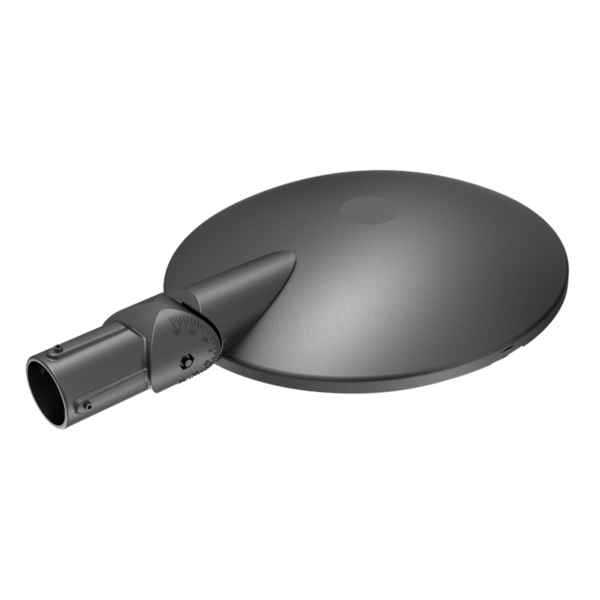

IP66 IK09 LED Area Luminaire

Introducing the Cleveland architectural post top range. A modern decorative exterior post top LED area luminaire.

Modern and elegant design, die-cast aluminum body supplied with a durable powder coated finish in grey (RAL7024)

Application

The Cleveland architectural post top range is available in a large range of optics with wattage options from 15w to 120w. Suited to the following applications:

♦ Carparks & Street lighting

♦ Footpaths / Cycle paths

♦ General use outdoor spaces

Design Specifications

  • High efficiency SMD LED module 120lm/w

  •  Available in 40w / 60w / 75w and 100w with Type III / Type IV and Type V distribution optics

  • L70 >100,000 hours / SDCM <3 / CRI 70

  • High impact tempered glass lens



  • 60mm Ø spigot mounting bracket supplied as standard (compliant to standard 3G.ANSI C.136.31-2010)

  • Available Options

    • 2700K, 3000K, 5000K, 5700K and AM (Amber)
    • CRI 80 or CRI 90
    • Integral DALI Dimmable Driver
    • Wall Bracket Mounting - order separately = (Part - OCEWB)
    • NEMA PE Cell - mounted in the factory

Performance

  • Dimmable - NO

Cleveland
Cleveland
Cleveland
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT

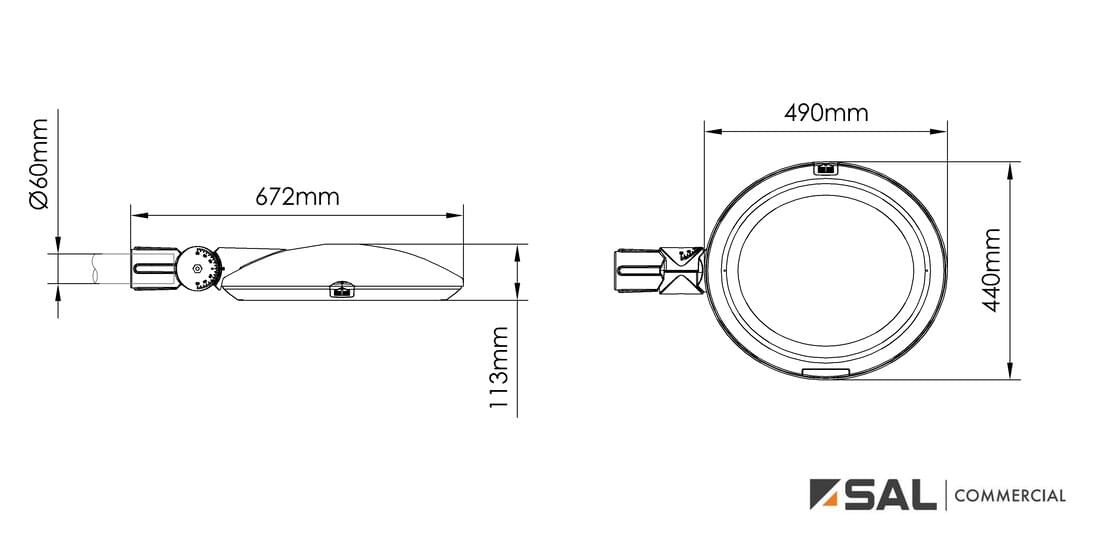

    • Dimensions - Wiring Diagrams
    • Design Options

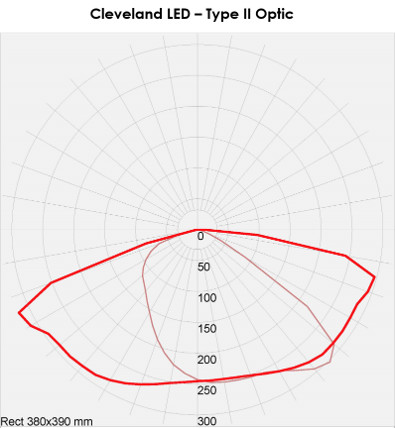

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power CCT Lumens CRI Diameter Mass Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. OCE4040N Description Cleveland LED post top, non-dimmable, 60mm spigot Power 40 CCT 4000 Lumens 4800 CRI 80 Diameter 490 Mass 9.2 Add to Enquiry Add Remove Remove
      Model No. OCE6040N Description Cleveland LED post top, non-dimmable, 60mm spigot Power 60 CCT 4000 Lumens 7300 CRI 80 Diameter 490 Mass 9.2 Add to Enquiry Add Remove Remove
      Model No. OCE9040N Description Cleveland LED post top, non-dimmable, 60mm spigot Power 90 CCT 4000 Lumens 11000 CRI 80 Diameter 490 Mass 9.2 Add to Enquiry Add Remove Remove

      Code Methodology: OCE = Model
      Variants Available:
      Wattage - 40 / 60 / 90
      CCT - 30 = 3000K / 40 = 4000K / 27 = 2700k / 50 = 5000k / 57 = 5700k / AM = Amber
      Dimming type - N = Non Dim / D = DALI
      Optics - T2 as Standard / T3 = T3 Optics
