• Commercial LED Architectural

Grasse

IP66 / IK10 LED Type IV / V Bollard

The Grasse LED Bollard is a sleek and visually appealing lighting solution, designed to enhance both the functionality and aesthetics of outdoor spaces. It comes in a two wattages short/long mounting heights, making it versatile for various applications, whether you're looking to light up pathways, garden areas, or public spaces. Its modern design combines durability with style, ensuring it stands the test of time while complementing any landscape or architectural setting. Ideal for adding a contemporary touch with energy-efficient illumination!

Application

The Grasse LED Bollard with both Type IV and Type V distribution, ensures uniform lighting over a wide area, making it perfect for a variety of outdoor applications. Its well-distributed light helps enhance safety and visibility, creating an inviting atmosphere.

  • Pathway Illumination: Provides clear, consistent lighting along walkways, guiding pedestrians safely through outdoor spaces.
  • Parks & Gardens: Adds a touch of elegance and functionality, helping to highlight landscaping features while ensuring pathways are well-lit.
  • Building Entry Lighting: Perfect for lighting up entrances to commercial or residential buildings, offering both security and an attractive, welcoming glow.

Design Specifications

  • Tri-colour selectable - 3000K / 4000K and 5000K

  • High performance LED technology

  • Available with Non-Dimmable or DALI2 driver

  • RAL9017 Textured Black Powdercoat Finish

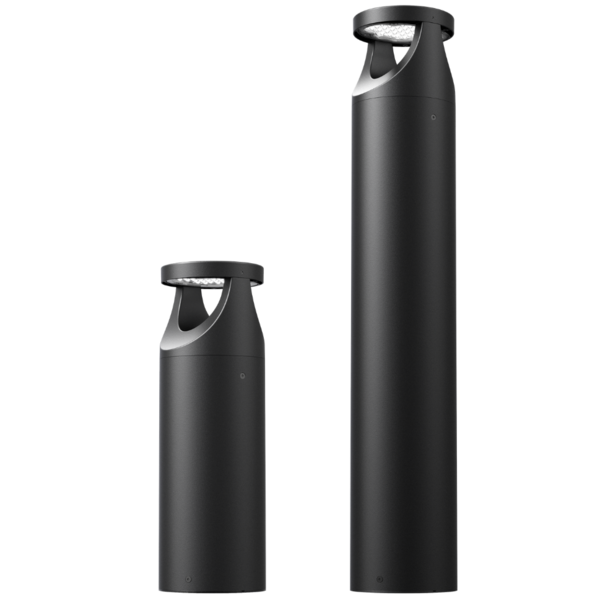

  • Available in 500mm or 900mm Mounting Height options

  • Available Options

    • Backlight visor (for single direction light source requirements)

Grasse
Grasse
Grasse
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT

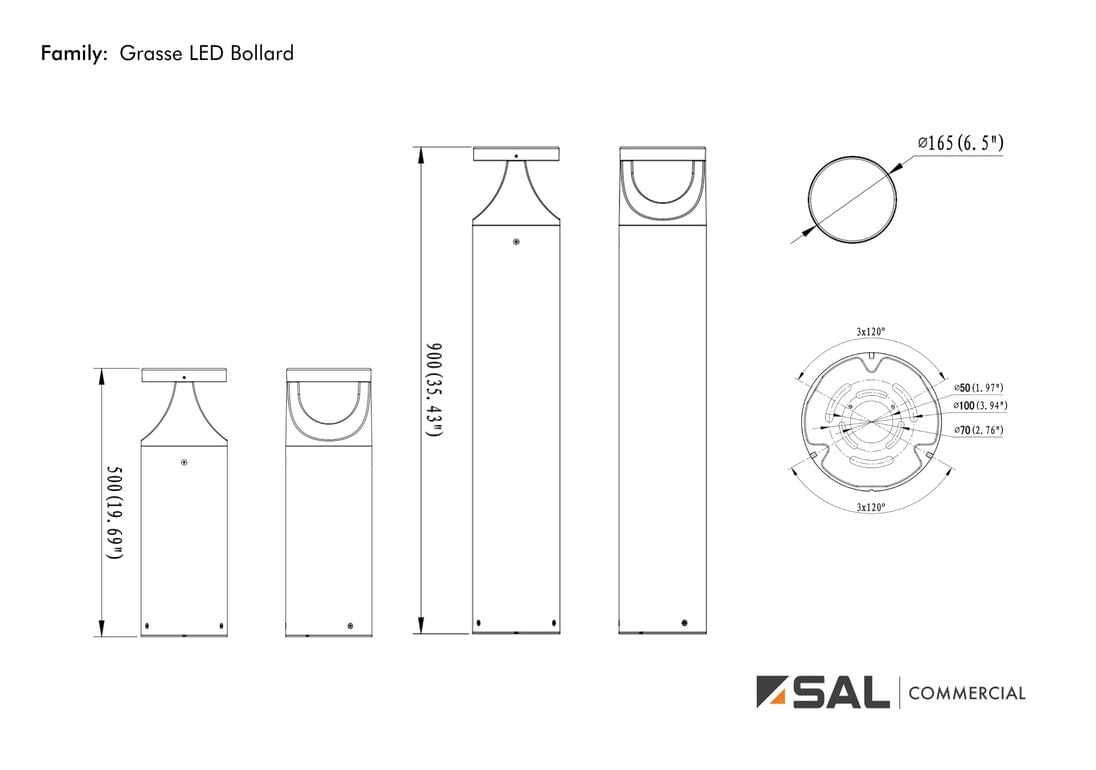

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power CCT Lumens CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XGR14TCDS Description Grasse LED Bollard, Integral DALI2 Driver, Type V Optics, 500mm High, Black Powdercoat Power 14 CCT 3000/4000/5000 Lumens 1260 CRI 80 Add to Enquiry Add Remove Remove
      Model No. XGR24TCDT Description Grasse LED Bollard, Integral DALI2 Driver, Type V Optics, 900mm High, Black Powdercoat Power 24 CCT 3000/4000/5000 Lumens 2160 CRI 80 Add to Enquiry Add Remove Remove
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
