IP66 / IK10 LED Asymmetric Throw Wall Light

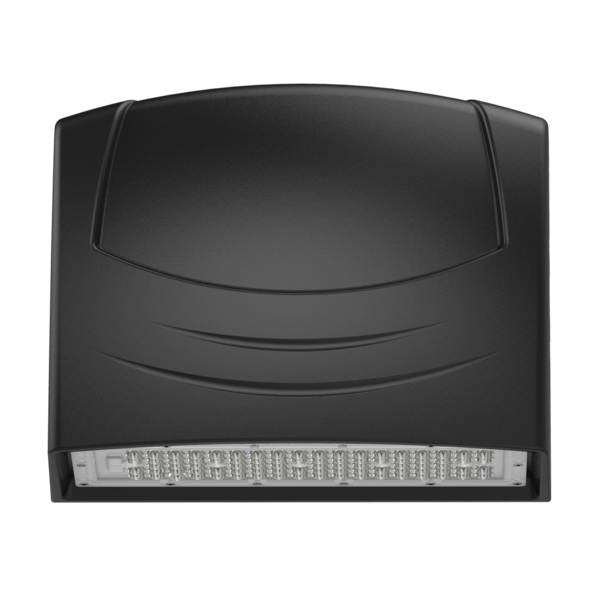

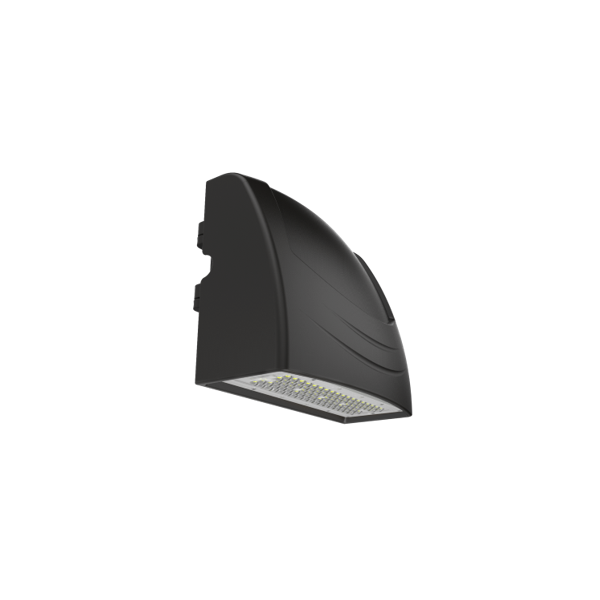

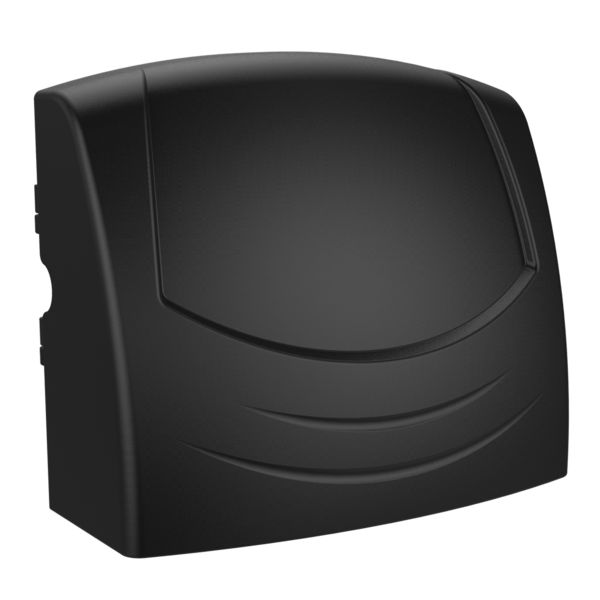

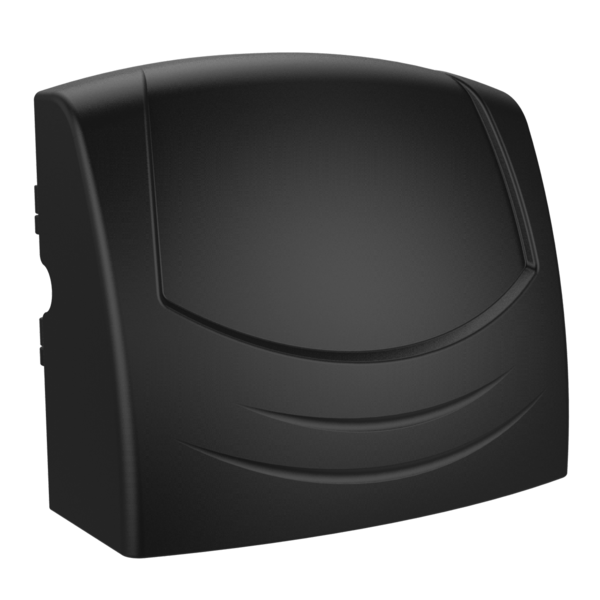

Introducing the Lousiville LED Wall Light. Designed with a focus on high efficiency and a long lifespan, the Louisville LED Wall Light offers a streamlined modern design and is available in 40w and 70w.


Manufactured in die-cast aluminium with an IP65 ingress protection rating, the Louisville Wall Light is intended for the following applications:

  • Exterior security lighting
  • Commercial facade lighting
  • Courtyards
  • General exterior lighting

Design Specifications

  • 140lm/w, 4000K, CRI 80 supplied as standard

  • L70 >50,000 hrs

    Supplied as standard with 0-10v dimmable driver

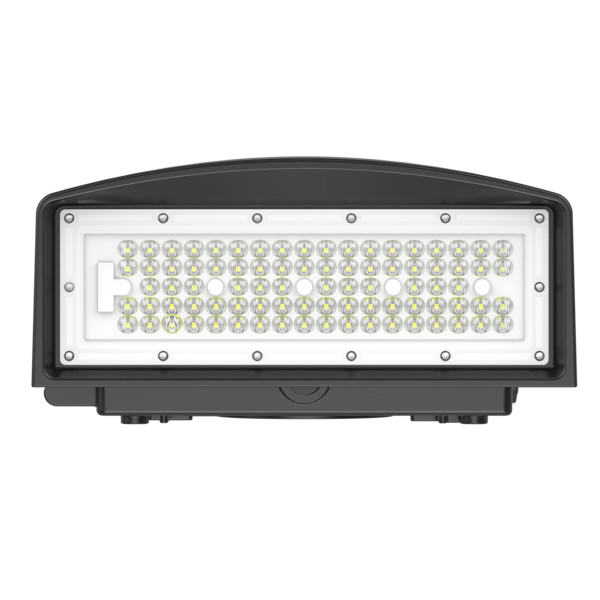

  • Asymmetric beam optic with high efficiency polycarbonate lens

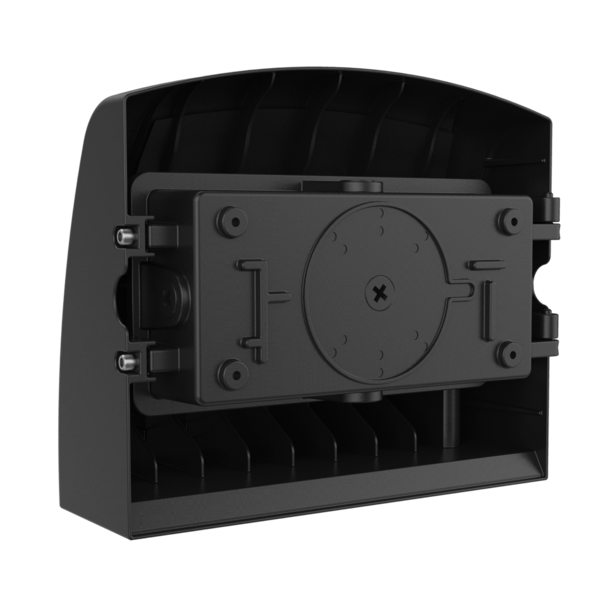

  • Hinged cable compartment ensures ease of installation

  • Foam padding ensures watertight seal against mounting surface

  • Available Options

    • 3000K, 5000K CCT
    • CRI 90
    • Integrated motion sensor options
    • DALI (Replace A with D in code)
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT

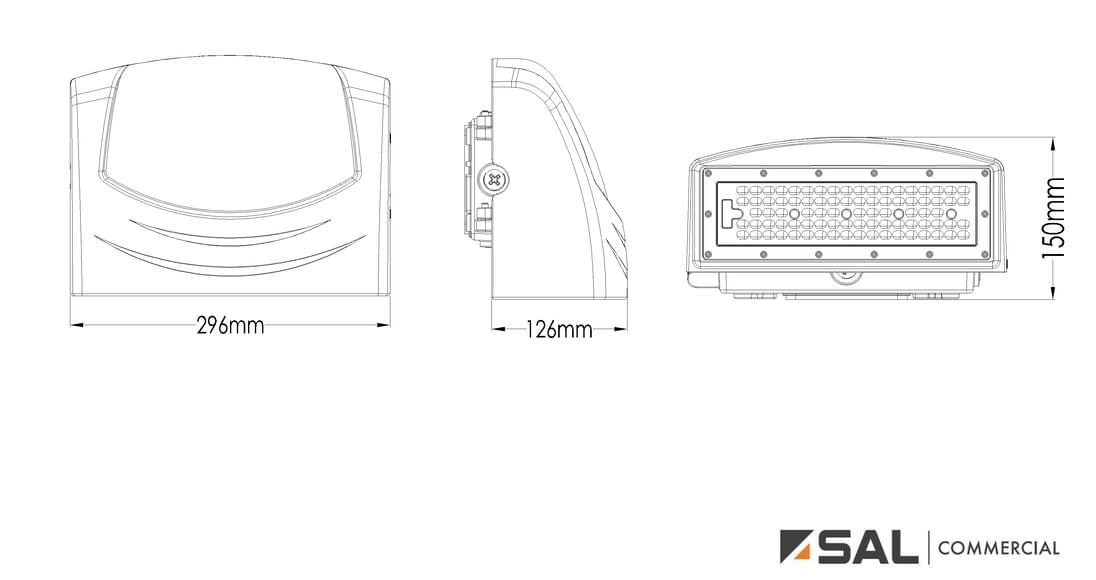

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CCT Lumens CRI Dim Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.ILV4040A DescriptionLouisville LED wall light, 0-10v dimmable, asymmetric optic Power40 CCT4000 Lumens5600 CRI80 Dim223(L) x 150(W) x 296(H) Mass3.9 Add to Enquiry Add Remove Remove
    Model No.ILV7040A DescriptionLouisville LED wall light, 0-10v dimmable, asymmetric optic Power70 CCT4000 Lumens9800 CRI80 Dim223(L) x 150(W) x 296(H) Mass4 Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
