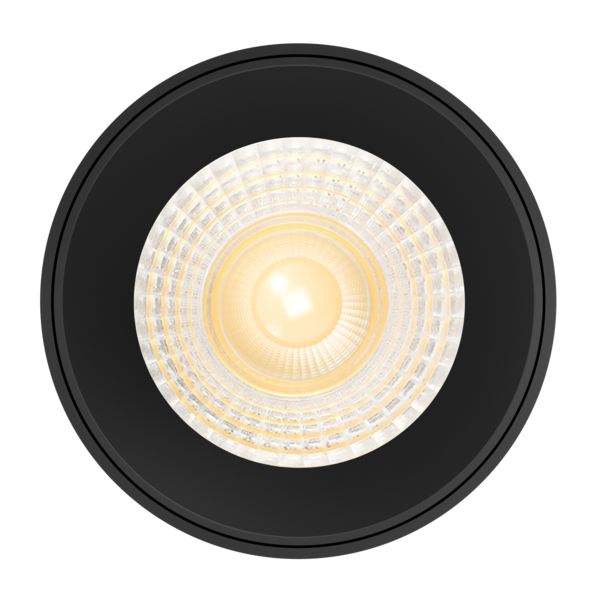

Newstead

Commercial IP54 LED Downlight

The Audax range is a collection of exterior downlights featuring four distinct products.

The luminaires in the Audax range are suited to both interior and exterior use in dry and wet areas.

  • Recessed small, slim downlight
  • Recessed medium to large downlight
  • Surface mount small, slim downlight
  • Surface mount large downlight

Application

The Audax collection of fixtures suits a large range of applications:

  • Commercial applications
  • Feature lighting
  • Exterior lighting and awnings
  • Porte cochere
  • Corridors
  • Amenities

Design Specifications

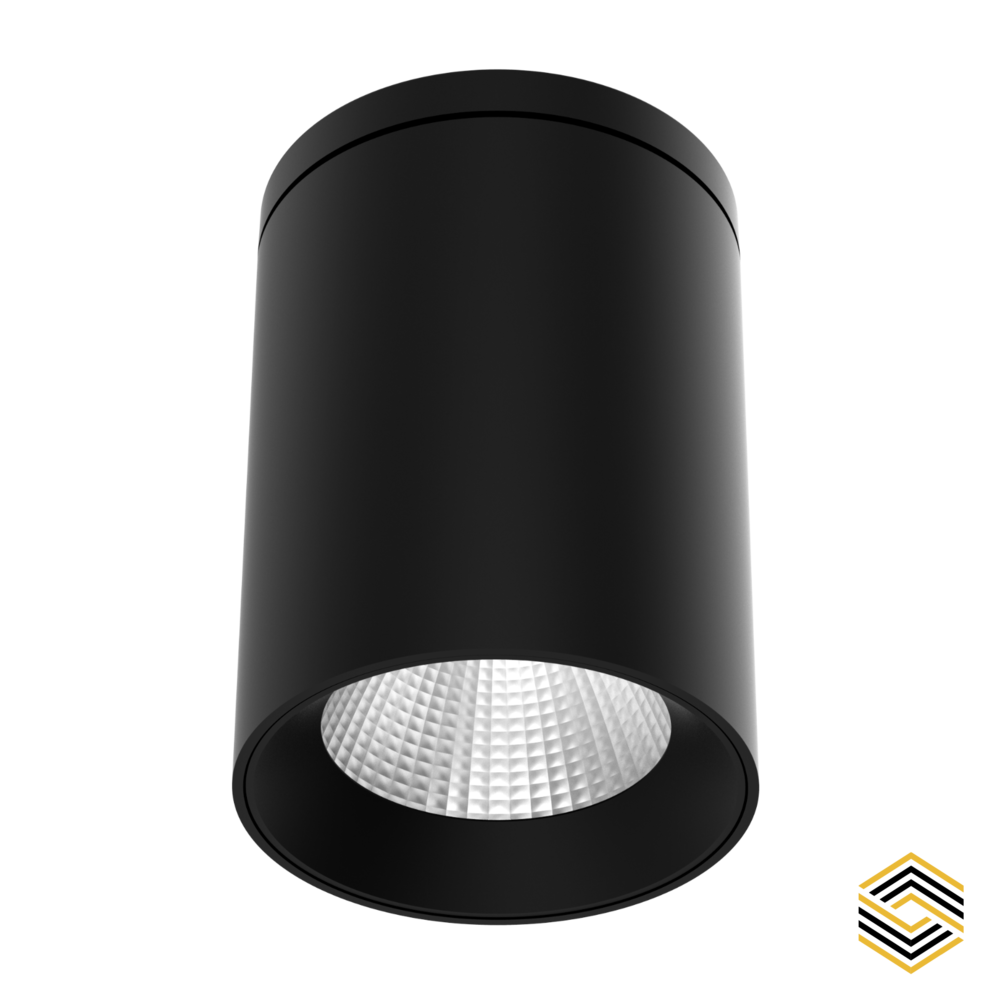

  • 70mm diameter, IP54 surface mounted downlight

  • 10w, 1000lm, 4000K, CRI 80

    60º optic nominated as standard model

  • Black finish RAL 9005

  • Lifetime - 50,000 hours

  • Integral non-dimmable driver

  • Available Options

    • CRI 90
    • Optics: 15° / 24° / 36° / 60° *standard
    • Phase cut integral driver
    • Remote DALI dimmable driver

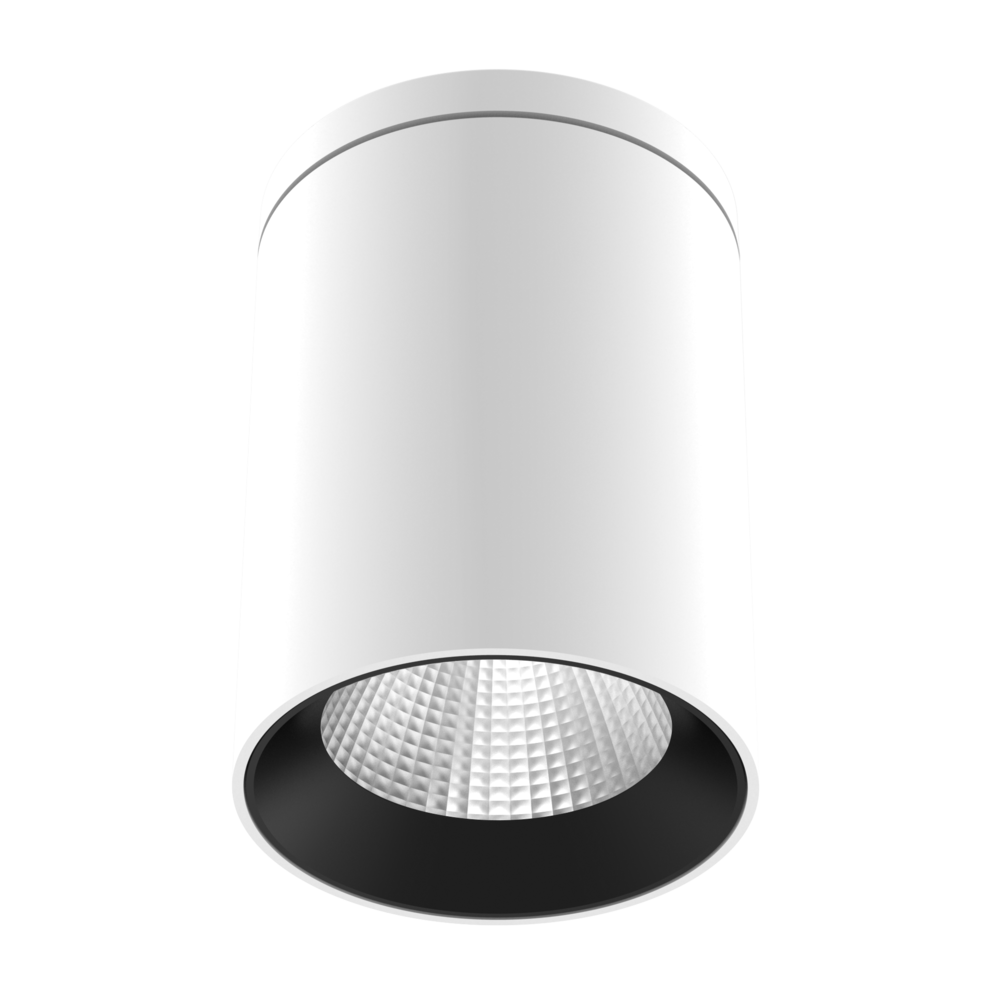

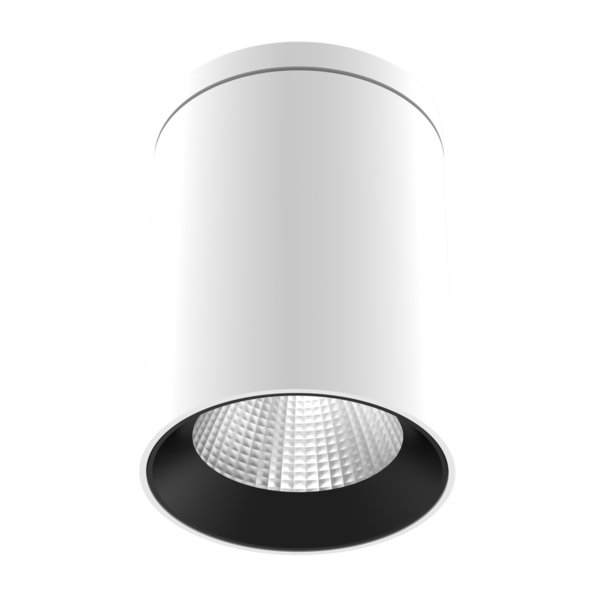

    • White finish RAL 9016

Newstead
Newstead
Newstead
Newstead
Newstead
Newstead
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power CCT Lumens Beam Angle CRI Dim Diameter Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XNS1030NBK Description IP54 surface mounted downlight, 10w, 3000K, 60° black finish Power 10 CCT 3000 Lumens 1000 Beam Angle 60 CRI 80 Dim 100(H) Diameter 70 Add to Enquiry Add Remove Remove
      Model No. XNS1040NBK Description IP54 surface mounted downlight, 10w, 4000K, 60° black finish Power 10 CCT 4000 Lumens 1000 Beam Angle 60 CRI 80 Dim 100(H) Diameter 70 Add to Enquiry Add Remove Remove

      Code Methodology: XNS = Size  |  10 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Body colour  |  36 = Beam angle

      Variants Available:

      Wattage - 10
      CCT - 27 = 2700K / 30 = 3000K / 40 = 4000K / 50 = 5000k
      Dimming type - N = Non Dim / D = Remote DALI  / P = Integral Phase Dimmable
      Trim Colour - WH = White / BK = Black
      Beam Angle (60° nominated as standard) - 15 = 15 degree / 24 = 24 degree / 36 = 36 degree

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
