• Commercial LED Architectural

Porto

IP66 Direct / Indirect LED Wall Light

Introducing the Porto LED Up/Down surface mount wall light - available in a variety of Beam Angles and Colour Temperatures to suit any application.

Application

The Porto LED Wall light is manufactured in aluminium alloy for efficient heat dissipation and suited to:

♦ Pathways
♦ Foyers
♦ Building facades
♦ Awnings

Design Specifications

  • High output 120lm/w LED Chips, available in 4000k as standard

  • Multiple Beam Angles - 60° as Standard, 12° and 30° available upon request

  • Intergral 0-10v Dimmable Driver as standard

    Remote DALI Dimmable Driver available upon request

  • IP66 IK08

  • RAL9017 Textured Black Powdercoat Finish

  • Available Options

    • 2700K / 3000K / 5000K CCT
    • CRI 90

Porto
Porto
Porto
  • 4000KCCT
  • 3000KCCT
  • 5000KCCT
  • 4000KCCT
  • 3000KCCT
  • 5000KCCT

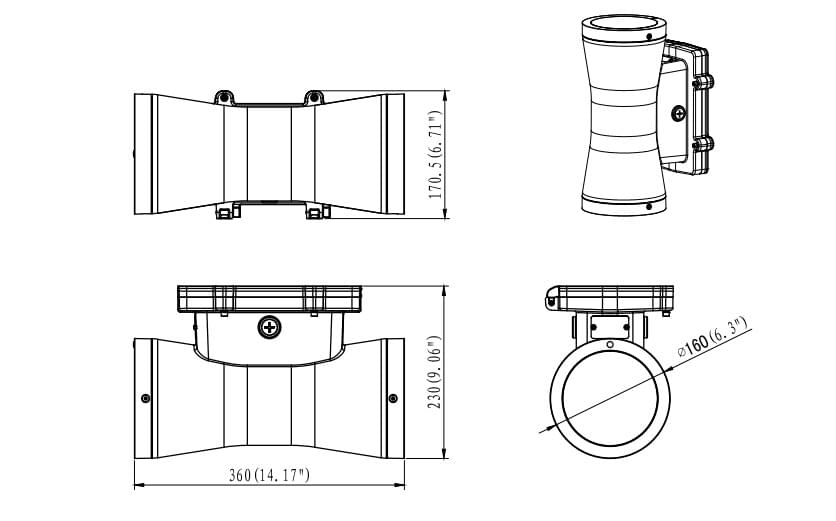

    • Dimensions - Wiring Diagrams
    • Design Options

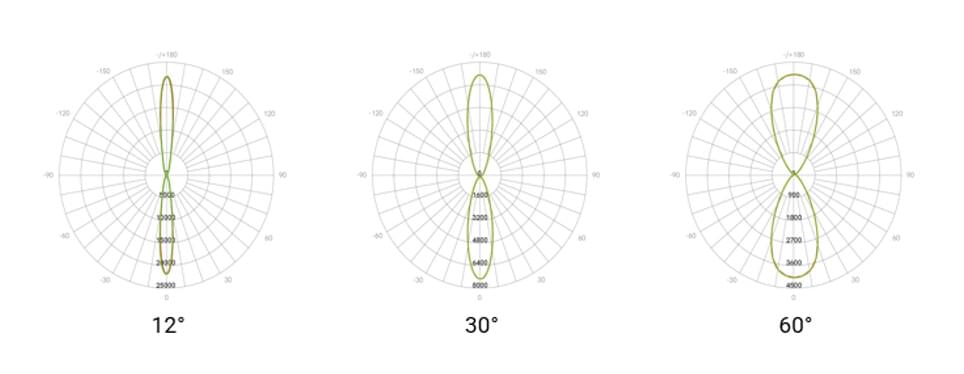

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power CCT Lumens CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XPODI2030A Description Porto IP65 Surface Mount LED Wall Light - 10w Direct / 10w Indirect Power 20 CCT 3000 Lumens 2400 CRI 80 Add to Enquiry Add Remove Remove
      Model No. XPODI2040A Description Porto IP65 Surface Mount LED Wall Light - 10w Direct / 10w Indirect Power 20 CCT 4000 Lumens 2400 CRI 80 Add to Enquiry Add Remove Remove
      Model No. XPODI4030A Description Porto IP65 Surface Mount LED Wall Light - 20w Direct / 20w Indirect Power 40 CCT 3000 Lumens 4800 CRI 80 Add to Enquiry Add Remove Remove
      Model No. XPODI4040A Description Porto IP65 Surface Mount LED Wall Light - 20w Direct / 20w Indirect Power 40 CCT 4000 Lumens 4800 CRI 80 Add to Enquiry Add Remove Remove
      Model No. XPODI6030A Description Porto IP65 LED Surface Mount Wall Light - 30w Direct / 30w Indirect Power 60 CCT 3000 Lumens 7200 CRI 80 Add to Enquiry Add Remove Remove
      Model No. XPODI6040A Description Porto IP65 Surface Mount LED Wall Light - 30w Direct / 30w Indirect Power 60 CCT 4000 Lumens 7200 CRI 80 Add to Enquiry Add Remove Remove

      Code Methodology: XPO = Size  |  DI - Direct/Indirect - | 10 = Wattage  |  40 = CCT  |  A = 0-10v Dimming

      Variants Available:
      Porto Series Prefix - XPO
      Direct  / Indirect - DI
      Wattage - 20 / 40 / 60
      CCT - 27 = 2700K / 30 = 3000K / 40 = 4000K / 50 = 5000K
      Dimming type - A = 0-10v Dimmable - D = Remote DALI Dimmable
      Beam Angle (60° as Standard) / 12D = 12° Beam / 30D = 30° Beam

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
