• Commercial LED Architectural

Toulon

IP66 / IK10 LED Type V Bollard

Introducting the Toulon LED Bollard, an aestherically pleasing LED Bollard, available in multiple wattages and mounting heights.

Application

The Toulon LED Bollard offers Type V Distribution, and is suitable for the following applications;

♦ Pathway Illumination
♦ Parks & Gardens
♦ Building Entry Lighting

Design Specifications

  • Tri Colour 3000k / 4000k / 5000k - Up to 130 lm/w efficiency

  • Adjustable Power Settings - 30/50/75/100% adjustable via Dip Switch

  • IP66 IK10

  • RAL9017 Textured Black Powdercoat Finish

  • Available in 475mm or 975mm Mounting Height

  • Available Options

    • Opal Diffuser

  • 4000KCCT
  • 3000KCCT
  • 5000KCCT
  • 4000KCCT
  • 3000KCCT
  • 5000KCCT

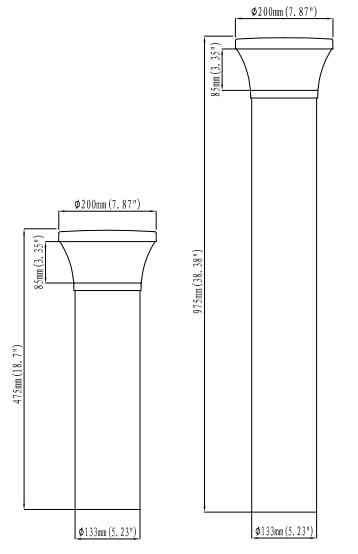

  • Dimensions - Wiring Diagrams
  • Design Options

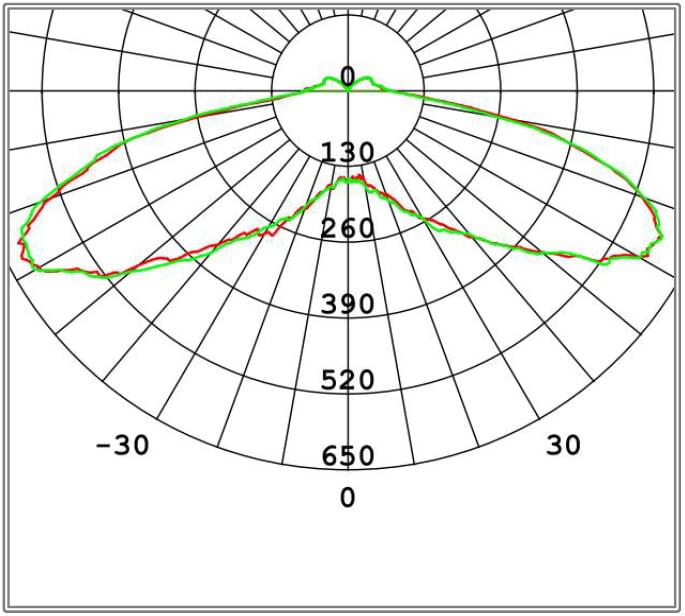

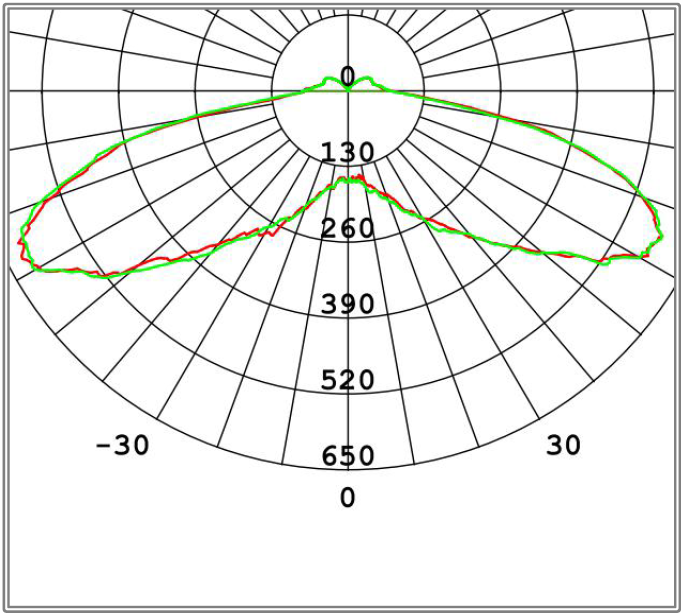

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CCT Lumens CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.XTN0514TCN DescriptionToulon LED Bollard Type V Black 475mm Clear Lens Power14 CCT3000/4000/5000 Lumens1820 CRI80 Add to Enquiry Add Remove Remove
    Model No.XTN0525TCN DescriptionToulon LED Bollard Type V Black 475mm Clear Lens Power25 CCT3000/4000/5000 Lumens3250 CRI80 Add to Enquiry Add Remove Remove
    Model No.XTN1014TCN DescriptionToulon LED Bollard Type V Black 975mm Clear Lens Power14 CCT3000/4000/5000 Lumens1820 CRI80 Add to Enquiry Add Remove Remove
    Model No.XTN1025TCN DescriptionToulon LED Bollard Type V Black 975mm Clear Lens Power25 CCT3000/4000/5000 Lumens3250 CRI80 Add to Enquiry Add Remove Remove

    Code Methodology: ATO05 = Size  |  14 = Wattage  |  TC = CCT  |  N = Dimming Type

    Variants Available:
    Toulon Series Prefix - ATO
    Size (overall) - 05 (475mm) / 10 (975mm)
    Wattage - 14 / 25
    CCT - TC (Tri Colour 3000/4000/5000k as Standard)
    Dimming type - N = Non Dim
    Lens - Clear as Standard - OP = Opal Lens


Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
