Zurich LED Post Top

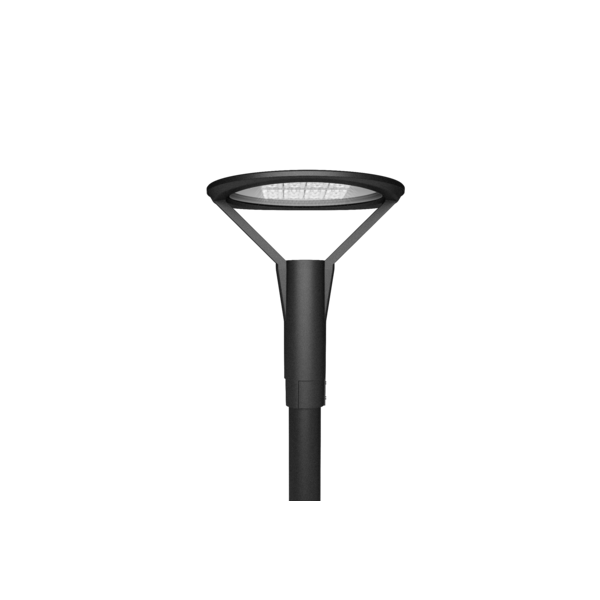

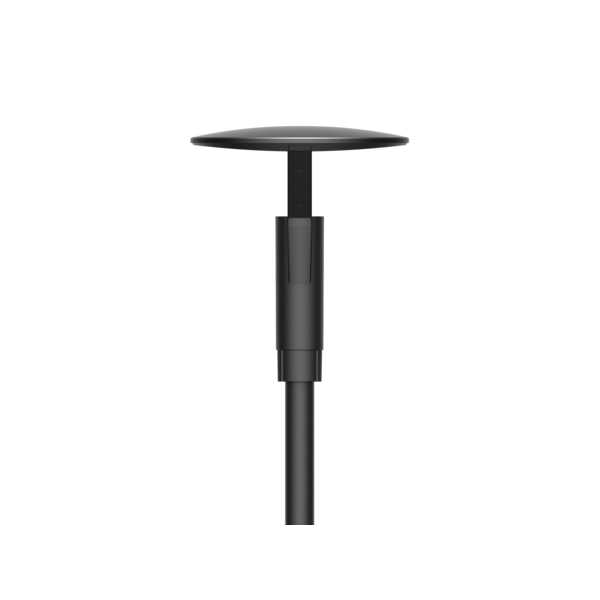

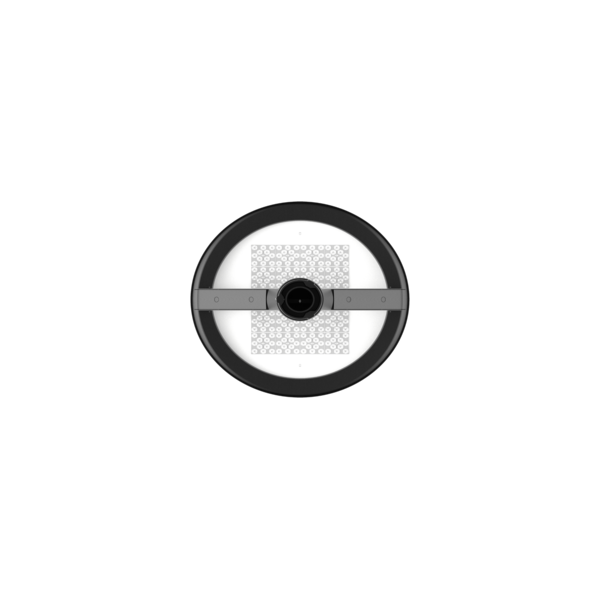

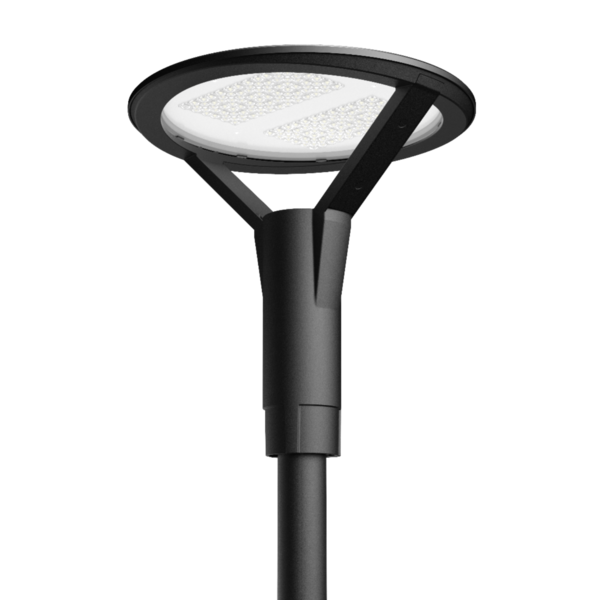

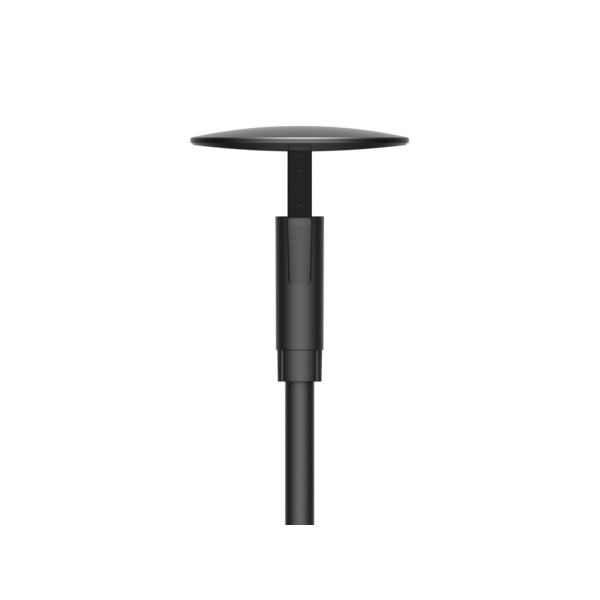

Introducing the Zurich post top LED luminaire, an elegant and modern design suited to outdoor applications where post top LED lighting is required.

Application

Suited to pole mounting up to 5m in height and available in three beam optics and multiple wattages, the IP66 Zurich post top LED fixture is suited to: Pathways, urban areas and general outdoor lighting

Design Specifications

  • Die-cast aluminium body supplied in black powdercoat finish with a tempered glass lens providing long lasting durability

    - IK09 Impact Rating

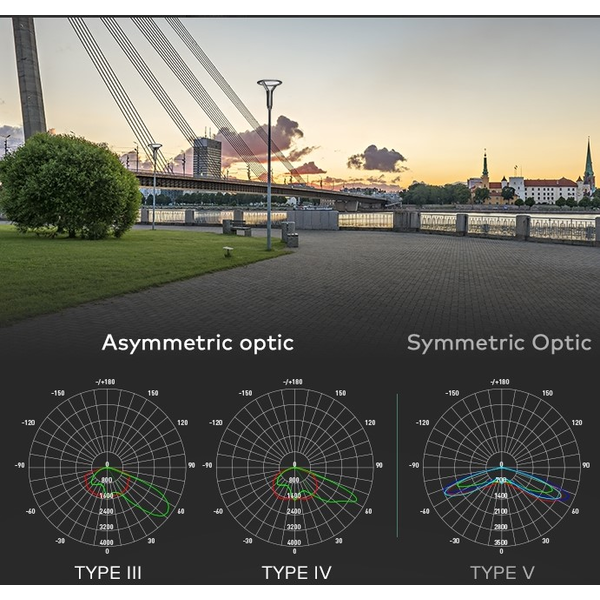

  • Available in 40w, 60w, 75w and 100w, and in type 3, type 4 and type 5 beam optics



  • Designed to suit operating temperatures of -30°C to 50°C



  • Tempered glass for long lasting durability with polycarbonate lens



  • Mounting details - suited to a 76mm spigot diameter



  • Available Options

    • 5000k CCT
    • CRI 80
    • 60mm spigot adaptor
    • DALI dimmable control gear
    • 1-10v dimmable control gear




  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT

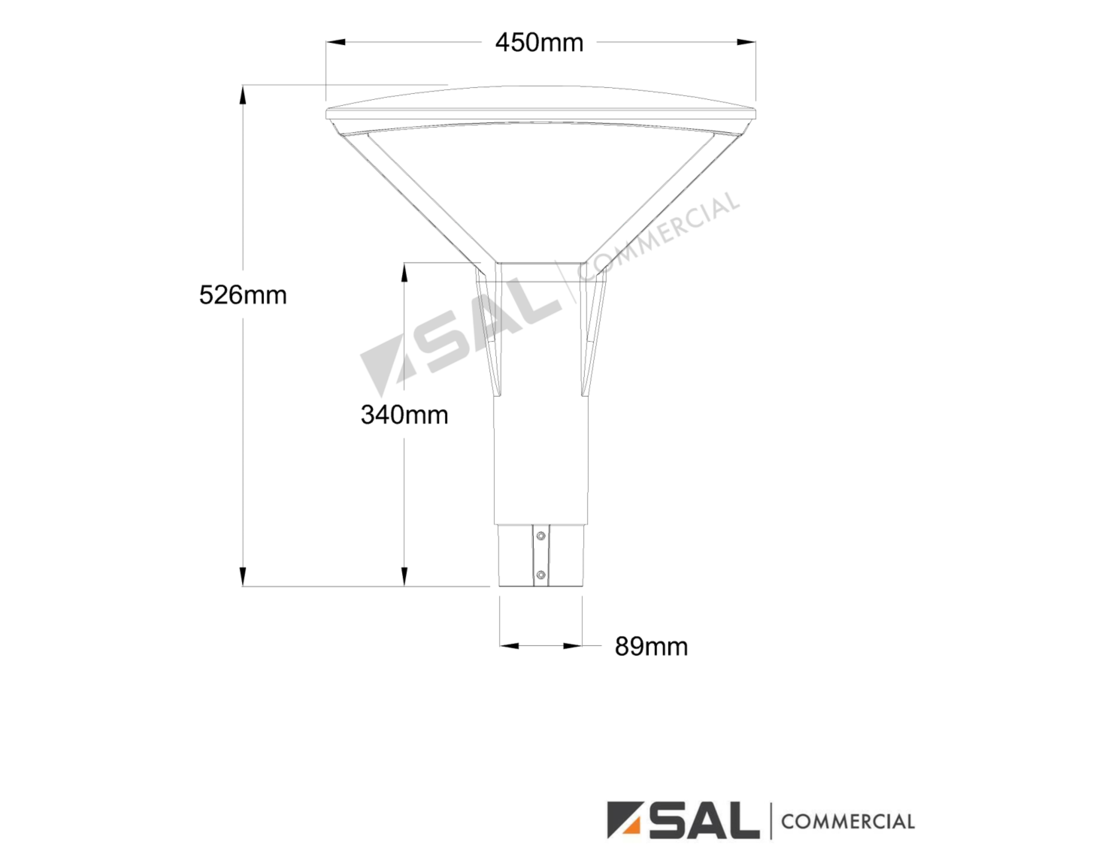

  • Dimensions - Wiring Diagrams
  • Design Options

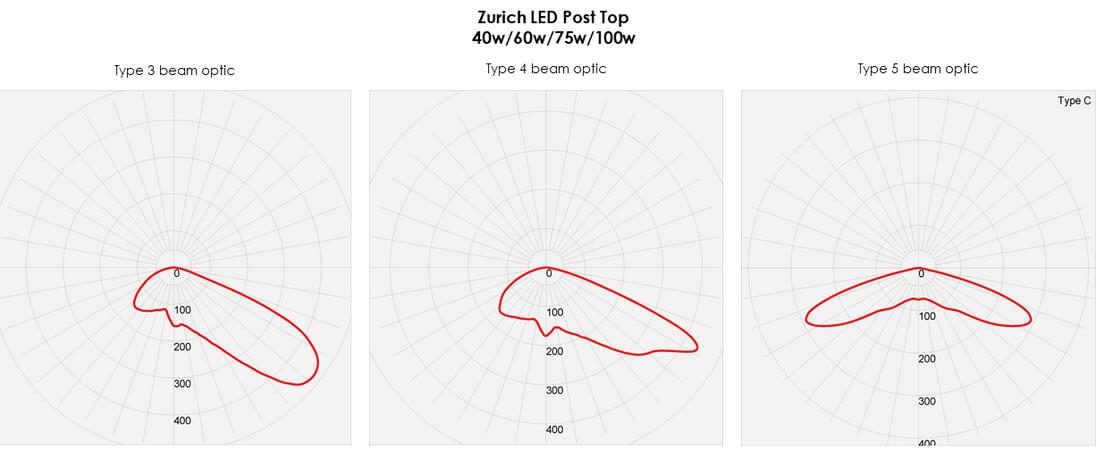

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CCT Lumens CRI Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.OZU4040NT3 DescriptionLED post top type 3 distribution Power40 CCT4000 Lumens4800 CRI70 Mass7 Add to Enquiry Add Remove Remove
    Model No.OZU4040NT4 DescriptionLED post top type 4 distribution Power40 CCT4000 Lumens4800 CRI70 Mass7 Add to Enquiry Add Remove Remove
    Model No.OZU4040NT5 DescriptionLED post top type 5 distribution Power40 CCT4000 Lumens4800 CRI70 Mass7 Add to Enquiry Add Remove Remove
    Model No.OZU6040NT3 DescriptionLED post top type 3 distribution Power60 CCT4000 Lumens7200 CRI70 Mass7.1 Add to Enquiry Add Remove Remove
    Model No.OZU6040NT4 DescriptionLED post top type 4 distribution Power60 CCT4000 Lumens7200 CRI70 Mass7.1 Add to Enquiry Add Remove Remove
    Model No.OZU6040NT5 DescriptionLED post top type 5 distribution Power60 CCT4000 Lumens7200 CRI70 Mass7.1 Add to Enquiry Add Remove Remove
    Model No.OZU7540NT3 DescriptionLED post top type 3 distribution Power75 CCT4000 Lumens9000 CRI70 Mass7.3 Add to Enquiry Add Remove Remove
    Model No.OZU7540NT4 DescriptionLED post top type 4 distribution Power75 CCT4000 Lumens9000 CRI70 Mass7.3 Add to Enquiry Add Remove Remove
    Model No.OZU7540NT5 DescriptionLED post top type 5 distribution Power75 CCT4000 Lumens9000 CRI70 Mass7.3 Add to Enquiry Add Remove Remove
    Model No.OZU10040NT3 DescriptionLED post top type 3 distribution Power100 CCT4000 Lumens12000 CRI70 Mass7.5 Add to Enquiry Add Remove Remove
    Model No.OZU10040NT4 DescriptionLED post top type 4 distribution Power100 CCT4000 Lumens12000 CRI70 Mass7.5 Add to Enquiry Add Remove Remove
    Model No.OZU10040NT5 DescriptionLED post top type 5 distribution Power100 CCT4000 Lumens12000 CRI70 Mass7.5 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
