Lombardo AGO LED Range

Established in 1969, Lombardo is a lighting manufacturer producing high quality luminaires that are proudly Made in Italy.

Explore the AGO range by Lombardo

Application

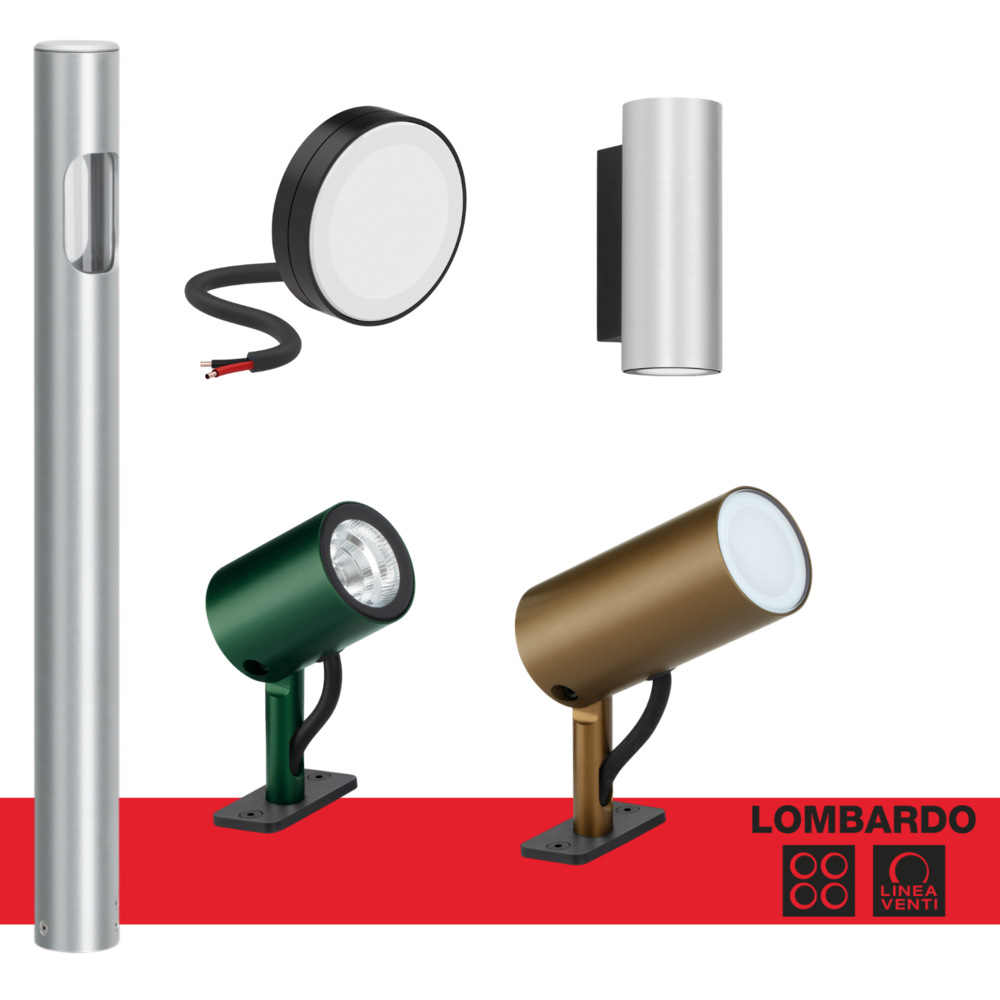

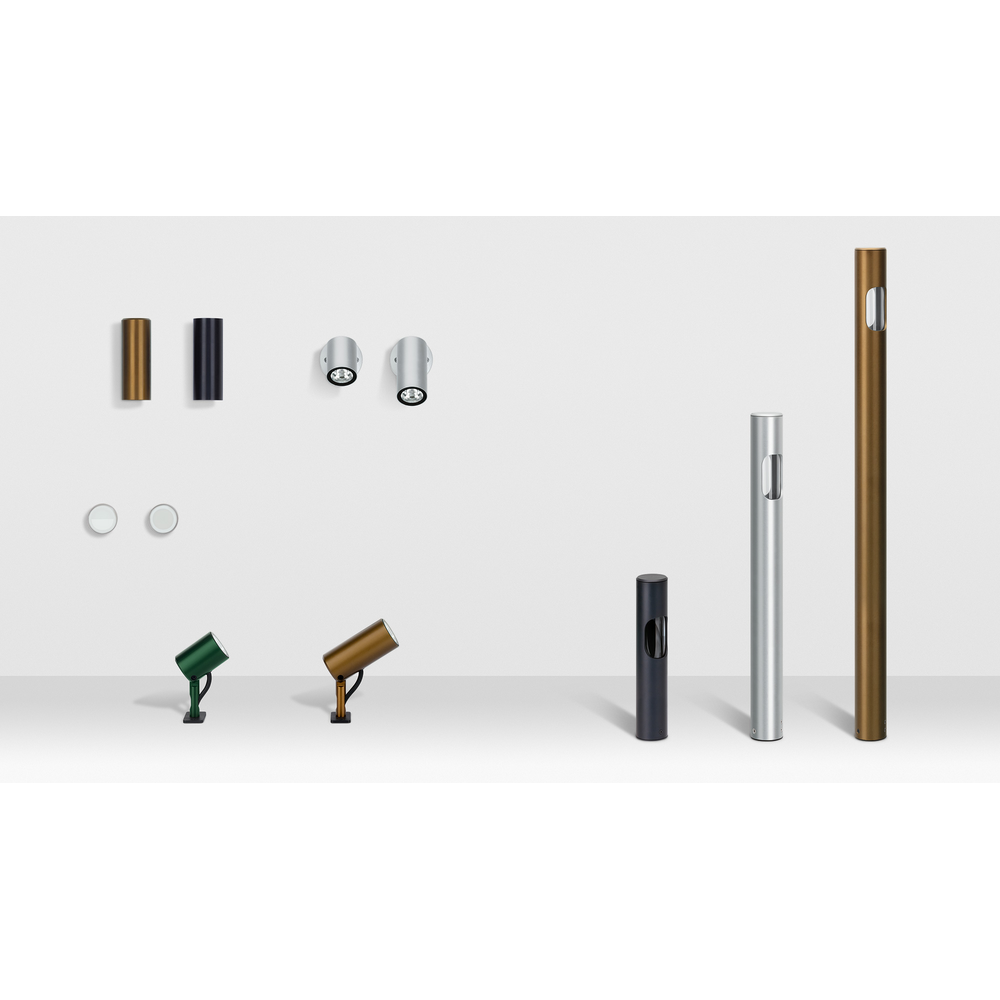

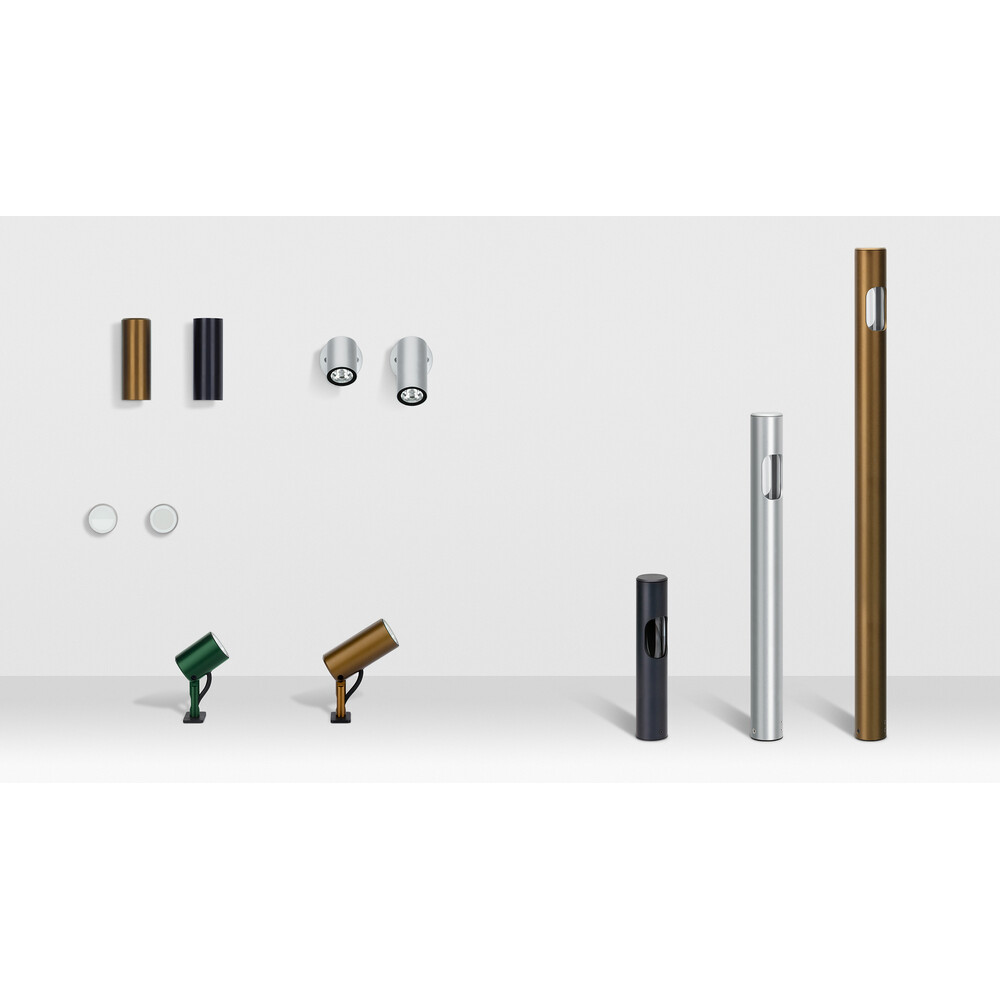

Offering a consistent aesthetic across the entire family of products, the AGO LED range from Lombardo offers bollards, wall lights and spot lights. The entire range is rated at IP66 for ingress protection and IK07 for impact rating.

Suitable for both interior and exterior applications in a range of specifications and high quality finishes.

Design Specifications

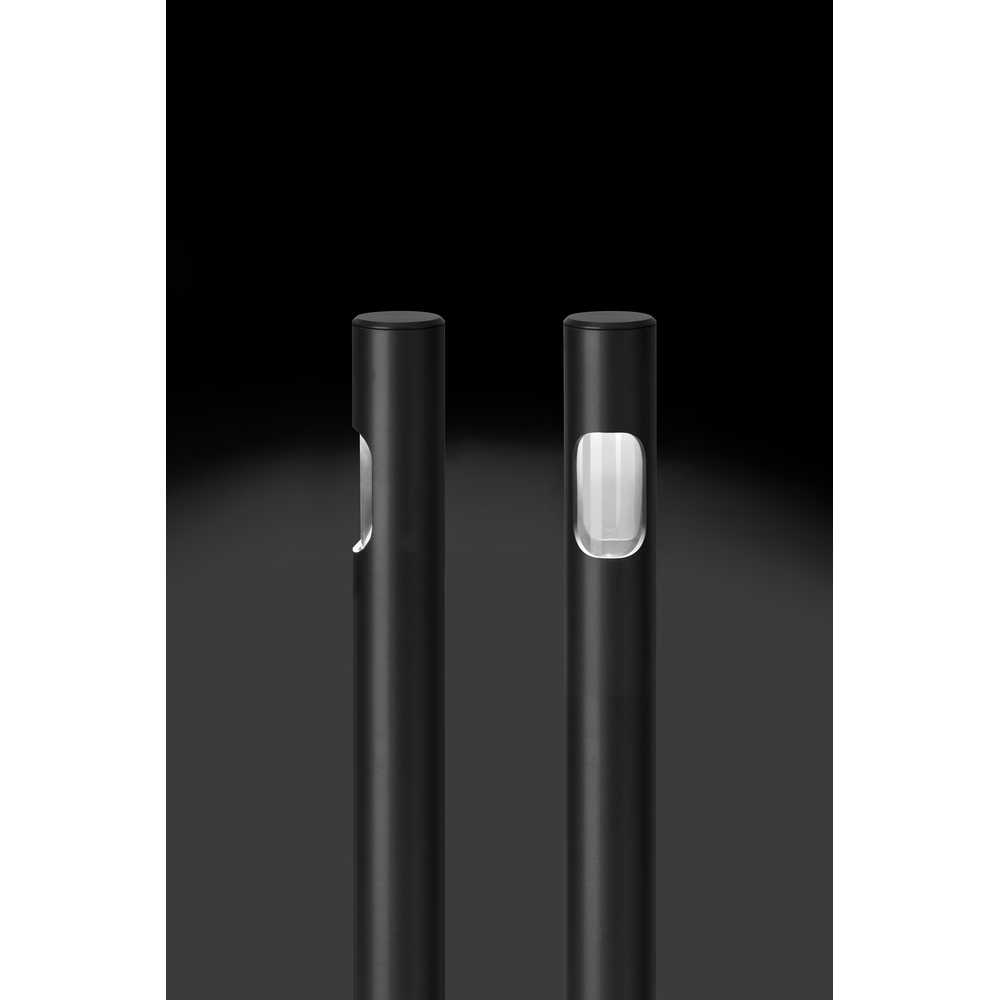

  • AGO Bollard

    • 300mm/600mm/900mm height
    • Single/double light source
    • Available in 2700K, 3000K and 4000K
  • AGO Wall Power

    • High efficiency dimmable wall light
    • Available in 2700K, 3000K and 4000K
    • Available Optics - diffused, 25°, 40° and 65°
  • AGO Top

    • Exterior low power dimmable wall light
    • Available in 2700K, 3000K and 4000K
    • Eyelid option available
  • AGO Garden

    • Specific garden spotlight design
    • High efficiency dimmable spotlight
    • Available in 2700K, 3000K and 4000K
    • Available Optics - diffused, 25°, 40° and 65°
  • Available Options

    • Anodized finishes grey, green, black, brown
    • Bracket extensions (see main image)
    • Coloured lens kit
    • Anti-glare shield

    *Refer to the brochure available for more details


  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CCT Lumens Beam Angle Dim Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.LL126101M3 DescriptionAgo Garden Power, LED spotlight, black finish, IK07 Power10 CCT3000 Lumens933 Beam Angle40 Dim106(L) x 345(H) Diameter50 Add to Enquiry Add Remove Remove
    Model No.LL1260093 DescriptionAgo Top wall light, 24v, black finish, IK07 Power2 CCT3000 Lumens115 Beam Angle Dim19(W) x 50(H) Diameter50 Add to Enquiry Add Remove Remove
    Model No.LL126013 DescriptionAgo Top wall light, 24v black finish, IK07 with eyelid Power2 CCT3000 Lumens25 Beam Angle Dim Diameter50 Add to Enquiry Add Remove Remove
    Model No.LL126105M3 DescriptionAgo Wall Power, black finish, IK07, 40° beam Power10 CCT3000 Lumens933 Beam Angle40 Dim106(L) x 70(W) x 115(H) Diameter50 Add to Enquiry Add Remove Remove
    Model No.LL126201M3 DescriptionAgo Wall Light light, direct only, black finish, IK07 Power5 CCT3000 Lumens497 Beam Angle40 Dim134(L) x 74(W) Diameter50 Add to Enquiry Add Remove Remove
    Model No.LL126201M3 DescriptionAgo Wall Light light, direct/indirect , black finish, IK07 Power10 CCT3000 Lumens996 Beam Angle40 Dim134(L) x 74(W) Diameter50 Add to Enquiry Add Remove Remove
    Model No.LL1263043 DescriptionAgo Bollard, 600mm, black finish, IK07 Power10 CCT3000 Lumens540 Beam Angle Dim600(H) Diameter58 Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
