• Commercial LED Architectural

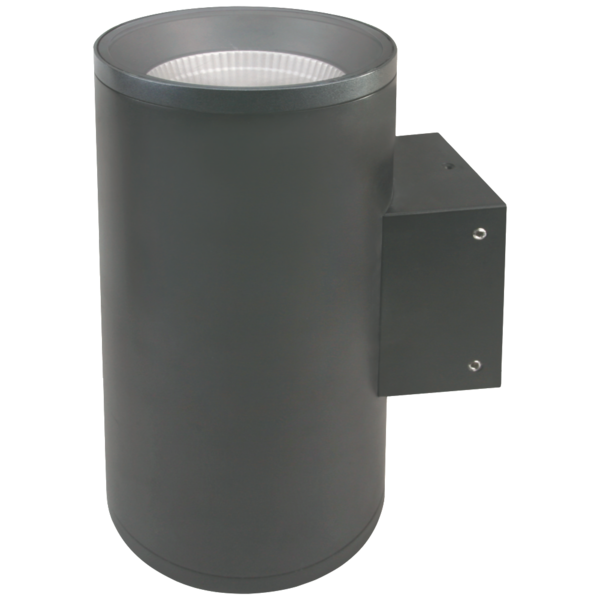

Santorini 110 Up / Down

Cylindrical IP65 LED Wall Light

Introducing the Santorini LED range of architectural surface mount wall lights. With multiple sizes, beam angles, direct only, direct / indirect options, the Santorini LED architectural wall light range has an option to suit your project

Application

The Santorini 110 direct / indirect optic is manufactured from aluminium for efficient heat dissipation and suited to:

Pathways

Foyers

Building facades

Balcony areas

Design Specifications

  • High output COB LED Chip, L70 - > 50,000 hours

  • Integral non-dimmable driver in a flat mount control gear enclosure

  • Low glare internal reflector with 40° beam optic as standard

  • High impact, tempered glass lens

  • Black powdercoat as standard

  • Available Options

    • 10°, 20° and 70° beam optics
    • Silver powdercoat MOQ's MAY APPLY

Santorini 110 Up / Down
  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power CCT Lumens Beam Angle CRI Dim Diameter Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XST11DI1830N Description Santorini IP65 LED Wall Light with Direct / Indirect Optic Power 18 CCT 3000 Lumens 1800 Beam Angle 40 CRI 90 Dim 320(H) Diameter 110 Add to Enquiry Add Remove Remove
      Model No. XST11DI1840N Description Santorini IP65 LED Wall Light with Direct / Indirect Optic Power 18 CCT 4000 Lumens 1800 Beam Angle 40 CRI 90 Dim 320(H) Diameter 110 Add to Enquiry Add Remove Remove

      BEAM ANGLE VARIATIONS:  Add the following beam angle to the end of the code (example - for 10º XST11DI1830N10) - 10 (10º) / 20 (20º) / 70 (70º)

      MOQ: Minimum order quantities may apply for certain variations. Please check with the SAL Commercial sales office for details

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
