• Commercial LED Architectural

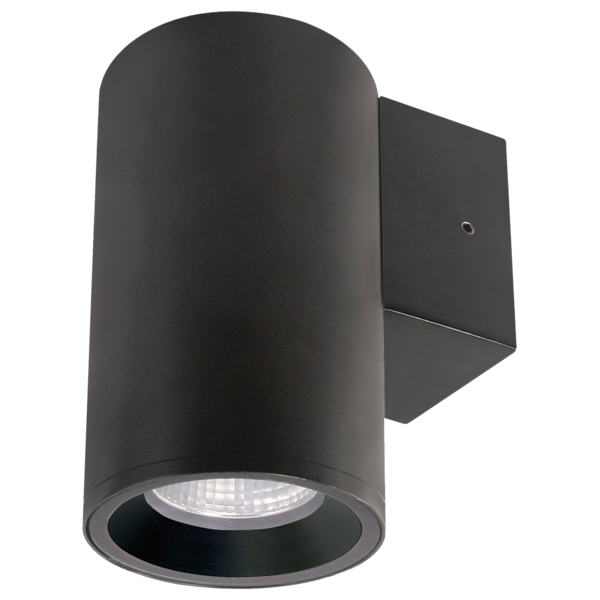

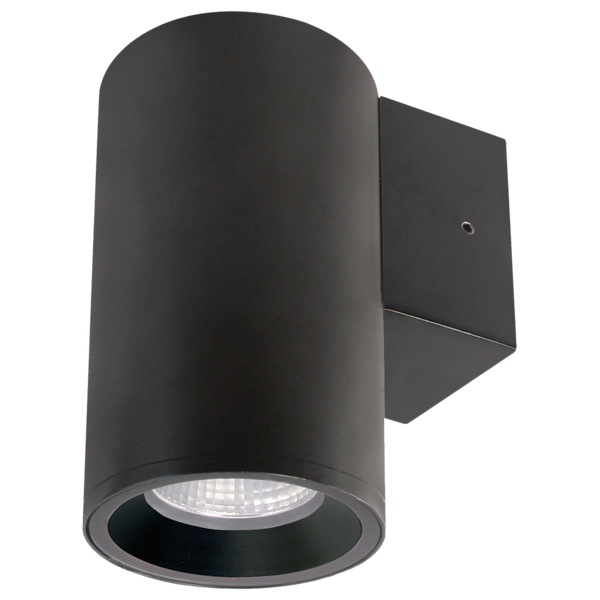

Santorini 150 Down

Cylindrical IP65 LED Wall Light

Introducing the Santorini LED range of architectural surface mount wall lights. With multiple sizes, beam angles, direct only, direct/indirect options, the Santorini LED architectural wall light range has an option to suit your project

Application

The Santorini 150 downward beam model is manufactured in aluminium for efficient heat dissipation and suited to:

♦ Pathways

♦ Foyers

♦ Building facades

♦ Balcony areas

Design Specifications

  • High output COB LED Chip, L70 - 50,000 hours

  • Integral non-dimmable driver in a flat mount control gear enclosure

  • Set back internal reflector with 40° beam optic as standard

  • High temperature glass lens

  • Available Options

    • 12°, 20° and 60° beam optics
    • Silver finish

Santorini 150 Down
  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power CCT Lumens Beam Angle CRI Dim Diameter Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XST15D2530N Description Santorini LED IP65 surface mount wall light, direct only Power 25 CCT 3000 Lumens 2500 Beam Angle 40 CRI 90 Dim 180(H) Diameter 150 Add to Enquiry Add Remove Remove
      Model No. XST15D2540N Description Santorini LED IP65 surface mount wall light, direct only Power 25 CCT 4000 Lumens 2500 Beam Angle 40 CRI 90 Dim 180(H) Diameter 150 Add to Enquiry Add Remove Remove
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
