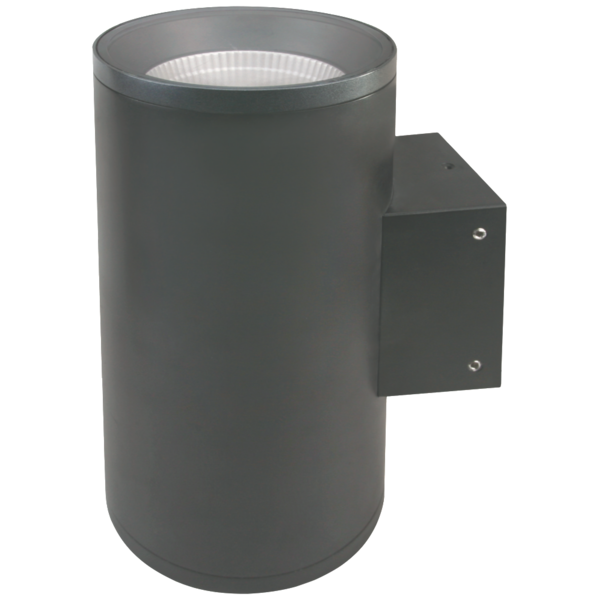

Santorini 150 Up / Down

Cylindrical IP65 LED Wall Light

Introducing the Santorini LED range of architectural surface mount wall lights. With multiple sizes, beam angles, direct only, direct/indirect options, the Santorini LED architectural wall light range has an option to suit your project

Application

The Santorini 150 direct/indirect model is manufactured in aluminium for efficient heat dissipation and suited to:

♦ Pathways

♦ Foyers

♦ Building facades

♦ Balcony areas

Design Specifications

  • High output COB LED Chip, L70 - 50,000 hours

  •  Integral non-dimmable driver in a flat mount control gear enclosure

  •  Set back internal reflector with 40° beam optic as standard and

  •   Aluminium body designed for efficient heat dissipation, available in black or silver powdercoat

  • Available Options

    • Integral DALI dimmable driver
    • 12°, 20° and 60° beam optics
    • Silver finish

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power CCT Lumens Beam Angle CRI Dim Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.XST15DI2530N DescriptionSantorini LED IP65 surface mount wall light, direct/indirect beam Power25 CCT3000 Lumens3400 Beam Angle40 CRI90 Dim350(H) Diameter150 Add to Enquiry Add Remove Remove
    Model No.XST15DI2540N DescriptionSantorini LED IP65 surface mount wall light, direct/indirect beam Power25 CCT4000 Lumens3400 Beam Angle40 CRI90 Dim350(H) Diameter150 Add to Enquiry Add Remove Remove
