Hamilton

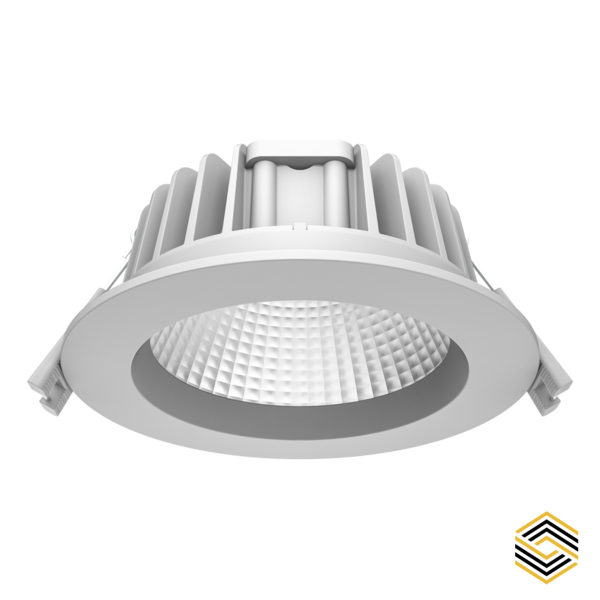

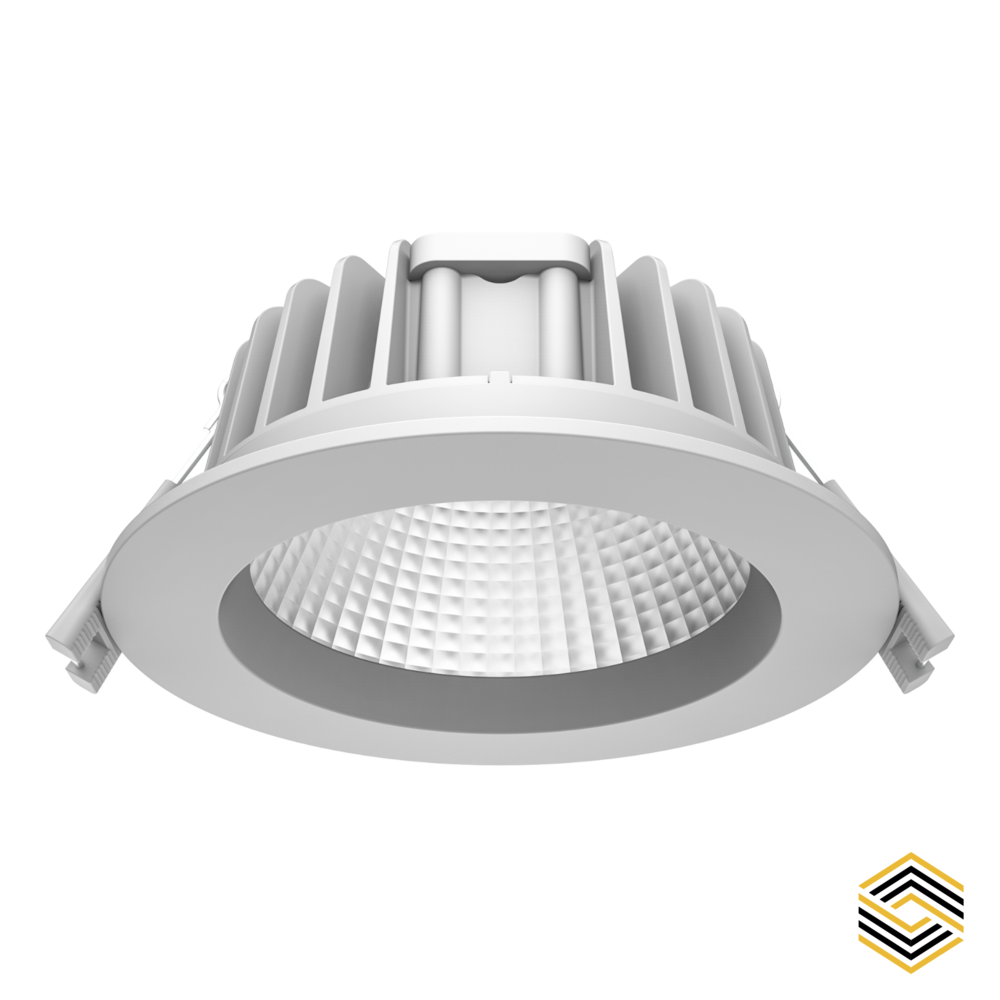

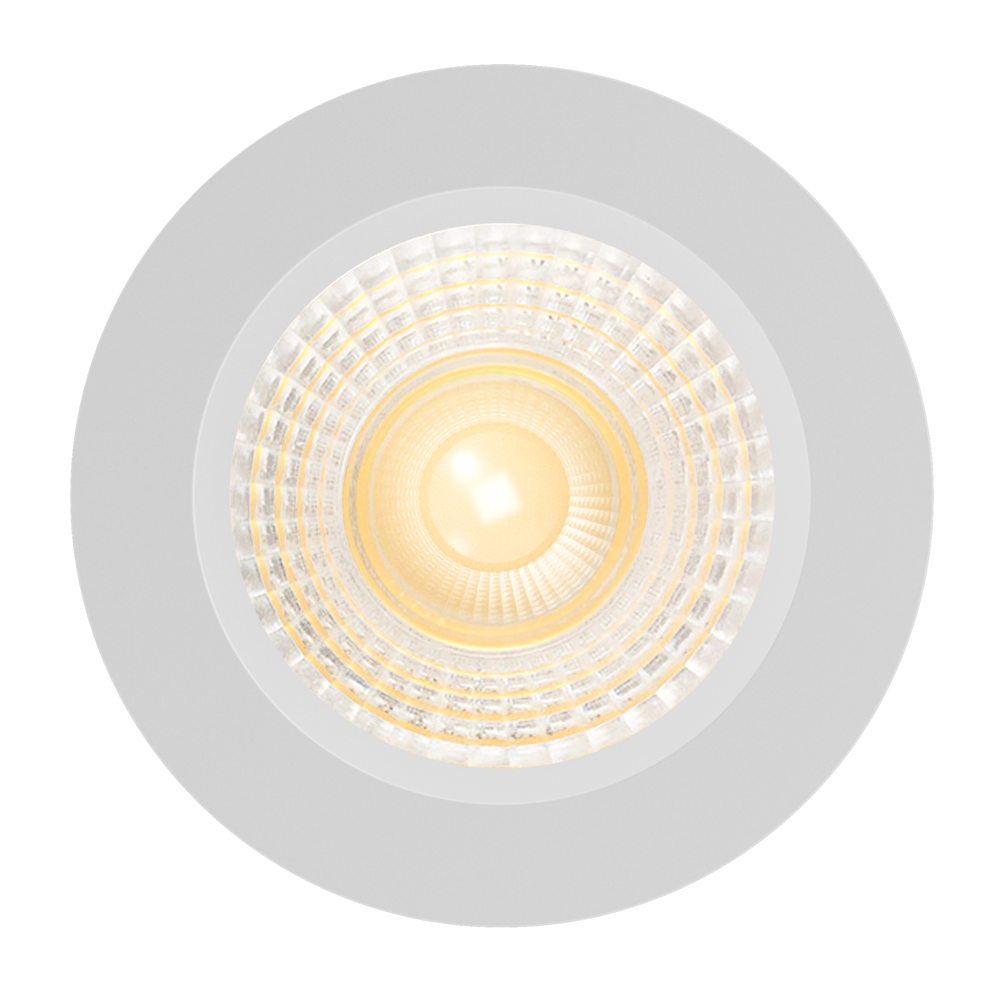

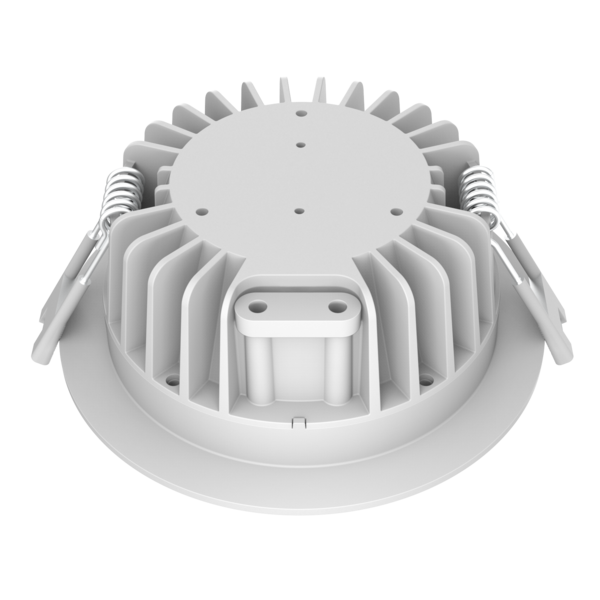

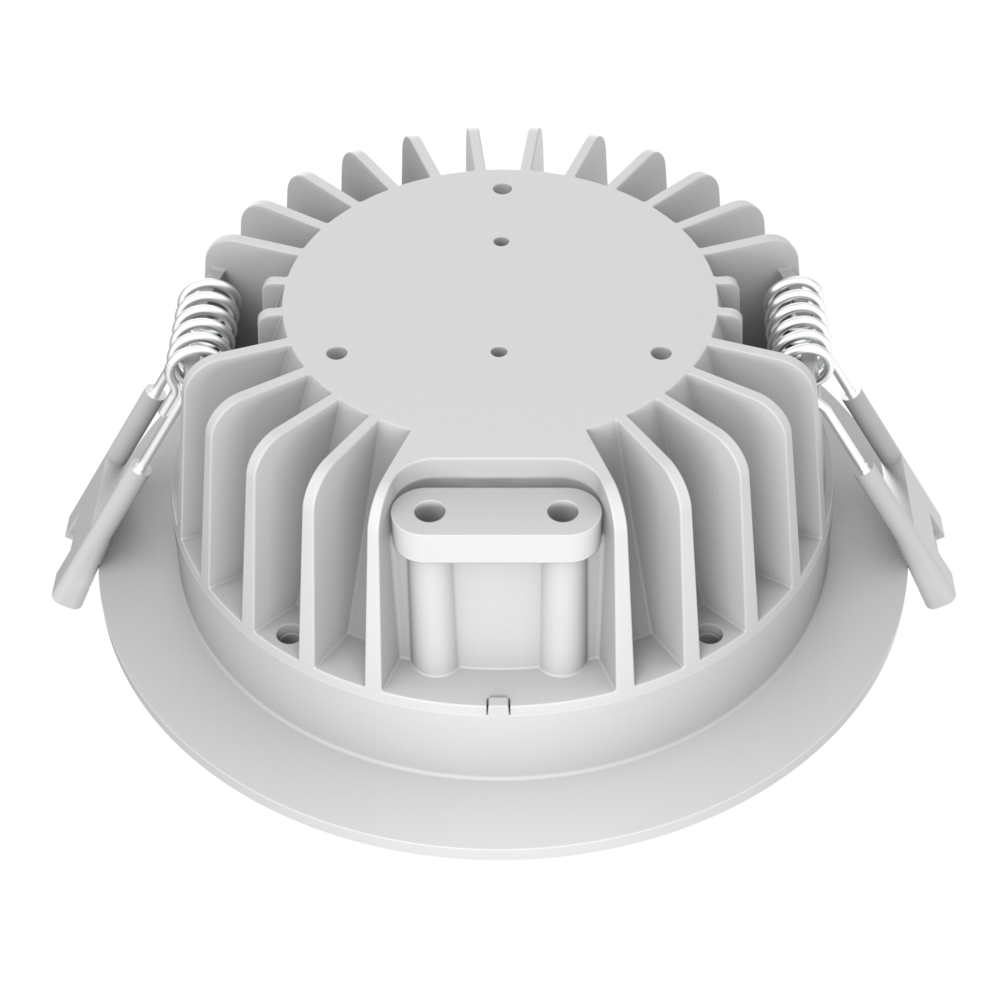

Commercial IP54 LED Downlight

The Hamilton recessed downlight offers high performance CRI 90 LED COB technology and IP54 ingress protection.

Application

Suited to areas where a larger diameter and high power, high efficiency downlight is required.

Design Specifications

  • Available in 3 sizes ranging from 110mm to 230mm with lumen packages ranging from 800 to 3300 lumens.

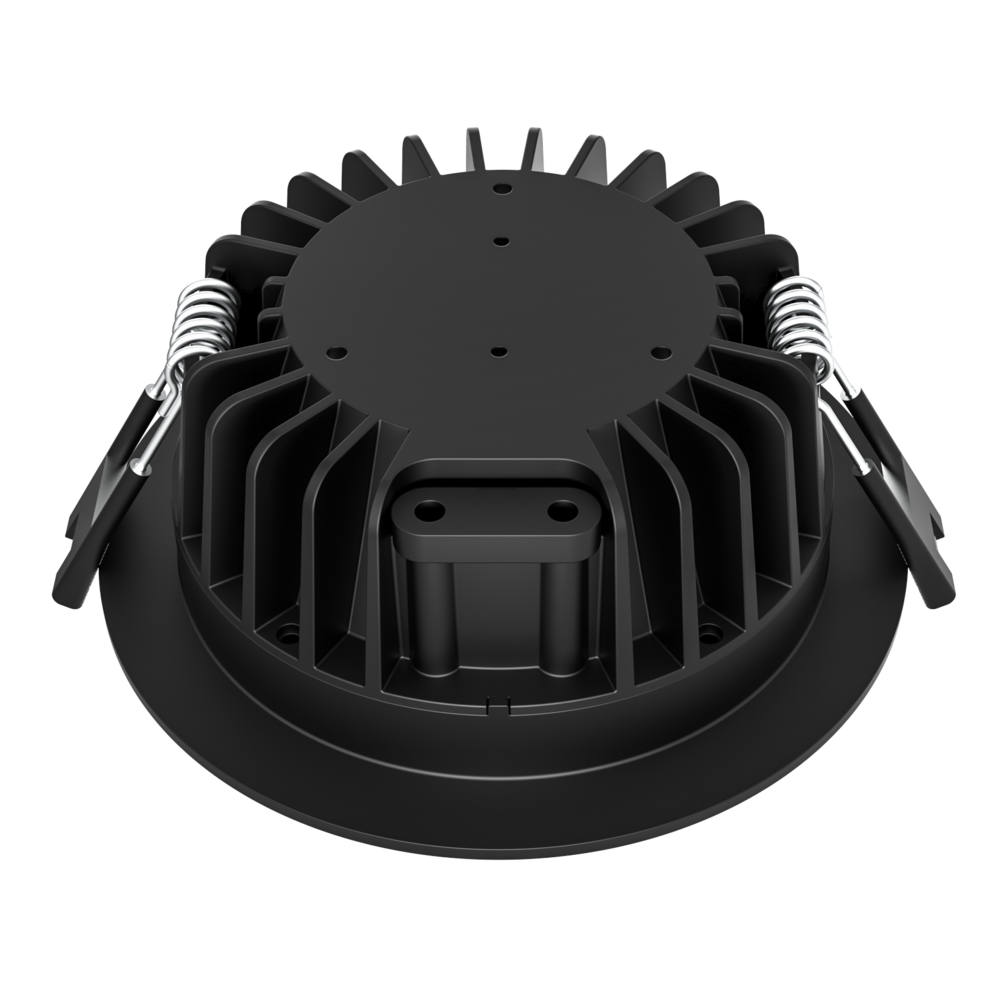

  • The Hamilton is constructed from die-cast aluminium and finished with a matte finish powder coat.

  • Offering smooth and seamless dimming in your choice of Phase dimmable or DALI dimmable options.

  • 2700k and 5000k models available upon requests - note MOQ's may apply


  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT

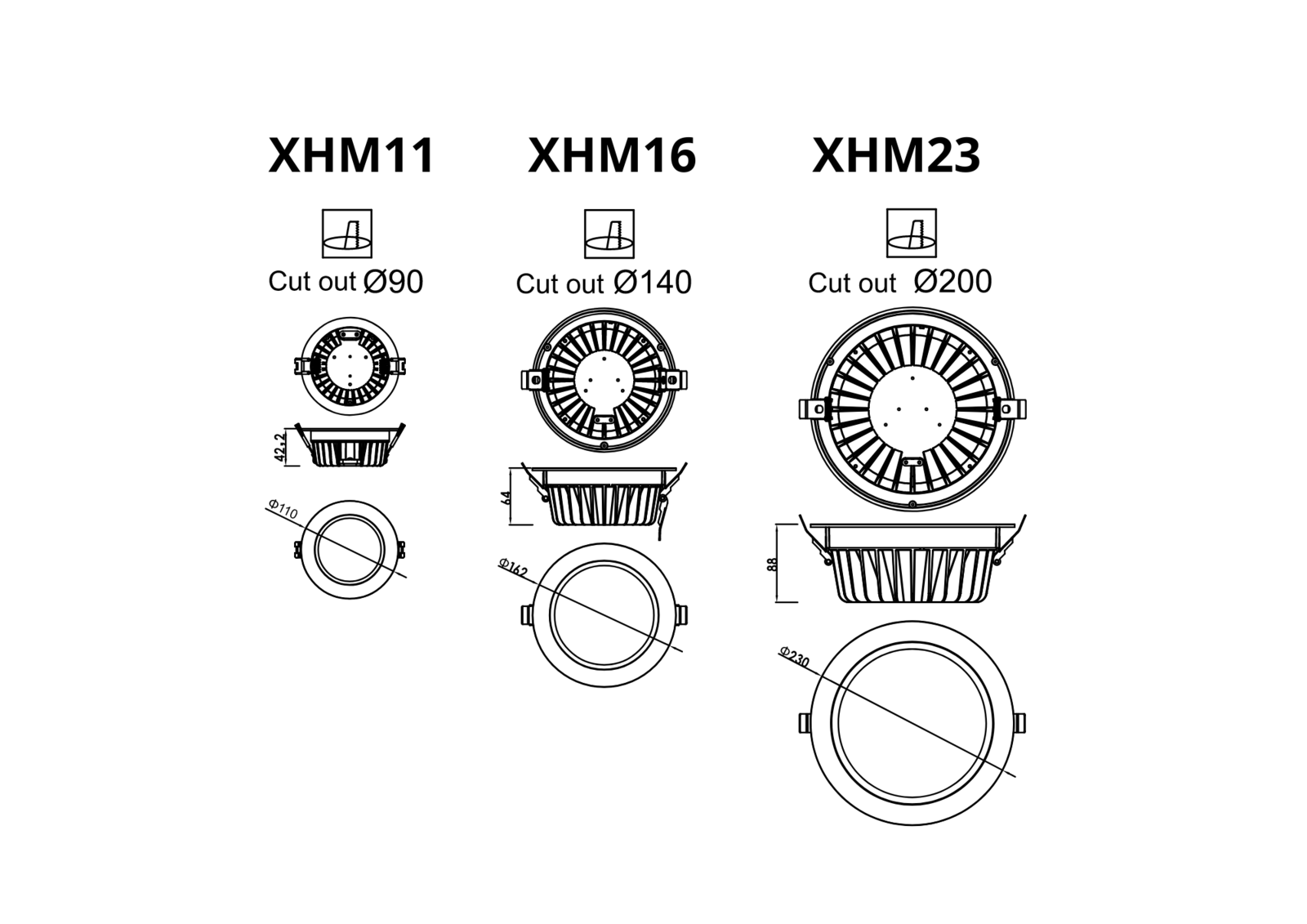

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.XHM110940N DescriptionIP54 recessed downlight, 9W, 4000K, 60°, white trim, non-dimmable Power9 Lumens800 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XHM111240N DescriptionIP54 recessed downlight, 12W, 4000K, 60°, white trim, non-dimmable Power12 Lumens1000 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XHM162040N DescriptionIP54 recessed downlight, 20W, 4000K, 60°, white trim, non-dimmable Power20 Lumens2000 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XHM162540N DescriptionIP54 recessed downlight, 25W, 4000K, 60°, white trim, non-dimmable Power25 Lumens2700 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove
    Model No.XHM233040N DescriptionIP54 recessed downlight, 30W, 4000K, 60°, white trim, non-dimmable Power30 Lumens3300 CCT4000 Beam Angle60 CRI90 Add to Enquiry Add Remove Remove

    Code Methodology: XHM11 = Size  |  09 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour (if applicable)
    Variants Available:
    Size (overall) - 11 (110mm) / 16 (162mm) / 23 (230mm)
    Wattage - 09 / 12 / 20 25 / 30
    CCT - 40 = 4000K / 30 = 3000K / 50 = 5000K / 27 = 2700k
    Dimming type - N = Non Dim / D = DALI / P = Phase Dim

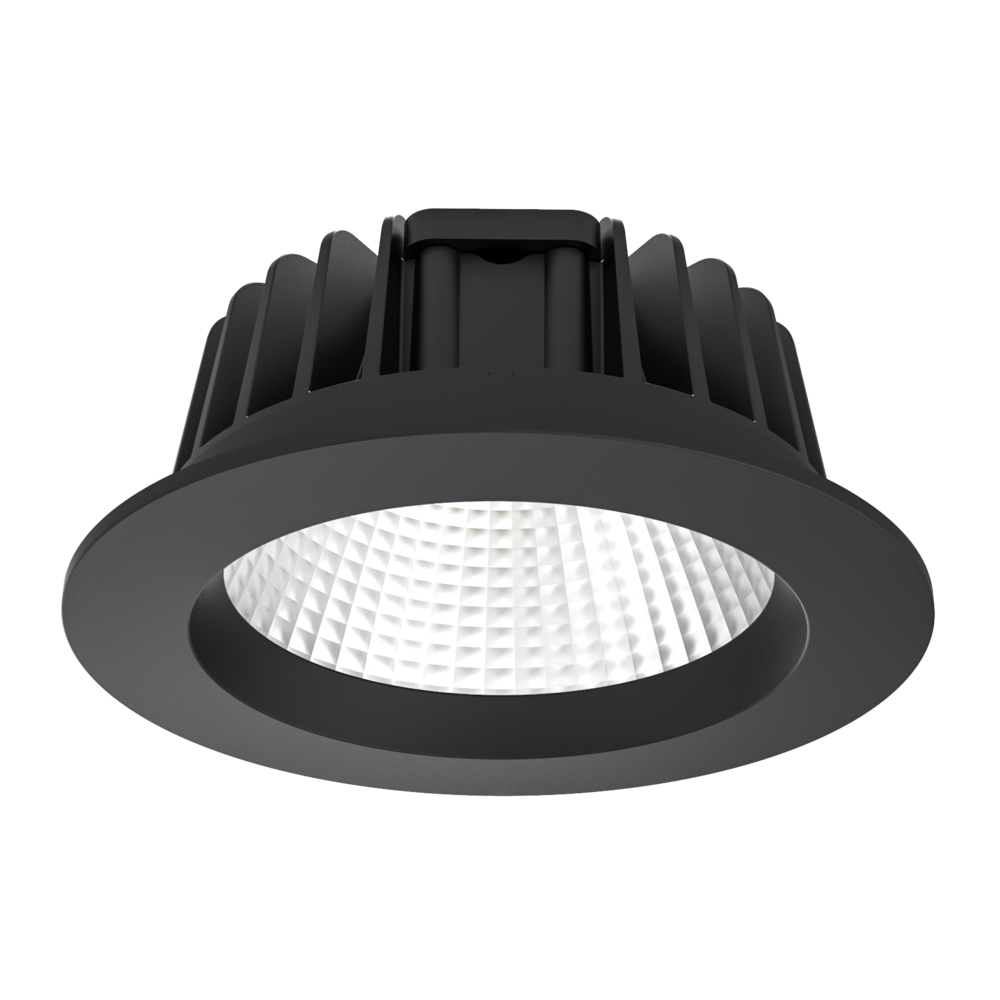

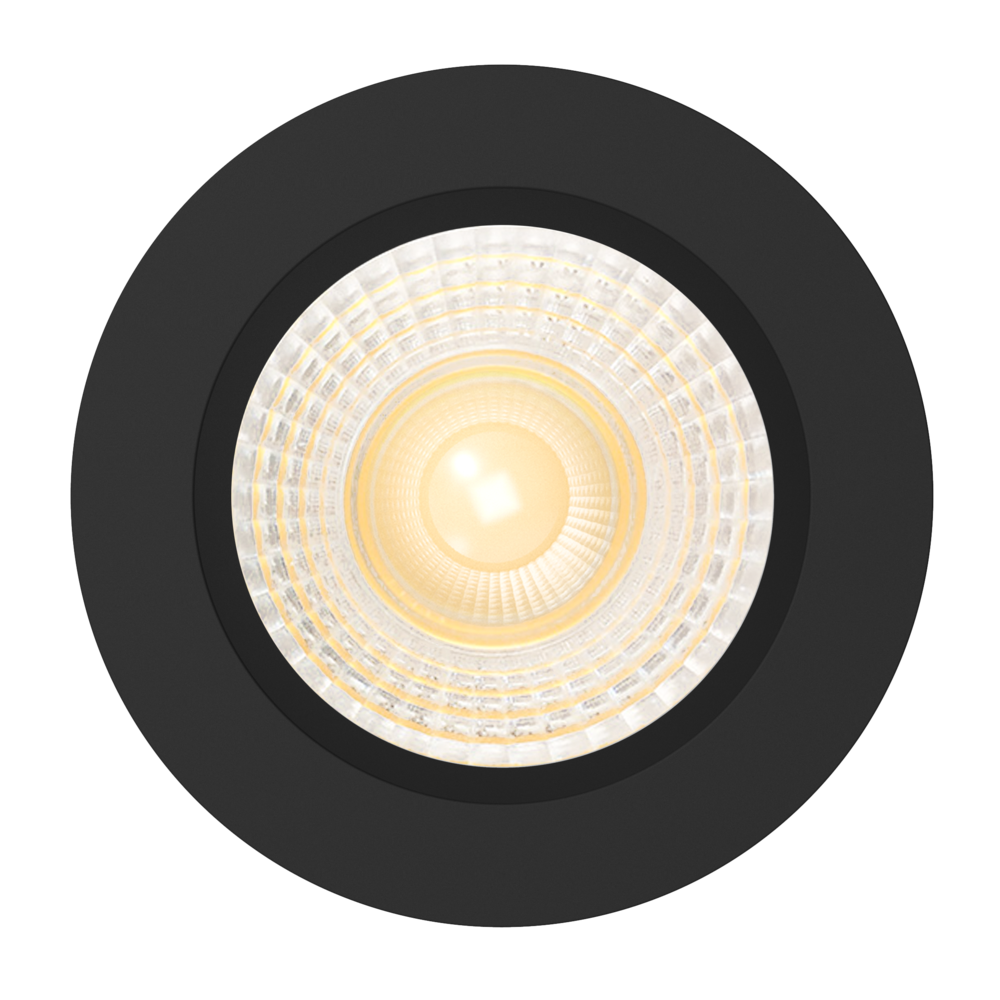

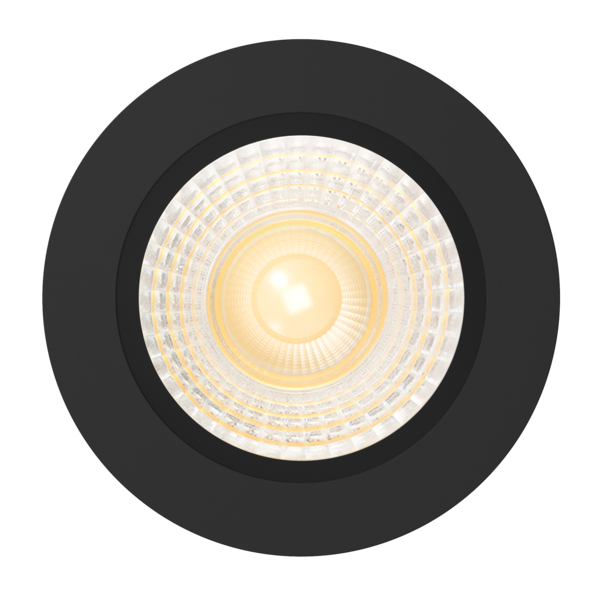

    Trim Colour - White (standard) / BK = Black
