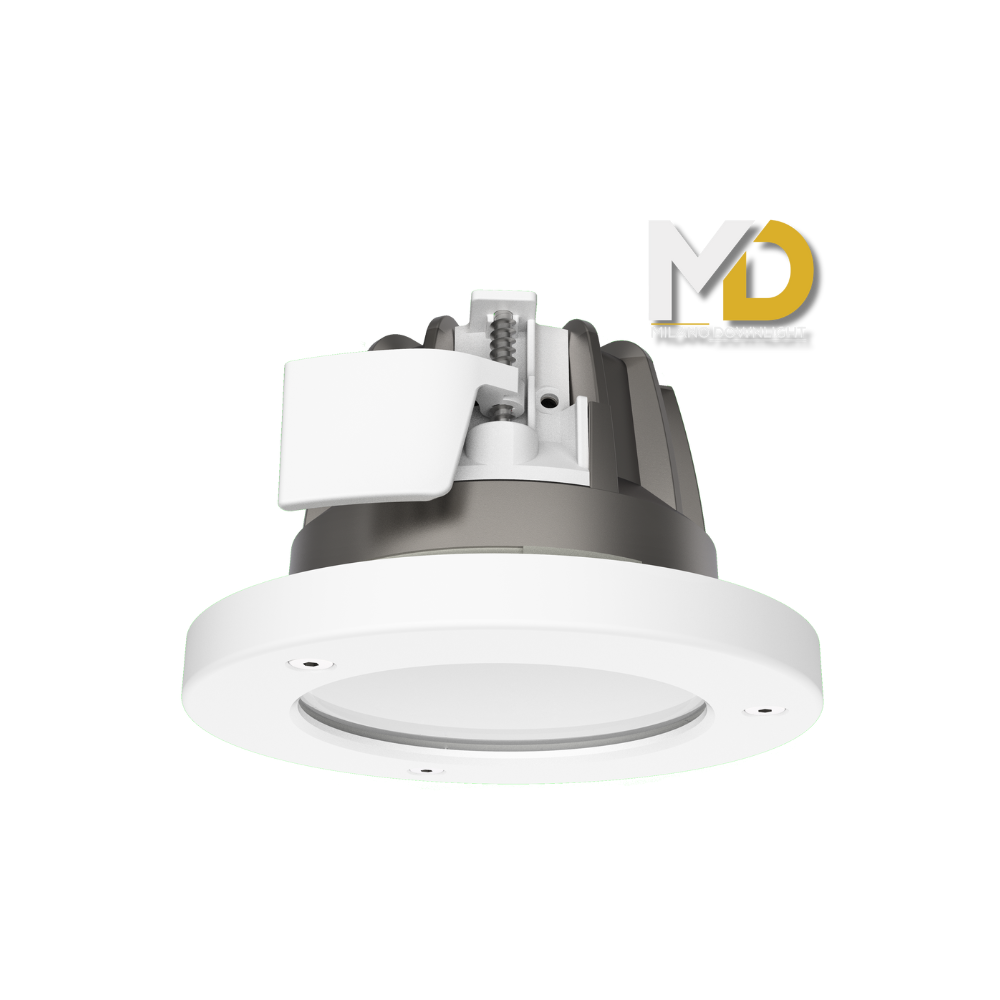

Milano 110 KP

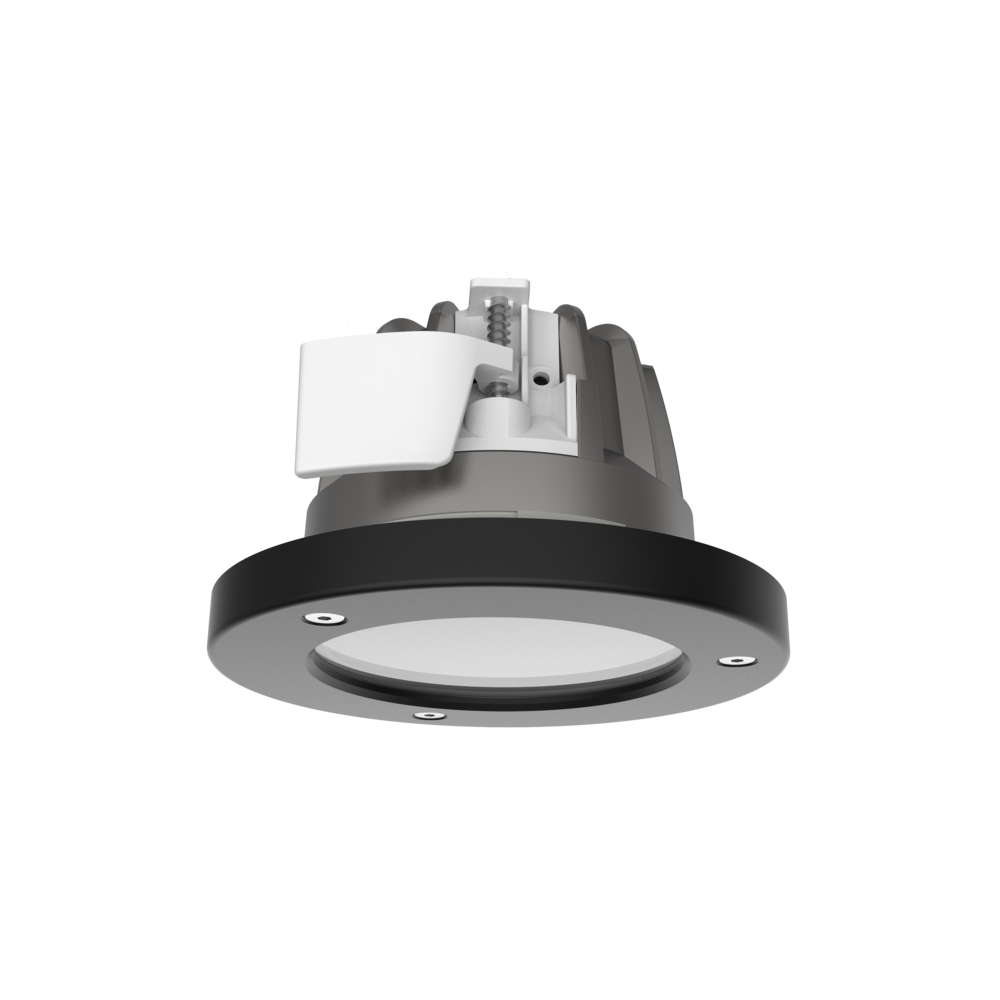

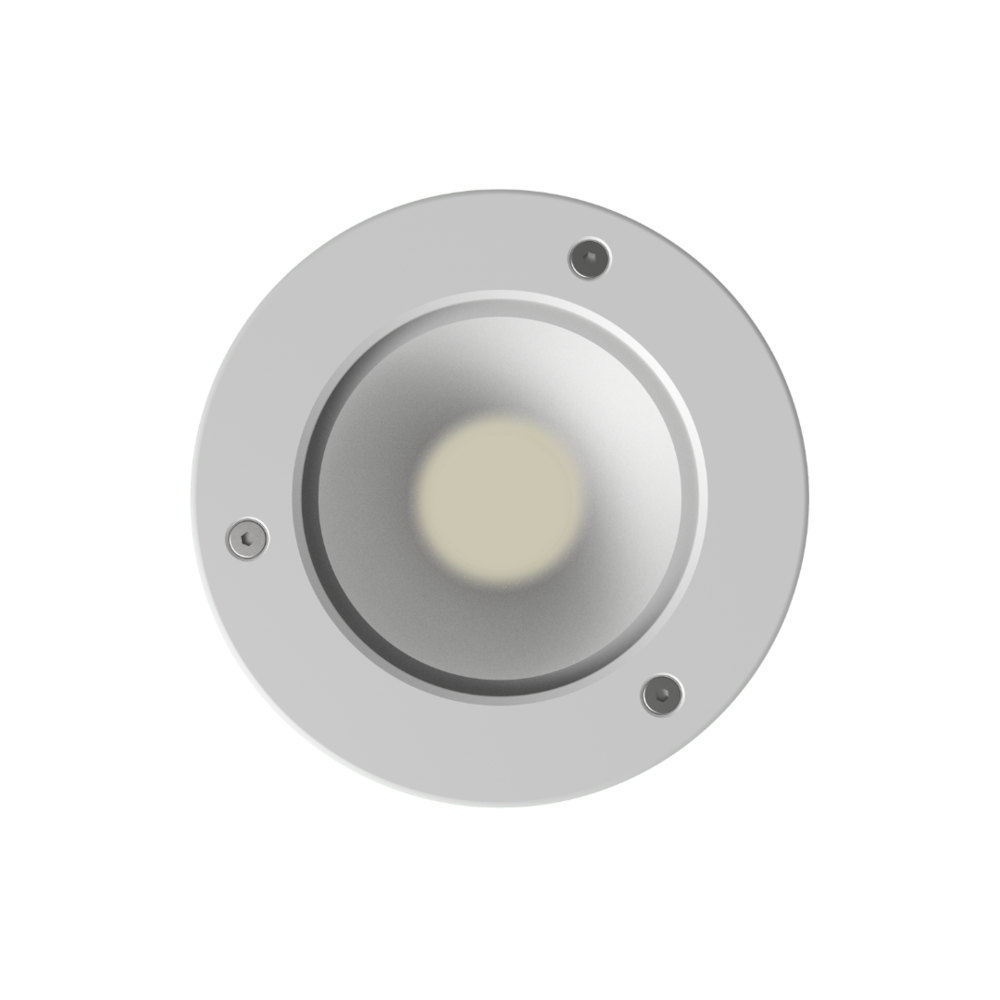

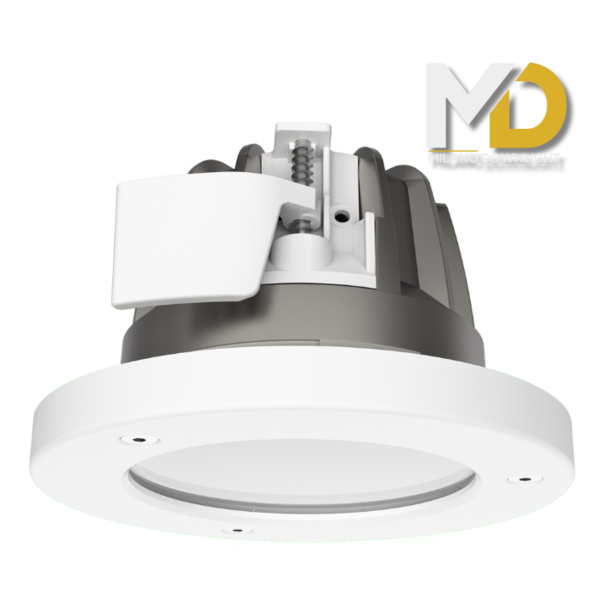

110mm IP65 / IK10 Commercial Low Glare LED Downlight with Die-Cast Aluminum Trim and Anti-Tamper Screws

Designed for performance and visual comfort, the Milano LED Downlight offers a clean architectural aesthetic, low-glare illumination, and versatile configurations to suit commercial and healthcare environments. With a focus on reliability, optical control, and seamless integration, Milano is an ideal choice for projects requiring both form and function.

Application

Developed in-house for demanding commercial environments, this IK08, IP65-rated LED downlight offers exceptional impact resistance and protection against dust and water ingress. Built to perform in high-traffic or wet areas, it delivers durable, high-performance illumination, ideal for public spaces, amenities, and other challenging applications.

Design Specifications

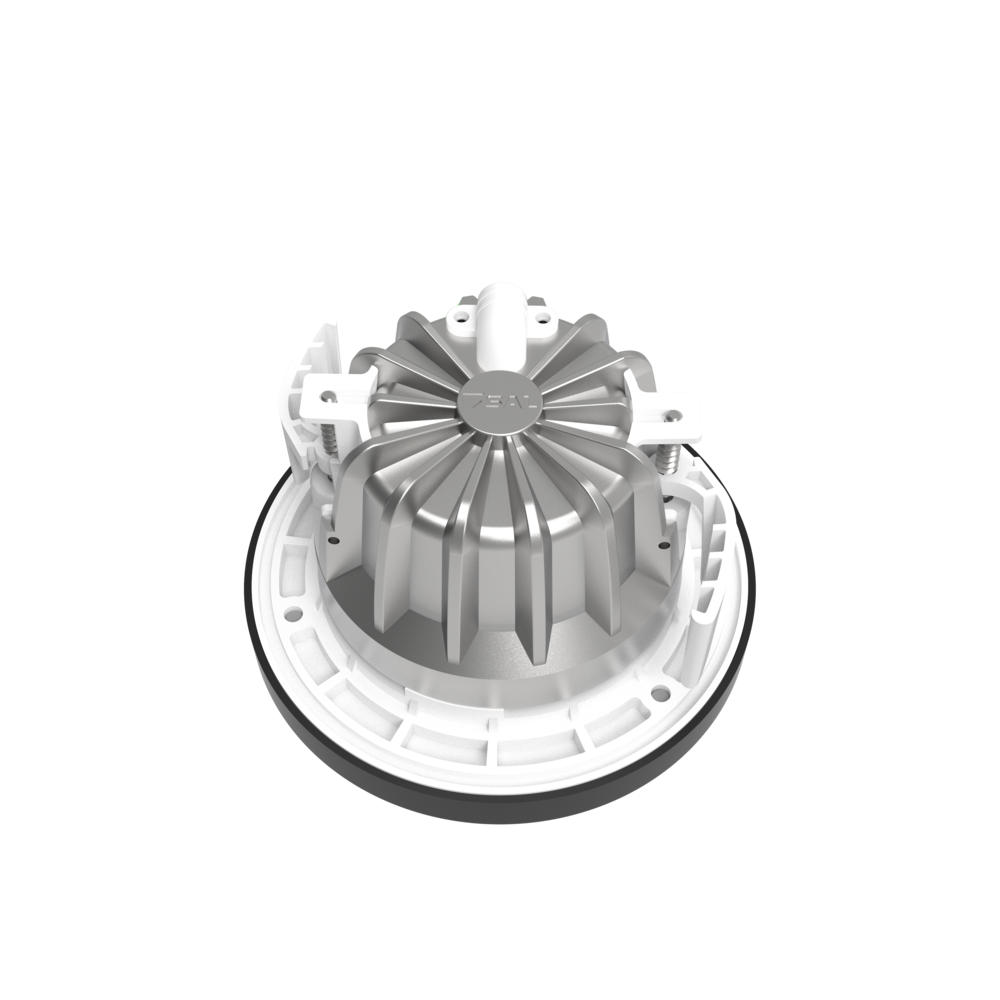

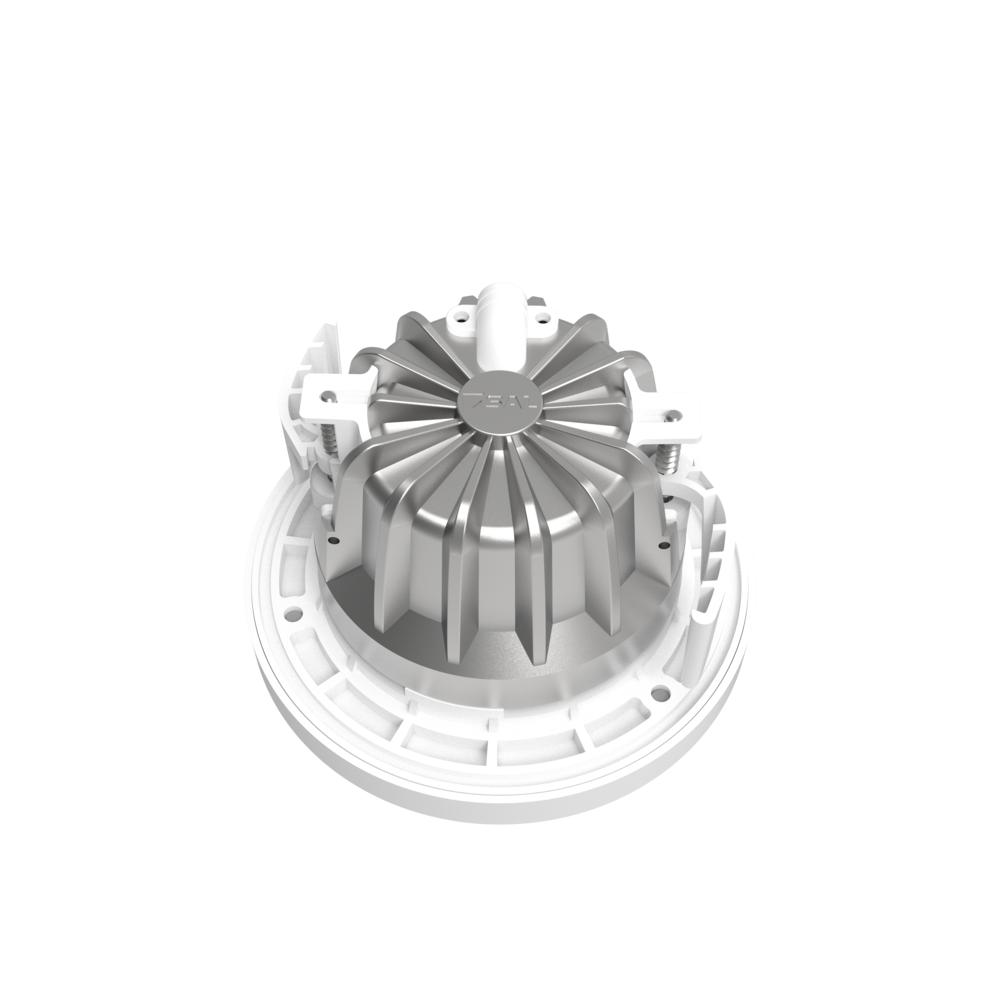

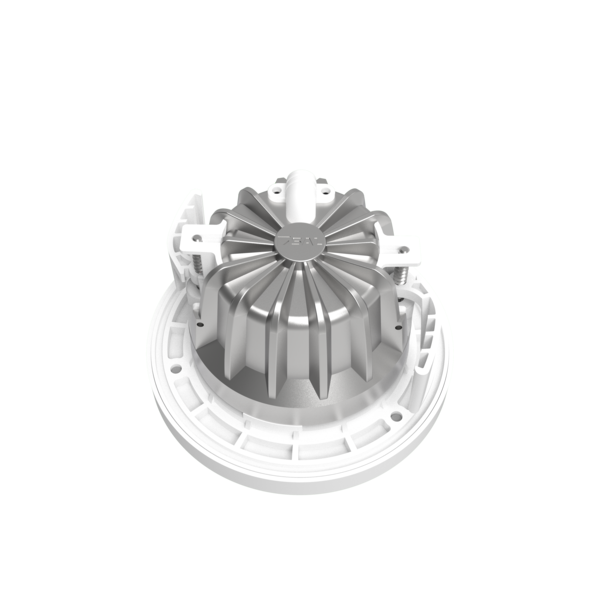

  • 110mm Ø Light weight die-cast aluminium body for efficient heat dissipation with IP65 IK10 trim fitted

  • CRI 90 / R9 > 50 / L90B10 > 50,000 Hours

  • Excellent glare control with set back optical design, 60° beam optic as standard

  • Remote constant current non-dimmable LED driver as standard

  • Quick release mounting clips for easy installation or maintenance



  • Available Options

    • Remote DALI2 dimmable driver

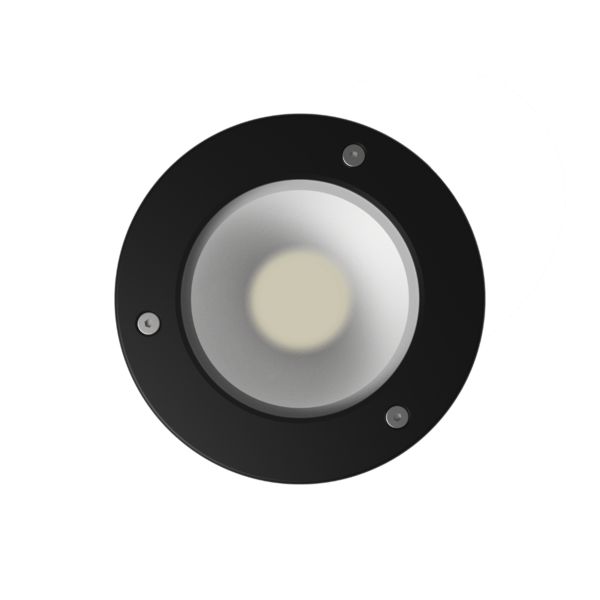

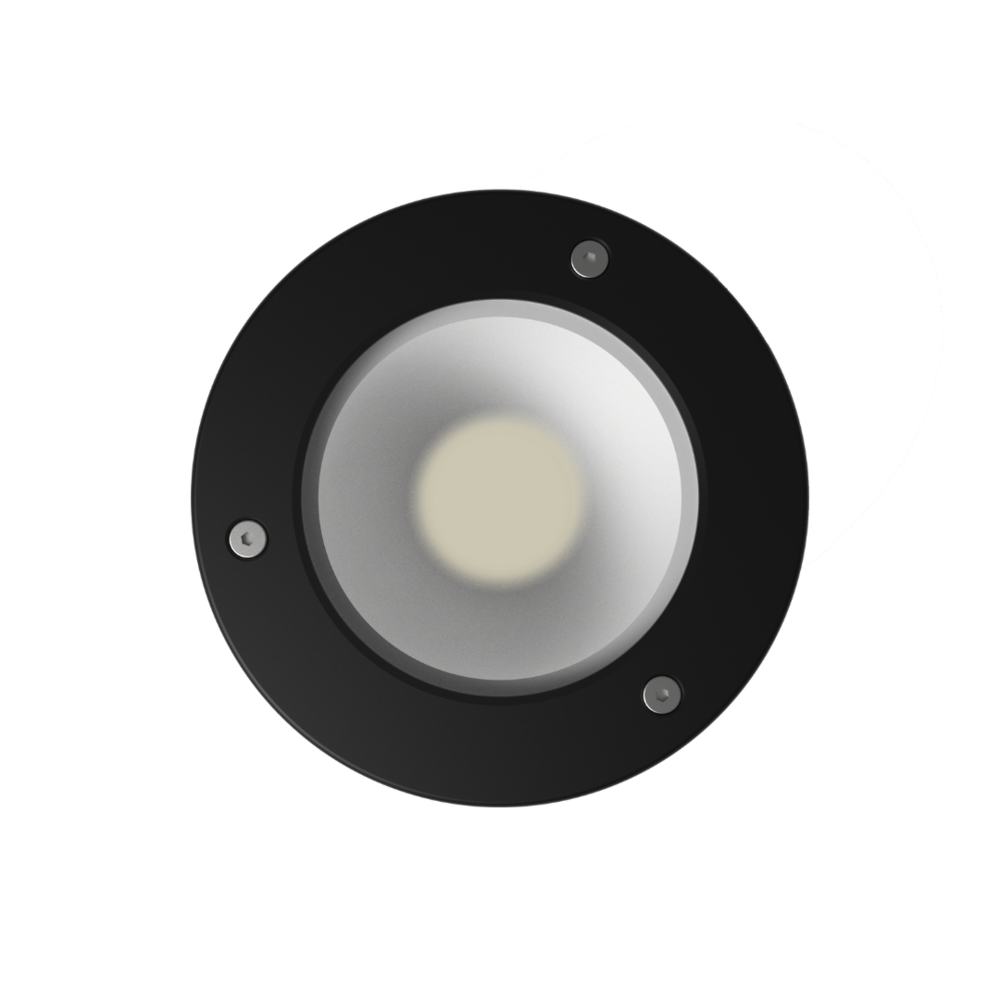

    • Black, silver trim
    • Tuneable white - POA
    • 3500K - POA
    • COI Cyanosis Compliant - POA
    • Torx Security Screws (Add TX to end of code)

Performance

  • Dimmable - OPTIONAL

  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

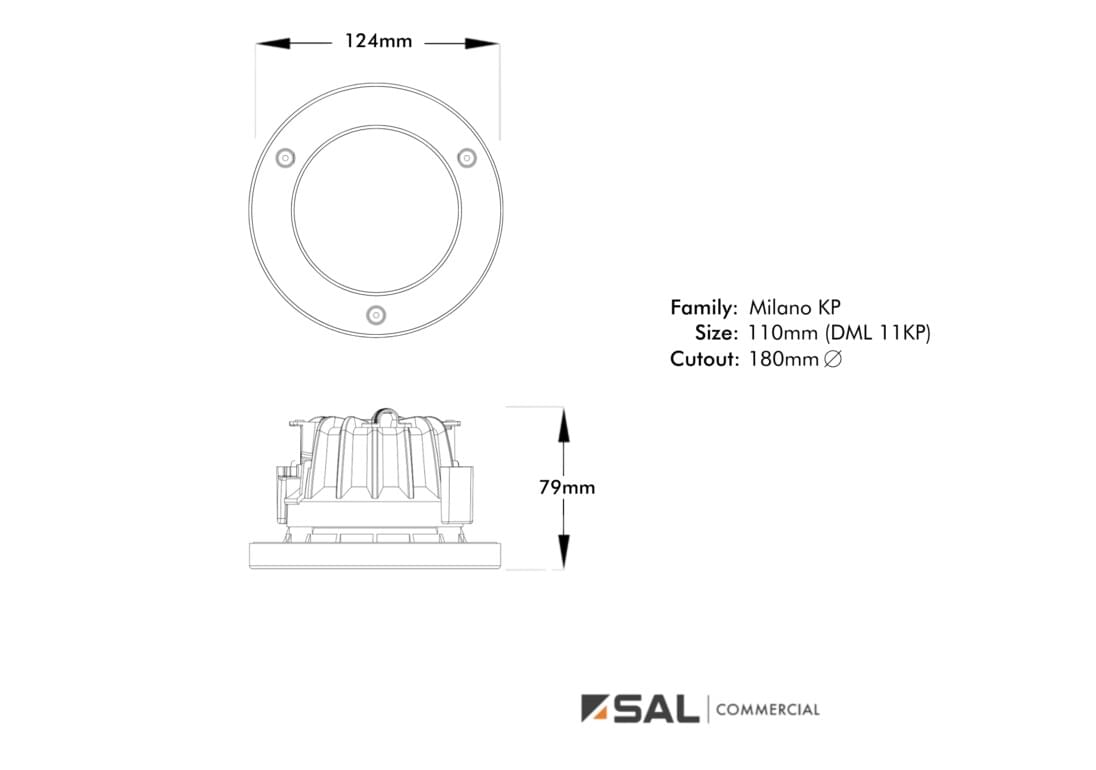

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Input Voltage Power Lumens CCT CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DML110840NWHKP DescriptionRecessed IP65 IK10 LED downlight 110mm non dimmable Input Voltage240 Power8 Lumens1554 CCT4000 CRI90 Add to Enquiry Add Remove Remove
    Model No.DML111240NWHKP DescriptionRecessed IP65 IK10 LED downlight 200mm non dimmable Input Voltage240 Power12 Lumens1997 CCT4000 CRI90 Add to Enquiry Add Remove Remove

    Code Methodology: DML11 = Size  |  08 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour  |  KP = IK10/IP65 kit
    Variants Available:
    Wattage - 08 / 12
    CCT - 30 = 3000K / 40 = 4000K / CY = Cyanosis
    Dimming type - N = Non Dim / D = DALI
    Trim Colour - WH = White / BK = Black / SL = Silver
    IK10/IP65 Trim - KP

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
