Disano Astro 1782 HP
IP66 LED Floodlight
Disano create lighting products with a highly aesthetic quality featuring energy saving technology, and ensures peace of mind with the longevity of the complete lighting system.
To get the most out of new lighting technologies requires a company with over fifty years of experience in the lighting sector. The Disano Astro LED is a luminaire equipped with the latest generation LED technology. Astro LED can be utilised both for the design of exterior and interior spaces.
Application
A simple and linear design is combined with sophisticated technology for exceptional technical performance, Astro is available in a range of symmetric and asymmetric distribution to suit all applications. Astro LED is suited to: General exterior lighting, sports applications and interior projects.
Design Specifications
Latest LED technology, delivering > 125lm/w
L90B10 @ 50,000 hours
Operating temperature of -30° to 35° ambient
Graphite powdercoated, die-cast aluminium construction with 4mm tempered glass lens
Wind surface exposure - front (171500mm²) / side (55100mm²)
Pre-treatment for resistance to salt spray and fog
-

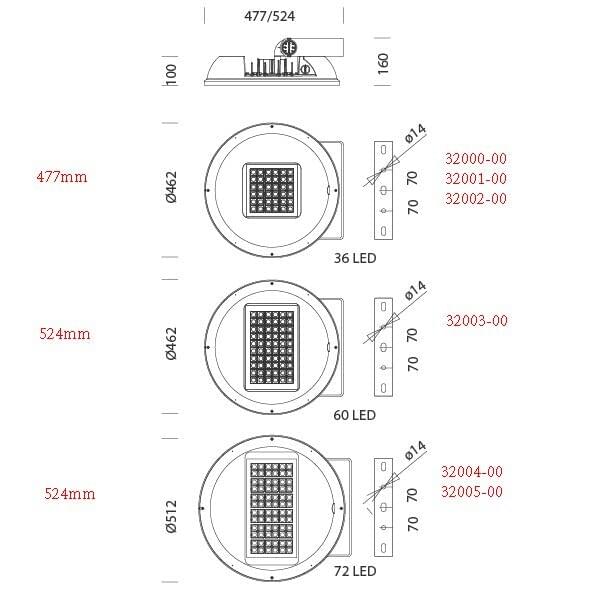

Dimensions - Wiring Diagrams
-
-
Model No. & Technical Specification
Model No. Description Power Lumens CCT CRI Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. 320000-00 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4kV Surge Protection, Non-Dimmable Power 109 Lumens 15131 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320000-0041 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4kV Surge Protection, DALI2 Dimmable Power 109 Lumens 15131 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320001-00 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4kV Surge Protection, Non-Dimmable Power 139 Lumens 17816 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320001-0041 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4kV Surge Protection, DALI2 Dimmable Power 139 Lumens 17816 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320002-00 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4kV Surge Protection, Non-Dimmable Power 177 Lumens 23235 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320002-0041 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4kV Surge Protection, DALI2 Dimmable Power 177 Lumens 23236 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320003-00 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4/6kV Surge Protection, Non-Dimmable Power 258 Lumens 34987 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320003-0041 Description Astro 1782 HP IP66 LED Floodlight, 60 Degree Optic, 4/6kV Surge Protection, DALI2 Dimmable Power 258 Lumens 34987 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320004-00 Description Astro 1782 HP IP66 LED Floodlight, 30 Degree Optic, 4/6kV Surge Protection, Non-Dimmable Power 258 Lumens 33295 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320004-0041 Description Astro 1782 HP IP66 LED Floodlight, 30 Degree Optic, 4/6kV Surge Protection, DALI2 Dimmable Power 258 Lumens 33295 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320005-00 Description Astro 1782 HP IP66 LED Floodlight, 90 Degree Optic, 4/6kV Surge Protection, Non-Dimmable Power 258 Lumens 34601 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove Model No. 320005-0041 Description Astro 1782 HP IP66 LED Floodlight, 90 Degree Optic, 4/6kV Surge Protection, DALI2 Dimmable Power 258 Lumens 34601 CCT 4000 CRI 80 Add to Enquiry Add Remove Remove
