• Commercial LED Floodlights

AUSTIN 75 / 100

IP65 Asymmetric or Symmetric LED Floodlight

Introducing the Austin LED commercial floodlight range

A trunnion mounted general purpose floodlight offering an IP65 rating and the capability to withstand operating conditions of -40° to +40°

Application

Available in a wide range of wattages and beam optics, the Austin LED floodlight range is suited to:

♦ Industrial area lighting

♦ Commercial applications

♦ General purpose floodlight applications

Design Specifications

  • Die-cast aluminium body with a galvanised steel trunnion arm powder coated in black

  • Available in both 75w and 100w in 8 distribution types - both symmetric and asymmetric

  • High efficacy >160lm/w in 5000K as standard, 4000K and 6500K available upon request

  • UV stabilised polycarbonate diffuser, CRI70 as standard

  • Integrated control gear, fixed output as standard

  • Available Options

    • 1-10v & DALI dimming models
    • CRI 80
    • 4000K, 6500K CCT
    • Anti-corrosive finish
    • Stainless steel bracket
    • Custom powdercoat finish colour

Performance

  • Dimmable - NO

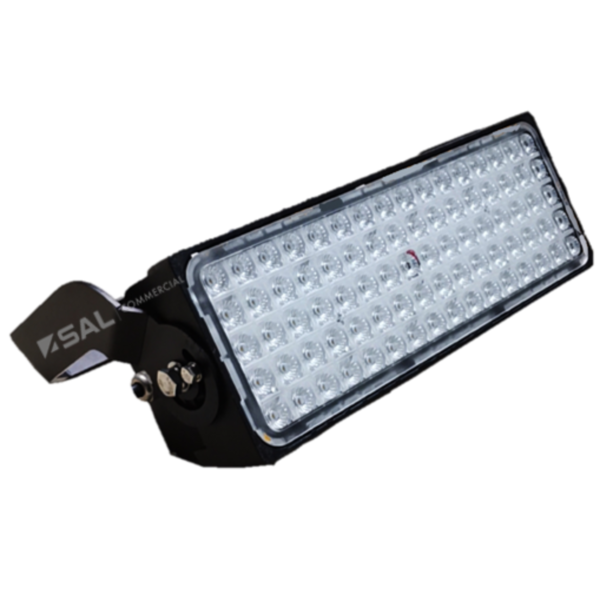

Austin LED commercial floodlight - 75-150 - LED Floodlighting - Shot 1
Austin LED commercial floodlight - 75-150 - LED Floodlighting - Shot 1

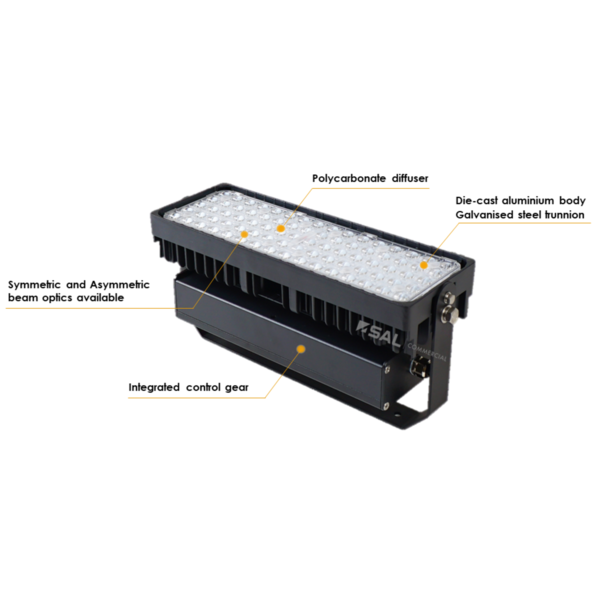

Austin LED Floodlight - 75-150 - Detailed features
Austin LED Floodlight - 75-150 - Detailed features
Austin LED commercial floodlight - 75-150 - LED Floodlighting - Shot 1
Austin LED commercial floodlight - 75-150 - LED Floodlighting - Shot 1
Austin LED Floodlight - 75-150 - Detailed features
Austin LED Floodlight - 75-150 - Detailed features
  • 4000KCCT
  • 5000KCCT
  • 6000KCCT
  • 4000KCCT
  • 5000KCCT
  • 6000KCCT

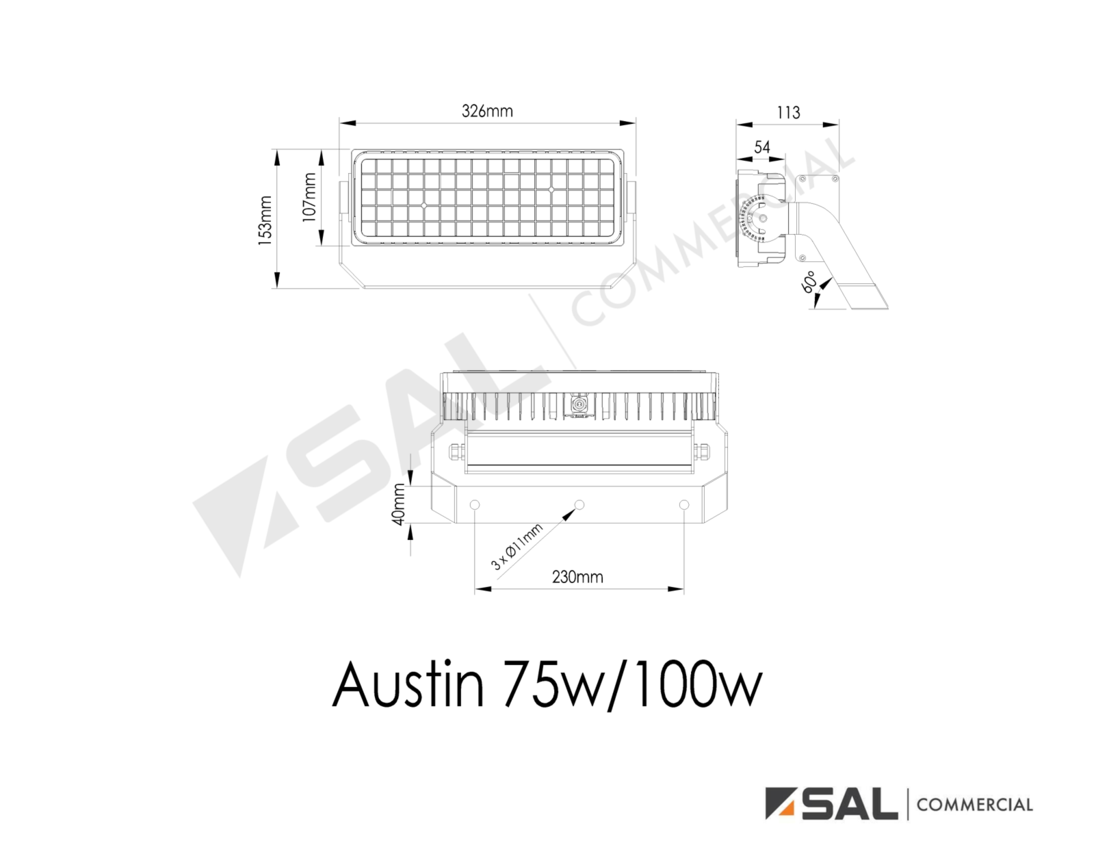

    • Dimensions - Wiring Diagrams
    • Design Options

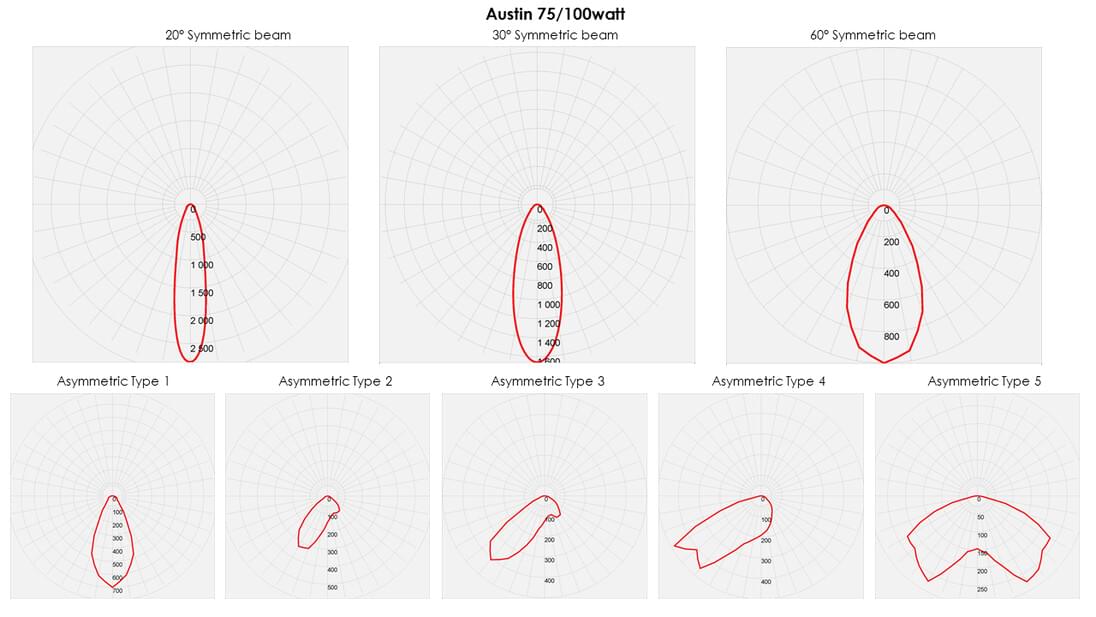

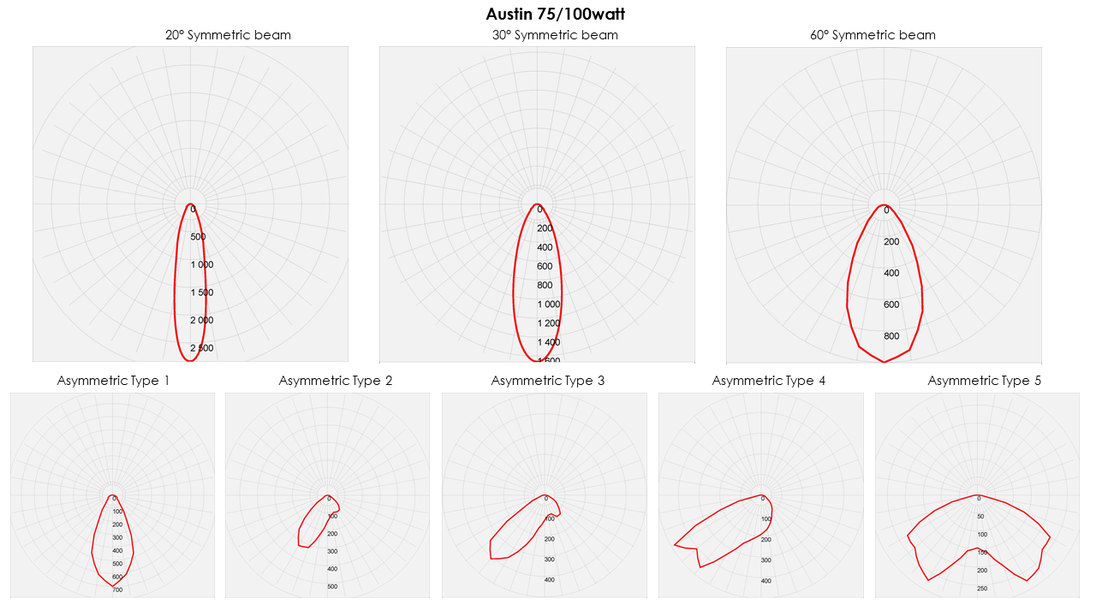

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT CRI Mass Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. FAN07550NS1 Description Trunnion mount LED floodlight 20° deg symmetrical optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NS2 Description Trunnion mount LED Floodlight 30° deg symmetrical optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NS3 Description Trunnion mount LED floodlight 60° deg symmetrical optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NT1 Description Trunnion mount LED floodlight type 1 asymmetric optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NT2 Description Trunnion mount LED floodlight type 2 asymmetric optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NT3 Description Trunnion mount LED floodlight type 3 asymmetric optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NT4 Description Trunnion mount LED floodlight type 4 asymmetric optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN07550NT5 Description Trunnion mount LED floodlight type 5 asymmetric optic Power 75 Lumens 13000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NS1 Description Trunnion mount LED floodlight 20° deg symmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NS2 Description Trunnion mount LED floodlight 30° deg symmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NS3 Description Trunnion mount LED floodlight 60° deg symmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NT1 Description Trunnion mount LED floodlight type 1 asymmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NT2 Description Trunnion mount LED floodlight type 2 asymmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NT3 Description Trunnion mount LED floodlight type 3 asymmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NT4 Description Trunnion mount LED floodlight type 4 asymmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove
      Model No. FAN10050NT5 Description Trunnion mount LED floodlight type 5 asymmetrical optic Power 100 Lumens 18000 CCT 5000 CRI 70 Mass 3.8 Add to Enquiry Add Remove Remove

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
