COLUMBUS 150

IP65 Asymmetric or Symmetric LED Floodlight

*Replace N with D for Integral DALI dimmable driver

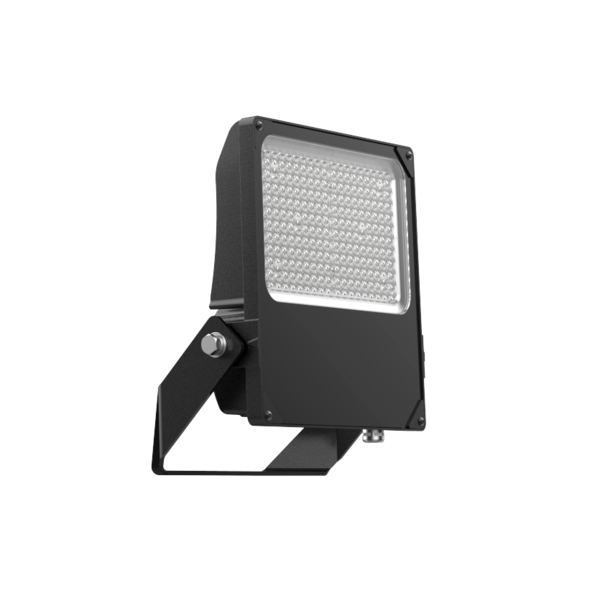

Introducing the Columbus LED areal floodlight range

A trunnion mounted general purpose floodlight, offering an IP65 rating for water and dust ingress and IK08 rating for impact protection

Application

Available in a wide range of wattages and with a symmetric and asymmetric beam optic, the Columbus LED floodlight range is suited to:

♦ Industrial area lighting

♦ Commercial applications

♦ General purpose floodlight applications

Design Specifications

  • Die-cast aluminium body with a galvanised steel trunnion arm powder coated in black

  • 150w, 22000lm available in both symmetric and asymmetric beam options

  • High efficacy >140lm/w in 5000K as standard, 4000K available upon request

  • Tempered glass lens, CRI70 as standard

  • Designed with an external vent to prevent condensation



  • Available Options

    • DALI Dimmable
    • CRI 80
    • Spigot mount adaptor bracket

  • 4000KCCT
  • 5000KCCT
  • 4000KCCT
  • 5000KCCT

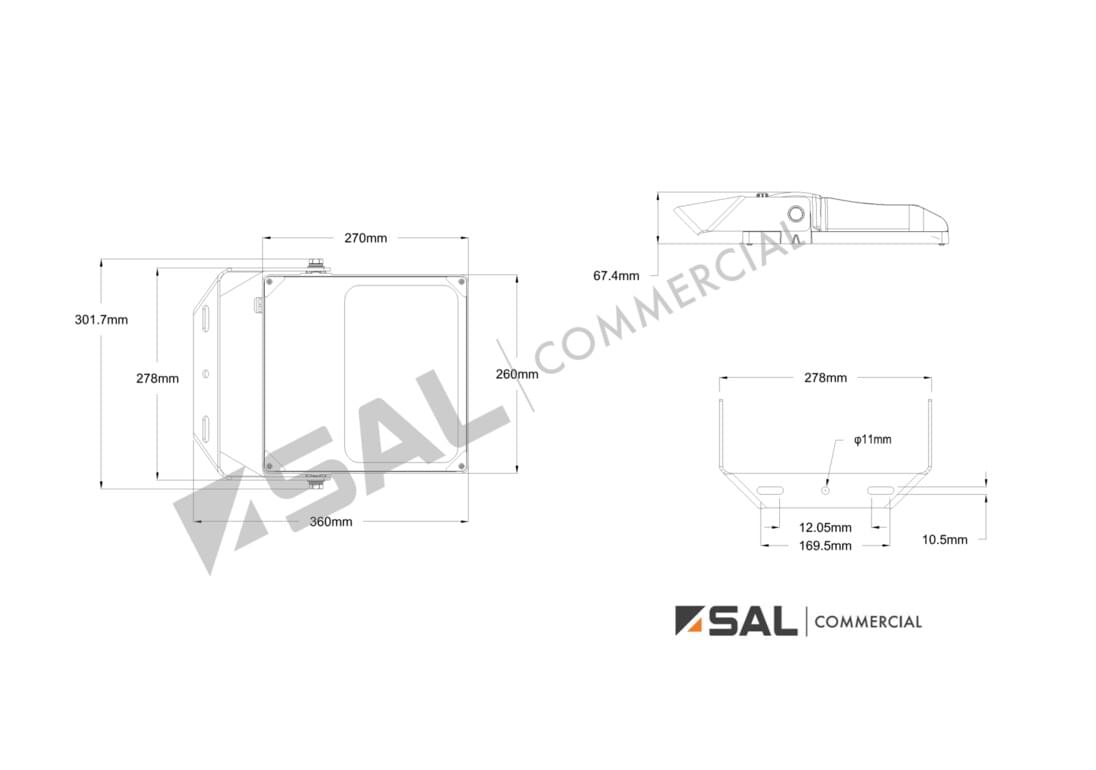

  • Dimensions - Wiring Diagrams
  • Design Options

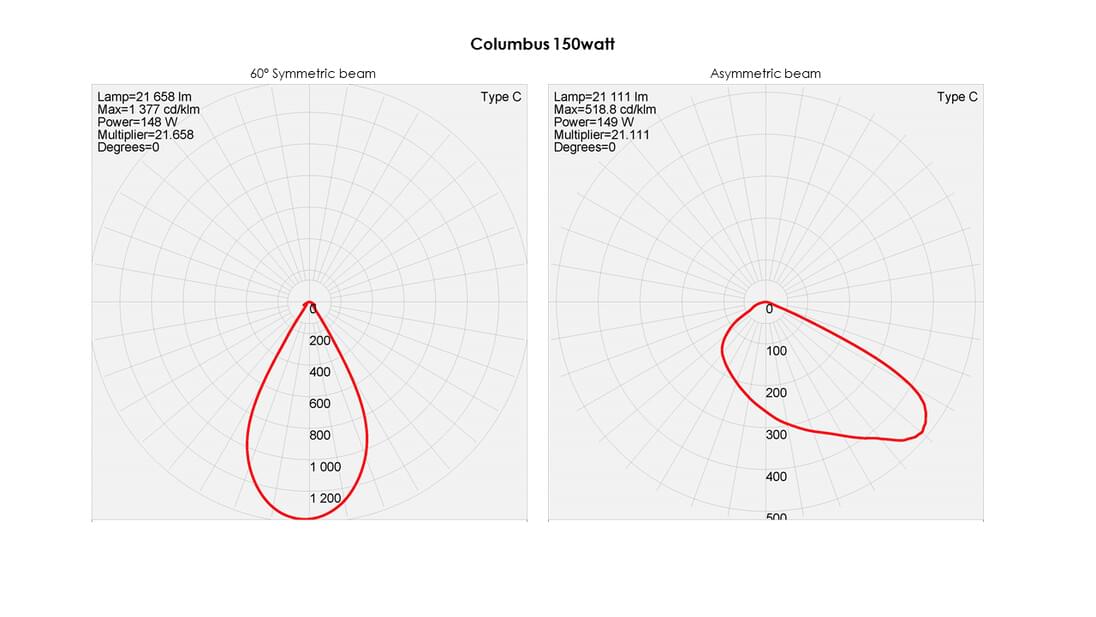

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT CRI Mass Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.FCB15040NS1 DescriptionLED floodlight symmetric beam optic Power150 Lumens21658 CCT4000 CRI70 Mass3.9 Add to Enquiry Add Remove Remove
    Model No.FCB15050NS1 DescriptionLED floodlight symmetric beam optic Power150 Lumens21658 CCT5000 CRI70 Mass3.9 Add to Enquiry Add Remove Remove
    Model No.FCB15040NAS1 DescriptionLED floodlight asymmetric beam optic Power150 Lumens21111 CCT4000 CRI70 Mass3.9 Add to Enquiry Add Remove Remove
    Model No.FCB15050NAS1 DescriptionLED floodlight asymmetric beam optic Power150 Lumens21111 CCT5000 CRI70 Mass3.9 Add to Enquiry Add Remove Remove

    *Replace N with D for Integral DALI dimmable driver

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
