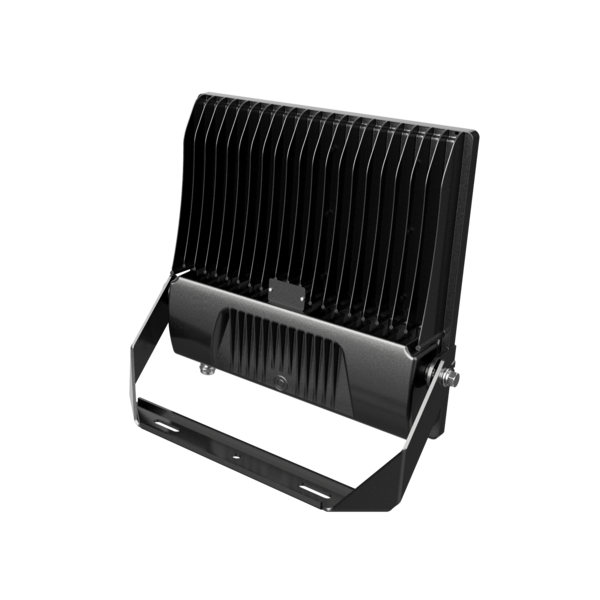

COLUMBUS 300
IP65 Asymmetric or Symmetric LED Floodlight
Introducing the Columbus LED areal floodlight range
A trunnion mounted general purpose floodlight, offering an IP65 rating for water and dust ingress and IK08 rating for impact protection
Application
Available in a wide range of wattages and with a symmetric and asymmetric beam optic, the Columbus LED floodlight range is suited to:
♦ Industrial area lighting
♦ Commercial applications
♦ General purpose floodlight applications
Design Specifications
Die-cast aluminium body with a galvanised steel trunnion arm powdercoated in black
300w, 43000lm available in both symmetric and asymmetric beam optics
High efficacy >140lm/w in 5000K as standard, 4000K available upon request
Tempered glass lens, CRI70 as standard
Designed with an external vent to prevent condensation
Available Options
- CRI 80
- CRI 90
- Spigot mount adaptor bracket

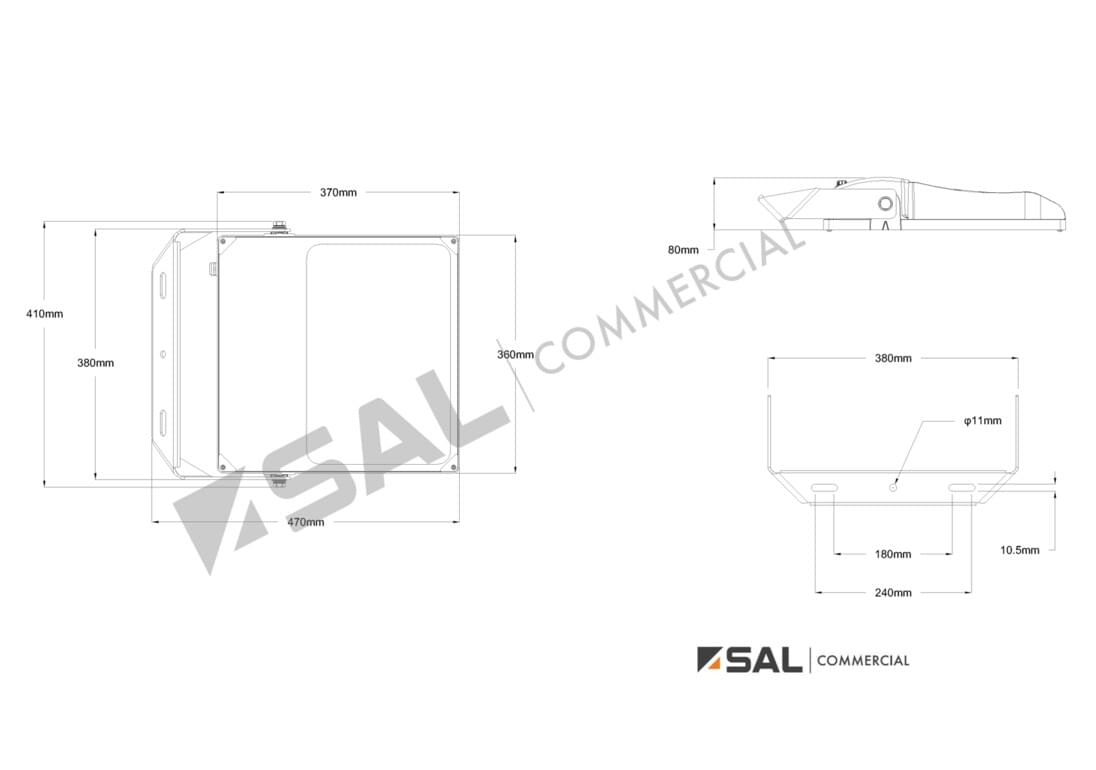

- Dimensions - Wiring Diagrams

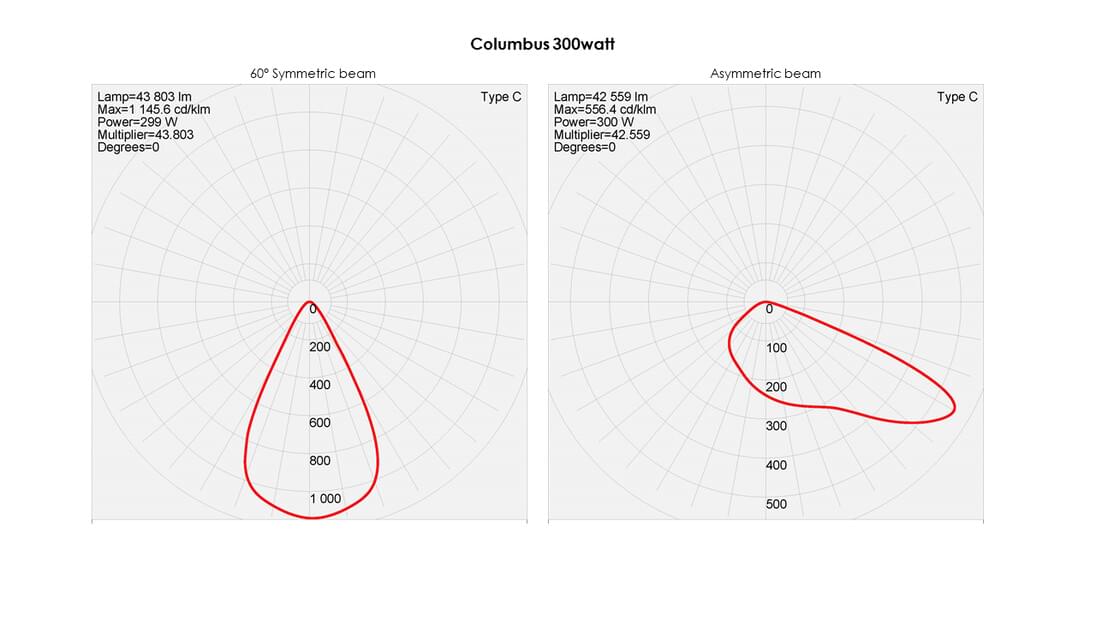

- Photometric Data
-
Model No. & Technical Specification
Model No. Description Power Lumens CCT CRI Mass Add to Enquiry Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single clickModel No. FCB30040NS1 Description LED floodlight symmetric beam optic Power 300 Lumens 43803 CCT 4000 CRI 70 Mass 8.1 Add to Enquiry Add Remove Remove Model No. FCB30050NS1 Description LED floodlight symmetric beam optic Power 300 Lumens 43803 CCT 5000 CRI 70 Mass 8.1 Add to Enquiry Add Remove Remove Model No. FCB30040NAS1 Description LED floodlight asymmetric beam optic Power 300 Lumens 42558 CCT 4000 CRI 70 Mass 8.1 Add to Enquiry Add Remove Remove Model No. FCB30050NAS1 Description LED floodlight asymmetric beam optic Power 300 Lumens 42558 CCT 5000 CRI 70 Mass 8.1 Add to Enquiry Add Remove Remove ** Please note 300w model does not have a DALI option
