IP66 / IP69K Food Industry LED Linear

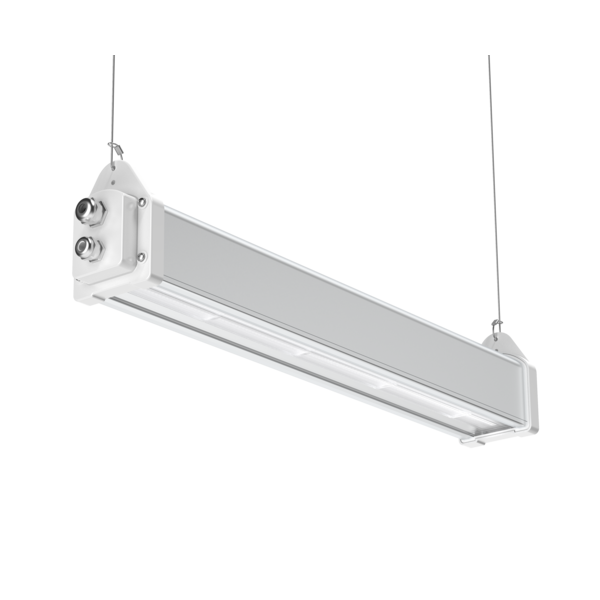

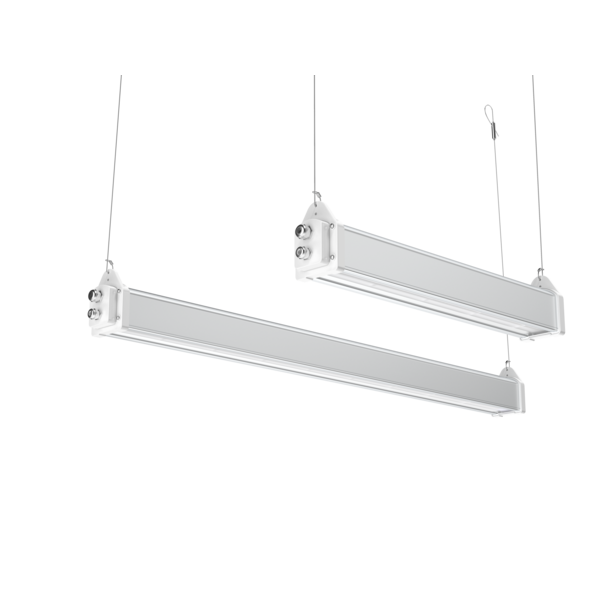

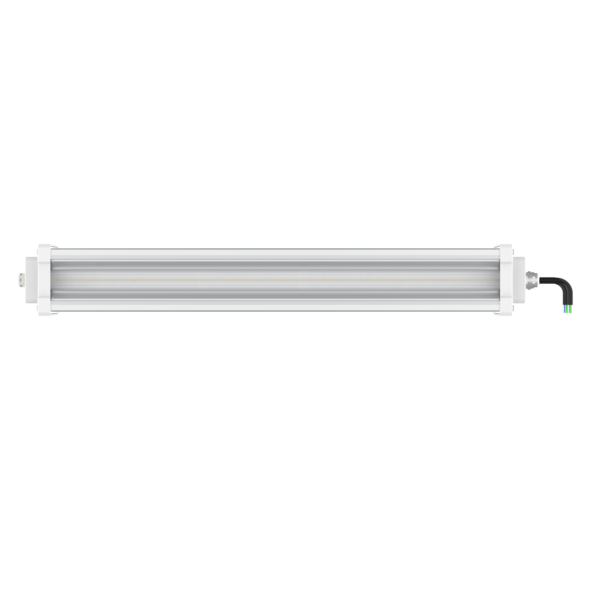

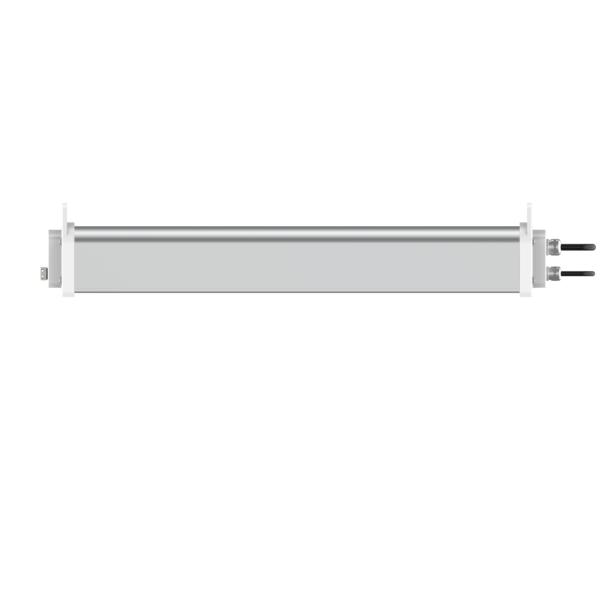

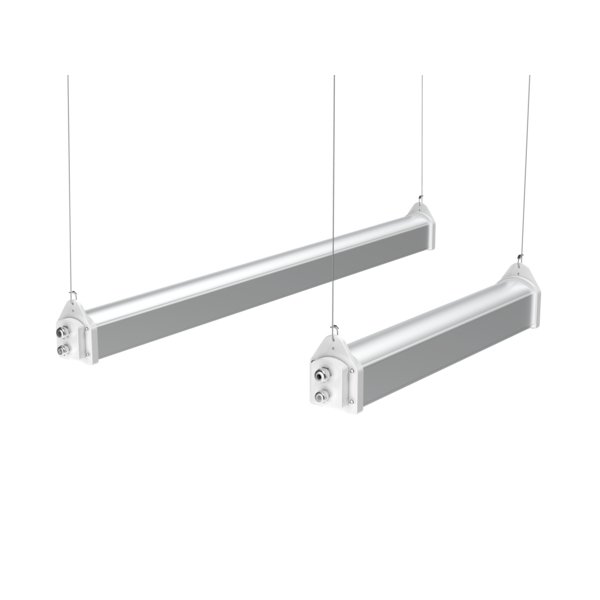

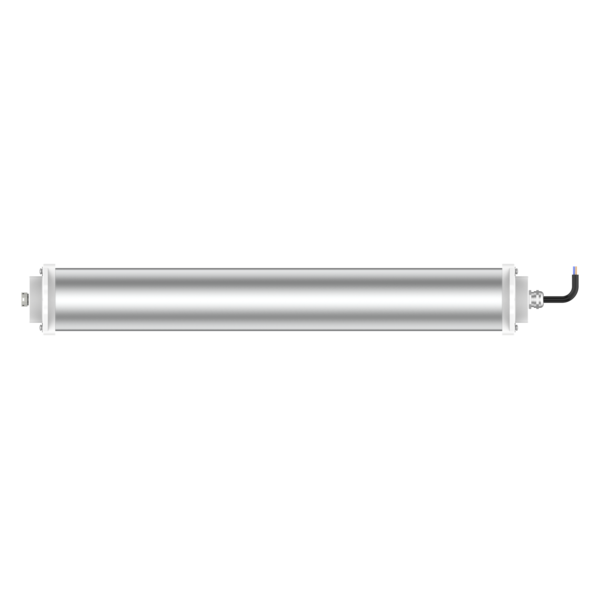

Introducing the Calgary Food Grade Linear LED. Designed to withstand the harsh requirements of the food processing industry while providing high performance lighting levels of over 16,000 lumens for the 120W model.

Application

The Calgary LED Linear luminaire comes in multiple wattages, mounting options, optics and control options and is designed to withstand harsh food processing environments;

♦ Food Preparation Areas

♦ Agricultural Applications

♦ Chemical Environments

Design Specifications

  • 5000k, CRI80, 0-10V dimming as Standard with 6kV SPD fitted and LED Lifetime of L80 60,000 hours - 3000k, 4000k and Dali Dimming optional

  • Mounting options available - Wire Suspension and Surface Mounted

  • IK06 Impact Protection and IP66 Ingress Protection

  • High quality PMMA diffuser

  • Beam Optics available: 120º, 100º, 60x90º, 70x100º, 25º, 110x100º, 90x100º

  • Inventronics constant current 0-10v dimmable driver as standard


  • 3000KCCT
  • 4000KCCT
  • 5000KCCT
  • 3000KCCT
  • 4000KCCT
  • 5000KCCT

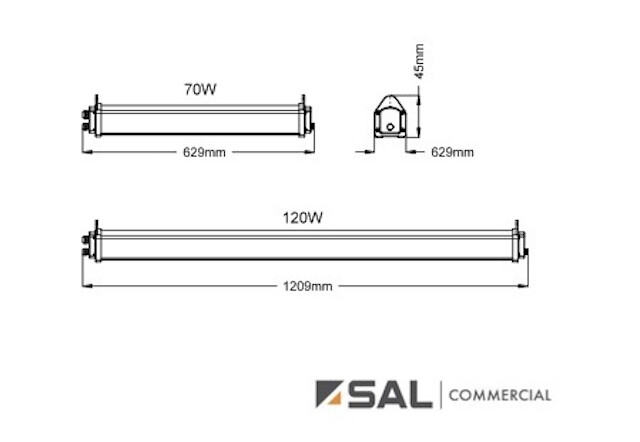

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer 1-10V YES

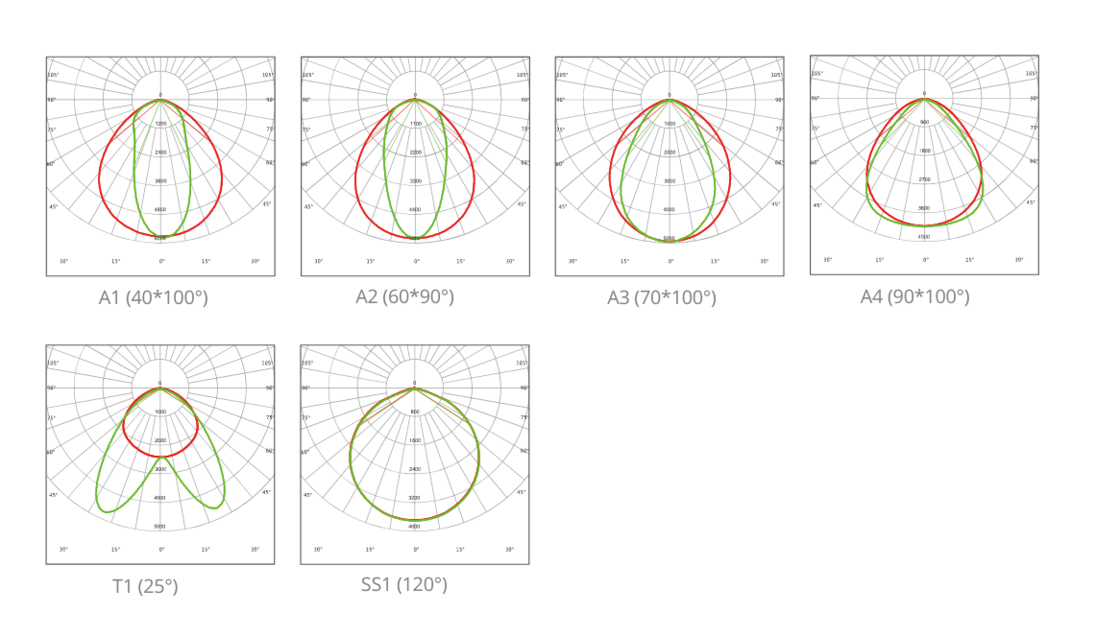

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle IK Rating CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.ICG7050AWSA1 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power70 Lumens9450 CCT5000 Beam Angle40100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050AWSA2 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power70 Lumens9450 CCT5000 Beam Angle6090 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050AWSA3 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power70 Lumens9450 CCT5000 Beam Angle70100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050AWSA4 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power70 Lumens9450 CCT5000 Beam Angle90100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050AWST1 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power70 Lumens9450 CCT5000 Beam Angle25 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050AWSS1 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power70 Lumens9450 CCT5000 Beam Angle120 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050ASMA1 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power70 Lumens9450 CCT5000 Beam Angle40100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050ASMA2 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power70 Lumens9450 CCT5000 Beam Angle6090 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050ASMA3 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power70 Lumens9450 CCT5000 Beam Angle70100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050ASMA4 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power70 Lumens9450 CCT5000 Beam Angle90100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050ASMT1 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power70 Lumens9450 CCT5000 Beam Angle25 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG7050ASMS1 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power70 Lumens9450 CCT5000 Beam Angle120 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050AWSA1 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power120 Lumens16200 CCT5000 Beam Angle40100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050AWSA2 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power120 Lumens16200 CCT5000 Beam Angle6090 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050AWSA3 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power120 Lumens16200 CCT5000 Beam Angle70100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050AWSA4 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power120 Lumens16200 CCT5000 Beam Angle90100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050AWST1 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power120 Lumens16200 CCT5000 Beam Angle25 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050AWSS1 DescriptionCalgary IP69K Food Industry LED Linear Wire Suspension Power120 Lumens16200 CCT5000 Beam Angle120 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050ASMA1 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power120 Lumens16200 CCT5000 Beam Angle40100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050ASMA2 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power120 Lumens16200 CCT5000 Beam Angle6090 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050ASMA3 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power120 Lumens16200 CCT5000 Beam Angle70100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050ASMA4 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power120 Lumens16200 CCT5000 Beam Angle90100 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050ASMT1 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power120 Lumens16200 CCT5000 Beam Angle25 IK Rating6 CRI80 Add to Enquiry Add Remove Remove
    Model No.ICG12050ASMS1 DescriptionCalgary IP69K Food Industry LED Linear Surface Mount Power120 Lumens16200 CCT5000 Beam Angle120 IK Rating6 CRI80 Add to Enquiry Add Remove Remove

    Available Options

    • Adjustable ceiling bracket
    • Safety Lanyard
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
