• Commercial LED Industrial

Moscow Tri-colour

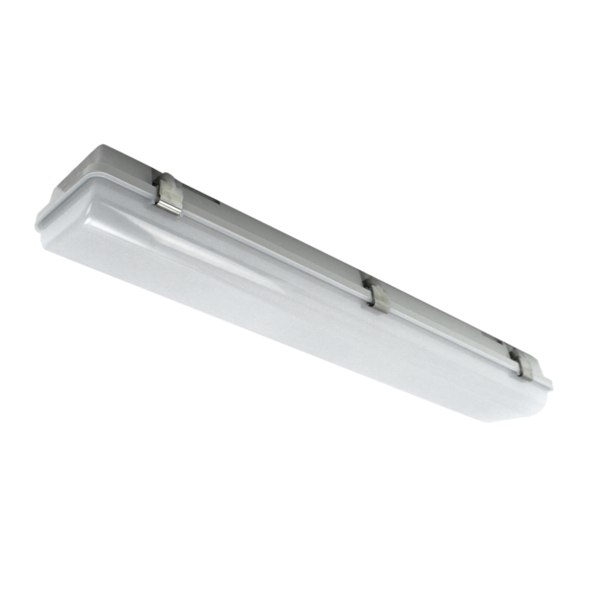

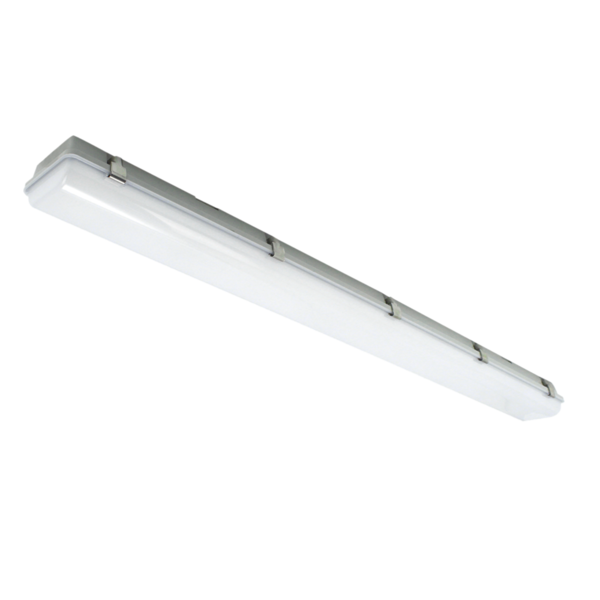

Commercial IP65 / IK08 LED Weatherproof with Polycarbonate Body and Diffuser

IP65 IK08 LED Weatherproof with Dual Power and Tri-Colour Functionality

Application

Suited to commercial and industrial applications requiring IP65 ingress protection, IK08 impact rating with an operating temperature range of -20° to 40°C.

Widely used in the following applications: Car parks, public amenities, warehousing, cold storage, education facilities, healthcare facilities, laboratories, store rooms, back of house areas and plant rooms.

Design Specifications

  • Colour temperature selectable by DIP switch 3000K/4000K/6000K

  • High output SMD LEDs mounted on hinged gear tray

    Lifetime L70 >90,000 hours, CRI 80

    CRI 90 Available - Add C9 to the end of the code

  • Integral constant current non-dimmable, dual power driver available in 10/20w and 20/42w options

    (Integrated motion sensor model is supplied with fixed driver output)

  • Polycarbonate body with UV stabilised opal diffuser supplied with stainless steel hardware and 20mm cable gland entry

  • Emergency model available compliant to AS/NZS2293

    (20w D32@C0, D20@C90 - 42w D40@C0, D20@C90)

  • Available Options

    • Dimming options: 0-10v, DALI, Casambi
    • Suspension kit (mounting bracket included)
    • Corridor Function
    • CRI 90

Moscow Tri-colour
Moscow Tri-colour
  • 3000KCCT
  • 4000KCCT
  • 6000KCCT
  • 3000KCCT
  • 4000KCCT
  • 6000KCCT

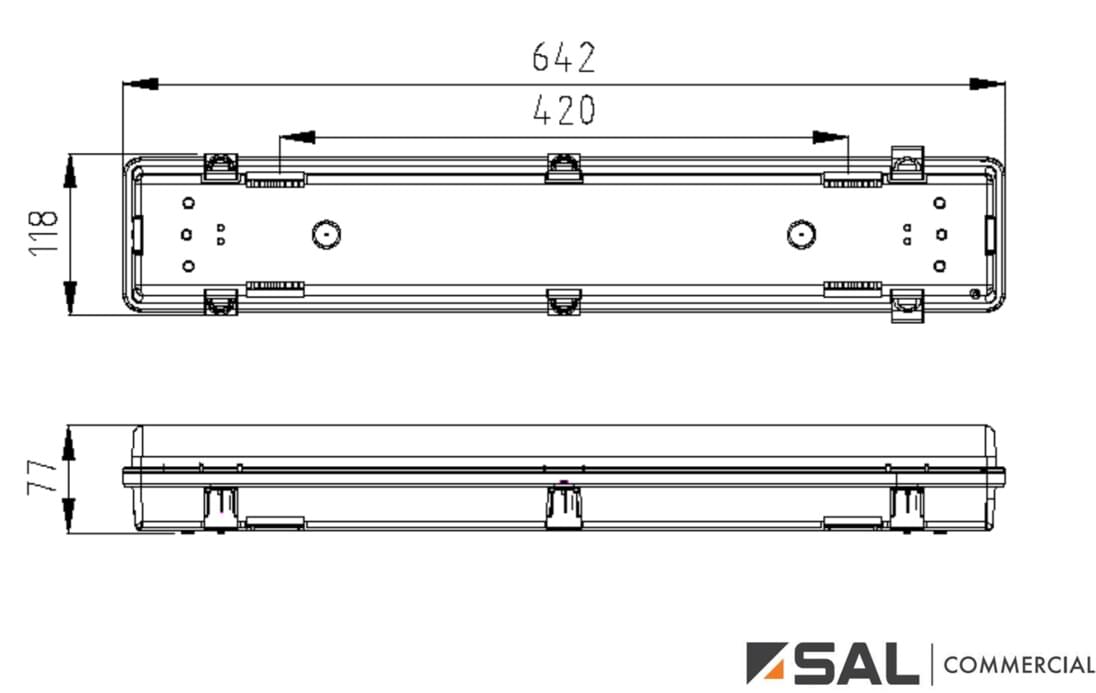

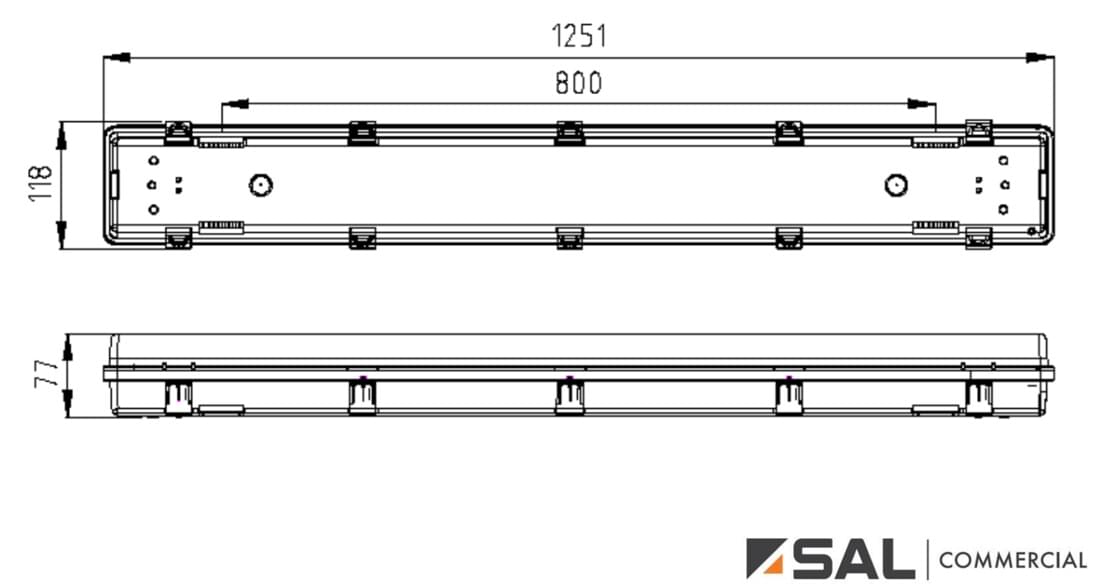

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Multiple Wattage Lumens CCT IK Rating Dim Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. IMW06DPTCN Description Weatherproof 600mm Dual Power with Non-Dimmable Driver Multiple Wattage 10/20 Lumens 2040/2200/2300 CCT 3000/4000/6000 IK Rating 08 Dim 642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW06DPTCD Description Weatherproof 600mm with DALI2 Dimmable Driver Power 20 Multiple Wattage - Lumens 2200 CCT 3000/4000/6000 IK Rating 08 Dim 642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW0620TCEM Description Weatherproof 600mm Dual Power with Non-Dimmable Driver and Emergency Pack Multiple Wattage 10/20 Lumens 2040/2200/2300 CCT 3000/4000/6000 IK Rating 08 Dim 642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW0620TCTMS Description Weatherproof 600mm with Non-Dimmable Driver and Motion Sensor "On / Off" Power 20 Multiple Wattage - Lumens 2200 CCT 3000/4000/6000 IK Rating 08 Dim 642(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW12DPTCN Description Weatherproof 1200mm Dual Power with Non-Dimmable Driver Multiple Wattage 20/40 Lumens 4370/4720/4990 CCT 3000/4000/6000 IK Rating 08 Dim 1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW12DPTCD Description Weatherproof 1200mm with DALI2 Dimmable Driver Power 40 Multiple Wattage - Lumens 4720 CCT 3000/4000/6000 IK Rating 08 Dim 1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW1240TCEM Description Weatherproof 1200mm Dual Power with Non-Dimmable Driver and Emergency Pack Multiple Wattage 20/40 Lumens 4370/4720/4990 CCT 3000/4000/6000 IK Rating 08 Dim 1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove
      Model No. IMW1240TCTMS Description Weatherproof 1200mm with Non-Dimmable Driver and Motion Sensor "On / Off" Power 40 Multiple Wattage - Lumens 4720 CCT 3000/4000/6000 IK Rating 08 Dim 1251(L) x 118(W) x 77(H) Add to Enquiry Add Remove Remove

      Note: Lumens (lm) shown are displayed at FULL power

      Option for CRI 90 - Add C9 to the end of the part number

      Example: IMW12DPTCNC9

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
