Nashville-S

IP66 / IK08 LED Asymmetric Throw Wall Light 10w - 30w

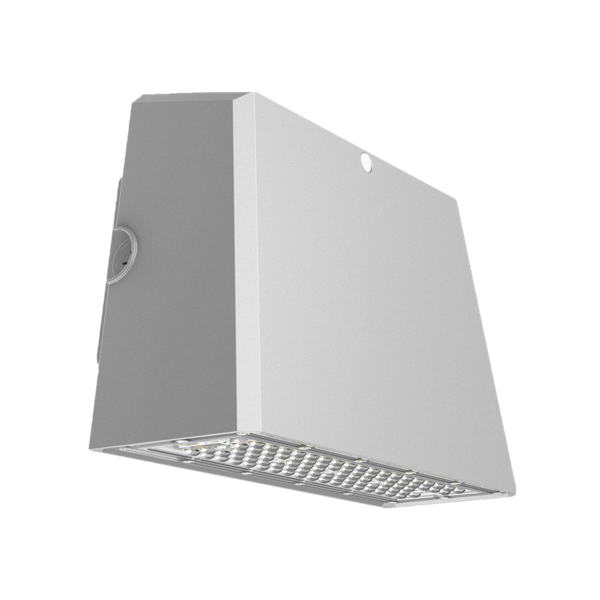

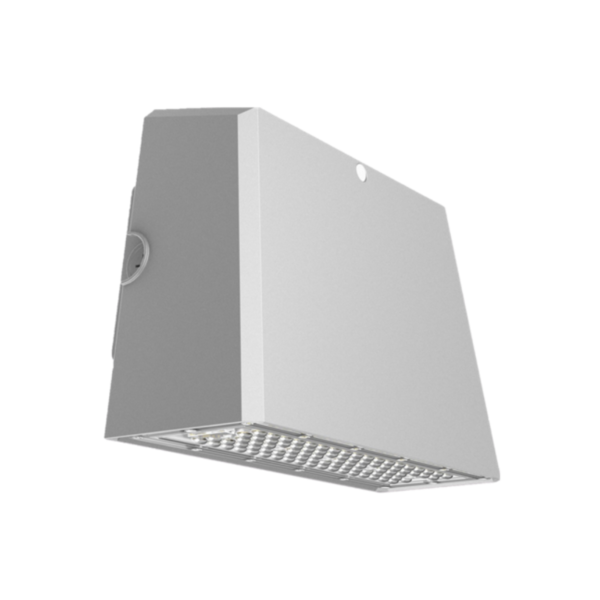

Introducing the Nashville LED Wall Light. Designed with a focus on high efficiency and a long lifespan, the Nashville LED Wall Light offers a streamlined modern square-edged design and is available in 10w, 20w and 30w.

Application

Manufactured in die-cast aluminium with an IP66 ingress protection rating, the slimline Nashville Wall Light is intended for the following applications:

  • Exterior security lighting
  • Commercial facade lighting
  • Courtyards
  • General exterior lighting

Design Specifications

  • > 135lm/w, 4000K, CRI 80 supplied as standard

  • L80B20 >50,000 hours

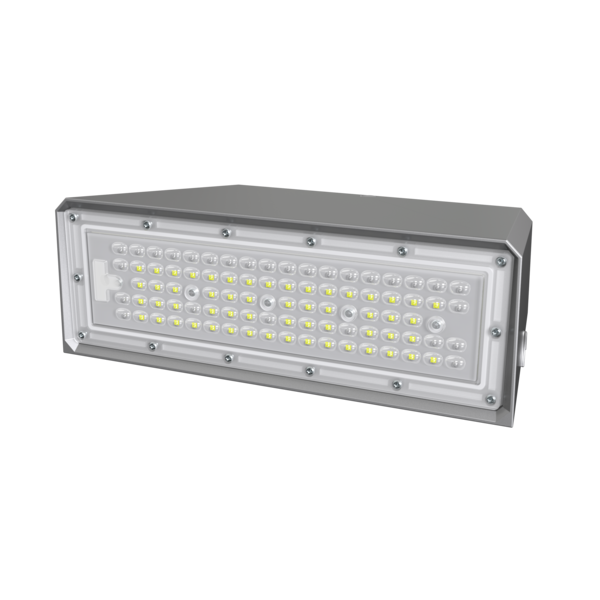

  • Asymmetric beam optic with high efficiency polycarbonate lens

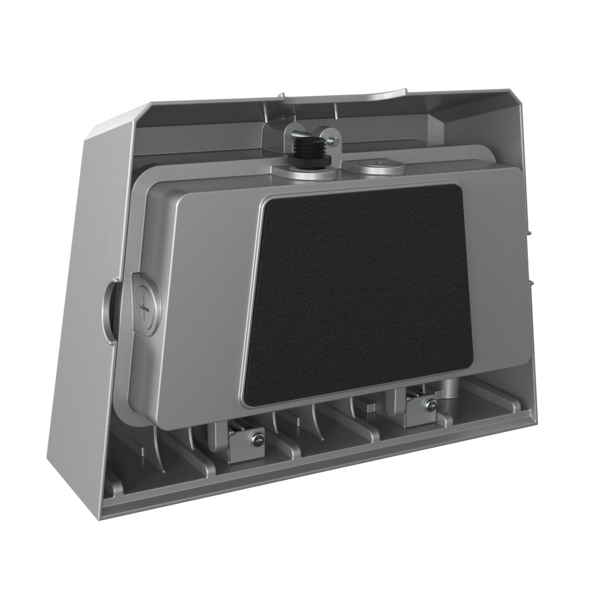

  • Hinged cable compartment ensures ease of installation

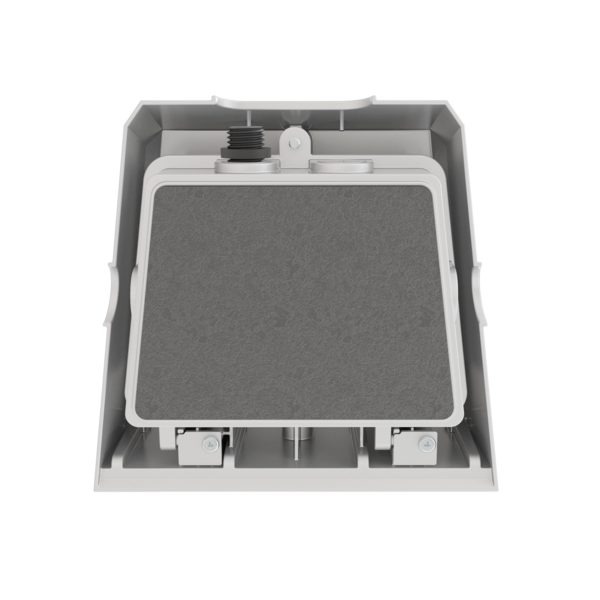

  • Foam padding ensures watertight seal against mounting surface

  • Available Options

    • 3000K, 5000K CCT
    • CRI 90
    • Integrated PE Cell available (add "PC" to order code)

Nashville-S
Nashville-S
Nashville-S
Nashville-S
Nashville-S
Nashville-S
  • 4000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
  • 4000KCCT
  • 3000KCCT

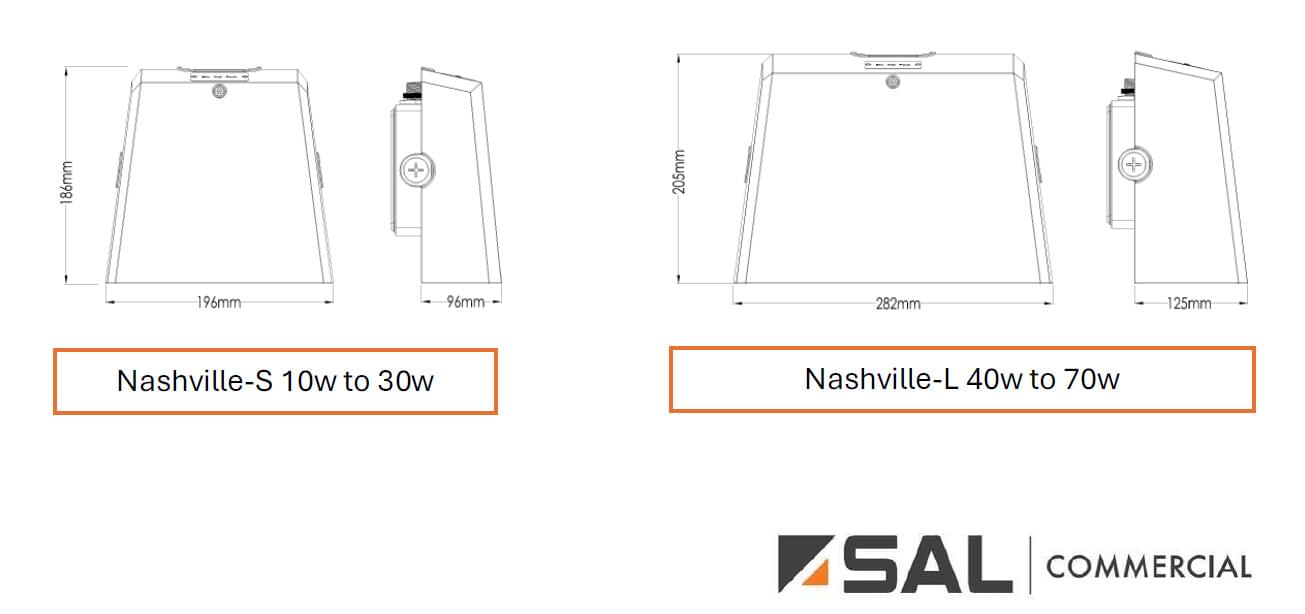

    • Dimensions - Wiring Diagrams
    • Design Options

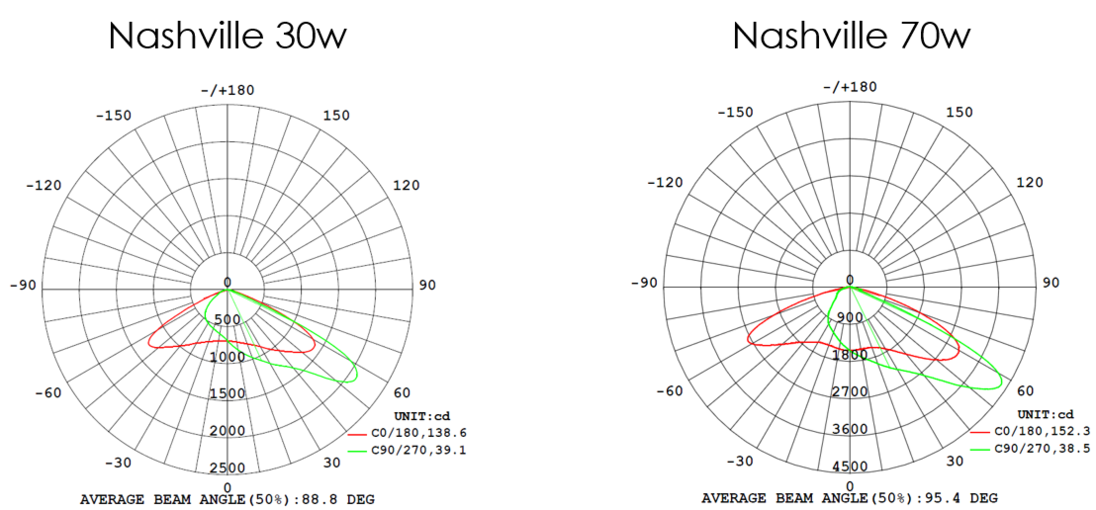

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT IP Rating IK Rating CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. INVS1040N Description Nashville-S Asymmetric Throw LED Wall Light, Integral Non-Dimmable Driver Power 10 Lumens 1472 CCT 4000 IP Rating 66 IK Rating 8 CRI 80 Add to Enquiry Add Remove Remove
      Model No. INVS1040D Description Nashville-S Asymmetric Throw LED Wall Light, Integral DALI2 Dimmable Driver Power 10 Lumens 1472 CCT 4000 IP Rating 66 IK Rating 8 CRI 80 Add to Enquiry Add Remove Remove
      Model No. INVS2040N Description Nashville-S Asymmetric Throw LED Wall Light, Integral Non-Dimmable Driver Power 20 Lumens 2881 CCT 4000 IP Rating 66 IK Rating 8 CRI 80 Add to Enquiry Add Remove Remove
      Model No. INVS2040D Description Nashville-S Asymmetric Throw LED Wall Light, Integral DALI2 Dimmable Driver Power 20 Lumens 2881 CCT 4000 IP Rating 66 IK Rating 8 CRI 80 Add to Enquiry Add Remove Remove
      Model No. INVS3040N Description Nashville-S Asymmetric Throw LED Wall Light, Integral Non-Dimmable Driver Power 30 Lumens 4139 CCT 4000 IP Rating 66 IK Rating 8 CRI 80 Add to Enquiry Add Remove Remove
      Model No. INVS3040D Description Nashville-S Asymmetric Throw LED Wall Light, Integral DALI2 Dimmable Driver Power 30 Lumens 4139 CCT 4000 IP Rating 66 IK Rating 8 CRI 80 Add to Enquiry Add Remove Remove
    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
