Arrow L Commercial LED Strip

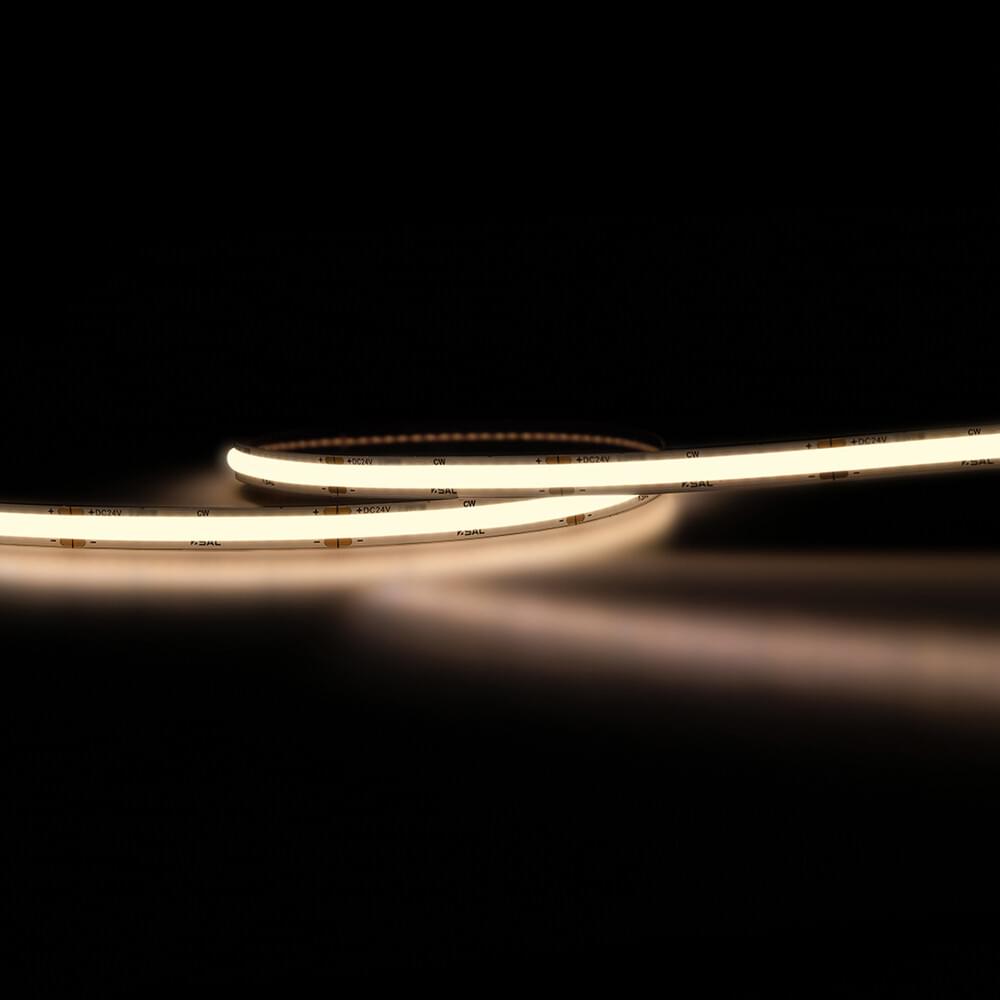

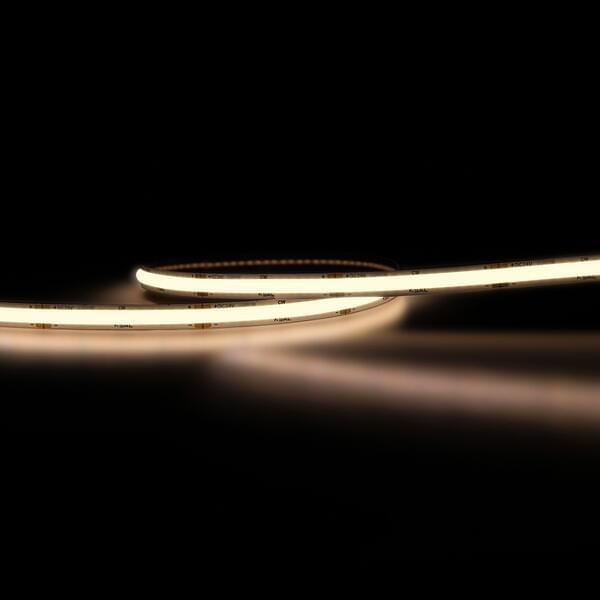

Arrow L™ is a premium high output SMD LED strip designed for commercial use. Offering a high CRI and a range of colour temperatures, the Arrow L™ range has been designed with flexible cut points and a range of channels and drivers to suit any project.

The Arrow L™ can be cut to the exact specifications of your project.

Application

Designed to complement any modern interior or exterior architectural installation, the Arrow L™ LED strip range is designed to be installed for ambient and feature lighting.

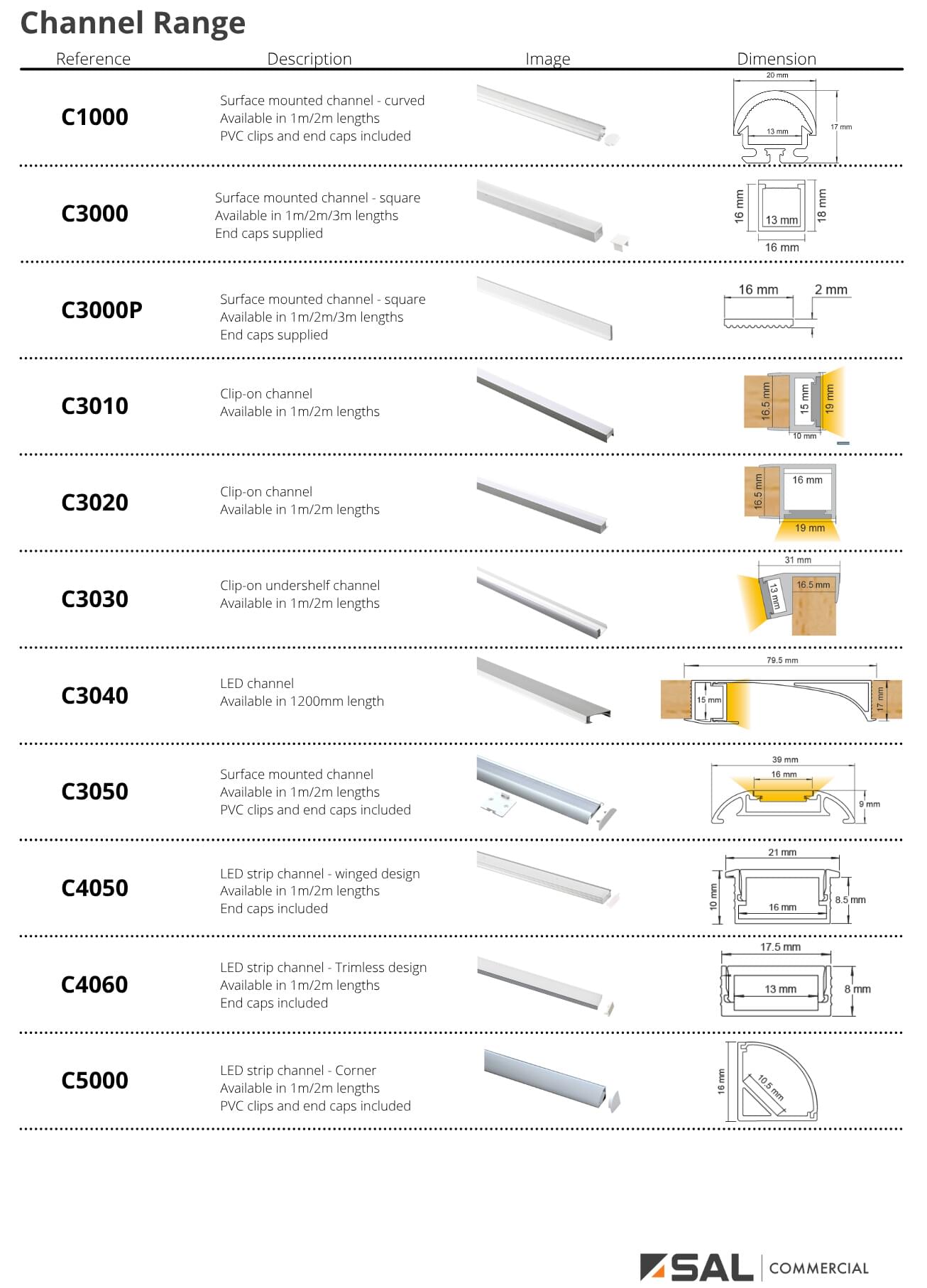

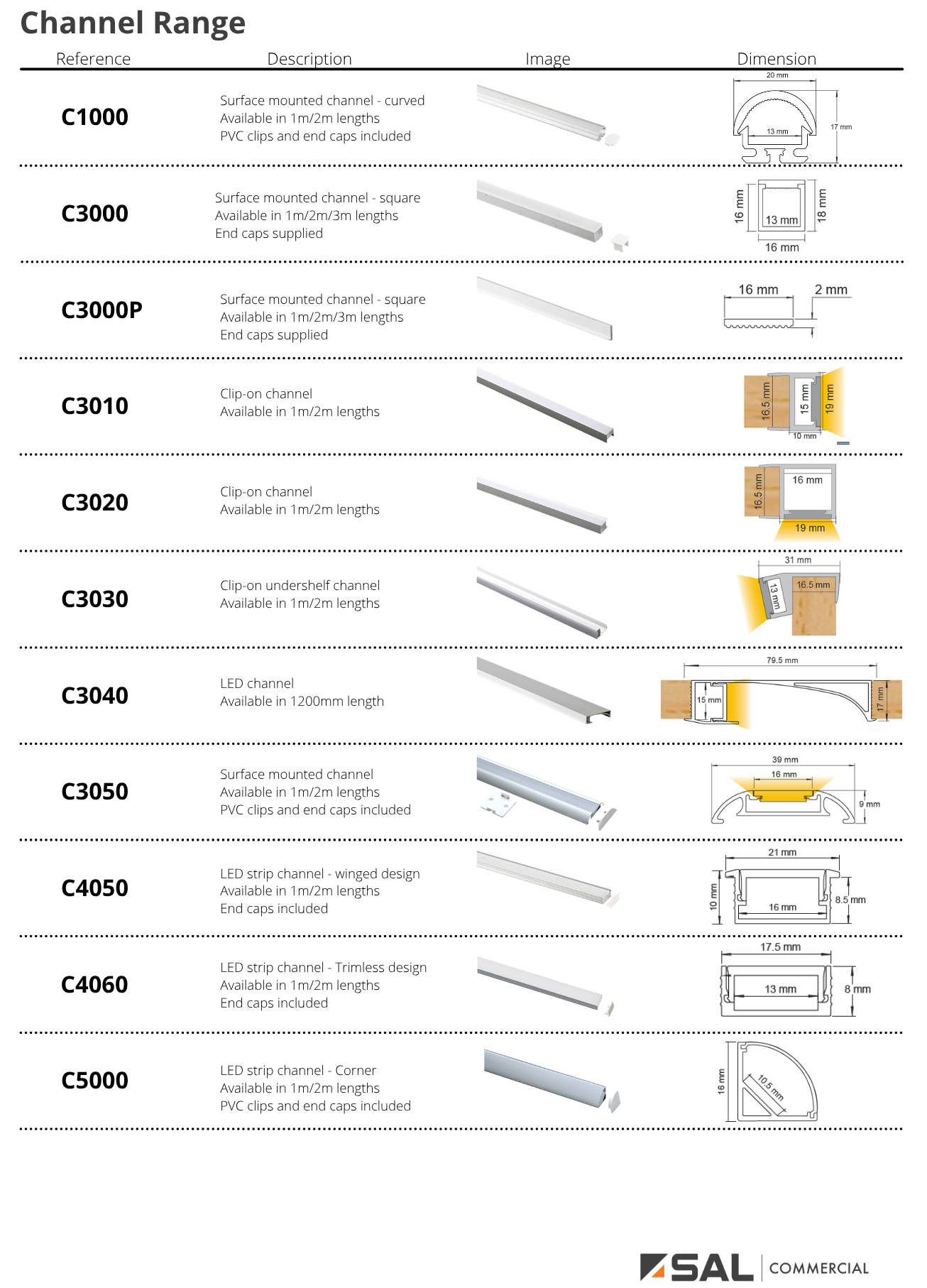

Explore the LED strip channel range HERE

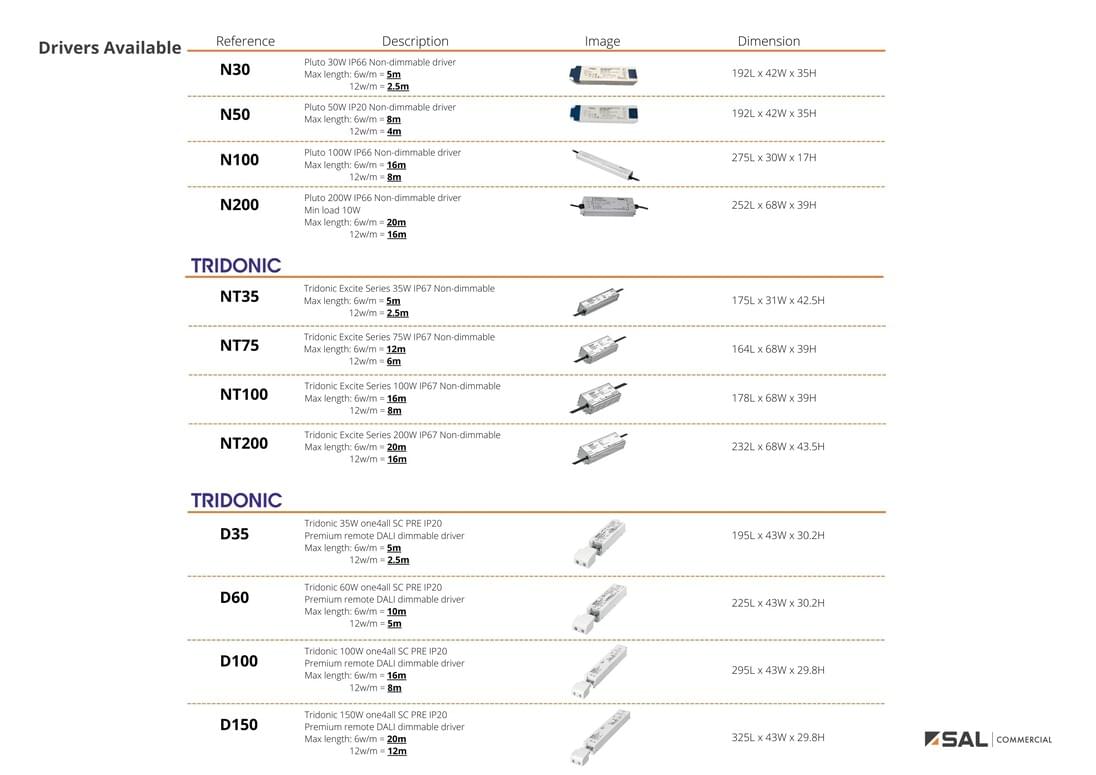

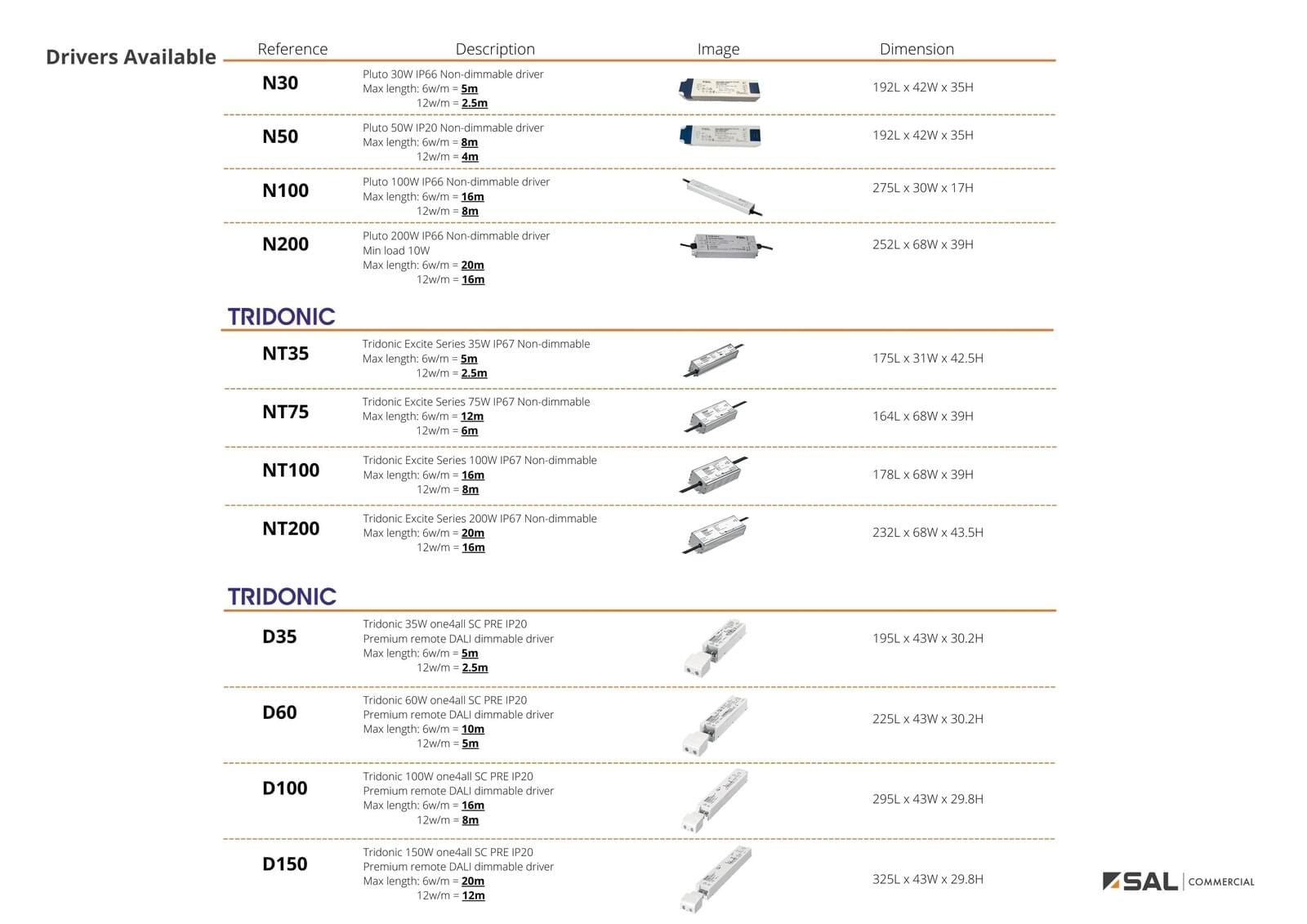

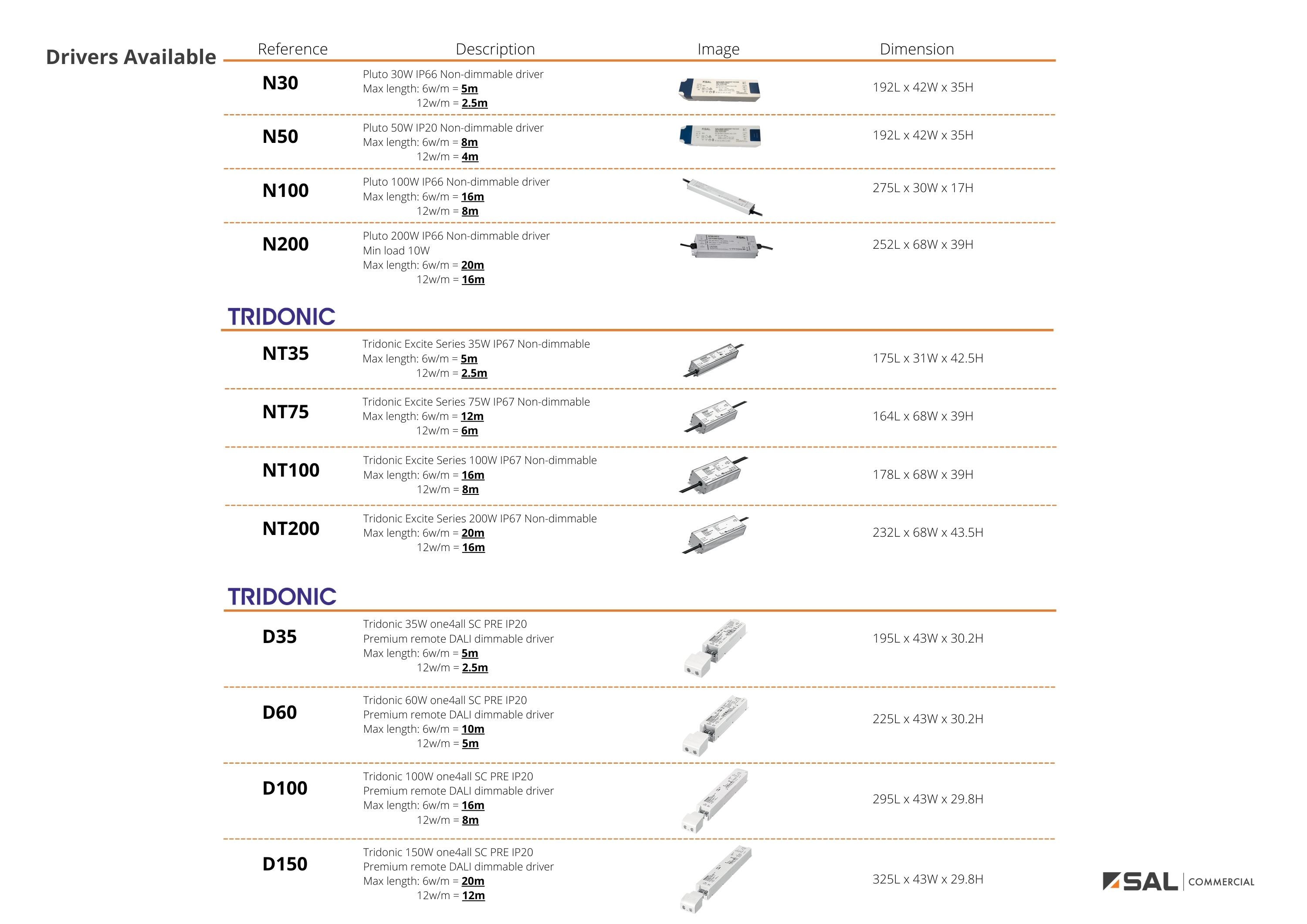

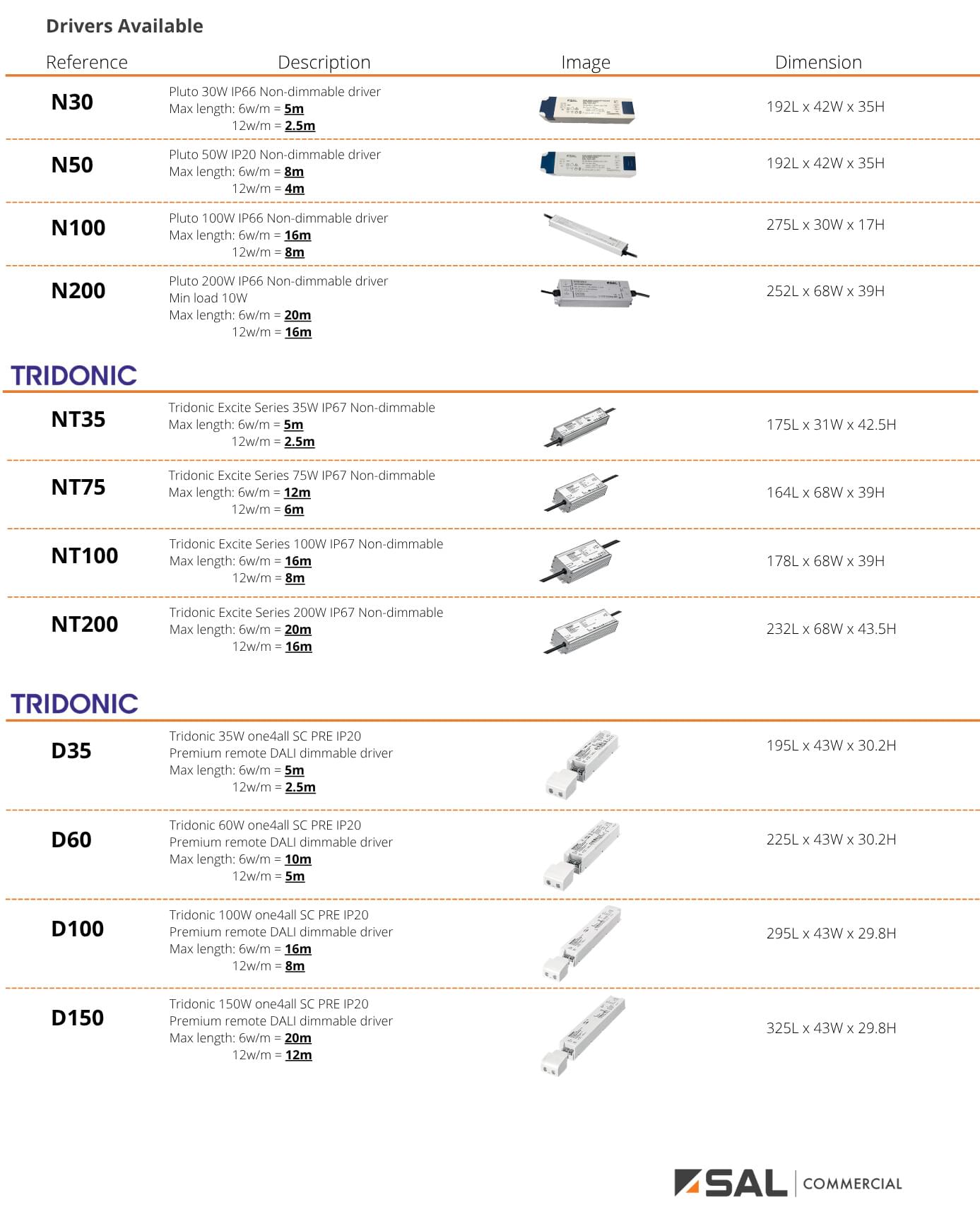

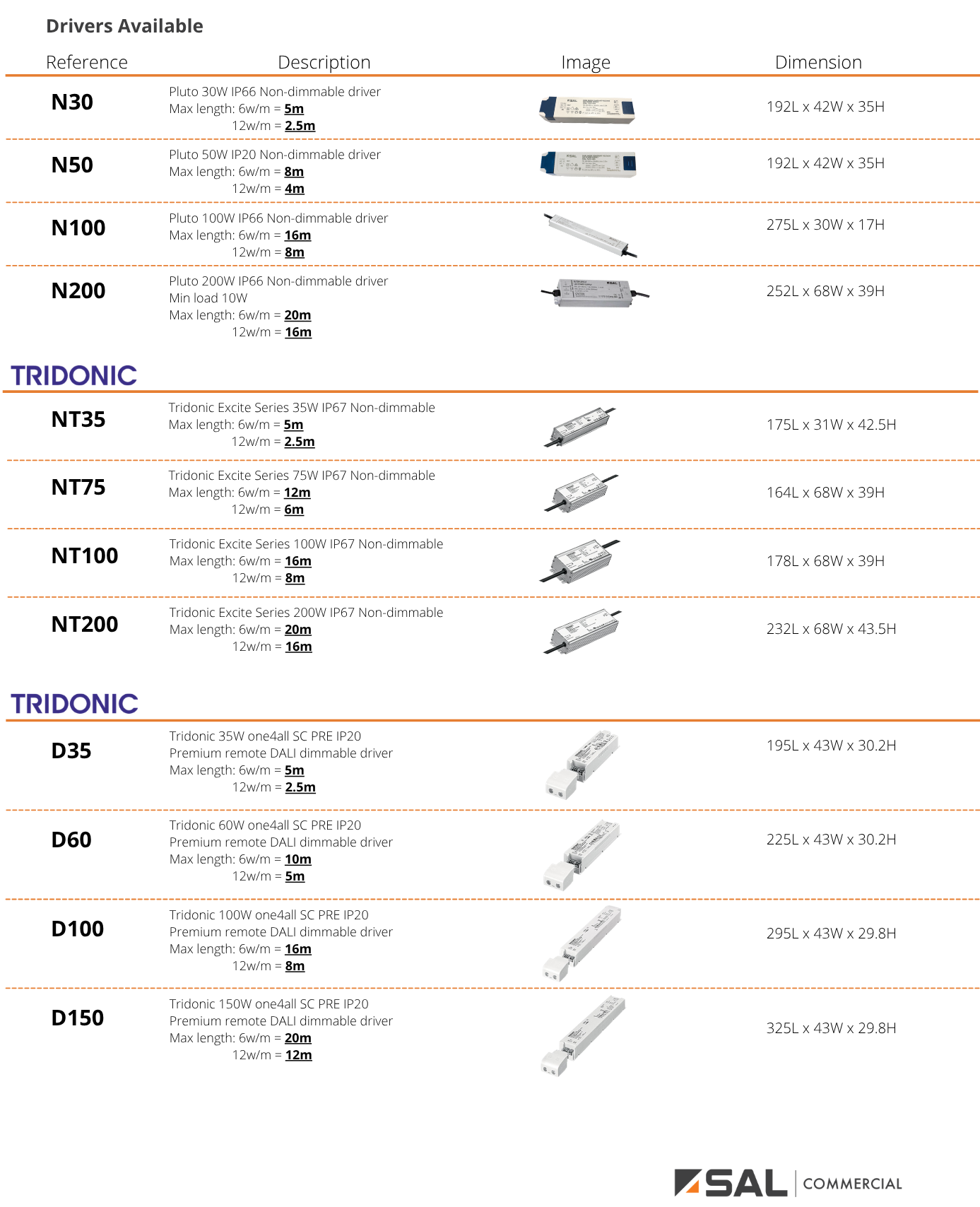

Explore the LED strip Driver range HERE

Design Specifications

  • High efficiency SMD LED chip technology

  • Available in 3000K, 4000K and 6000K CCT

  • 3M® self adhesive tape supplied as standard

  • Wide beam 115º optic

  • Maximum 20m run per single end feed

  • Available Options:

    • Tridonic non-dimmable remote driver
    • Tridonic DALI dimmable remote driver
    • Tridonic Casambi wireless enabled remote driver

  • 3000KCCT
  • 4000KCCT
  • 6000KCCT
  • 3000KCCT
  • 4000KCCT
  • 6000KCCT

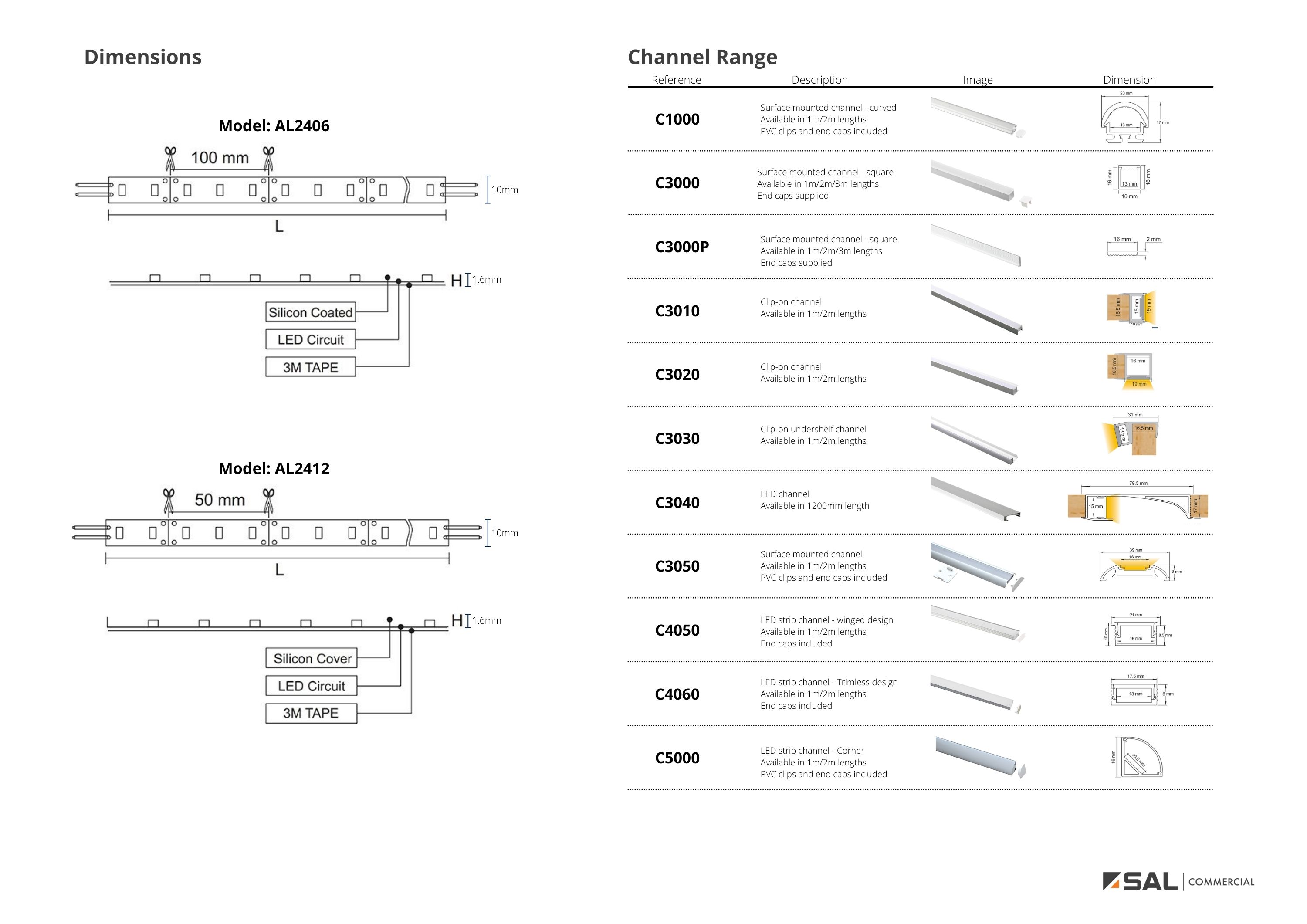

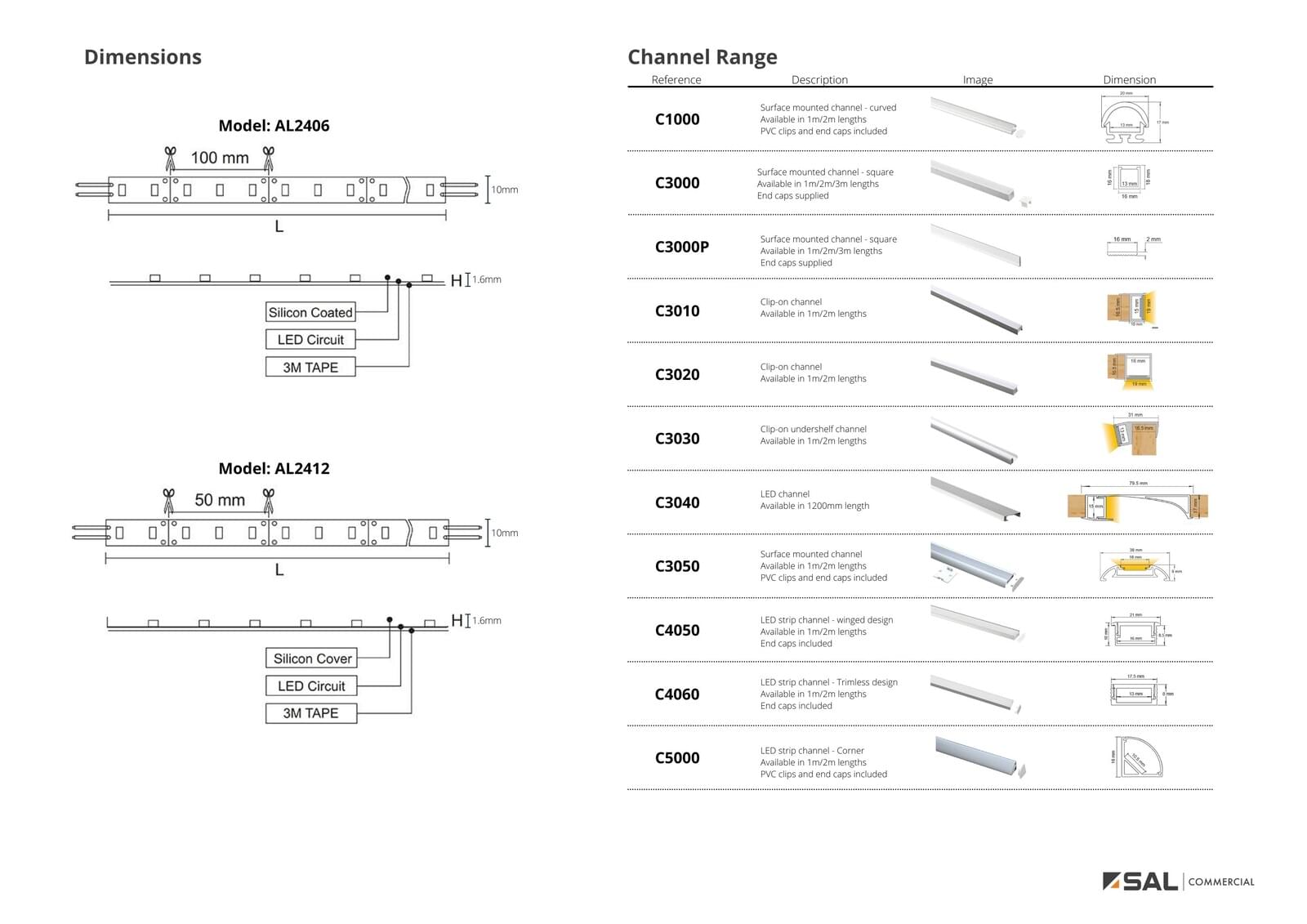

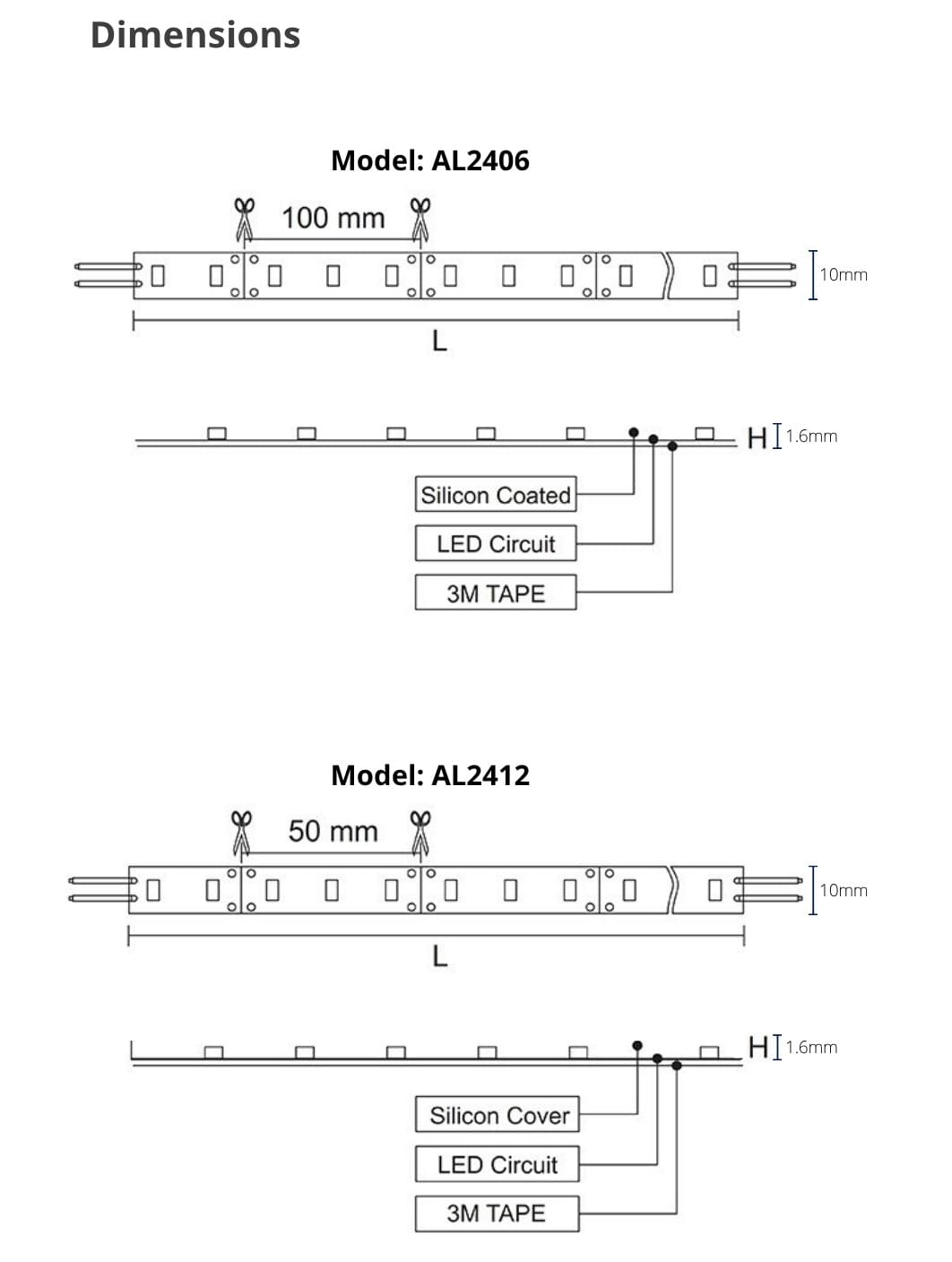

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Input Voltage Electrical Class Watts per metre Colour Temp. Beam Angle Luminous Flux Per Meter CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.AL240630 Input Voltage24 Electrical ClassIII Watts per metre6 Colour Temp.3000 Beam Angle115 Luminous Flux Per Meter500 CRI80 Add to Enquiry Add Remove Remove
    Model No.AL240640 Input Voltage24 Electrical ClassIII Watts per metre6 Colour Temp.4000 Beam Angle115 Luminous Flux Per Meter500 CRI80 Add to Enquiry Add Remove Remove
    Model No.AL240660 Input Voltage24 Electrical ClassIII Watts per metre6 Colour Temp.6000 Beam Angle115 Luminous Flux Per Meter500 CRI80 Add to Enquiry Add Remove Remove
    Model No.AL241230 Input Voltage24 Electrical ClassIII Watts per metre12 Colour Temp.3000 Beam Angle115 Luminous Flux Per Meter980 CRI90 Add to Enquiry Add Remove Remove
    Model No.AL241240 Input Voltage24 Electrical ClassIII Watts per metre12 Colour Temp.4000 Beam Angle115 Luminous Flux Per Meter980 CRI90 Add to Enquiry Add Remove Remove
    Model No.AL241260 Input Voltage24 Electrical ClassIII Watts per metre12 Colour Temp.6000 Beam Angle115 Luminous Flux Per Meter980 CRI90 Add to Enquiry Add Remove Remove

    *Refer to datasheet for "code methodology" to nominate channel and driver combinations and specify length required

    Example - AL241240C1000D100-1850
