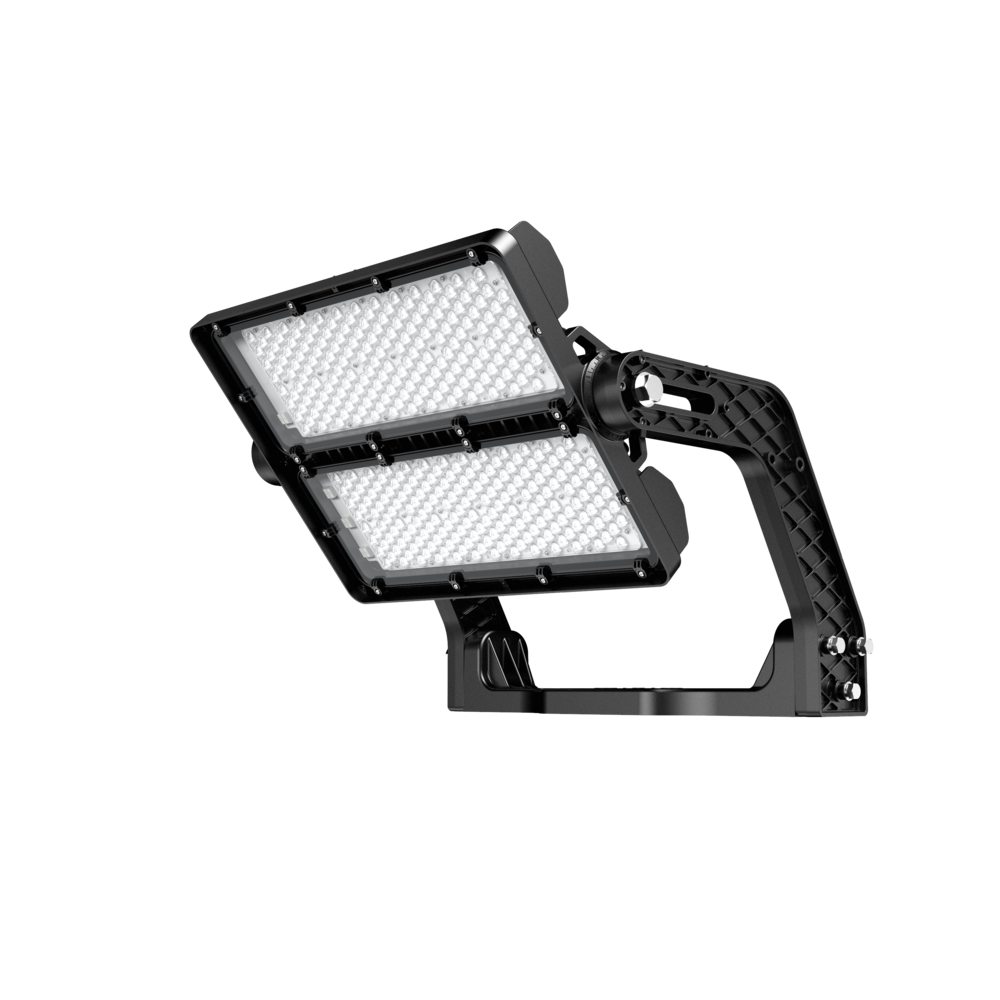

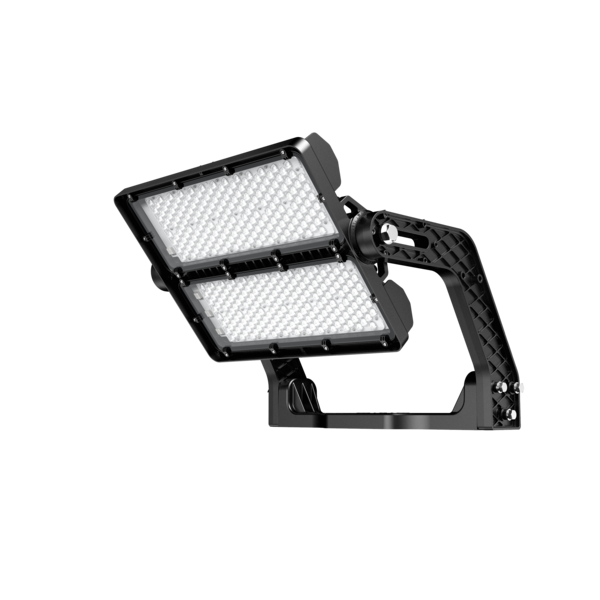

Barcelona Sports LED Floodlight

600W | 800W

Combining the latest in LED technology and precision designed optics, the Barcelona Sports LED Floodlight has been developed for sports applications. Constructed using pressure die-cast aluminium, this highly efficient floodlight allows for trunnion, remote and in-pole gear tray mounting arrangements offering flexible installation options.

Application

Designed with IP66 ingress protection, IK08 impact protection rating and birdproof cabling, the Barcelona LED Sports Floodlight range is designed to withstand harsh Australian conditions and has been developed to operate at temperatures from -30° to 40°.

Suited to recreational sporting applications:

♦ Soccer

♦ Rugby

♦ Tennis

♦ Outdoor recreational sports

Design Specifications

  • Available in 600W and 800W twin module arrangement

  • 160lm/w efficacy

  • UV stabilised polycarbonate lens with toughened glass screen

  • Operating temperature -30° to 40°

  • Windage rating 0.09m²

  • Available Options:

    • Select from in-pole, trunion mount or remote IP66 control gear *Please note remote gear is standard
    • DMX control gear
    • Three phase 415V control gear (Non-Dim)
    • Rear glare shield
    • Front visor




  • L70 @ 178,000 hours LED lifetime
  • 20kV surge protection device as standard
  • Birdproof protected cabling fitted as standard
  • DALI2 Control gear with DMX optional
  • 4000KCCT
  • 5000KCCT
  • 5700KCCT
  • 4000KCCT
  • 5000KCCT
  • 5700KCCT

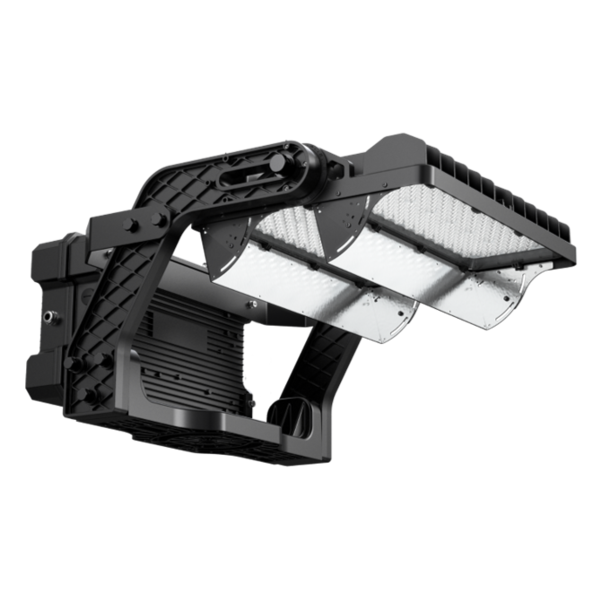

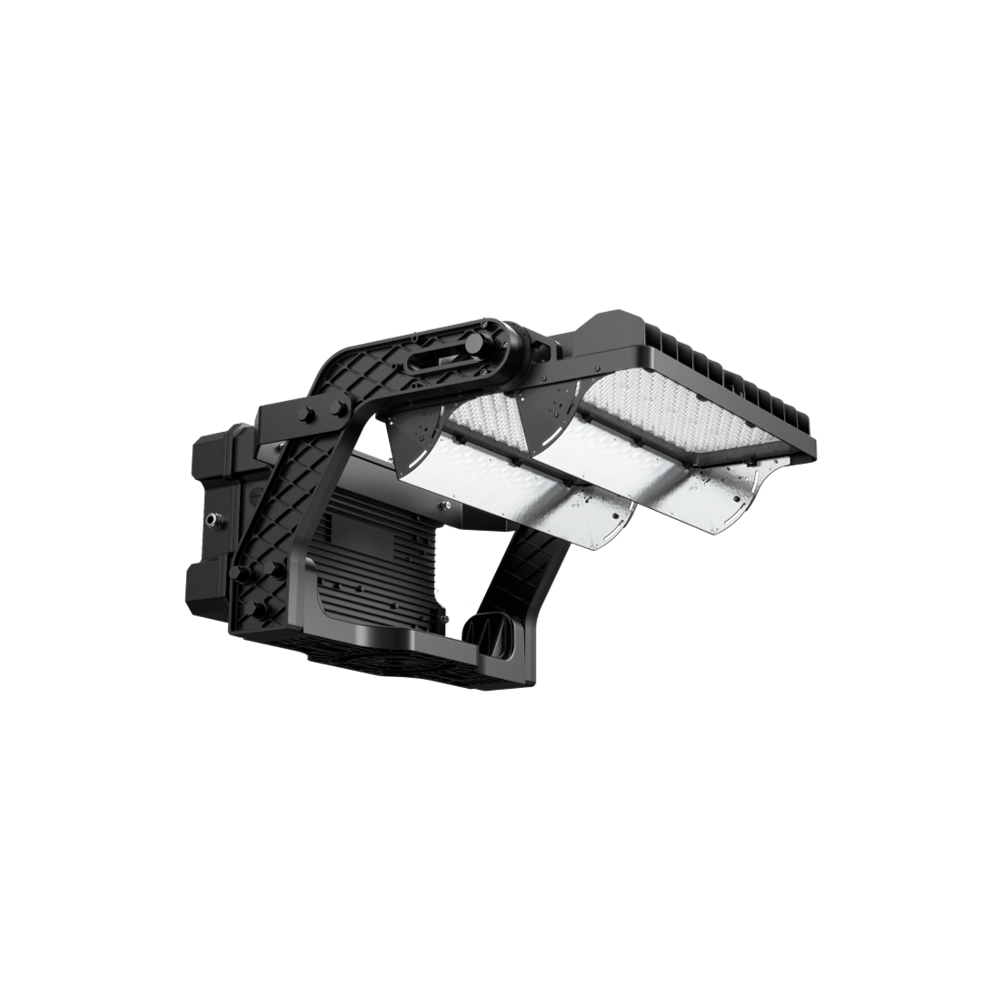

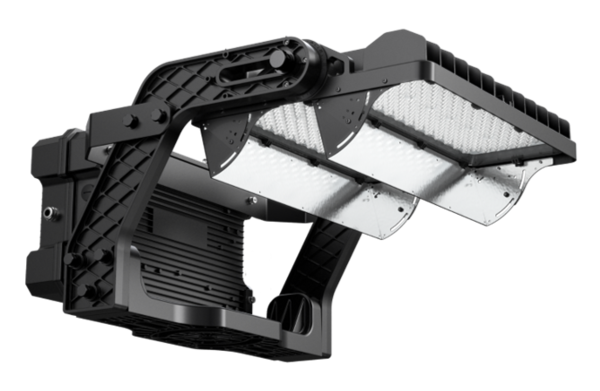

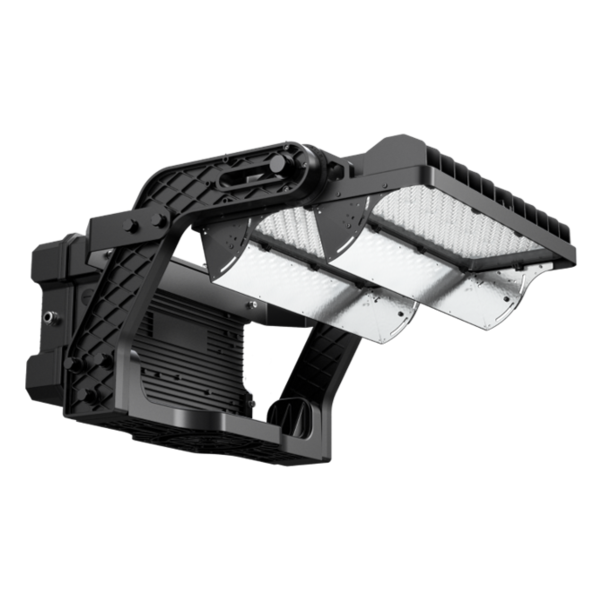

Adjustable rear glare shield accessory shown. Available for all Barcelona Sports LED Floodlight models.





Adjustable front visor shown on both twin and three module models of the Barcelona Sports LED Floodlight.








Offering flexible mounting arrangements, the IP66 control gear unit can be trunnion or remote mounted.
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens Colour Temp. CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FBC0657A1 DescriptionBarcelona 600W with A1 narrow asymmetric optic, DALI Power600 Lumens84000 Colour Temp.5700 CRI70 Add to Enquiry Add Remove Remove
    Model No.FBC0657A2 DescriptionBarcelona 600W with A2 medium asymmetric optic, DALI Power600 Lumens84000 Colour Temp.5700 CRI70 Add to Enquiry Add Remove Remove
    Model No.FBC0657A3 DescriptionBarcelona 600W with A3 wide asymmetric optic, DALI Power600 Lumens96000 Colour Temp.5700 CRI70 Add to Enquiry Add Remove Remove
    Model No.FBC0857A1 DescriptionBarcelona 800W with A1 narrow asymmetric optic, DALI Power800 Lumens112000 Colour Temp.5700 CRI70 Add to Enquiry Add Remove Remove
    Model No.FBC0857A2 DescriptionBarcelona 800W with A2 medium asymmetric optic, DALI Power800 Lumens112000 Colour Temp.5700 CRI70 Add to Enquiry Add Remove Remove
    Model No.FBC0857A3 DescriptionBarcelona 800W with A3 wide asymmetric optic, DALI Power800 Lumens128000 Colour Temp.5700 CRI70 Add to Enquiry Add Remove Remove

    Code Methodology: FBC = Barcelona |  06 = Wattage  |  57 = CCT  |  A1 = Optics
    Variants Available:
    Wattage - 06 = 600w / 08 = 800w
    CCT - 57 = 5700K / 30 = 3000K / 40 = 4000k
    Control Gear - 240v Remote Gear as standard / add TP for Tri Phase 415v  (Note 415v Model is Non-Dim as Standard)
    Optics - A1 Narrow / A2 Medium / A3 Wide / S1 Symmetrical 12° / S2 Symmetrical 30° / S3 Symmetrical 45° / S4 Symmetrical 60°
    Add suffix: GS = Rear Glare Shield. FV = Front Visor.

    Alternate optics available on request

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
