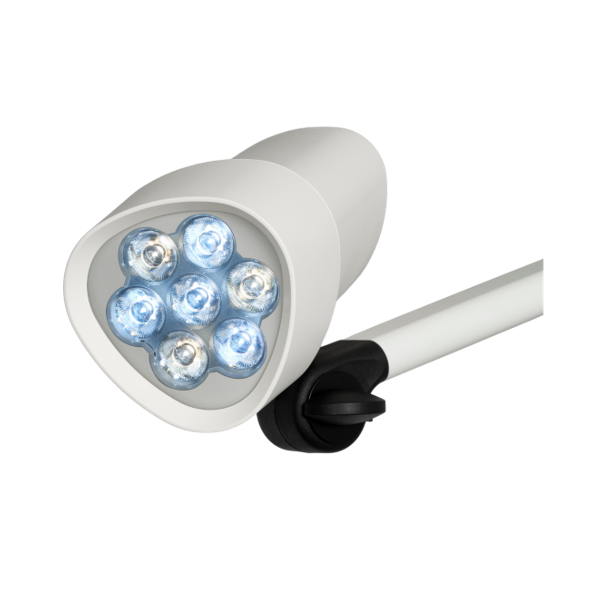

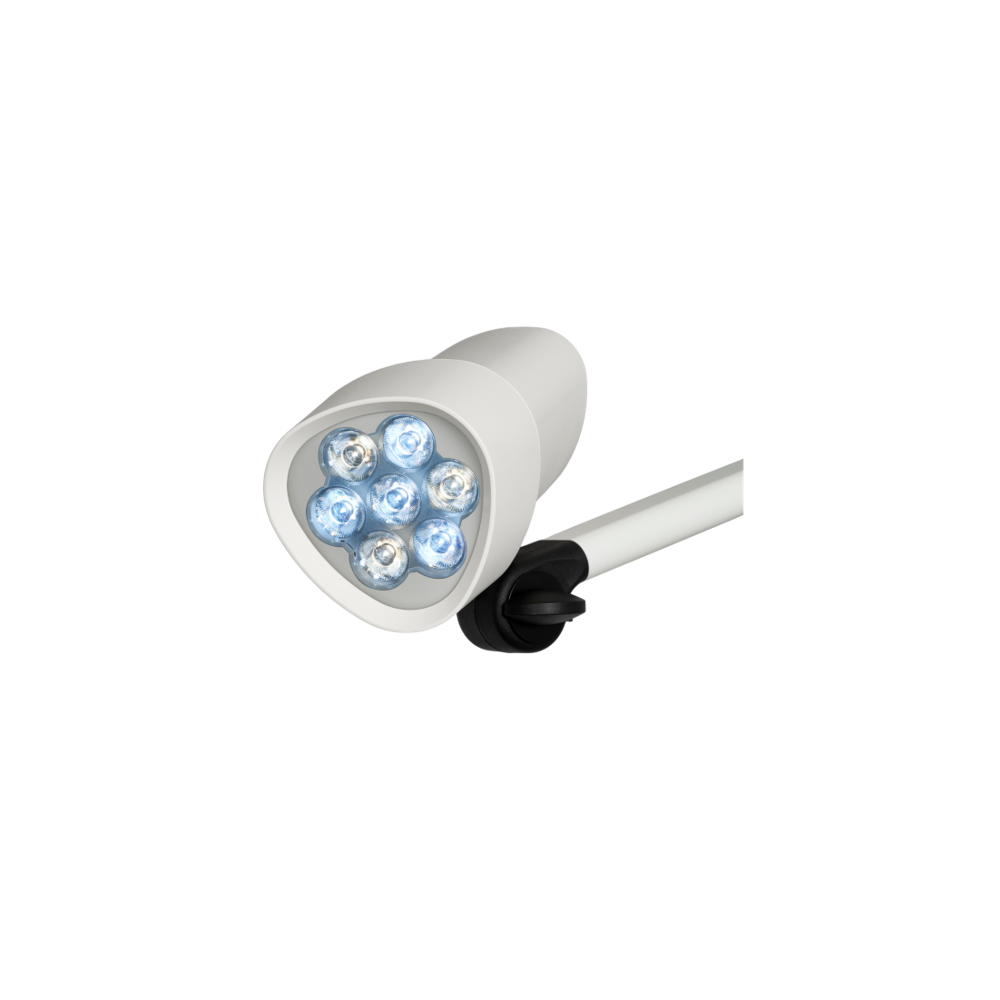

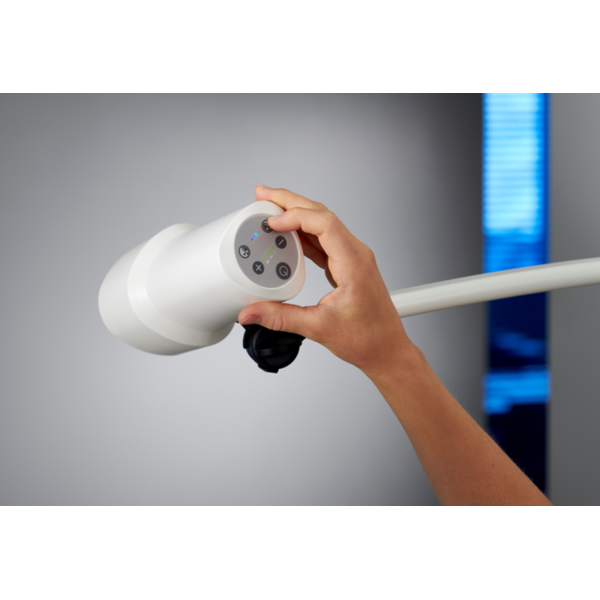

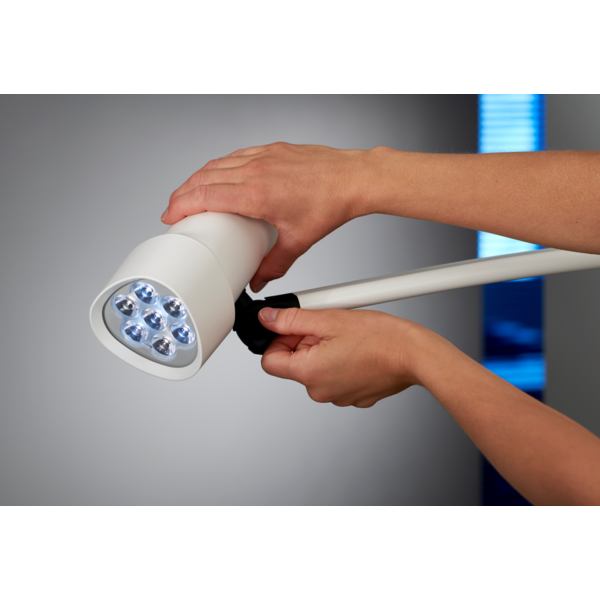

Coolview CLED53

LED Examination Light with Selectable Colour Temperature

Coolview® provides uncompromising lighting performance for the clinician. Its high intensity performance and colour corrected light make the focus of the examination vivid and natural. The CLED53 is the ideal product for medical consultation in primary care and medical clinics.

Explore the Examination Lighting range by Brandon Medical

Application

♦ High Colour Rendition the CLED53 reproduces all of the visible colours naturally and accurately. The high Ra of >93 describe the exceptionally high quality of white light while the R9 of >90 measurement describes how it accurately reproduces visible red.

♦ Perfect Colour the CLED53 provides a colour corrected light source with adjustable colour temperature settings of 3300K, 3800K and 4400K which allows for accurate representation of tissue during examination.

♦ Easy to clean and maintenance free design with a fully enclosed light head, smooth surfaces, durable LED technology and high quality materials.

Design Specifications

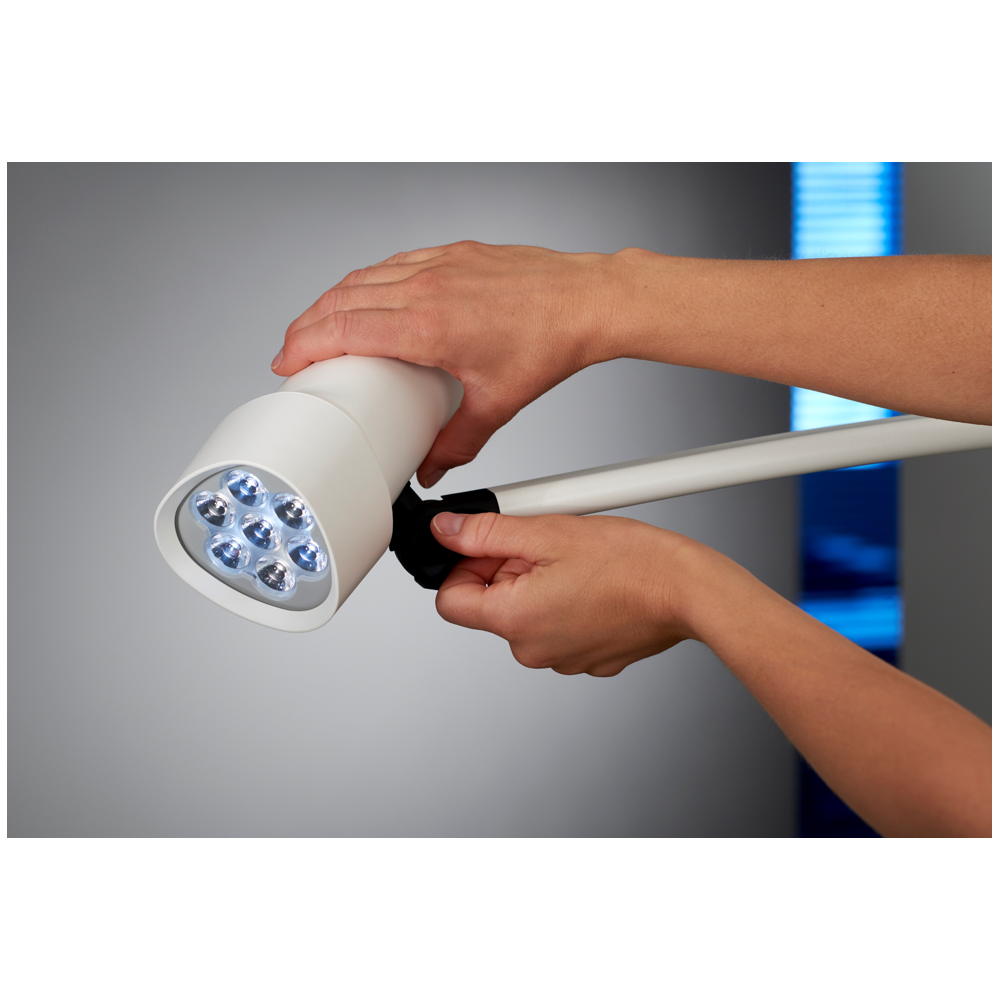

  • 50,000 lux with 360° rotation

  • 180mm illumination field D10 @ 0.5m

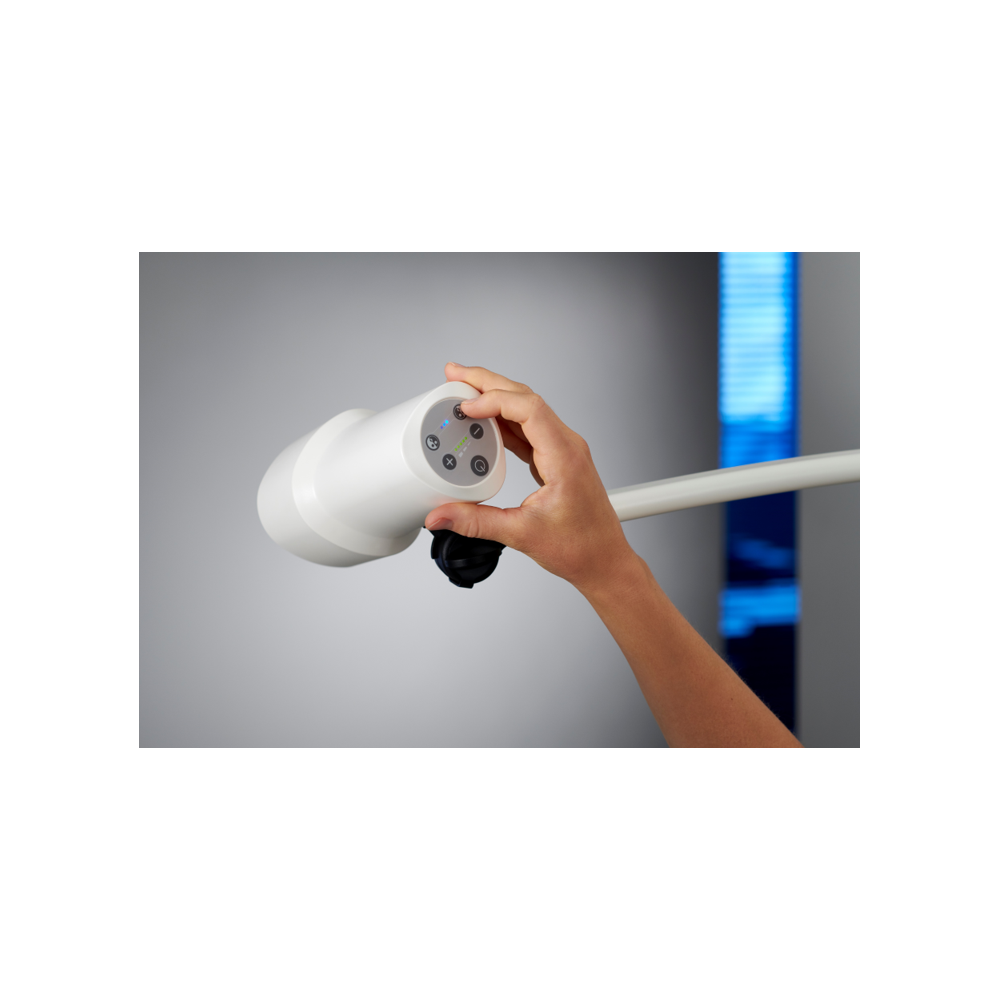

  • Selectable CCT- 3300K, 3800K and 4400K

  • LED Life 50,000 hours

  • 15-25 year design life with normal use

  • Ceiling / Wall / Trolley mounting options (see model list below)


Coolview CLED53
Coolview CLED53
Coolview CLED53
Coolview CLED53
Coolview CLED53
  • 3300KCCT
  • 3800KCCT
  • 4400KCCT
  • 3300KCCT
  • 3800KCCT
  • 4400KCCT
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Body Colour CCT Power CRI R9 Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. CLED53FXC Description Coolview® CLED53 ceiling mounted examination luminaire Body Colour white CCT 3300/3800/4400 Power 15 CRI 90 R9 >90 Add to Enquiry Add Remove Remove

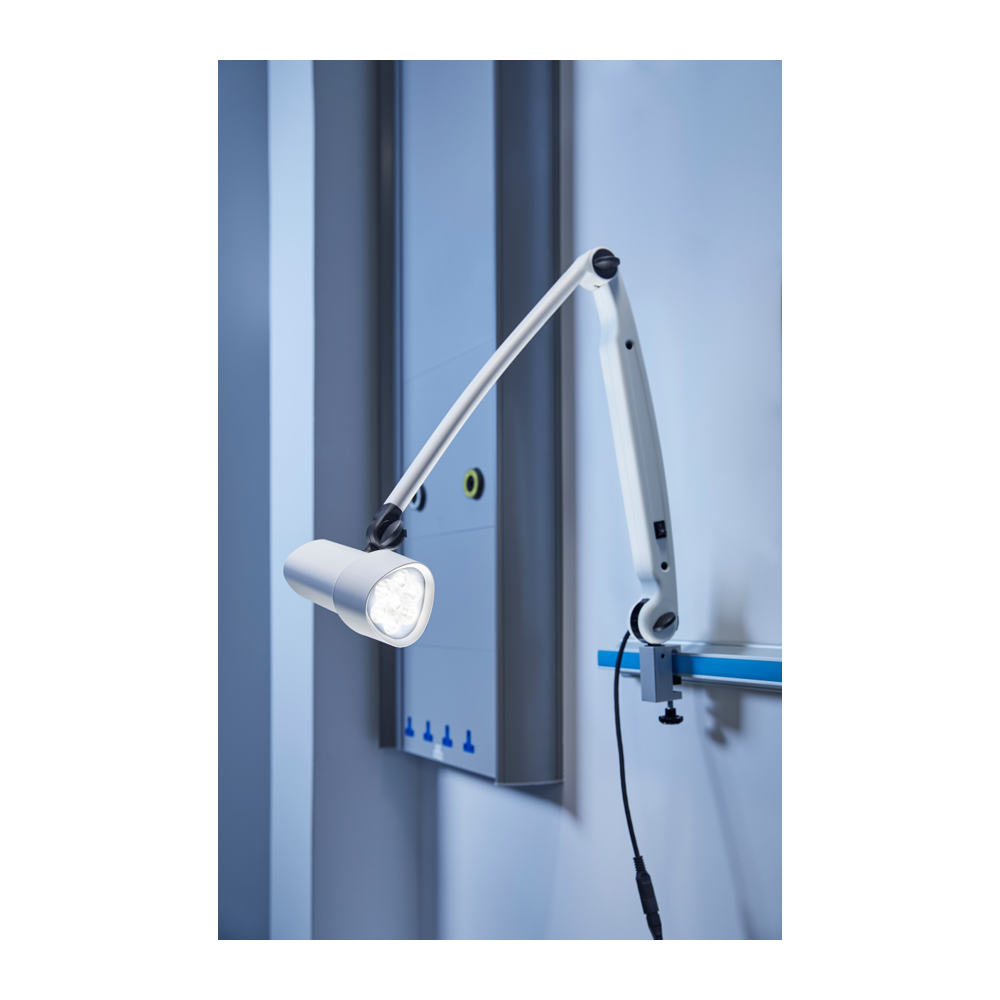

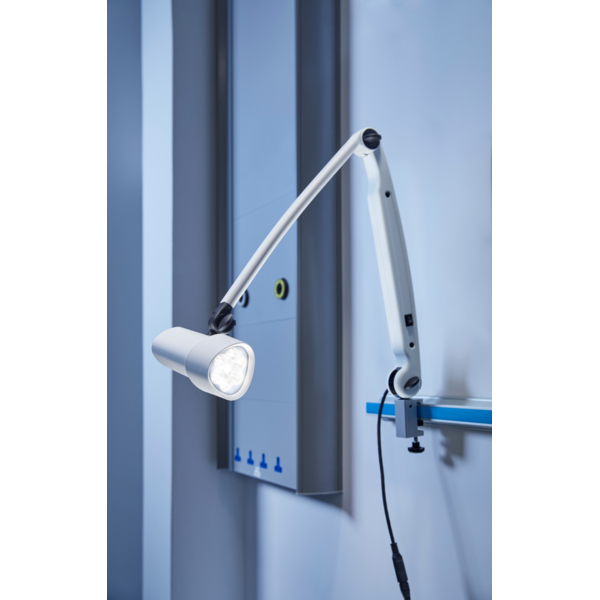

      Model No. CLED53FXWP Description Coolview® CLED53 wall mounted examination luminaire Body Colour white CCT 3300/3800/4400 Power 15 CRI 90 R9 >90 Add to Enquiry Add Remove Remove

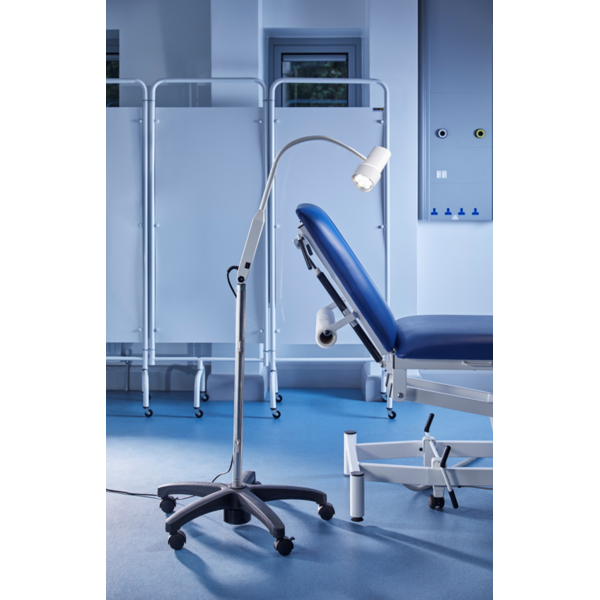

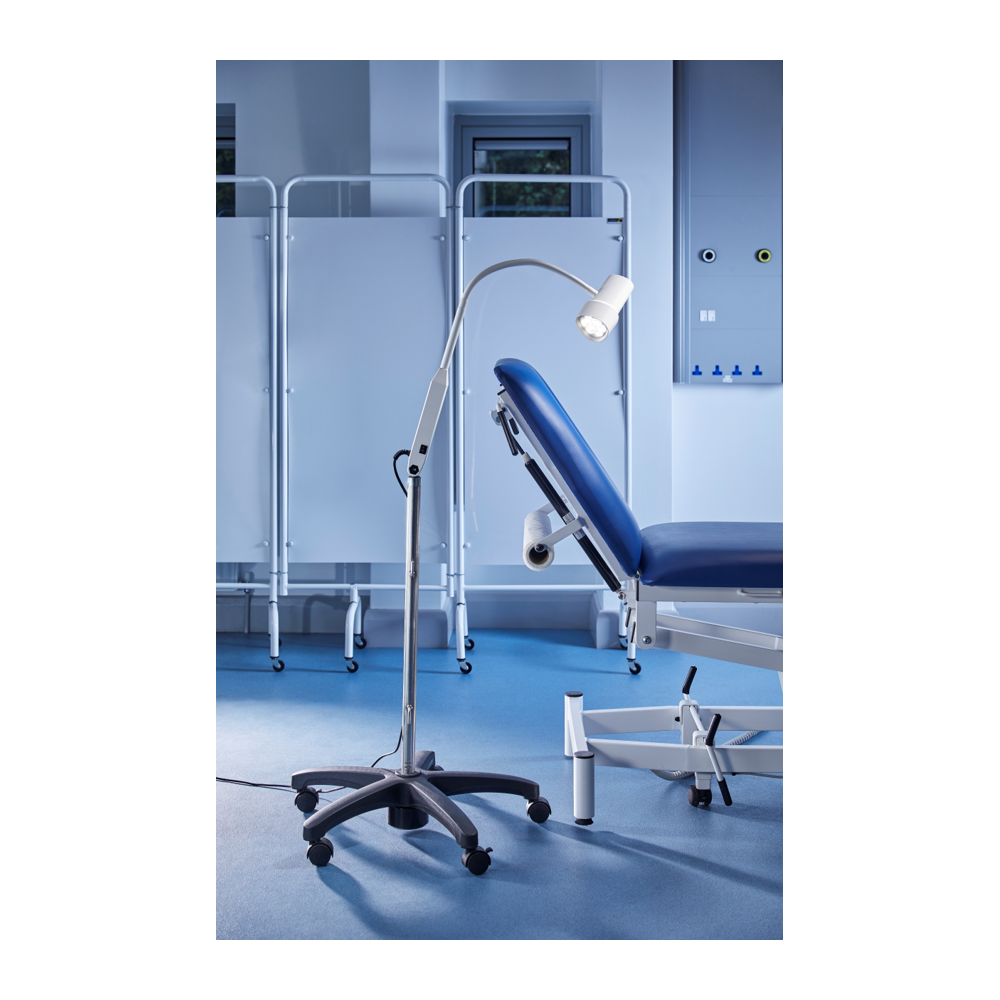

      Model No. CLED53FXMP Description Coolview® CLED53 mobile examination luminaire Body Colour white CCT 3300/3800/4400 Power 15 CRI 90 R9 >90 Add to Enquiry Add Remove Remove

      Coolview CLED53 is entered in the ARTG, 234265
