Coolview CLED23 Premium Examination LED

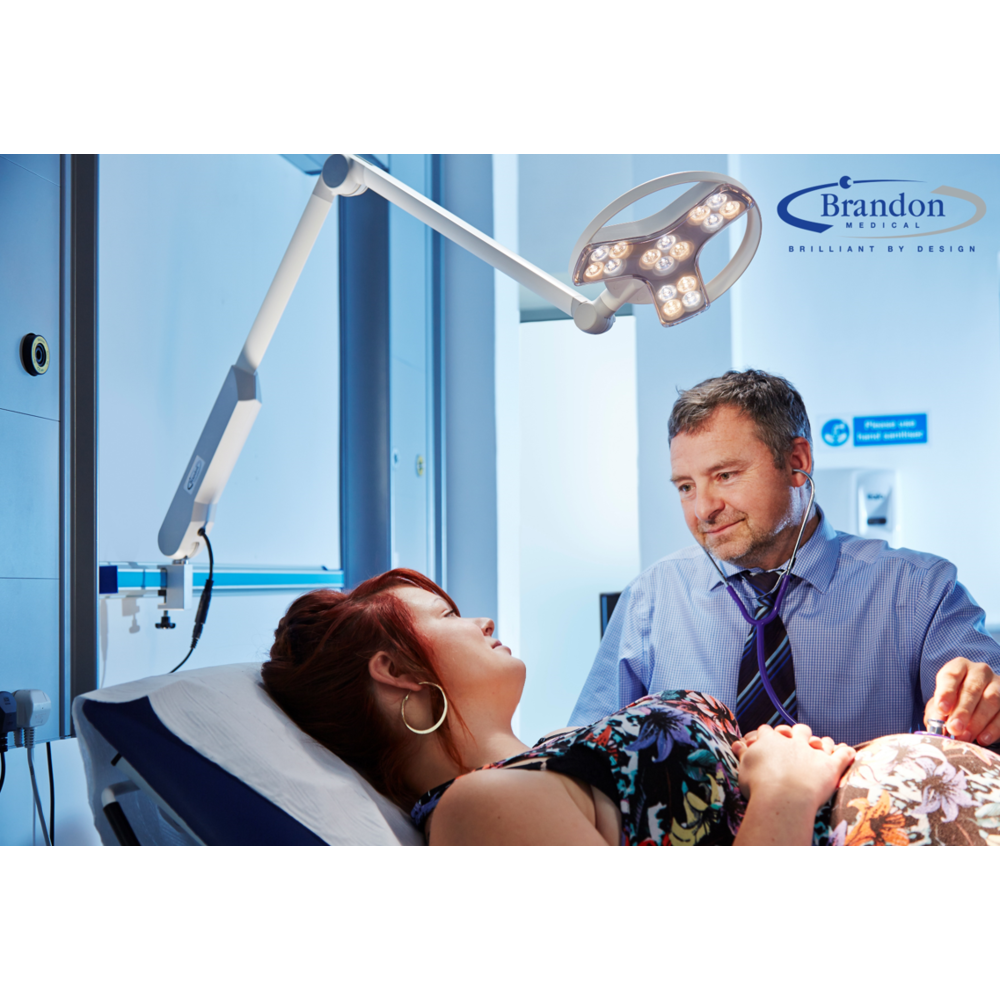

Coolview® provides uncompromising lighting performance for the clinician. Its high intensity performance and colour corrected light make the focus of the examination vivid and natural. The CLED23 is the ideal product for dermatology, ENT, gynaecology and sensitive areas such as neonatal and ICU departments.

Explore the Examination Lighting range by Brandon Medical

Application

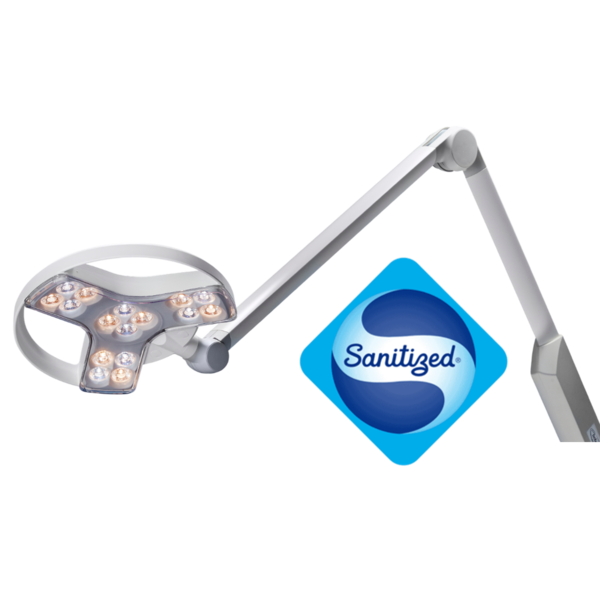

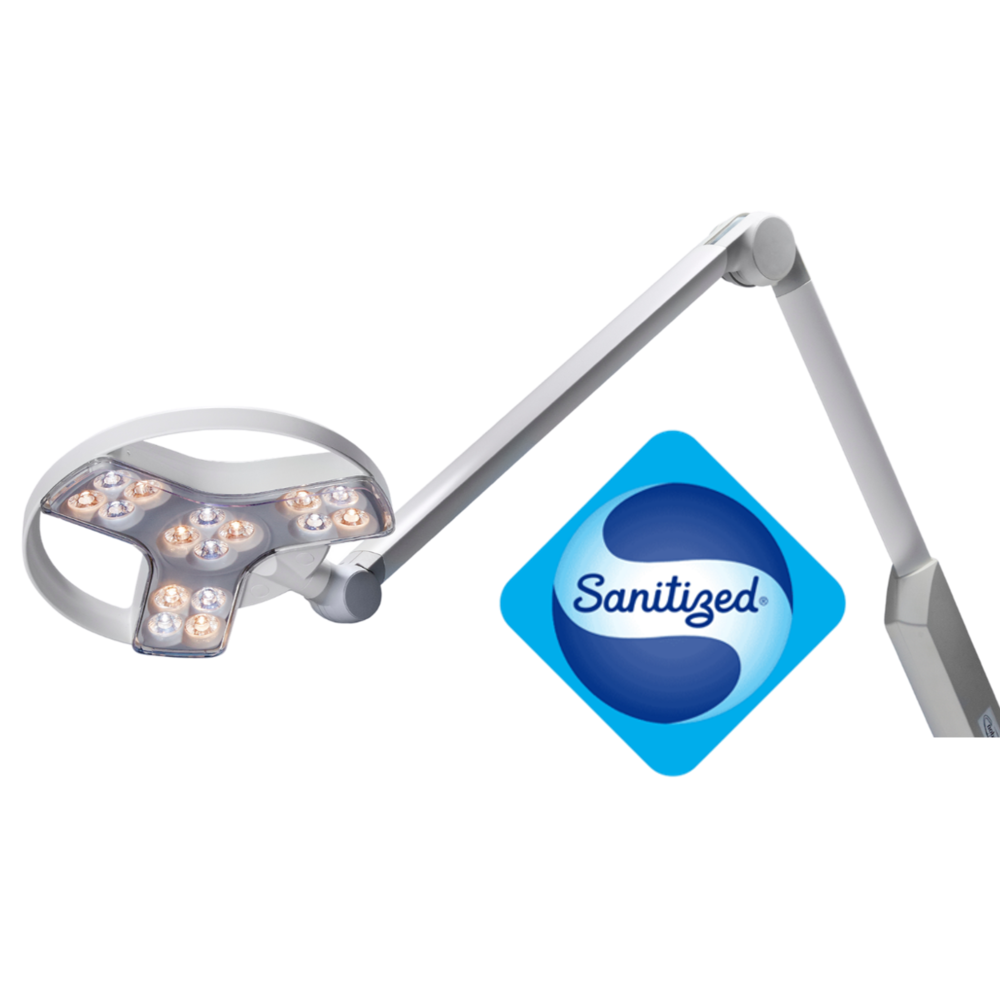

Santized® for Lasting Protection The CLED23 uses an anti-microbial active substance which is moulded into the lamp head, inhibiting the growth of micro organisms including MRSA. This is more than an external coating and allows the lamp the be permanently resistant to contamination.

High Colour Rendition the CLED23 reproduces all of the visible colours naturally and accurately. The high Ra of >95 describe the exceptionally high quality of white light while the R9 of >90 measurement describes how it accurately reproduces visible red.

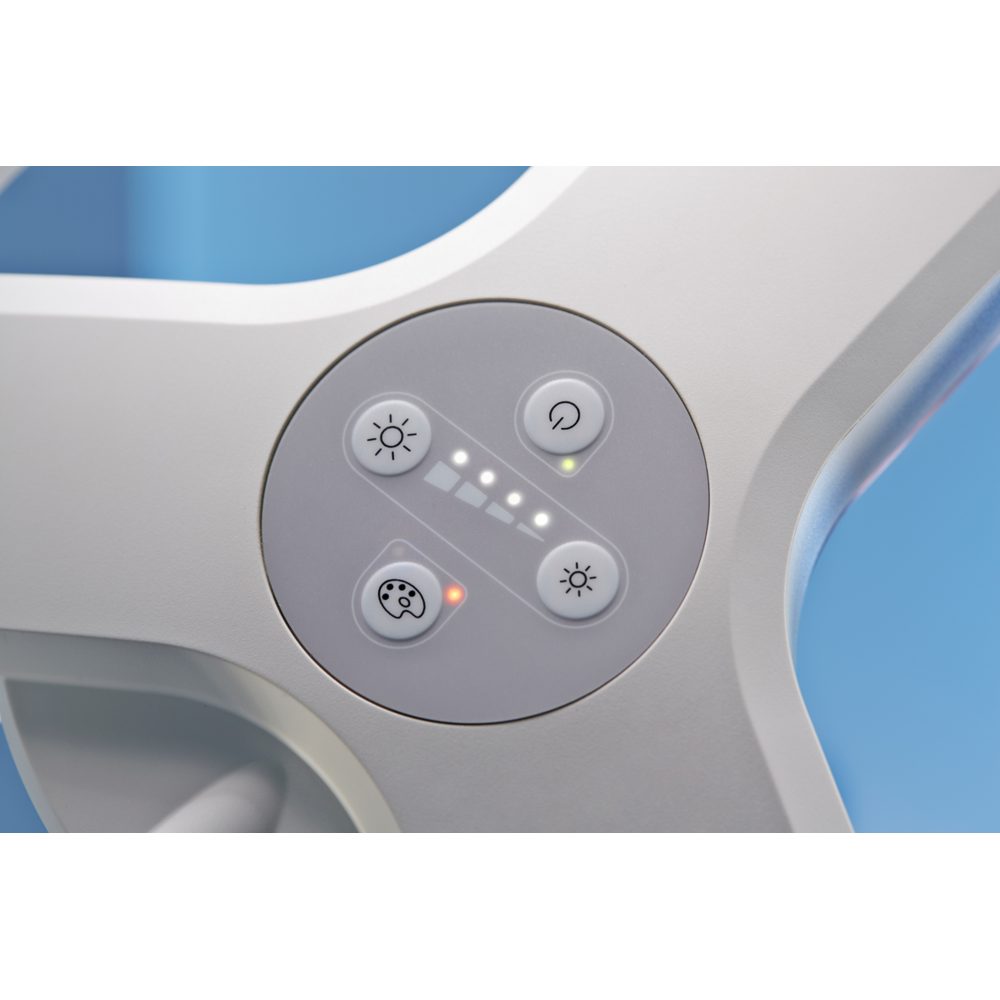

♦ Colour Control Setting the CLED23 allows the user to adjust the colour temperature of the light source via the easy to use control pod. This enhances the clinician's ability to recognise and distinguish tissue conditions. The warm white (3500K) setting is ideal for dermatological examinations and the daylight white setting (4500K) is ideal for the recognition of blood vessels.

Design Specifications

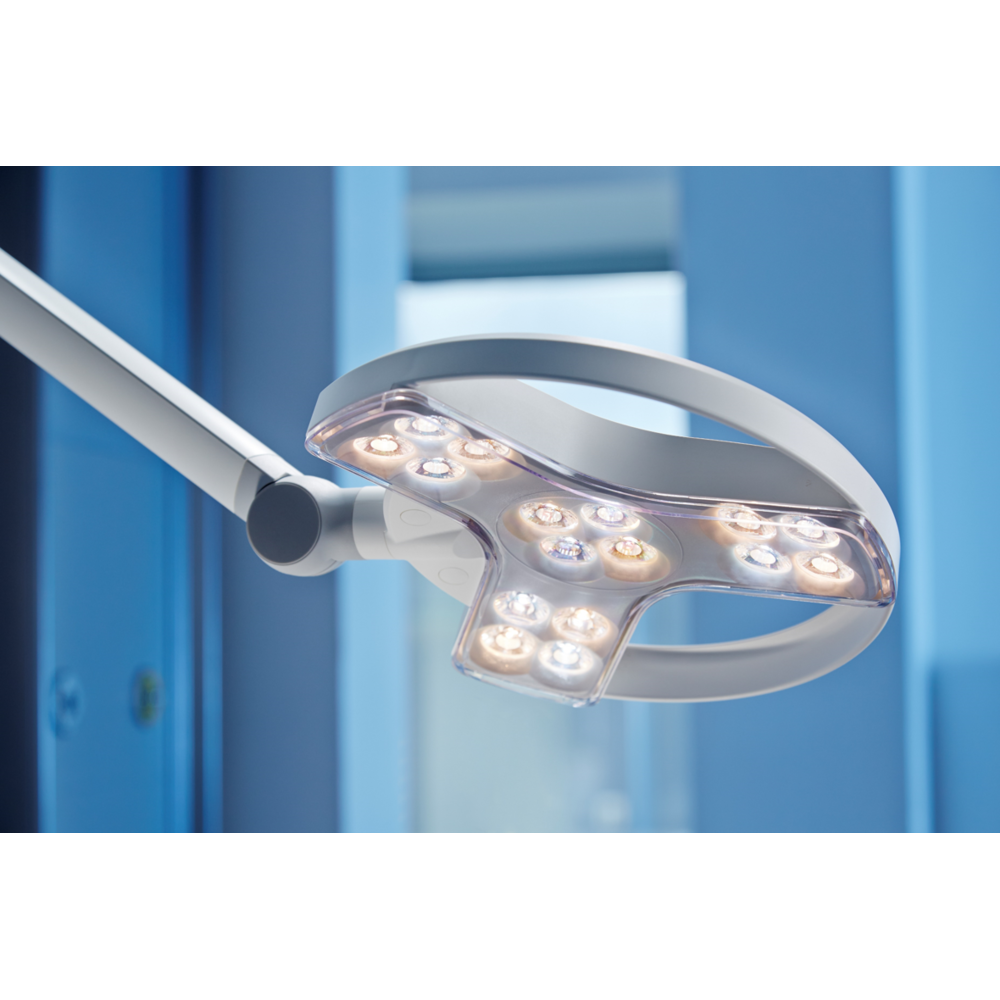

  • 60,000 lux with unlimited 360° rotation

  • Large 210mm illumination field @ 0.5m

  • Selectable CCT- 3500K - 4500K (2 steps)

  • Dimmable via ergonomic control pod

  • Anti-microbial active substance moulded into the construction of the fixture

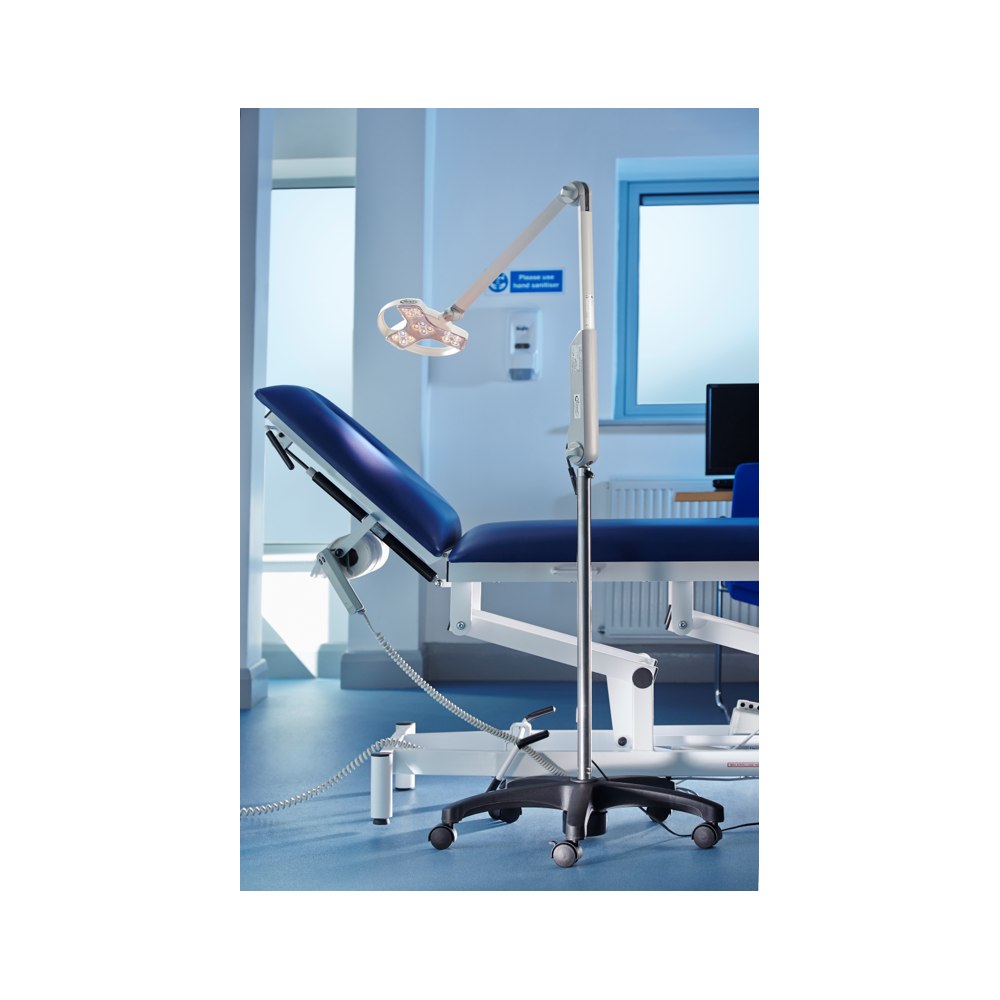

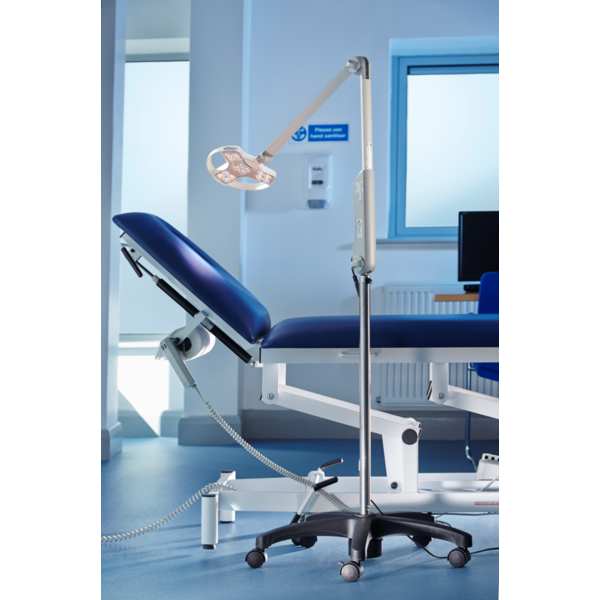

  • Ceiling / Wall / Trolley mount options


  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Body Colour CCT Power CRI R9 Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.CLED23T1C DescriptionCoolview® CLED23 ceiling mounted examination luminaire, Sanitized® anti-microbial coating, selectable CCT from 3500K-4500K (2 steps) Body Colourwhite CCT3500/4500 Power15 CRI95 R9>90 Add to Enquiry Add Remove Remove
    Model No.CLED23TXBP DescriptionCoolview® CLED23 wall mounted examination luminaire, Sanitized® anti-microbial coating, selectable CCT from 3500K-4500K (2 steps) Body Colourwhite CCT3500/4500 Power15 CRI95 R9>90 Add to Enquiry Add Remove Remove
    Model No.CLED23TXMP DescriptionCoolview® CLED23 mobile examination luminaire, Sanitized® anti-microbial coating, selectable CCT from 3500K-4500K (2 steps) Body Colourwhite CCT3500/4500 Power15 CRI95 R9>90 Add to Enquiry Add Remove Remove

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
