Oxford

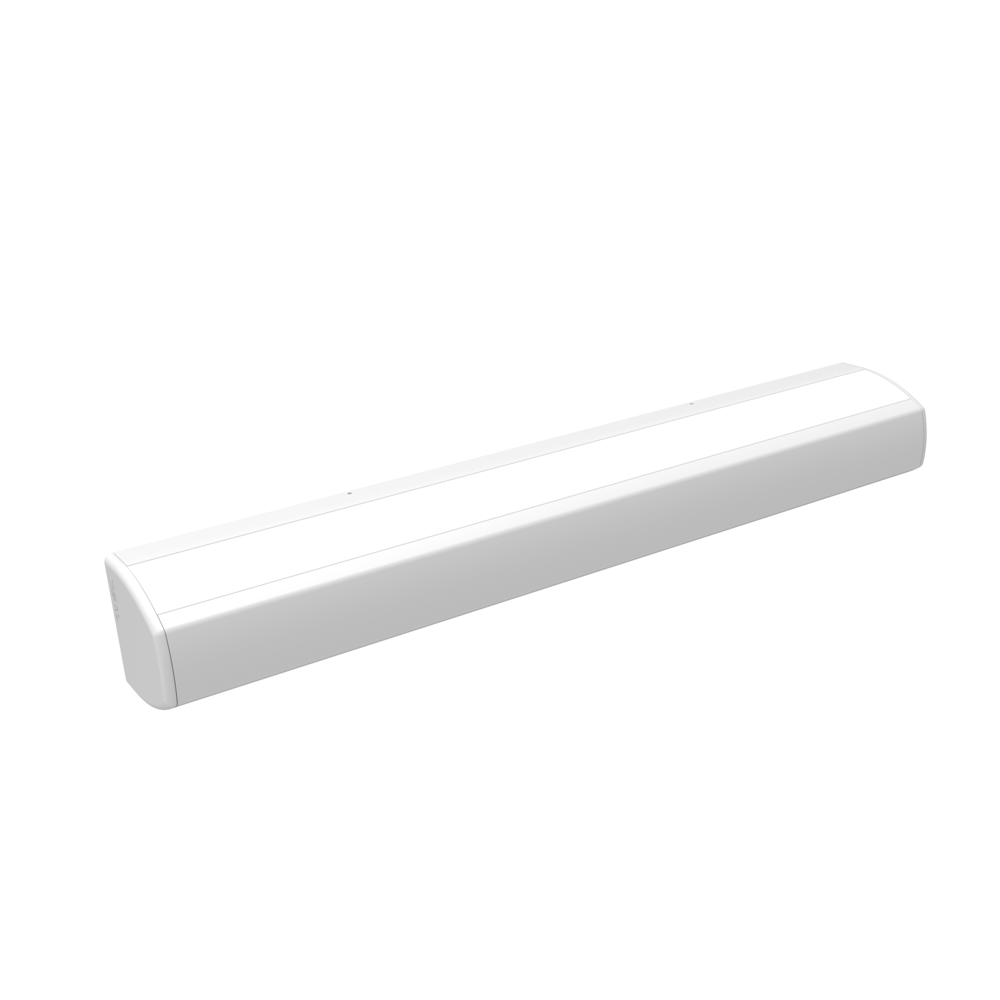

IP44 Surface Mount Direct / Indirect Overhead LED Bedlight

The Oxford LED Bedlight is specifically engineered for healthcare settings, particularly for hygienic environments such as hospitals and aged care facilities. Its design uses extruded aluminum, which is both durable and easy to clean—critical for maintaining sanitary conditions. The light features optimized optics, making it adaptable to both single and double-bed patient rooms. This ensures that the light can provide ample and even illumination, contributing to patient comfort and facilitating healthcare tasks.

Application

Hospital Patient Room

Aged Care

Birthing Centre

Design Specifications

  • Low glare opal diffusers

  • LED Lifetime L90 @ > 50,000 hours

  • Cyanosis LED available in 4000K



  • Integral Non-Dimmable or DALI2 Driver - Switched Up / Down or Separately Switched

  • Amber Night Light available

  • Available in 600mm and 1000mm lengths


  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

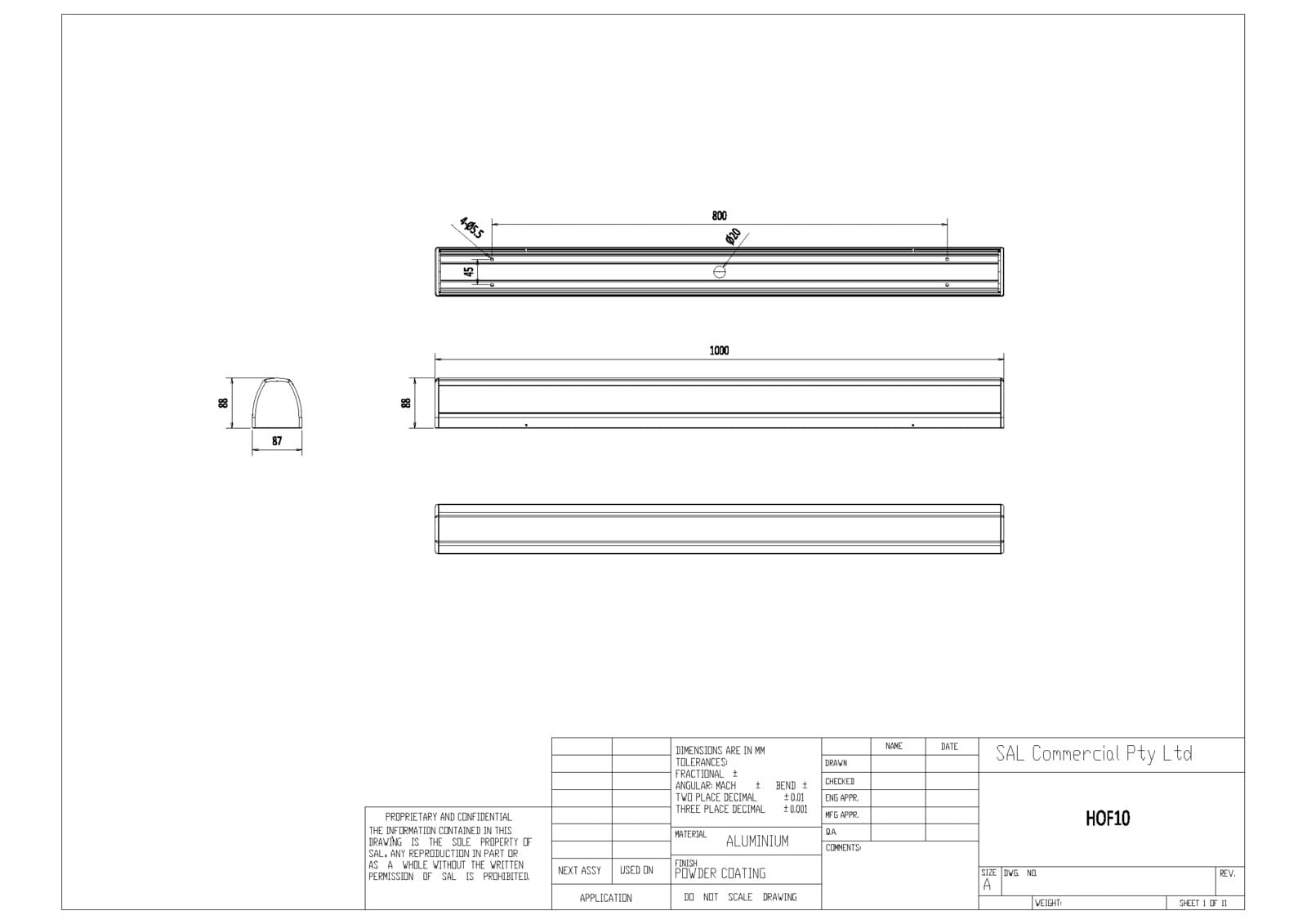

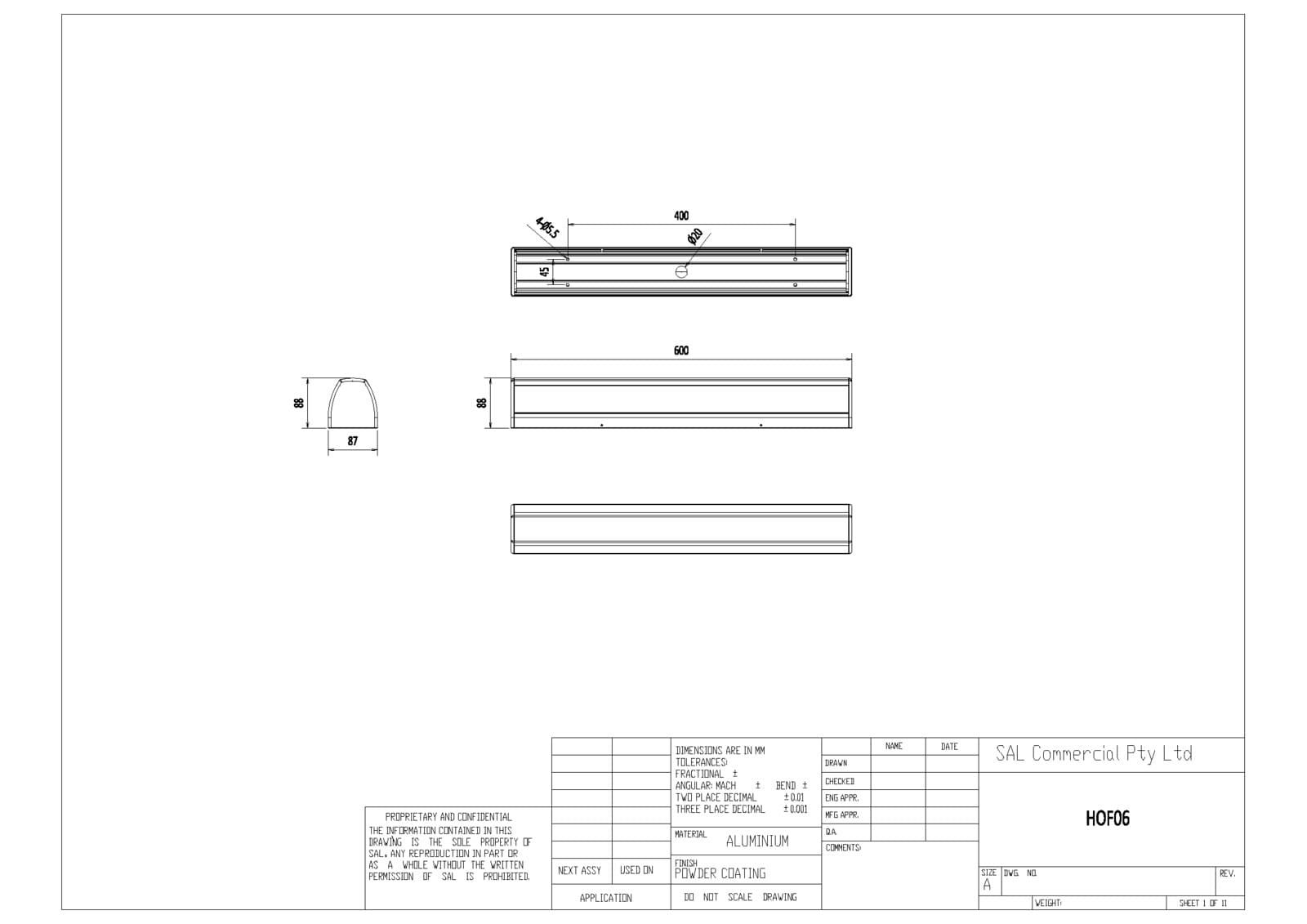

  • Dimensions - Wiring Diagrams
  • Design Options
    Colour 1 White
    Dimmer DALI YES
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Body Colour CCT Power CRI R9 Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.HOF06UD3040N DescriptionOxford 600mm Overbed Light 2 x 15w Direct / Indirect with Non-Dimmable Drivers Body ColourWhite CCT4000 Power30 CRI90 R9> 60 Add to Enquiry Add Remove Remove
    Model No.HOF06UD3040D DescriptionOxford 600mm Overbed Light 2 x 15w Direct / Indirect with DALI2 Dimmable Drivers Body ColourWhite CCT4000 Power30 CRI90 R9> 60 Add to Enquiry Add Remove Remove
    Model No.HOF06UD5040N DescriptionOxford 600mm Overbed Light 2 x 25w Direct / Indirect with Non-Dimmable Drivers Body ColourWhite CCT4000 Power50 CRI90 R9> 60 Add to Enquiry Add Remove Remove
    Model No.HOF10UD5040N DescriptionOxford 100mm Overbed Light 2 x 25w Direct / Indirect with Non-Dimmable Drivers Body ColourWhite CCT4000 Power50 CRI90 R9> 60 Add to Enquiry Add Remove Remove
    Model No.HOF10UD5040D DescriptionOxford 1000mm Overbed Light 2 x 25w Direct / Indirect with DALI2 Dimmable Drivers Body ColourWhite CCT4000 Power50 CRI90 R9> 60 Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
