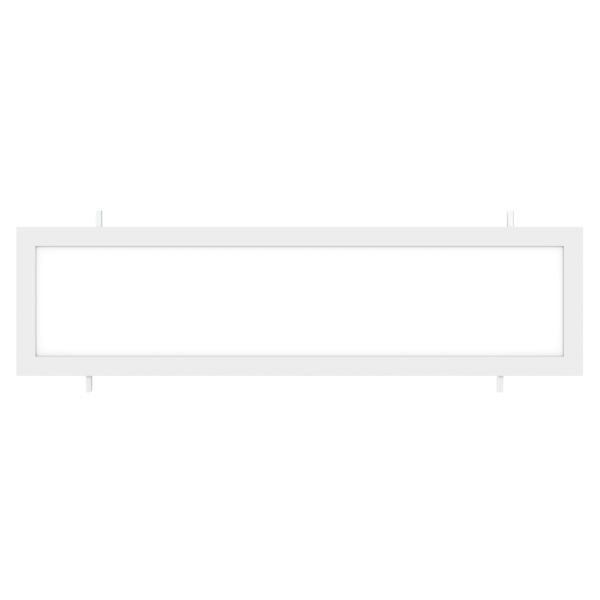

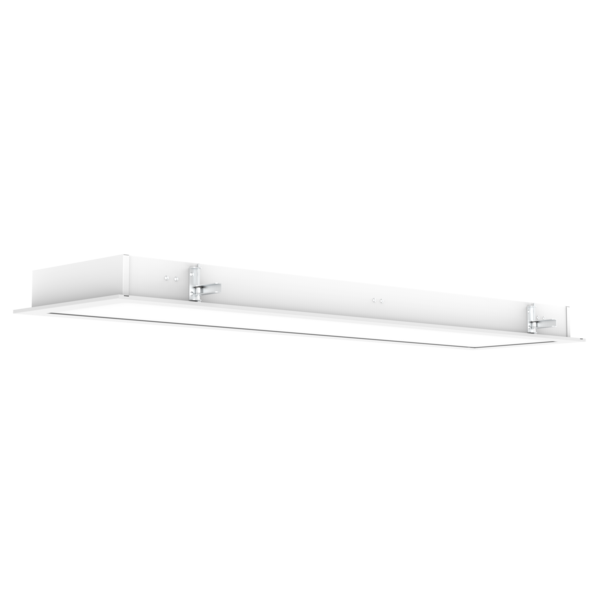

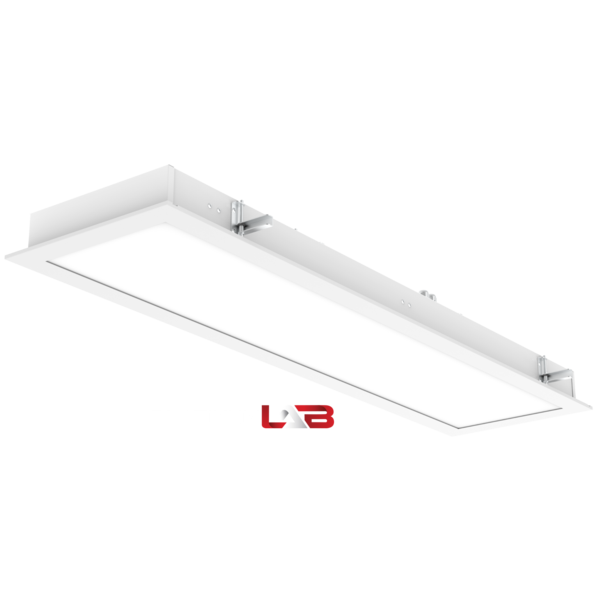

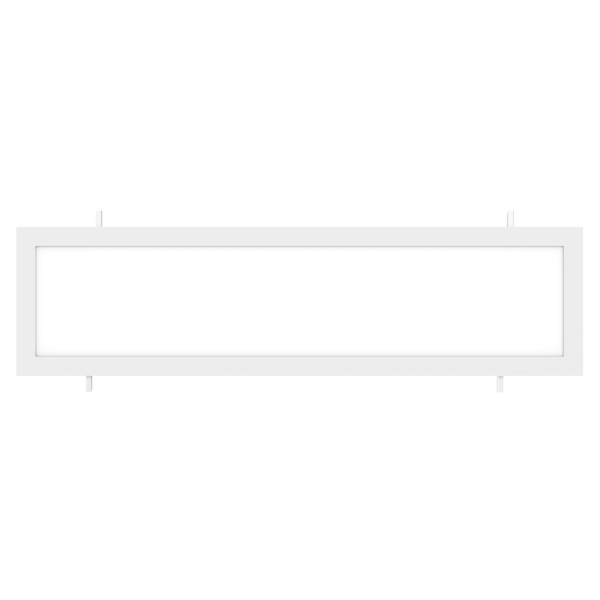

Platinum LAB IP65 Cleanroom Troffer

The Platinum LAB™ is a purpose made recessed commercial plaster troffer suited to medical and cleanroom environments. Constructed from high grade steel and finished off with a low glare LED optimised diffuser and integrated clamp brackets, the Platinum LAB™ is packed full of design features.

​​​​​

Application

Developed as a lighting solution to meet the requirements of specialist applications in medical and hygienic environments. Platinum LAB™ is rated at IP65 from all angles and COI complaint as standard.

Suited to applications:

♦ Operating theatres

♦ Cleanroom environments

♦ Healthcare applications

♦ Laboratories

Design Specifications

  • Sealed IP65 construction with screwless trim

  • CRI 90, SDCM <3 4000K as standard

  • 105lm/w efficacy

  • Low glare LED optimised diffuser

  • Available Options

    • 3000K, 3500K, Tunable white

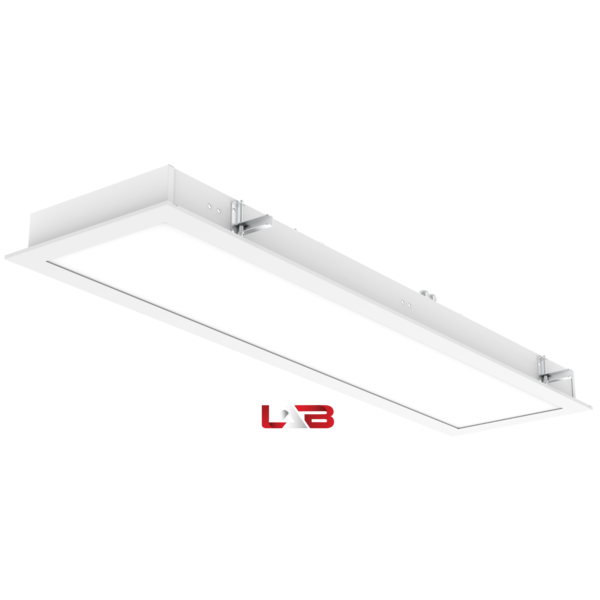

    • DALI dimmable driver
    • Tuneable white w/DALI type 8 driver
    • Anti-microbial powder coat


  • 1200 x 300mm, 600 x 600mm and 600 x 300mm sizes
  • LED lifetime L70 >72,000 hours
  • Internal Tridonic driver
  • 100lm/w efficiency
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT
  • 3000KCCT
  • 3500KCCT
  • 4000KCCT

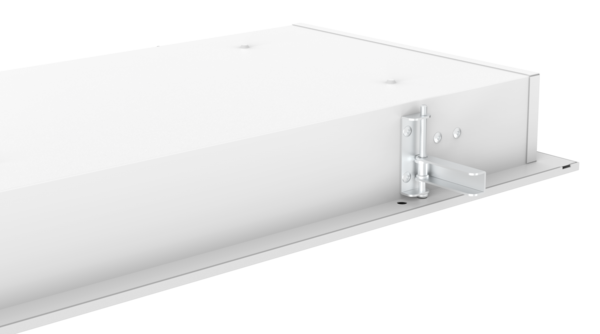

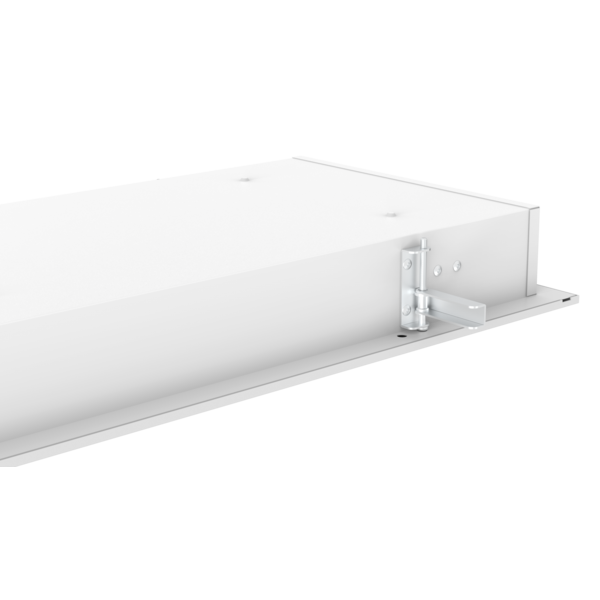

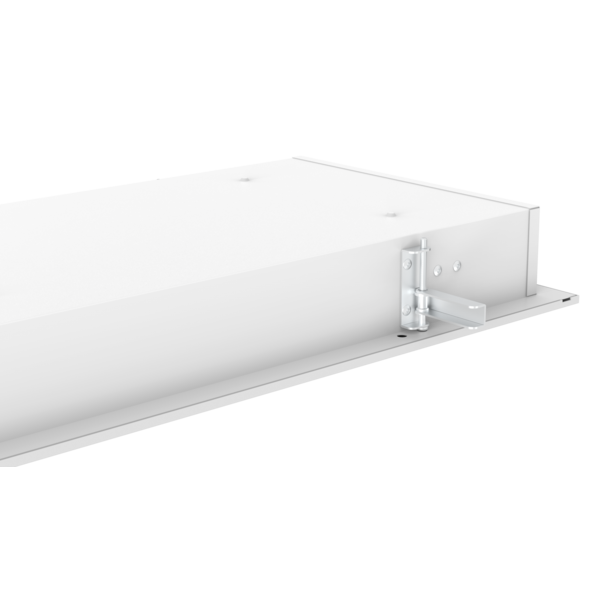

Designed to suit plaster recessed installations, the easy to use flip-out clamp brackets ensure mounting is simple and efficient.

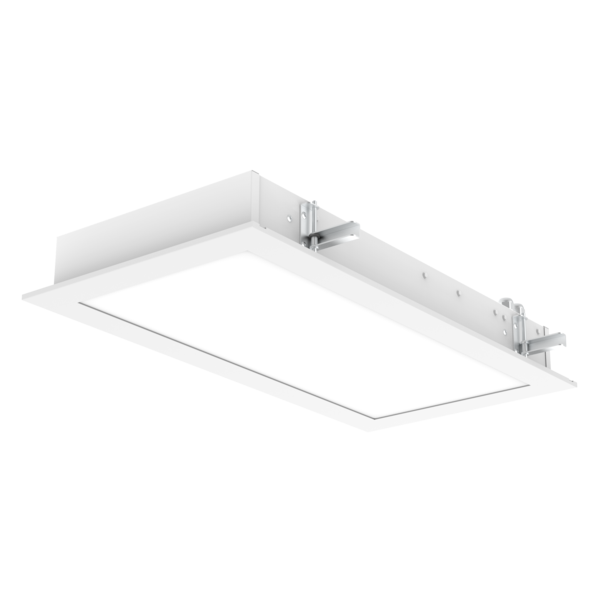

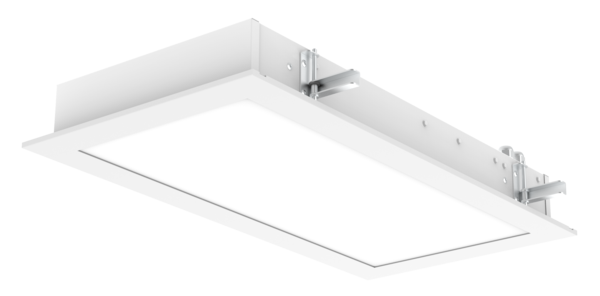

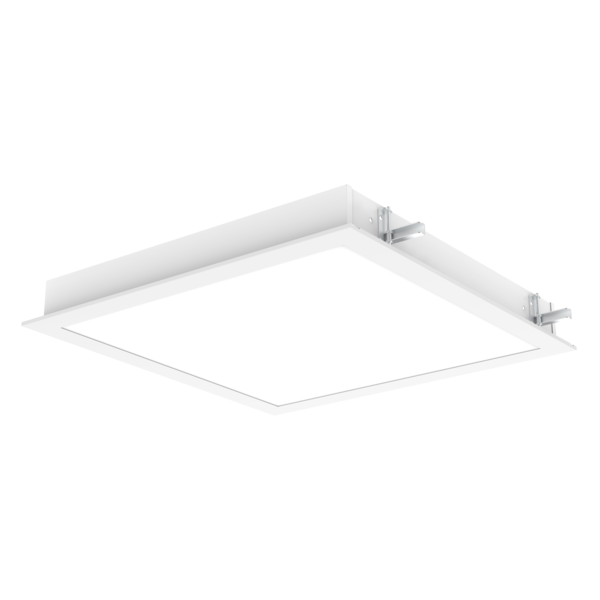

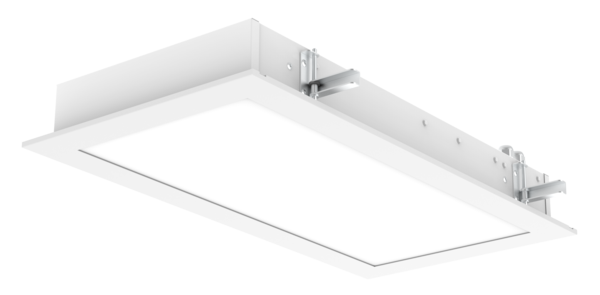

Platinum LAB™ is available in 1200 x 300, 600 x 600mm and 600 x 300mm

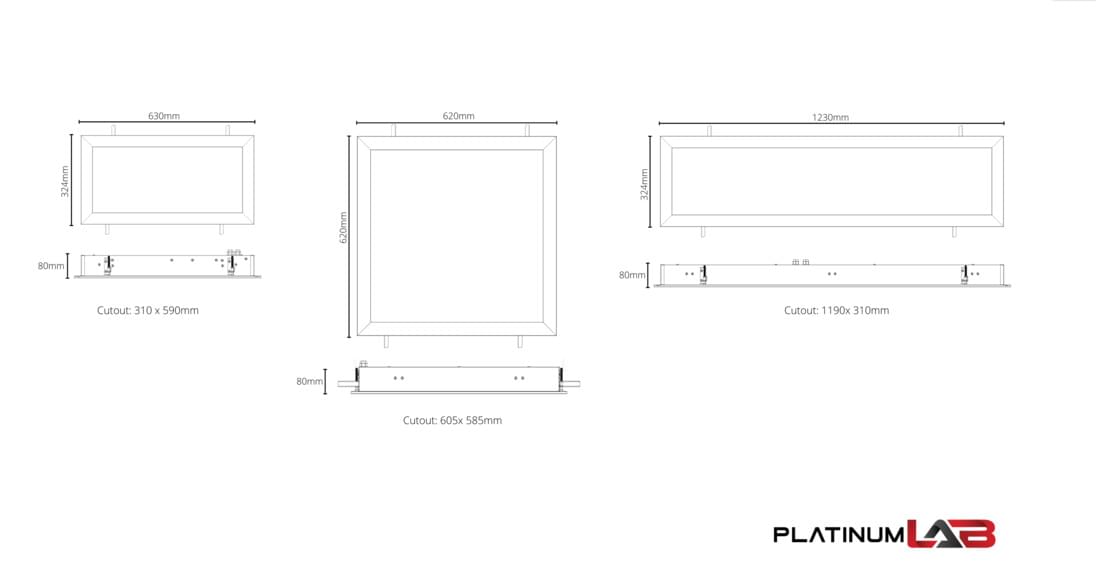

  • Dimensions - Wiring Diagrams
  • Design Options

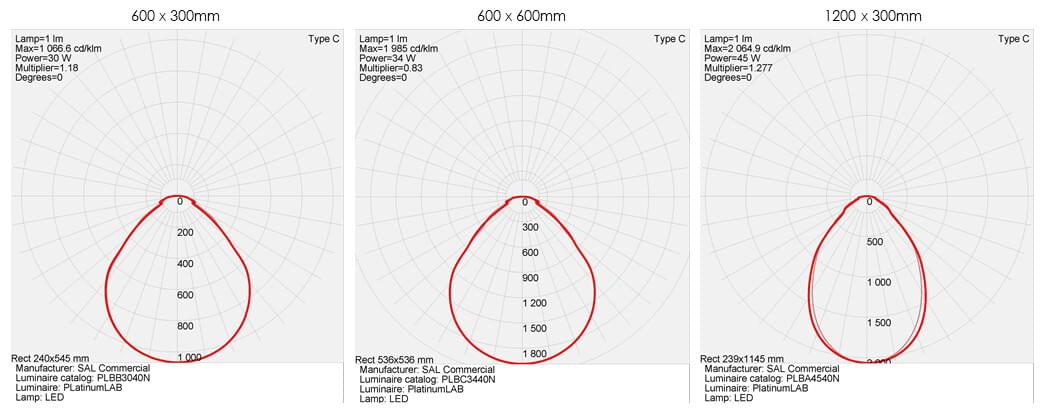

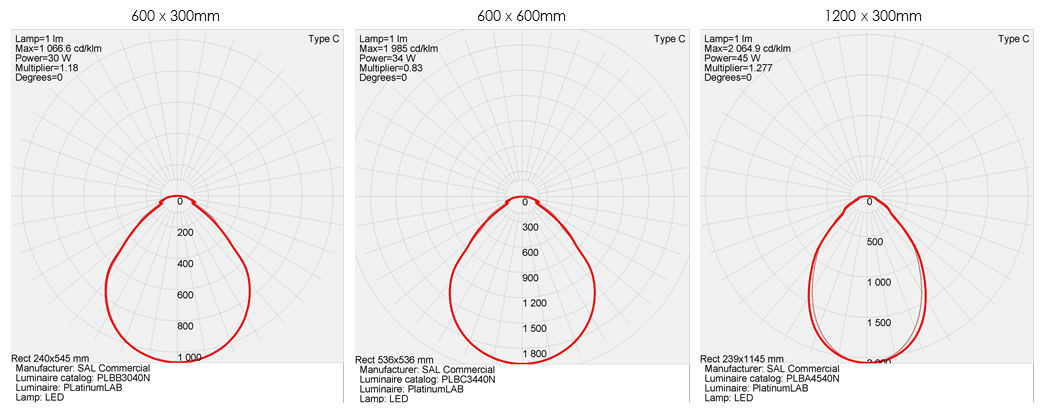

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description CCT Power CRI Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.PLBB3040N DescriptionPlatinum LAB cleanroom, plaster recessed LED diffused troffer, 600x300mm CCT4000 Power30 CRI90 Add to Enquiry Add Remove Remove
    Model No.PLBB3040NAM DescriptionPlatinum LAB cleanroom, plaster recessed LED diffused troffer, anti-microbial powder coat, 600x300mm CCT4000 Power30 CRI90 Add to Enquiry Add Remove Remove
    Model No.PLBC3440N DescriptionPlatinum LAB cleanroom, plaster recessed LED diffused troffer, 600x600mm CCT4000 Power34 CRI90 Add to Enquiry Add Remove Remove
    Model No.PLBC3440NAM DescriptionPlatinum LAB cleanroom, plaster recessed LED diffused troffer, anti-microbial powder coat, 600x600mm CCT4000 Power34 CRI90 Add to Enquiry Add Remove Remove
    Model No.PLBA4540N DescriptionPlatinum LAB cleanroom, plaster recessed LED diffused troffer, 1200x300mm CCT4000 Power45 CRI90 Add to Enquiry Add Remove Remove
    Model No.PLBA4540NAM DescriptionPlatinum LAB cleanroom, plaster recessed LED diffused troffer, anti-microbial powder coat, 1200x300mm CCT4000 Power45 CRI90 Add to Enquiry Add Remove Remove

    Code methodology: (example PLBA=1200x300mm) A=1200x300mm   B=600x300mm   C=600x600mm   D=1500x300mm   E=1200x600mm



Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
