• Commercial LED Architectural

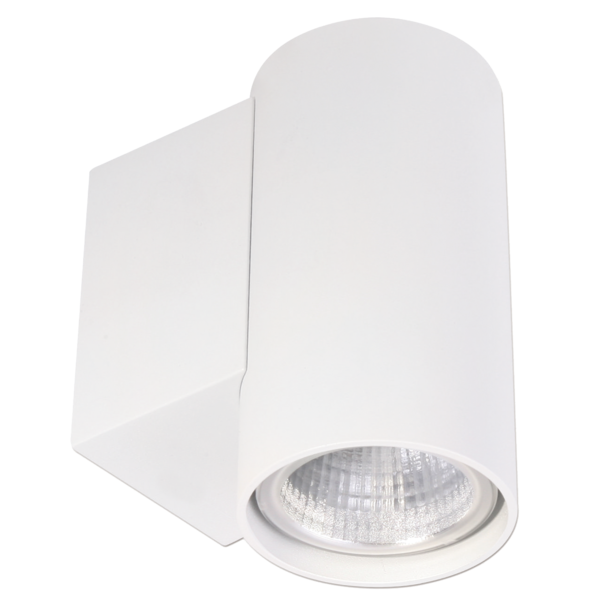

Valencia S - Down

Architectural Wall light

Introducing the Valencia interior LED wall light family. Incorporating multiple sizes, single and double models and beam optics ranging from narrow to wide, there is a model in the Valencia LED wall light range to suit your project

Application

The Valencia downward beam model is rated at 9w and is available in a range of beam options from narrow to wide. Suited to applications:

♦ Commercial office fit-outs

♦ Building foyers

♦ Retail applications

♦ Break-out spaces

♦ Museums

Design Specifications

  • High output COB LED chip, L70 - 50,000 hours

  • Integral constant current non-dimmable driver

  • Set back internal reflector with 36° beam optic as standard

  • Aluminium body designed for efficient heat dissipation



  • Available Options

    • DALI dimmable driver
    • 15°, 24° and 50° beam optics
    • Black, silver finish

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens Colour Temp. Beam Angle Dim Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SVLSD0930N DescriptionValencia down only wall light, non dimmable Power9 Lumens1000 Colour Temp.3000 Beam Angle36 Dim115(H) Diameter60 Add to Enquiry Add Remove Remove
    Model No.SVLSD0940N DescriptionValencia down only wall light, non dimmable Power9 Lumens1000 Colour Temp.4000 Beam Angle36 Dim115(H) Diameter60 Add to Enquiry Add Remove Remove

    Code Methodology: SVLSD = Size  |  09 = Wattage  |  30 = CCT  |  N = Dimming Type
    Variants Available:

    Range Prefix - SVLSD
    Wattage - 09
    CCT - 30 = 3000K / 40 = 4000k
    Dimming type - N = Non Dim / D = DALI
    Beam Angle (36° nominated as standard) - 15D = 15 Degree / 24D = 24 degree / 50D = 50 degree

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
