Glenelg

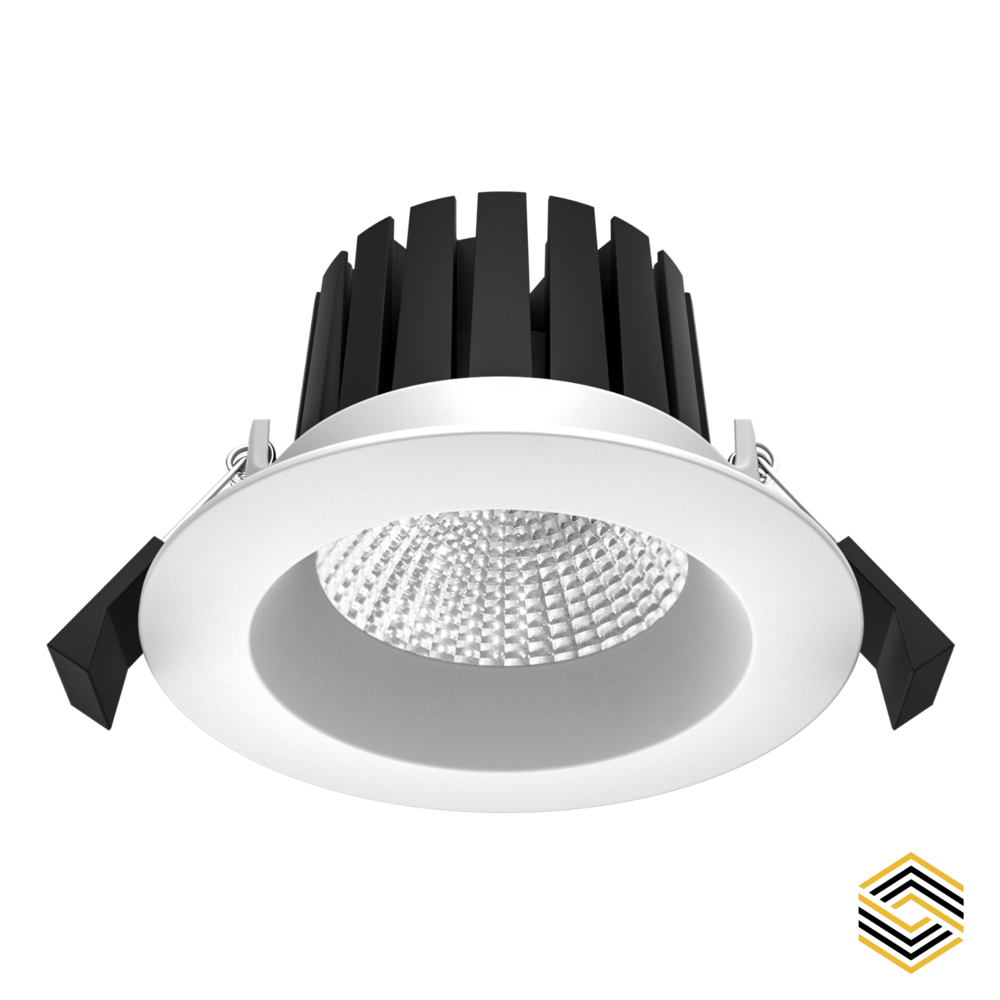

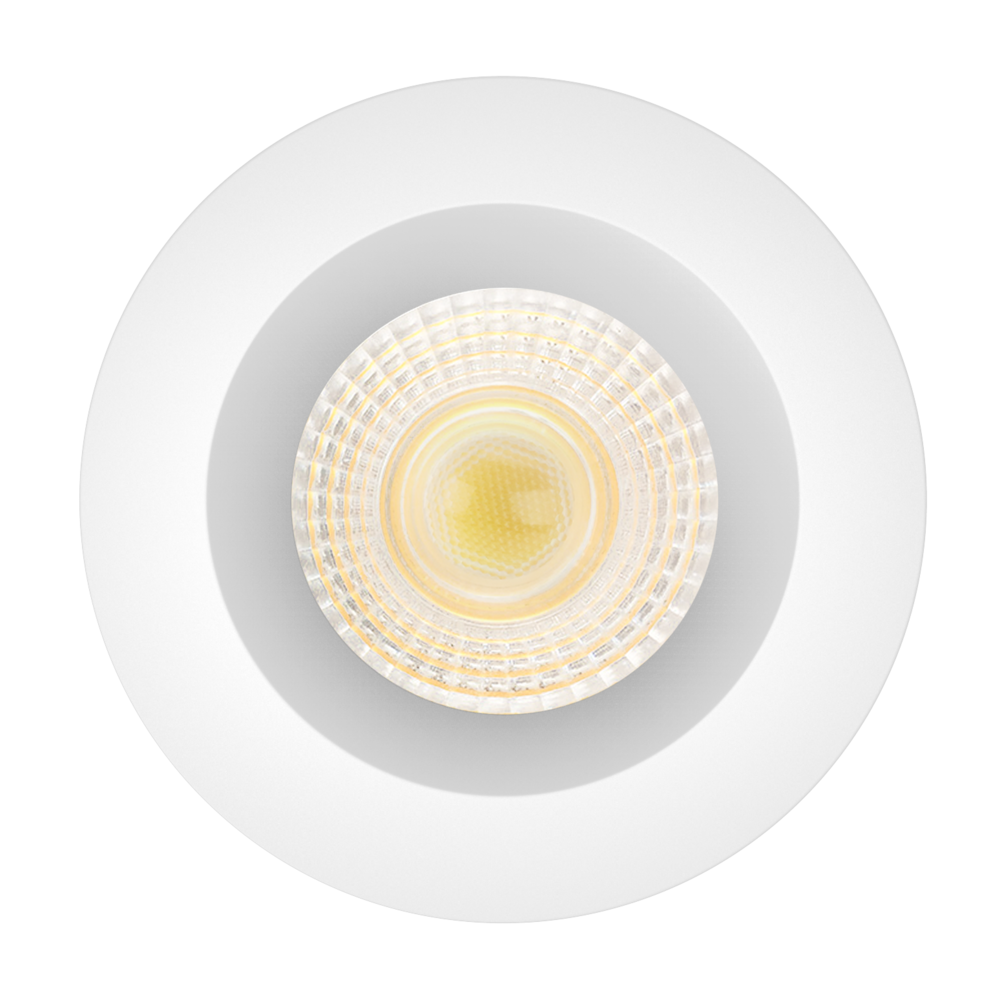

Commercial IP65 LED Downlight

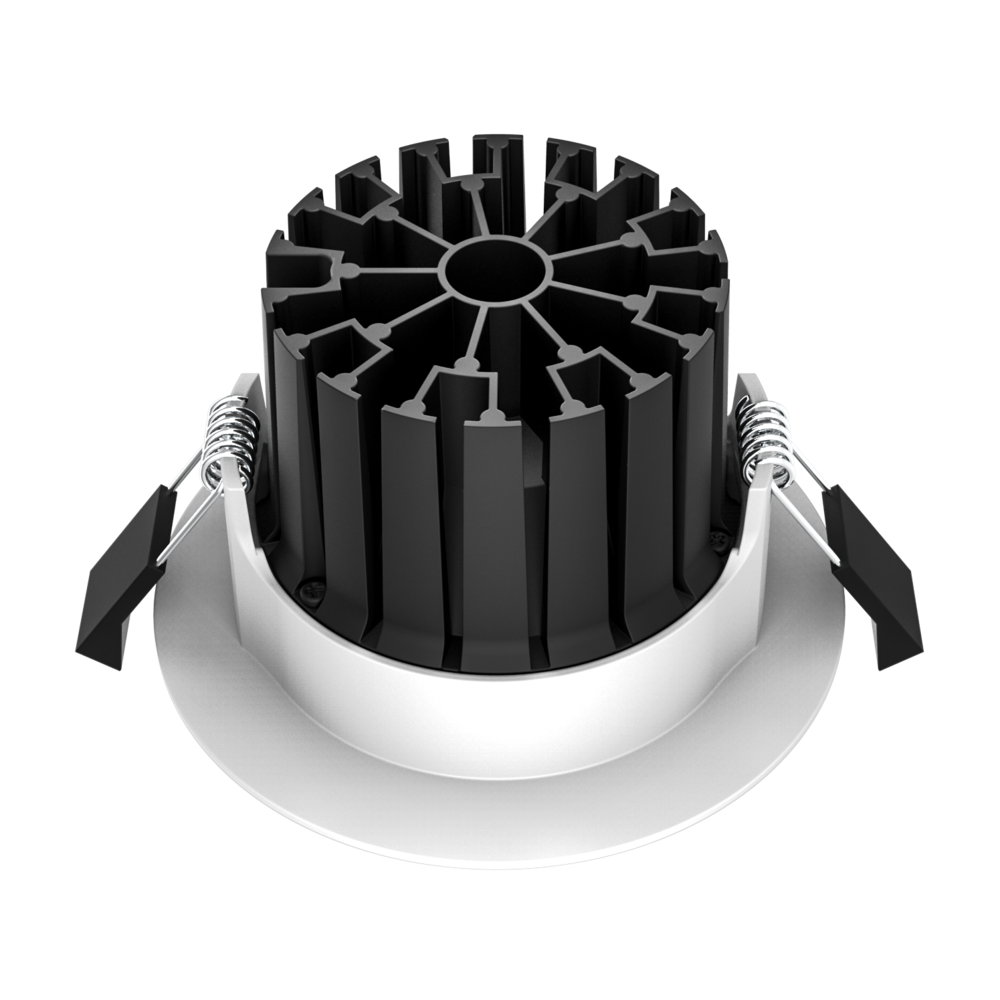

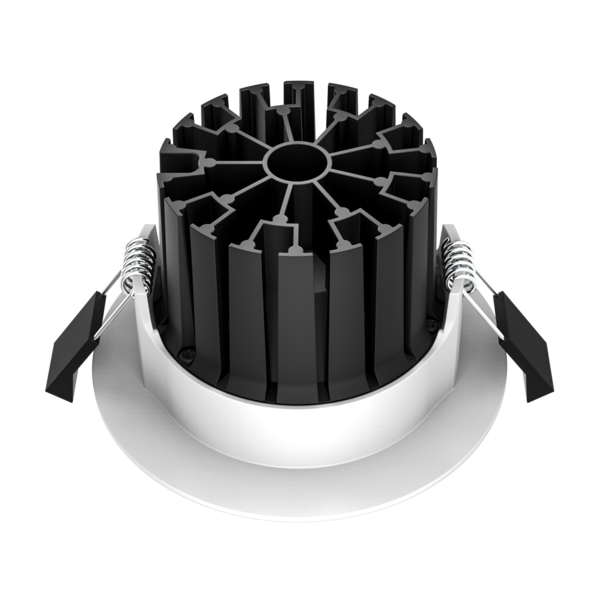

The IP65 LED recessed downlight adopts super slim and compact design, suitable for narrow ceiling installations. The IP65 rating front cover design ensures suitability for damp environments. T-shaped heat sinks greatly increases the radiation area and improves cooling efficiency. Available in three sizes and a range of lumen packages.

Application

Offering IP65 ingress protection and a traditional diamond plated reflector design ensuring the highest efficacy possible whilst maintaining a uniform light output. Suited to general commercial and retail applications for bathrooms and wet areas.

Design Specifications

  • UGR 19 Compliant

  • 60º optic

  • SDCM 3, CRI 90

  • L90B10 > 50,000 hours

  • Phase dimmable driver as standard

  • Available Options

    • 2700K, 3000K
    • Optics: 36°

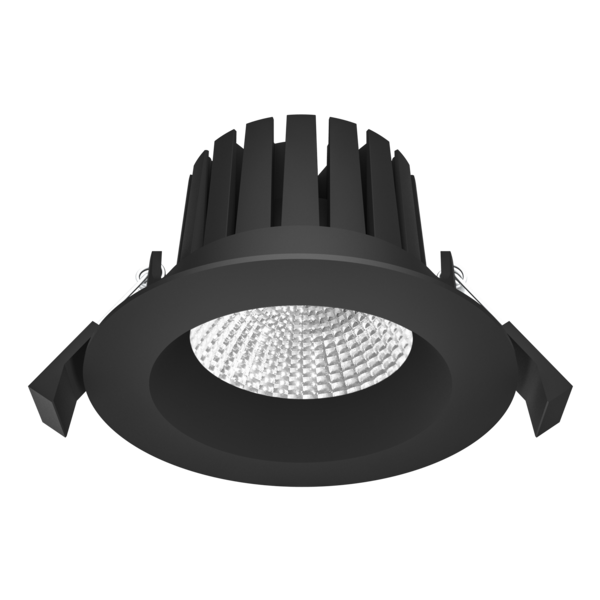

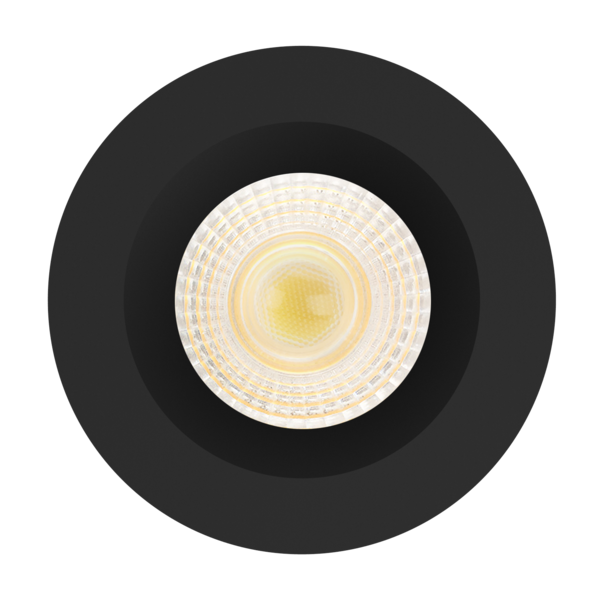

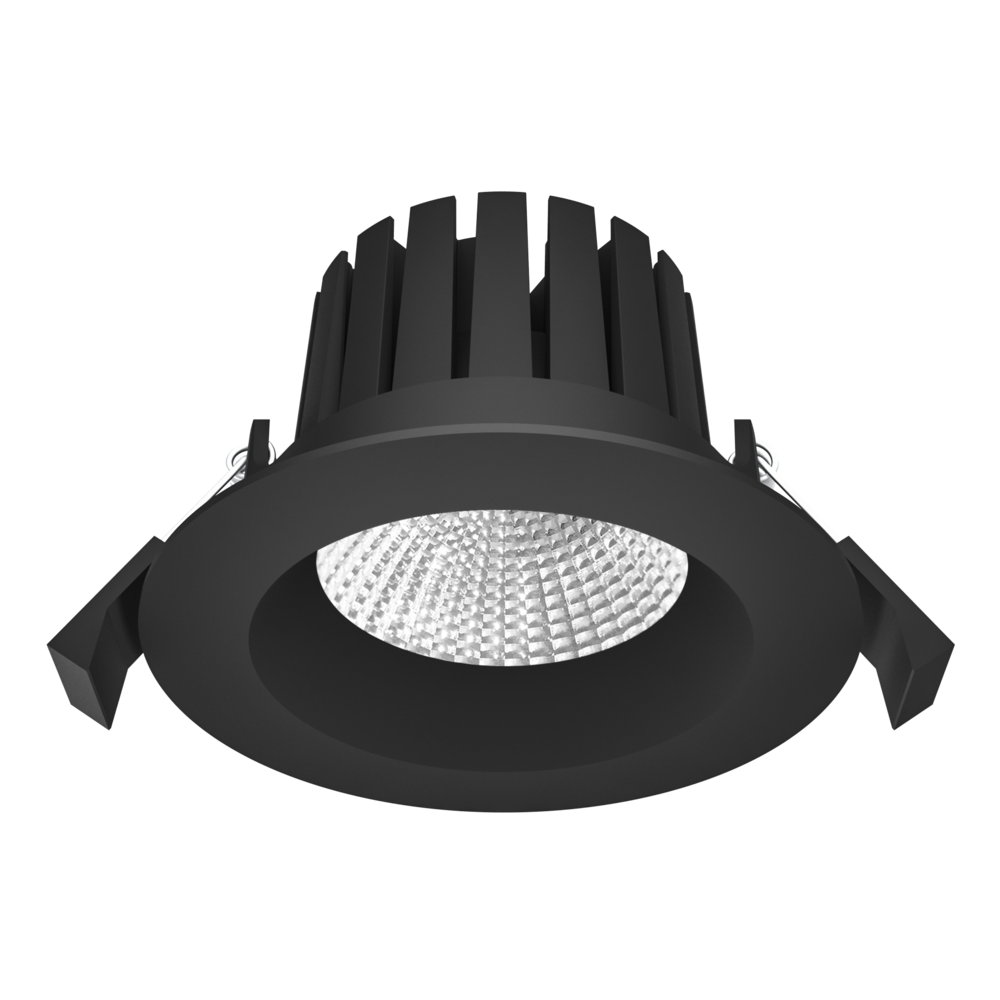

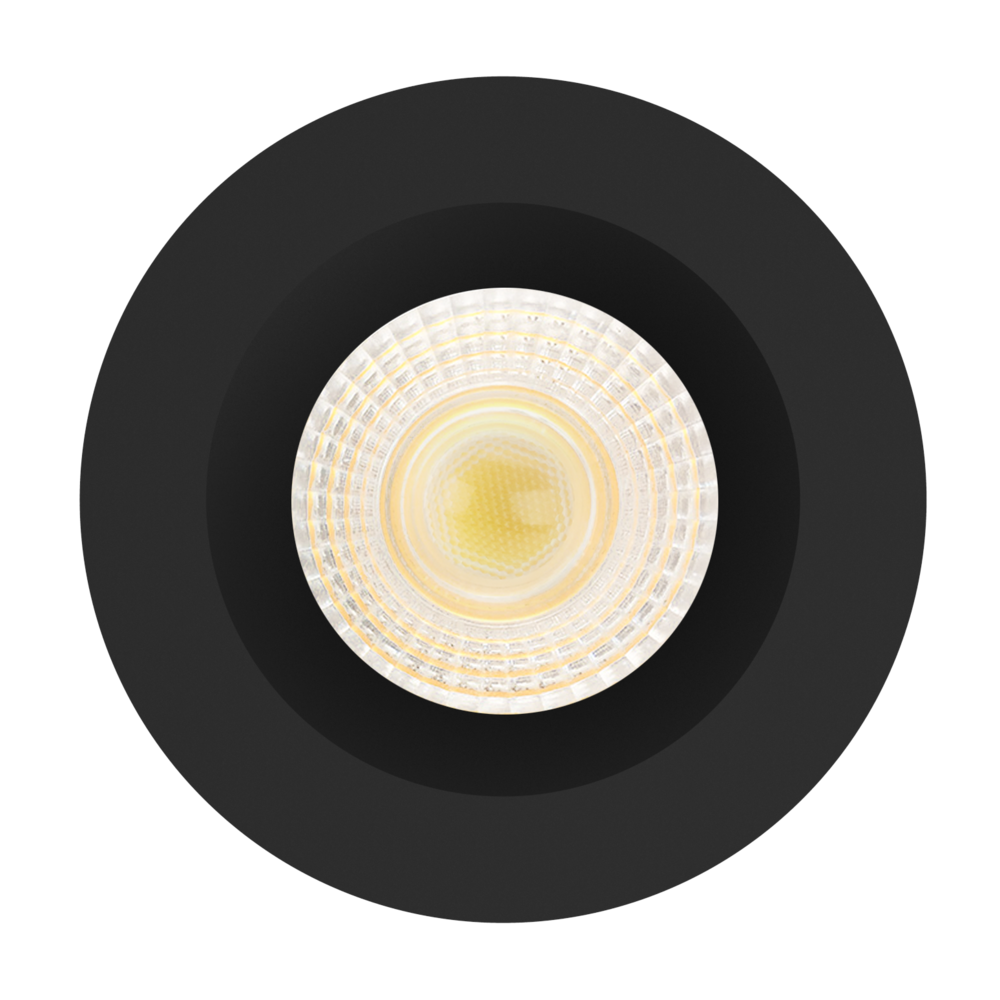

    • Black trim
    • DALI dimmable driver (Note not available for 5w Model)

Glenelg
Glenelg
Glenelg
Glenelg
Glenelg
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT

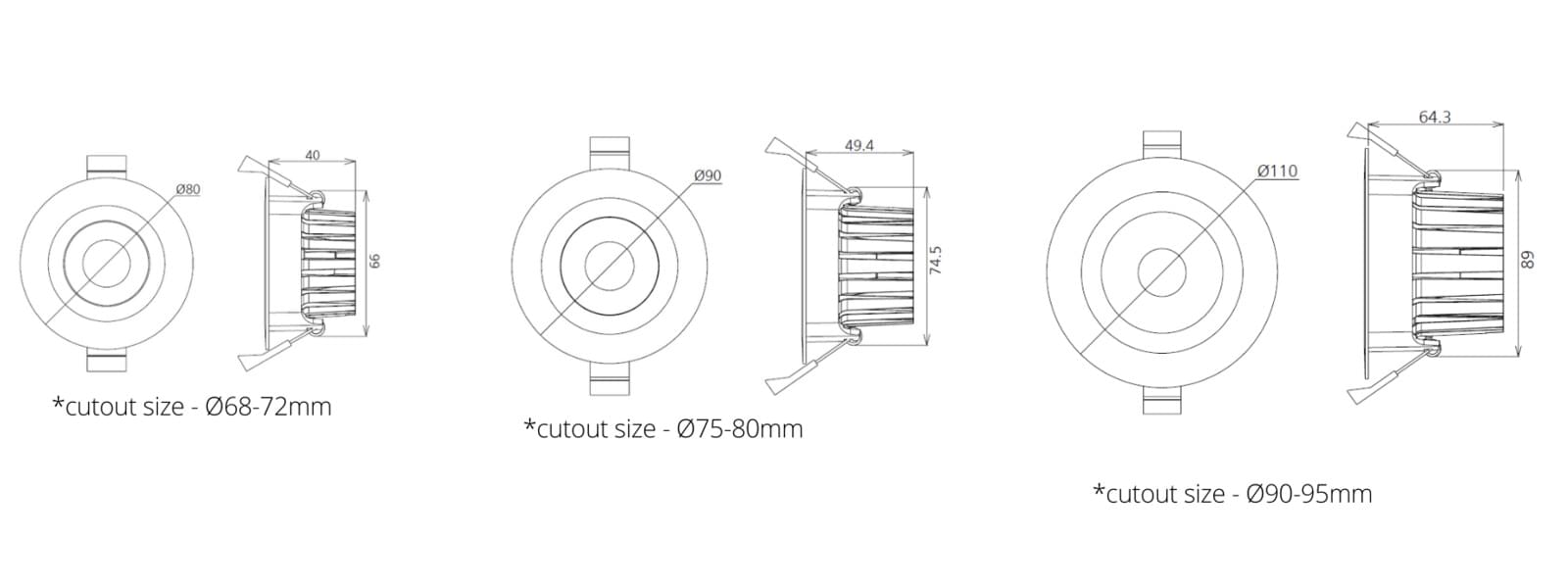

    • Dimensions - Wiring Diagrams
    • Design Options

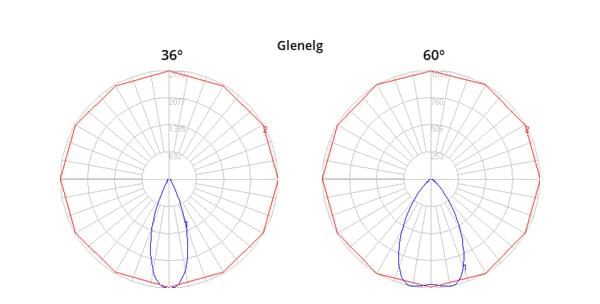

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT Beam Angle CRI Diameter Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XGL080540P Description IP65 recessed downlight, 5W, 4000K, 60°, white trim, Phase Dimmable Power 5 Lumens 370 CCT 4000 Beam Angle 60 CRI 90 Diameter 80 Add to Enquiry Add Remove Remove
      Model No. XGL080840P Description IP65 recessed downlight, 8W, 4000K, 60°, white trim, Phase Dimmable Power 8 Lumens 620 CCT 4000 Beam Angle 60 CRI 90 Diameter 80 Add to Enquiry Add Remove Remove
      Model No. XGL091040P Description IP65 recessed downlight, 10W, 4000K, 60°, white trim, Phase Dimmable Power 10 Lumens 750 CCT 4000 Beam Angle 60 CRI 90 Diameter 90 Add to Enquiry Add Remove Remove
      Model No. XGL111040P Description IP65 recessed downlight, 10W, 4000K, 60°, white trim, Phase dimmable Power 10 Lumens 750 CCT 4000 Beam Angle 60 CRI 90 Diameter 110 Add to Enquiry Add Remove Remove
      Model No. XGL111340P Description IP65 recessed downlight, 13W, 4000K, 60°, white trim, Phase Dimmable Power 13 Lumens 1010 CCT 4000 Beam Angle 60 CRI 90 Diameter 110 Add to Enquiry Add Remove Remove

      Code Methodology: XGL08 = Size  |  10 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour  |  36 = Beam angle
      Variants Available:
      Size (overall) - 08 (80mm) / 09 (90mm) / 11 (110mm)
      Wattage - 05 / 08 / 10 / 13
      CCT - 27 = 2700K / 30 = 3000K / 40 = 4000K
      Dimming type - N = Non Dim / D = DALI
      Trim Colour - WH = White (standard) / BK = Black
      Beam Angle (60° nominated as standard) - 36 = 36 degree

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
