Hamilton

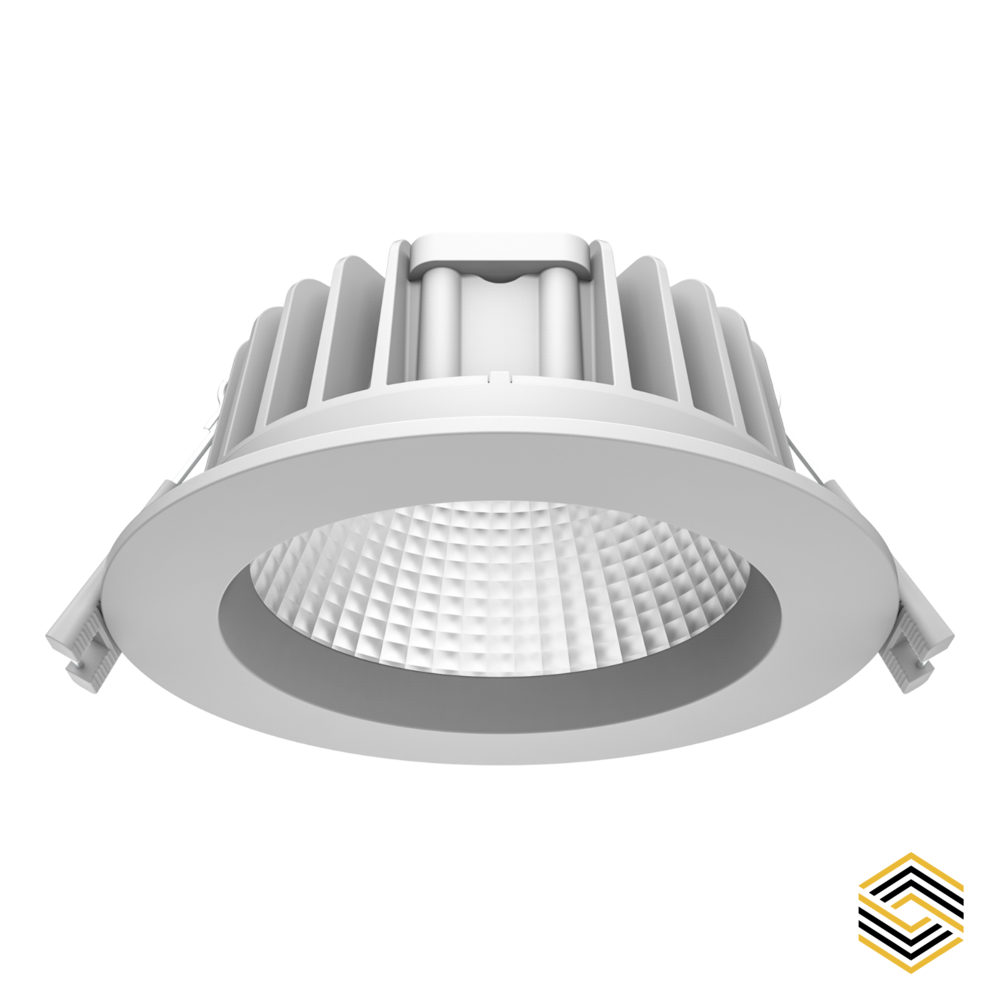

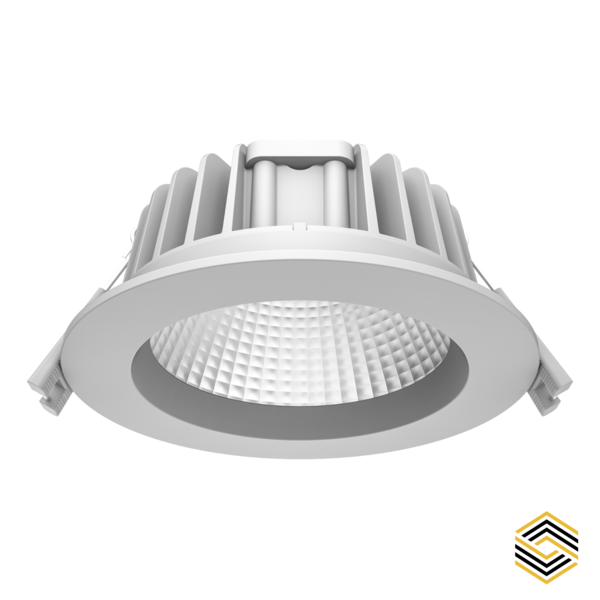

Commercial IP54 LED Downlight

The Hamilton recessed downlight offers high performance CRI 90 LED COB technology and IP54 ingress protection.

Application

Suited to areas where a larger diameter and high power, high efficiency downlight is required.

Design Specifications

  • Available in 3 sizes ranging from 110mm to 230mm with lumen packages ranging from 800 to 3300 lumens.

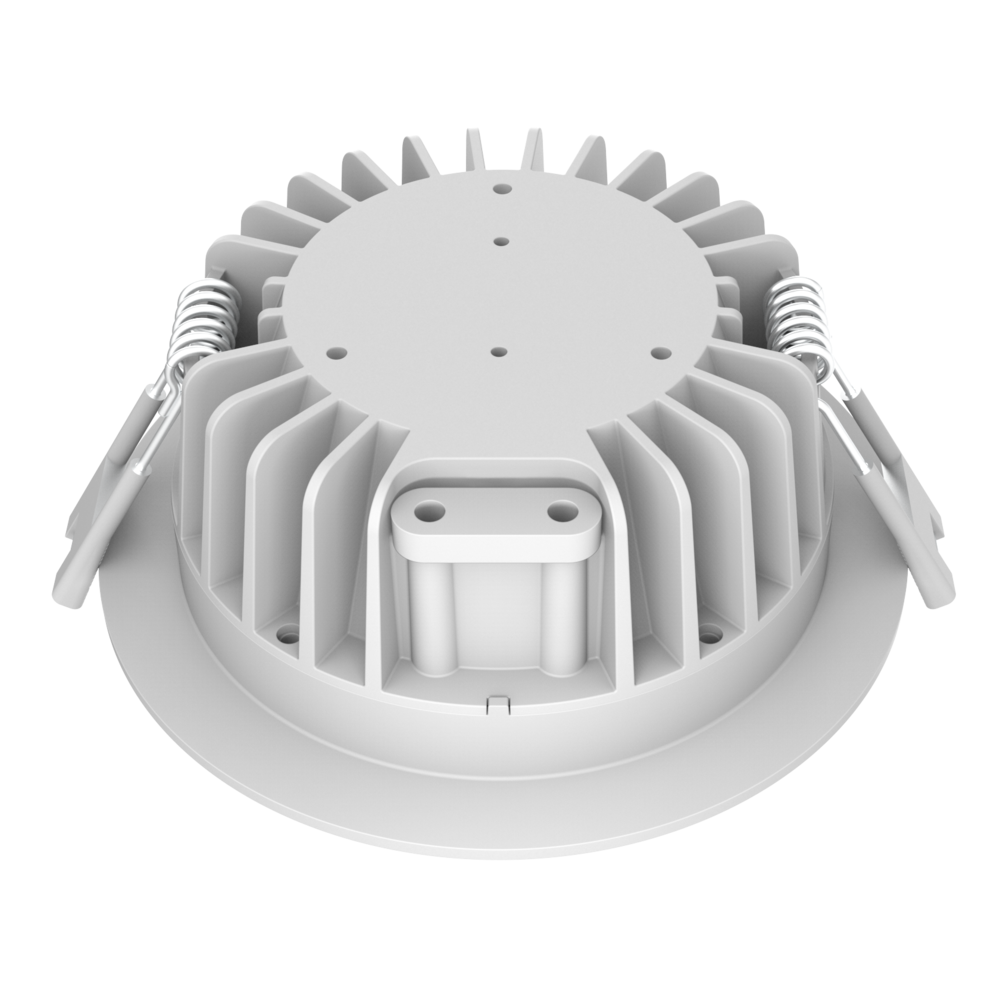

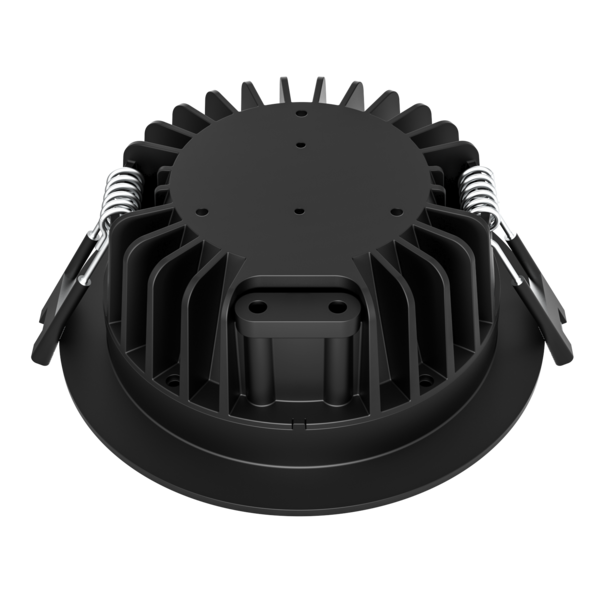

  • The Hamilton is constructed from die-cast aluminium and finished with a matte finish powder coat.

  • Offering smooth and seamless dimming in your choice of Phase dimmable or DALI dimmable options.

  • 2700k and 5000k models available upon requests - note MOQ's may apply


Hamilton
Hamilton
Hamilton
Hamilton
Hamilton
Hamilton
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT

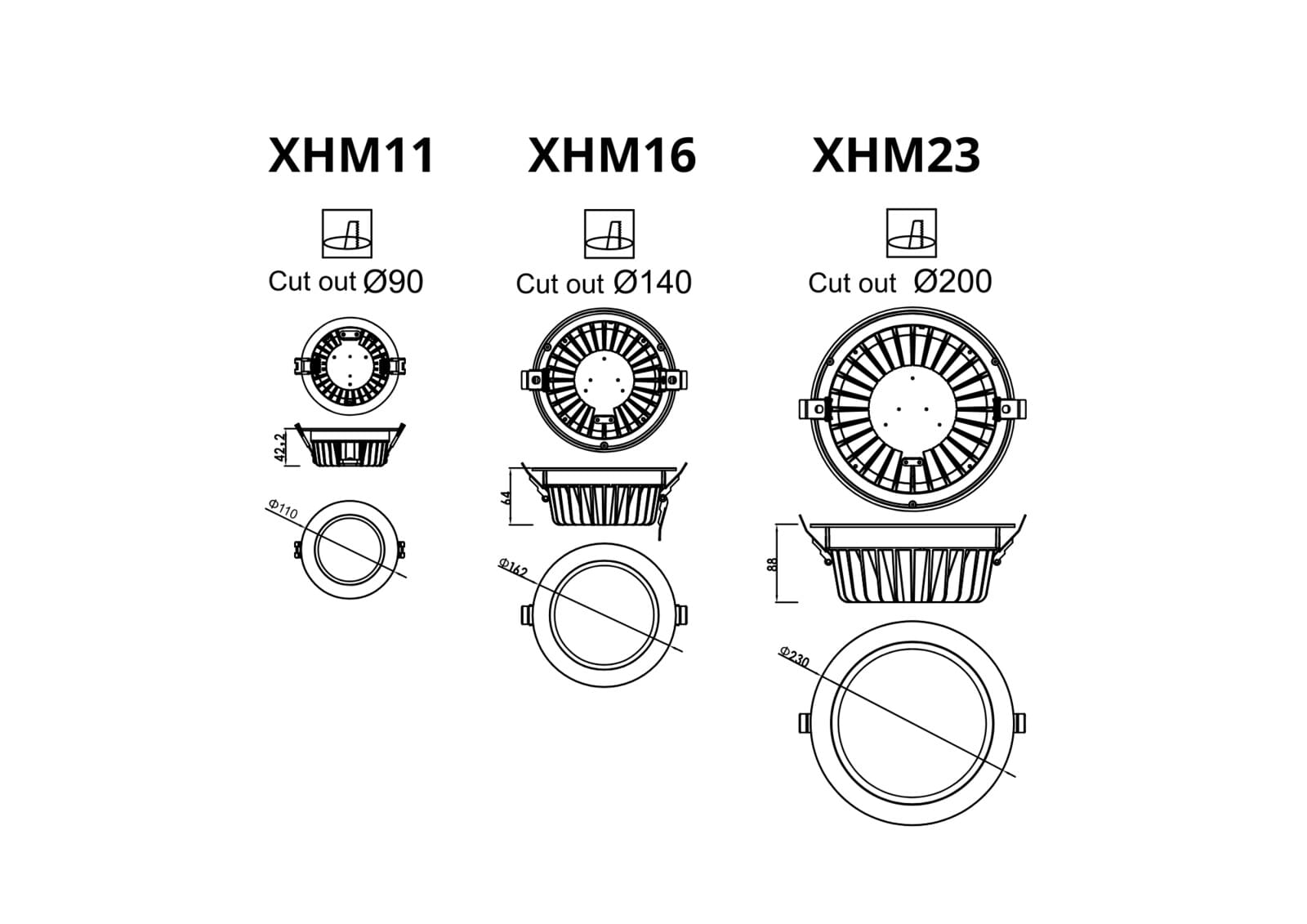

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT Beam Angle CRI Diameter Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. XHM110940N Description IP54 recessed downlight, 9W, 4000K, 60°, white trim, non-dimmable Power 9 Lumens 800 CCT 4000 Beam Angle 60 CRI 90 Diameter 110 Add to Enquiry Add Remove Remove
      Model No. XHM111240N Description IP54 recessed downlight, 12W, 4000K, 60°, white trim, non-dimmable Power 12 Lumens 1000 CCT 4000 Beam Angle 60 CRI 90 Diameter 110 Add to Enquiry Add Remove Remove
      Model No. XHM162040N Description IP54 recessed downlight, 20W, 4000K, 60°, white trim, non-dimmable Power 20 Lumens 2000 CCT 4000 Beam Angle 60 CRI 90 Diameter 162 Add to Enquiry Add Remove Remove
      Model No. XHM162540N Description IP54 recessed downlight, 25W, 4000K, 60°, white trim, non-dimmable Power 25 Lumens 2700 CCT 4000 Beam Angle 60 CRI 90 Diameter 162 Add to Enquiry Add Remove Remove
      Model No. XHM233040N Description IP54 recessed downlight, 30W, 4000K, 60°, white trim, non-dimmable Power 30 Lumens 3300 CCT 4000 Beam Angle 60 CRI 90 Diameter 230 Add to Enquiry Add Remove Remove

      Code Methodology: XHM11 = Size  |  09 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Trim colour (if applicable)
      Variants Available:
      Size (overall) - 11 (110mm) / 16 (162mm) / 23 (230mm)
      Wattage - 09 / 12 / 20 / 25 / 30
      CCT - 40 = 4000K / 30 = 3000K / 50 = 5000K / 27 = 2700k
      Dimming type - N = Non Dim / D = DALI / P = Phase Dim

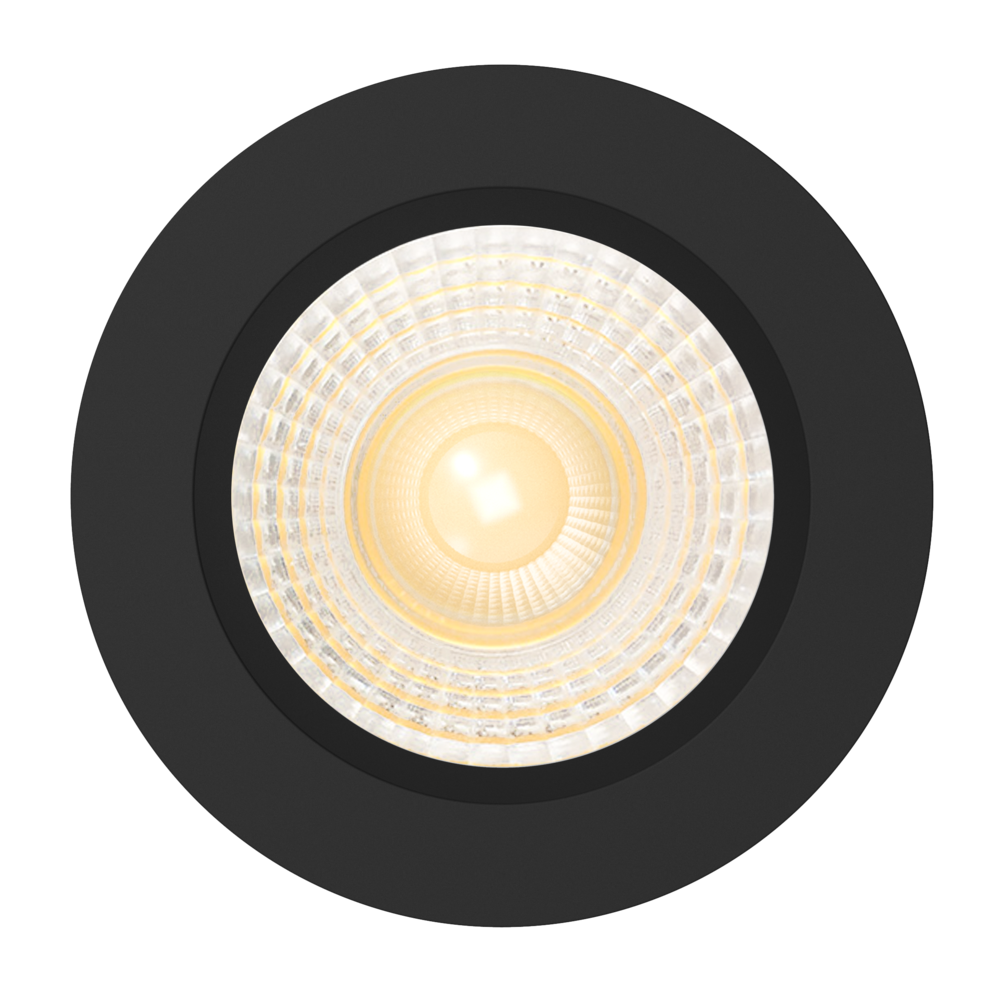

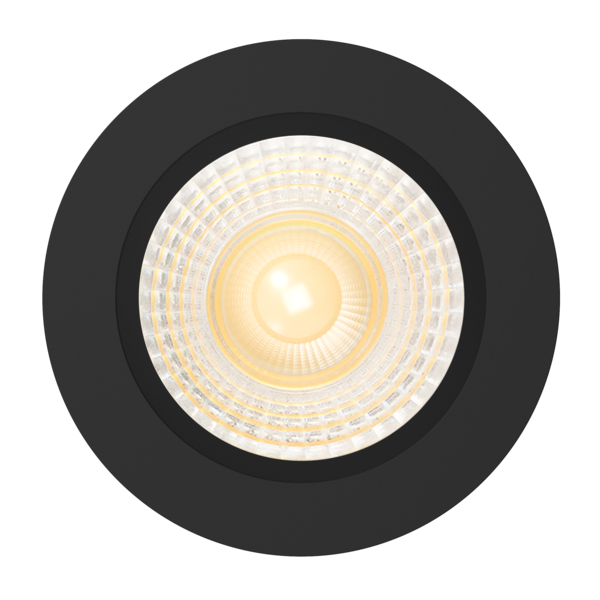

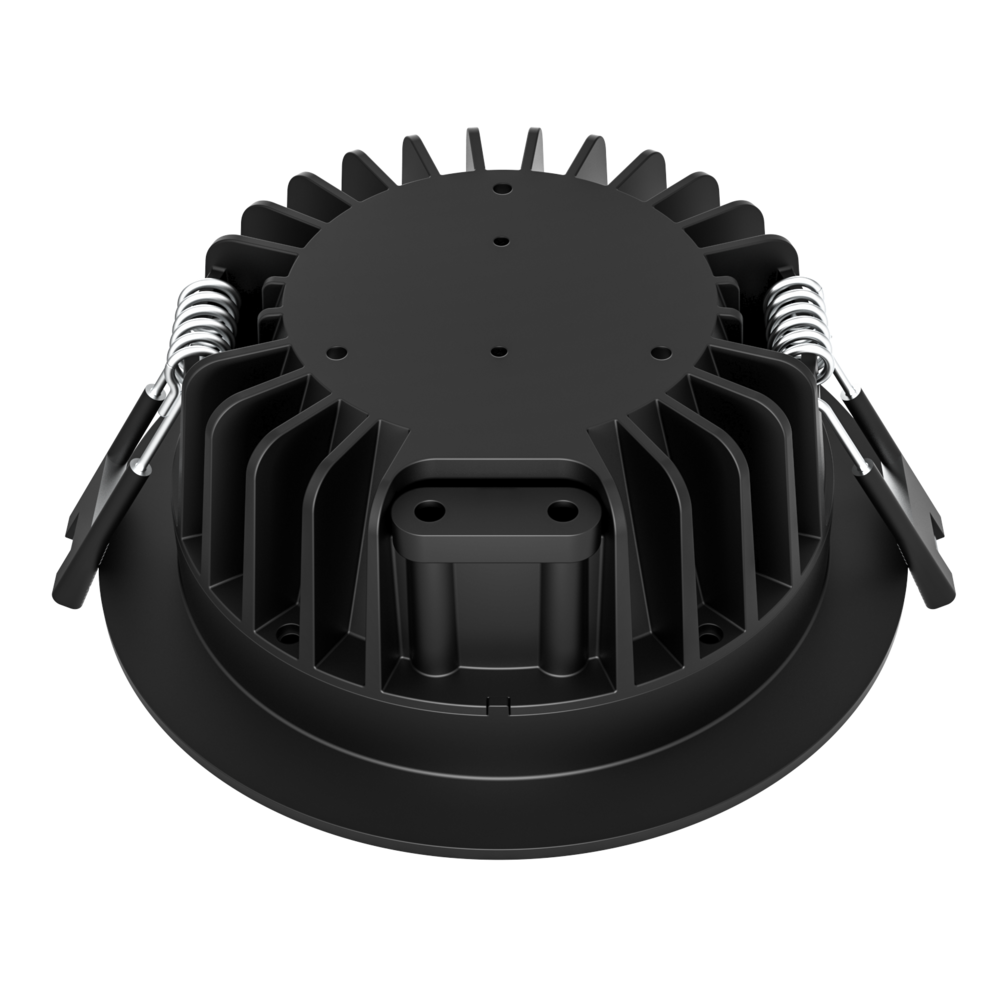

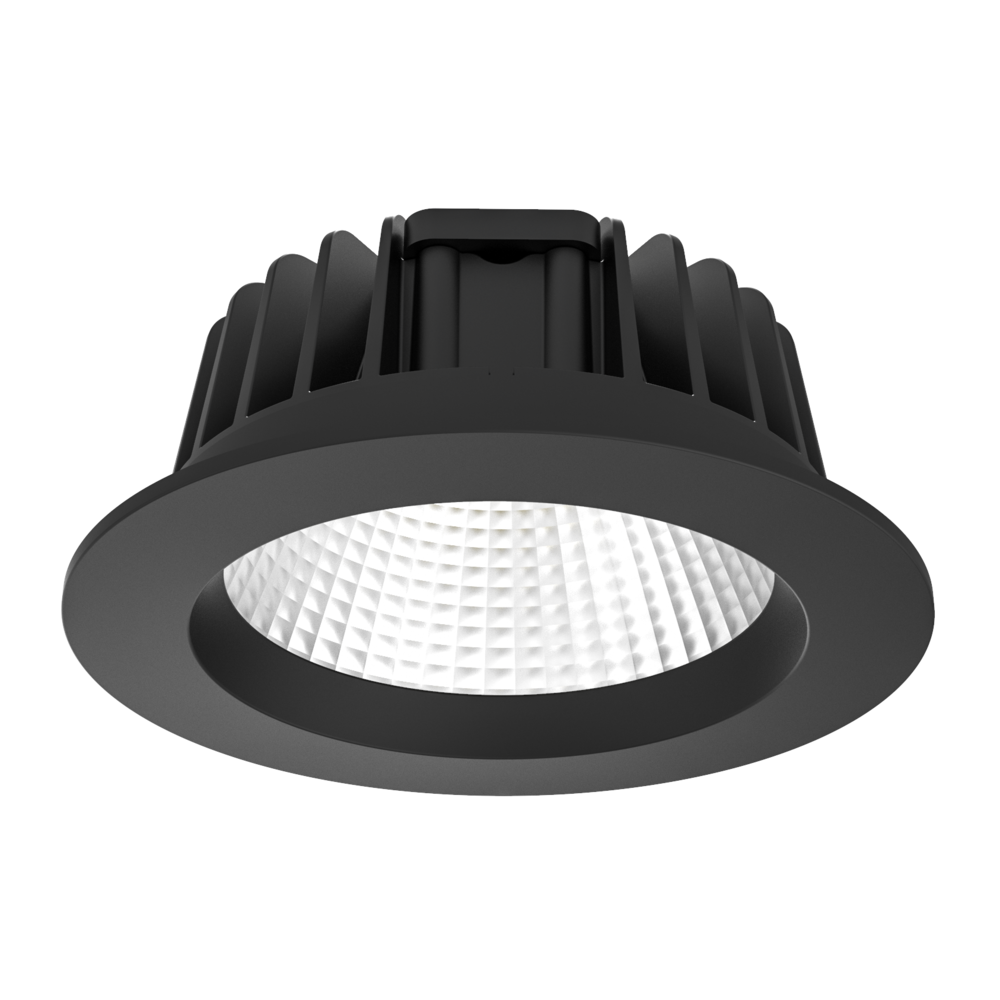

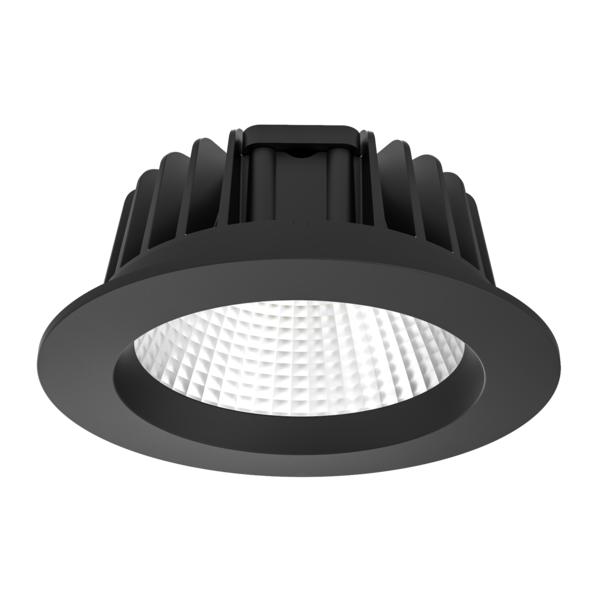

      Trim Colour - White (standard) / BK = Black


    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
