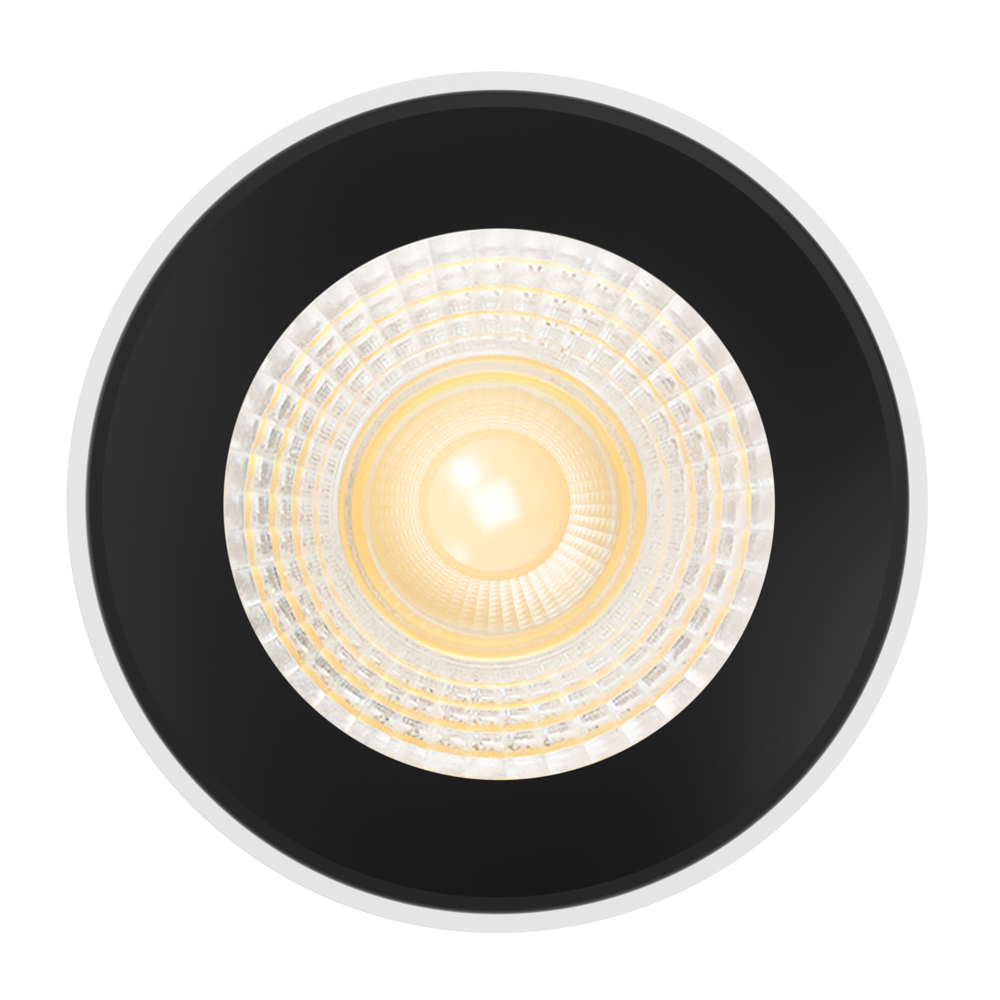

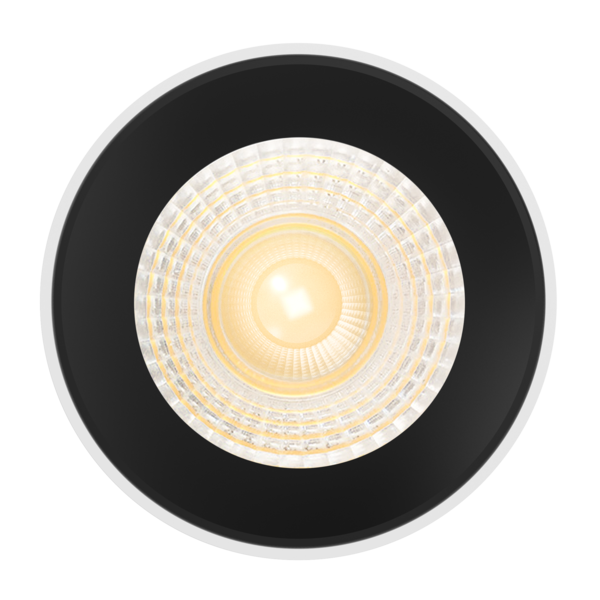

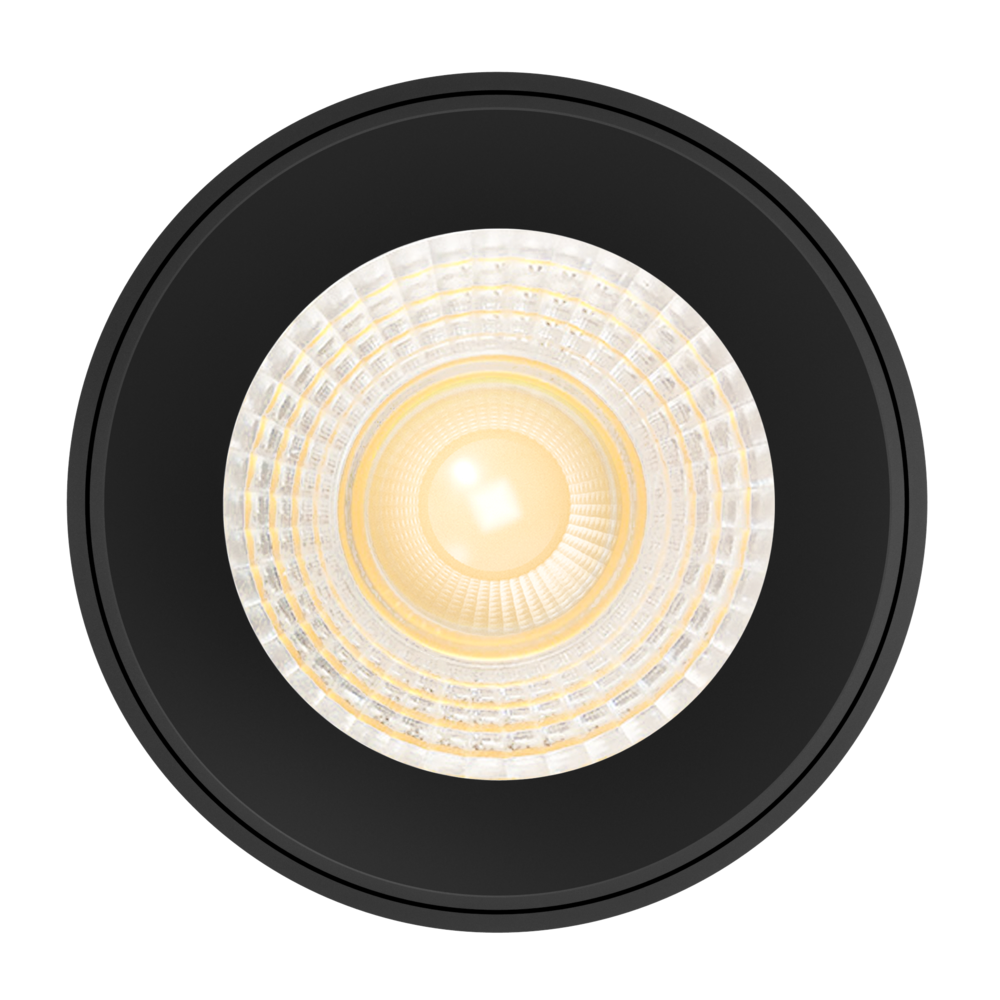

Newstead IP54 Surface Mount Downlight

The Audax range is a collection of exterior downlights featuring four distinct products.

The luminaires in the Audax range are suited to both interior and exterior use in dry and wet areas.

  • Recessed small, slim downlight
  • Recessed medium to large downlight
  • Surface mount small, slim downlight
  • Surface mount large downlight

Application

The Audax collection of fixtures suits a large range of applications:

  • Commercial applications
  • Feature lighting
  • Exterior lighting and awnings
  • Porte cochere
  • Corridors
  • Amenities

Design Specifications

  • 70mm diameter, IP54 surface mounted downlight

  • 10w, 1000lm, 4000K, CRI 80

    60º optic nominated as standard model

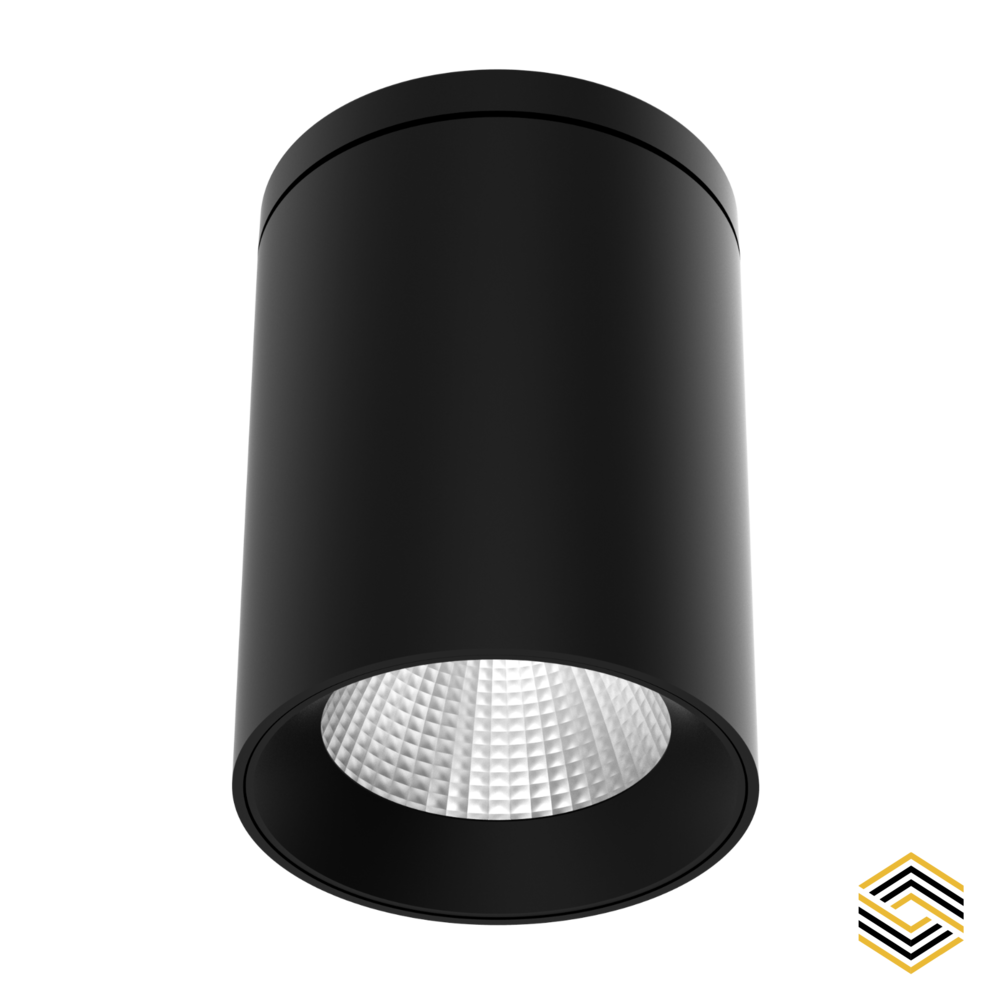

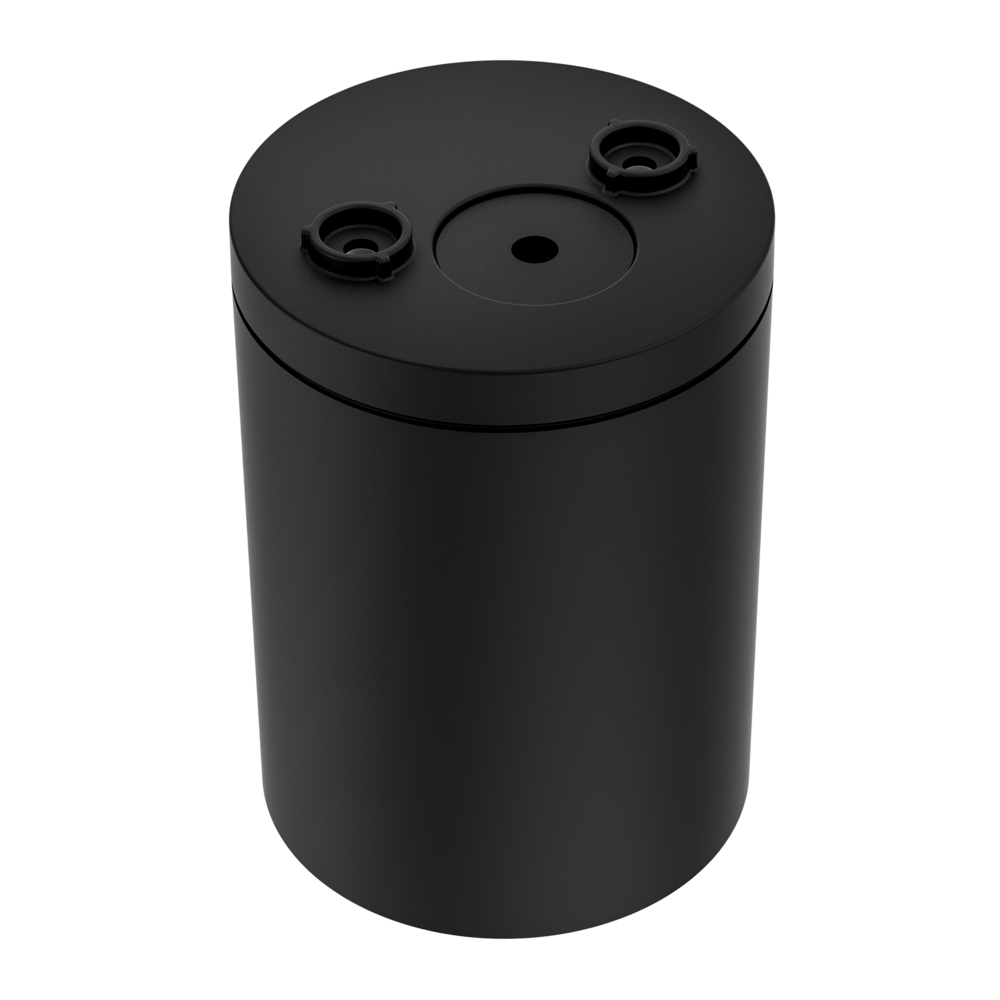

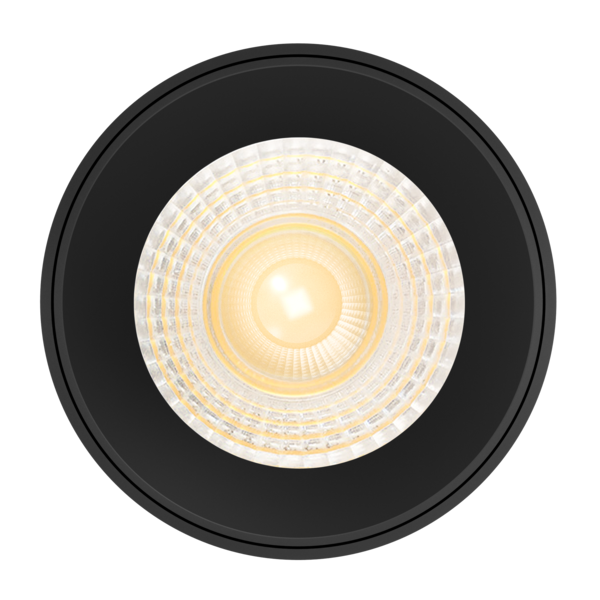

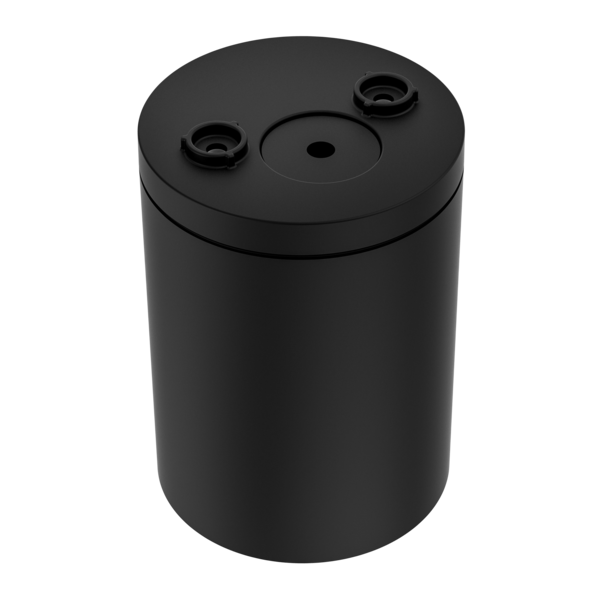

  • Black finish RAL 9005

  • Lifetime - 50,000 hours

  • Integral non-dimmable driver

  • Available Options

    • CRI 90
    • Optics: 15° / 24° / 36° / 60° *standard
    • Phase cut integral driver
    • Remote DALI dimmable driver

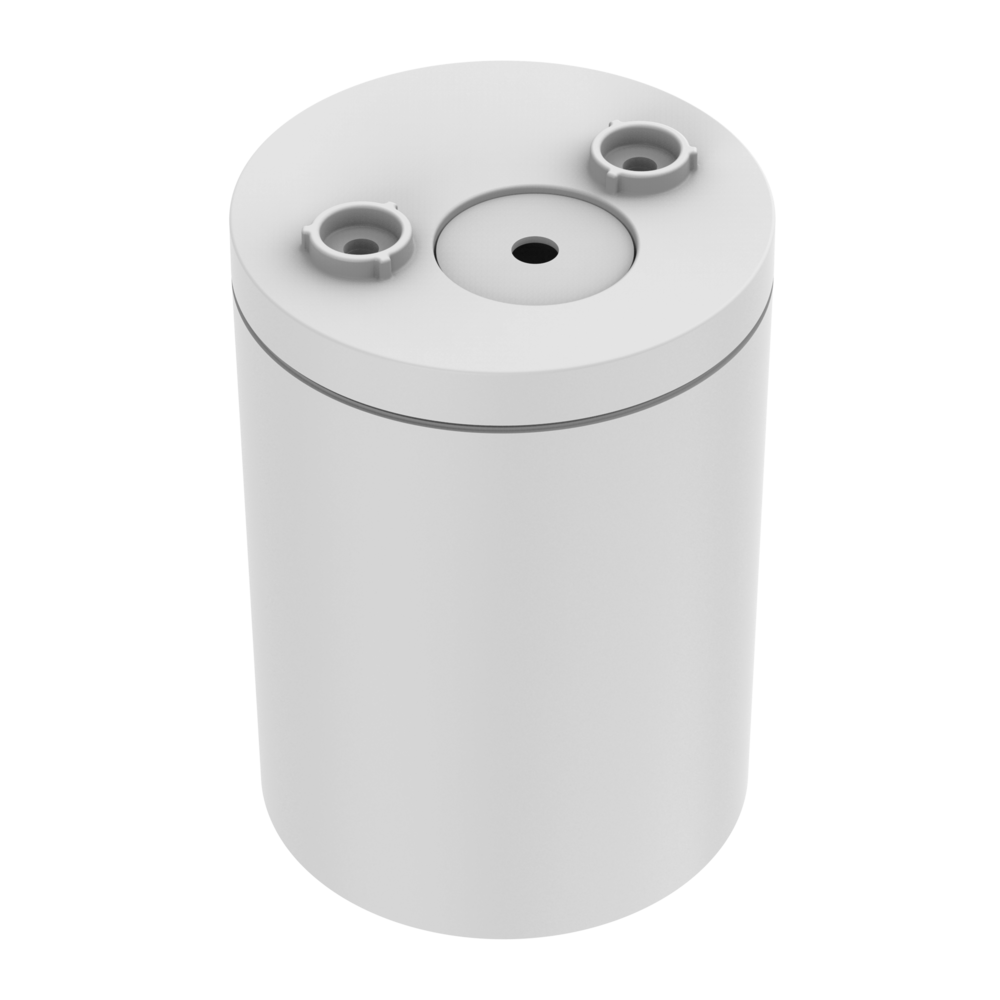

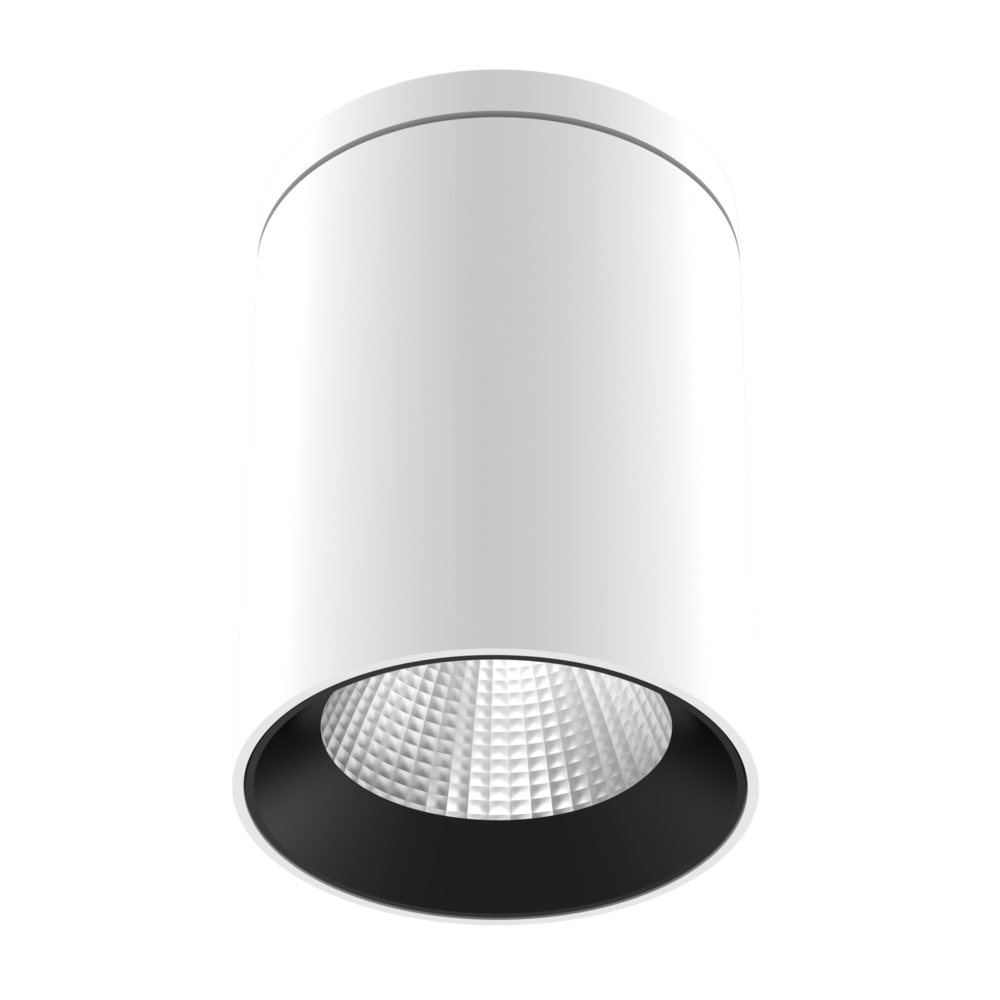

    • White finish RAL 9016

  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • 2700KCCT
  • 3000KCCT
  • 4000KCCT
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Diameter Height Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.XNS1030NBK DescriptionIP54 surface mounted downlight, 10w, 3000K, 60° black finish Power10 Lumens1000 CCT3000 Beam Angle60 CRI80 Diameter70 Height100 Add to Enquiry Add Remove Remove
    Model No.XNS1040NBK DescriptionIP54 surface mounted downlight, 10w, 4000K, 60° black finish Power10 Lumens1000 CCT4000 Beam Angle60 CRI80 Diameter70 Height100 Add to Enquiry Add Remove Remove

    Code Methodology: XNS = Size  |  10 = Wattage  |  40 = CCT  |  N = Dimming Type  |  WH = Body colour  |  36 = Beam angle

    Variants Available:

    Wattage - 10

    CCT - 27 = 2700K / 30 = 3000K / 40 = 4000K

    Dimming type - N = Non Dim / DT = Remote DALI Tridonic

    Trim Colour - WH = White / BK = Black

    Beam Angle (60° nominated as standard) - 15 = 15 degree / 24 = 24 degree / 36 = 36 degree
