• Commercial LED Downlights

Bordeaux F70

Fixed 70mm Architectural LED Downlight

The Bordeaux F70 Architectural LED Downlight is perfect for anyone looking for stylish lighting with excellent colour rendering. Not only is it aesthetically pleasing and manufactured for residential comfort, it also has low glare optics  so it won’t disrupt the atmosphere.

Its advanced design makes it suitable for a wide range of applications, from residential homes and commercial buildings to foyers and boardrooms. This high-quality LED downlight is even suitable for WELL Building projects.

Discover the perfect lighting solution for your project with the Bordeaux F90 Architectural LED Downlight. Give your space a modern, stylish feel with its advanced design and high-grade finish.

Application

  • Residential Homes
  • Agedcare and Healthcare Facilities
  • Commercial Offices
  • Meeting and Boardrooms
  • Retail Outlets
  • Amenity Areas

Design Specifications

  • R9 >50 Well Building Compliant

  • L70 >50,000 Hours

  • CRI 90, 3000K, 40º Beam Optic *4000K Available

  • Set-back Die-cast Aluminium Housing for Excellent Glare Control

  • Remote Phase Dimmable (Trailing Edge) Driver



  • Available Options

    • 4000K LED Module
    • 24° Beam Optic
    • Black Powdercoat Housing
    • Remote DALI2 Dimmable Driver

Performance

  • Dimmable - NO

Bordeaux F70
Bordeaux F70
Bordeaux F70
Bordeaux F70
  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

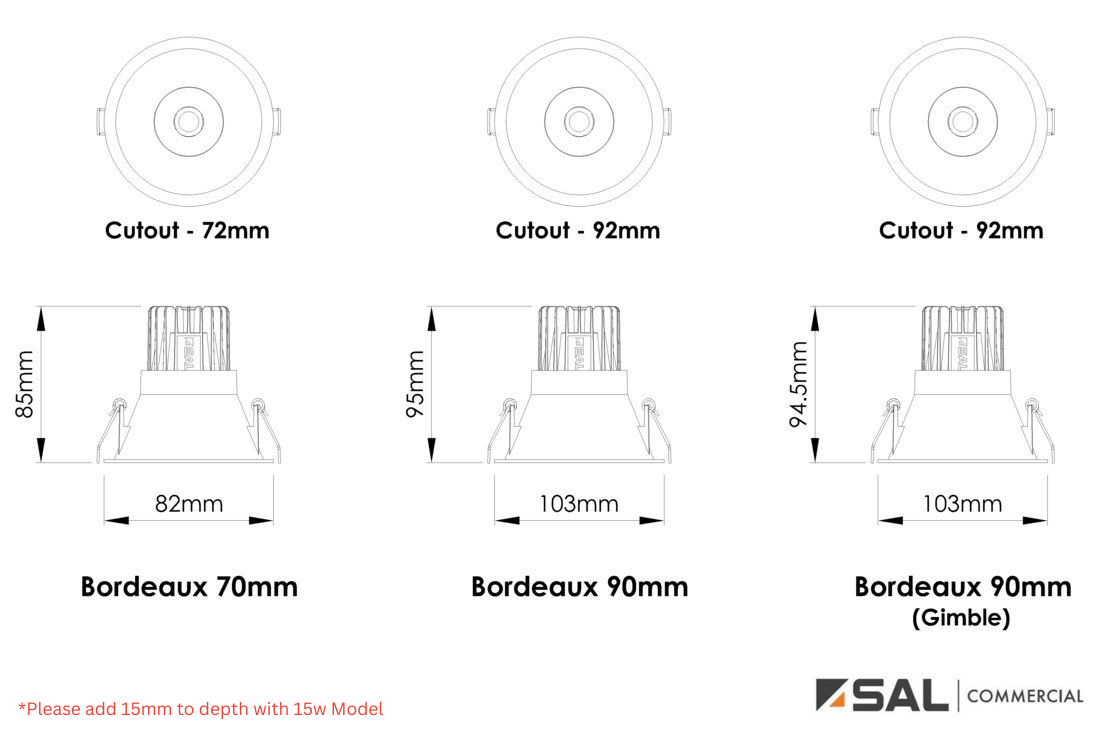

    • Dimensions - Wiring Diagrams
    • Design Options

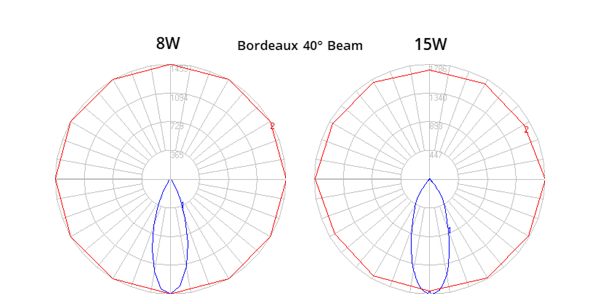

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT Beam Angle R9 CRI Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. DBX07830P Description Fixed 70mm LED Low Glare Downlight, CRI 90, 40 Degree, Phase Dimmable Power 8 Lumens 650 CCT 3000 Beam Angle 40 R9 >60 CRI 90 Add to Enquiry Add Remove Remove
      Model No. DBX071530P Description Fixed 70mm LED Low Glare Downlight, CRI 90, 40 Degree, Phase Dimmable Power 15 Lumens 1000 CCT 3000 Beam Angle 40 R9 >60 CRI 90 Add to Enquiry Add Remove Remove

      Code Methodology:

      Prefix : DBX07

      • Wattage - 8 (8w) / 15 (15w)
      • CCT - 30 (3000K / 40 (4000K)
      • Dimming Type - P = (Phase Dim) / D = (DALI2)
      • Housing Colour - WH = (White) / BK = (Black)
      • Beam Optic - 24 (24º)



      • Example - DBX071530DWH24 - 15w, 3000K, DALI2, White, 24º / DBX07840PBK - 8w, 4000K, Phase Dim, Black



    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
