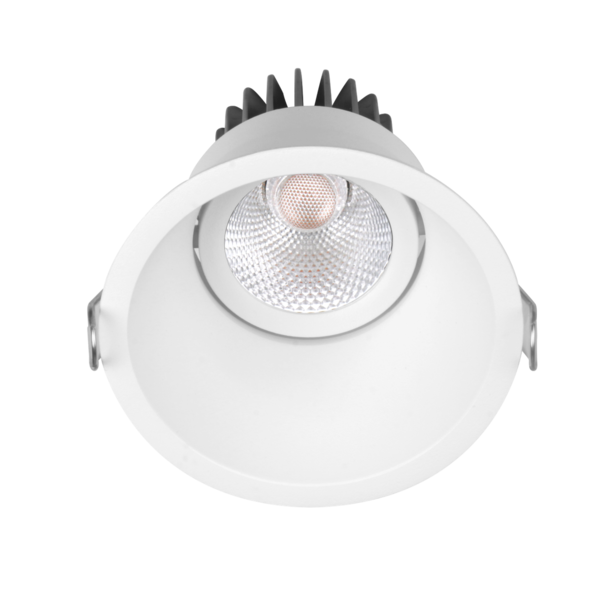

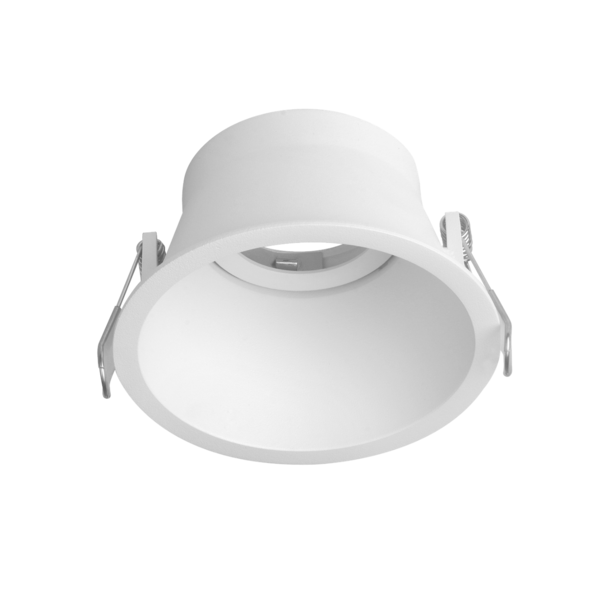

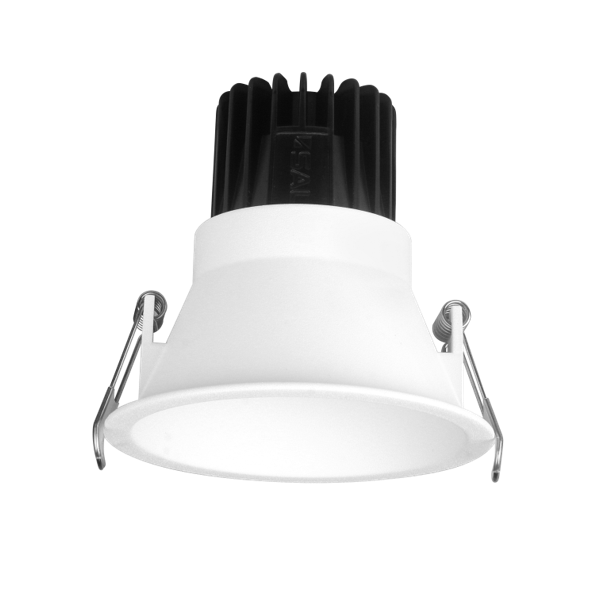

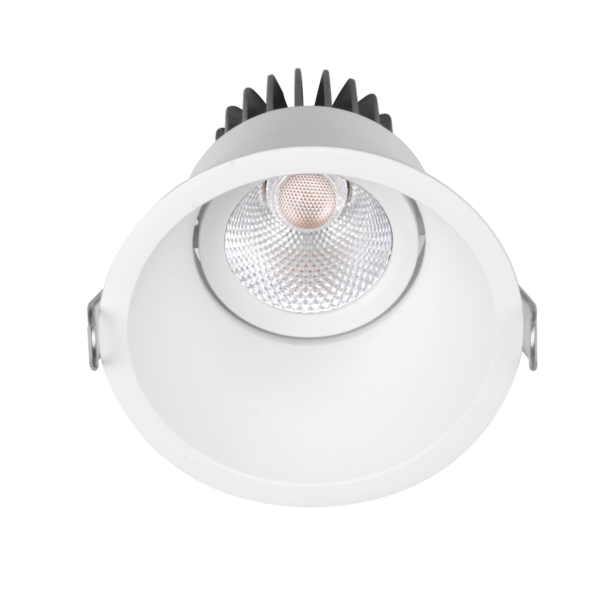

Bordeaux G90 Commercial LED Downlight

The Bordeaux commercial LED downlight is an architectural downlight with set-back silver reflector module for excellent glare control. The range consists of fixed 70mm/90mm and 90mm gimble models.

Application

The gimble 90mm Bordeaux model is suitable for WELL Building projects and a wide range of applications:

  • Commercial buildings
  • Foyers
  • Boardrooms
  • Meeting rooms
  • Amenity areas
  • Residential installations

Design Specifications

  • R9 >50 compliant

    Well Building Feature L07 compliant

  • L70 >50,000 hours

  • CRI 90, 40° beam, 3000K CCT supplied as standard

  • Set back die-cast aluminium housing for excellent glare control

  • Flicker free remote phase dimmable driver supplied as standard (trailing edge)



  • Available Options

    • 4000k LED module
    • 24° silver reflector
    • DALI dimmable remote driver

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

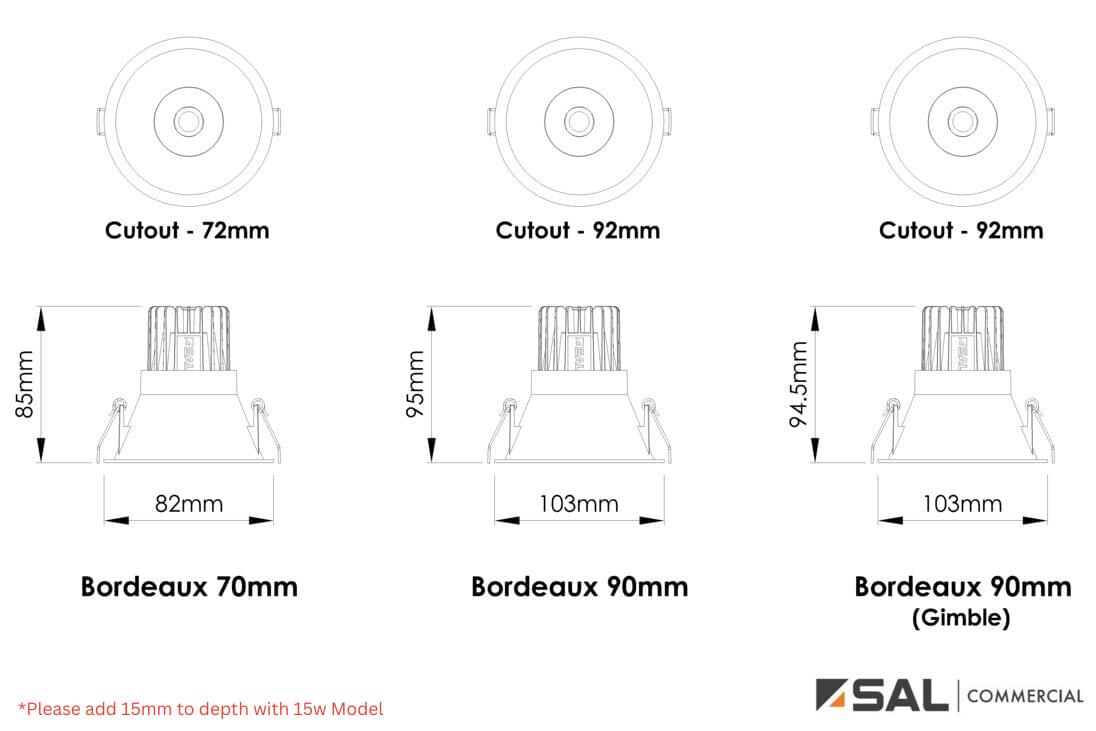

  • Dimensions - Wiring Diagrams
  • Design Options

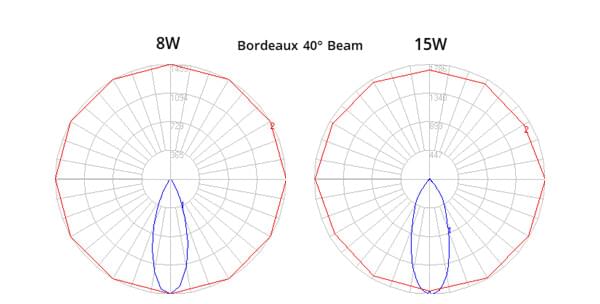

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle R9 CRI Diameter Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.DBXG09830P Description90mm gimble recessed LED downlight, trailing edge dimmable, R9 >50 Power8 Lumens650 CCT3000 Beam Angle40 R9>60 CRI90 Diameter90 Add to Enquiry Add Remove Remove
    Model No.DBXG091530P Description90mm gimble recessed LED downlight, trailing edge dimmable, R9 >50 Power15 Lumens1000 CCT3000 Beam Angle40 R9>60 CRI90 Diameter90 Add to Enquiry Add Remove Remove

    Code Methodology: DBXG09= Size  |  8 = Wattage  |  30 = CCT  |  P = Dimming Type
    Variants Available:
    Wattage - 8 / 15
    CCT - 30 = 3000K / 40 = 4000K
    Dimming type - P = Phase Dim / D = DALI
    Trim Colour - WH = White

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
