Campania 130

Commercial Low Glare LED Downlight

Commercial surface mount IP20 LED Downlight with open anti-glare reflector

Application

Hotel lobbies, commercial foyers, breakout areas, corridors, residential, retail

Design Specifications

  • 135mm Diameter, CRI 90, 4000k standard, L70 > 50,000 hours

  • 24w, 2000lm high output COB LED chip, 38° beam optic as standard

  • Excellent glare control with black insert set back optical design

  • Integral constant current non-dimmable driver as standard

  • White powdercoat cast aluminium housing as standard



  • Available Options

    • 3000k COB LED
    • 15°, 24° and 60° beam optics
    • Honeycomb lens
    • Black powdercoat body colour
    • Remote DALI dimmable driver

Performance

  • Dimmable - NO

Campania surface mount LED downlight
Campania surface mount LED downlight | © SAL Commercial Pty Ltd
  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

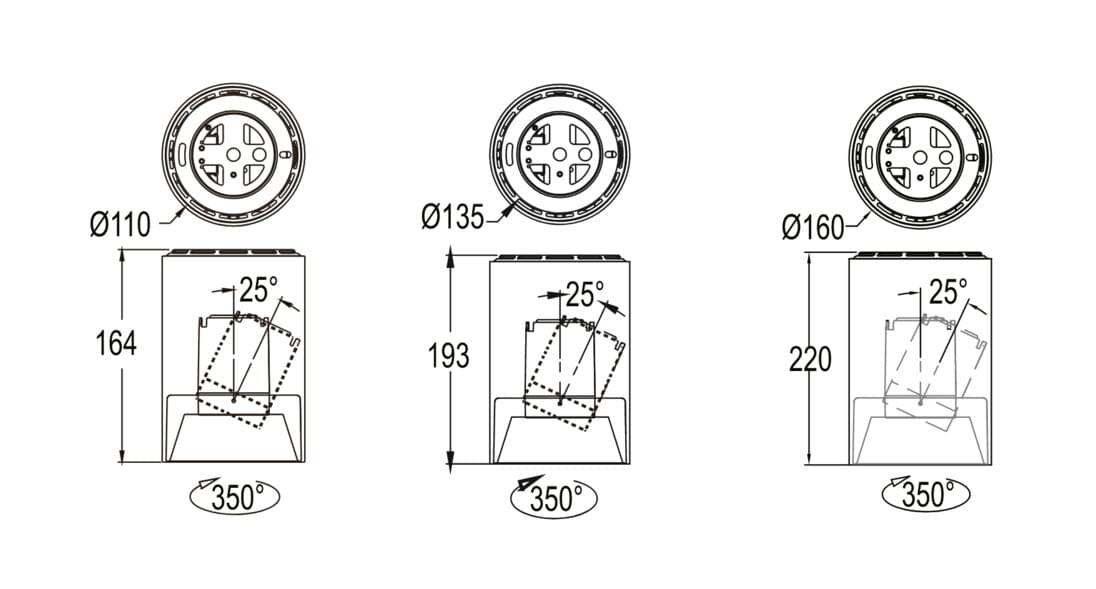

    • Dimensions - Wiring Diagrams
    • Design Options

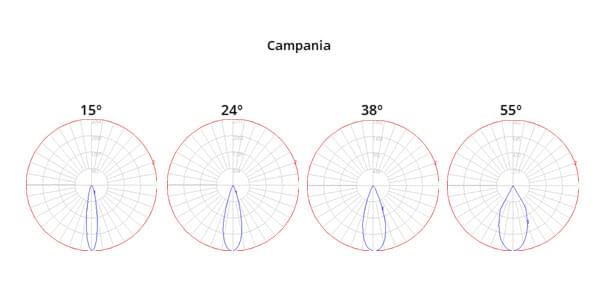

    • Photometric Data
    • Model No. & Technical Specification
      Model No. Description Power Lumens CCT Beam Angle CRI Diameter Height Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Model No. DCP132440N Description Surface Mount LED Downlight (D=135mm/H=195mm) Power 24 Lumens 2187 CCT 4000 Beam Angle 38 CRI 90 Diameter 135 Height 193 Add to Enquiry Add Remove Remove

      Code Methodology: DCP13 = Size | 24 = Wattage | 40 = CCT | N = Dimming Type
      Variants Available:
      Size - DCP13
      Wattage - 24
      CCT - 40 = 4000K / 30 = 3000K
      Dimming type - N = Non Dim / D = DALI
      Trim Colour - White (standard) / BK = Black
      Beam Angle (38° nominated as standard) - 60 = 60 degree / 15 = 15 degree / 24 = 24 degree

    Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
