• Commercial LED Downlights

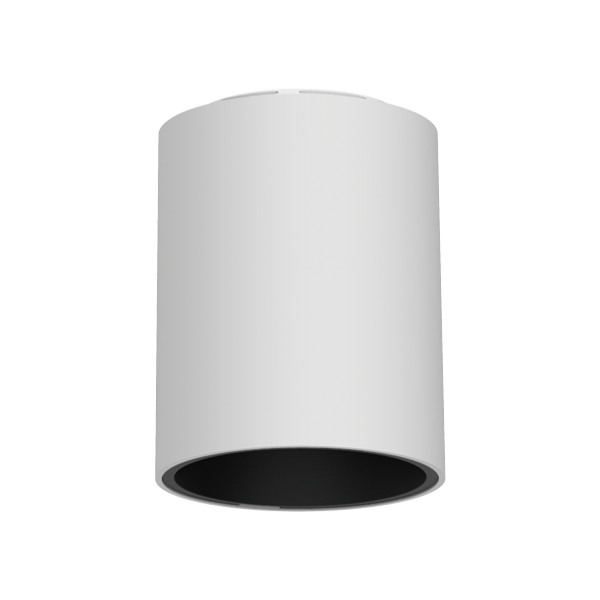

Campania 160

Commercial Low Glare LED Downlight

Commercial surface mount IP20 LED Downlight with open anti-glare reflector

Application

Hotel lobbies, commercial foyers, breakout areas, corridors, residential, retail

Design Specifications

  • 160mm Diameter, CRI 90, 4000k standard, L70 > 50,000 hours

  • 33w, 3000lm high output COB LED chip, 38° beam optic as standard

  • Excellent glare control with black insert set back optical design

  • Integral constant current non-dimmable driver as standard

  • White powdercoat cast aluminium housing as standard



  • Available Options

    • 3000k COB LED
    • 15°, 24° and 60° beam optics
    • Honeycomb lens
    • Black powdercoat body colour
    • Remote DALI dimmable driver

  • 3000KCCT
  • 4000KCCT
  • 3000KCCT
  • 4000KCCT

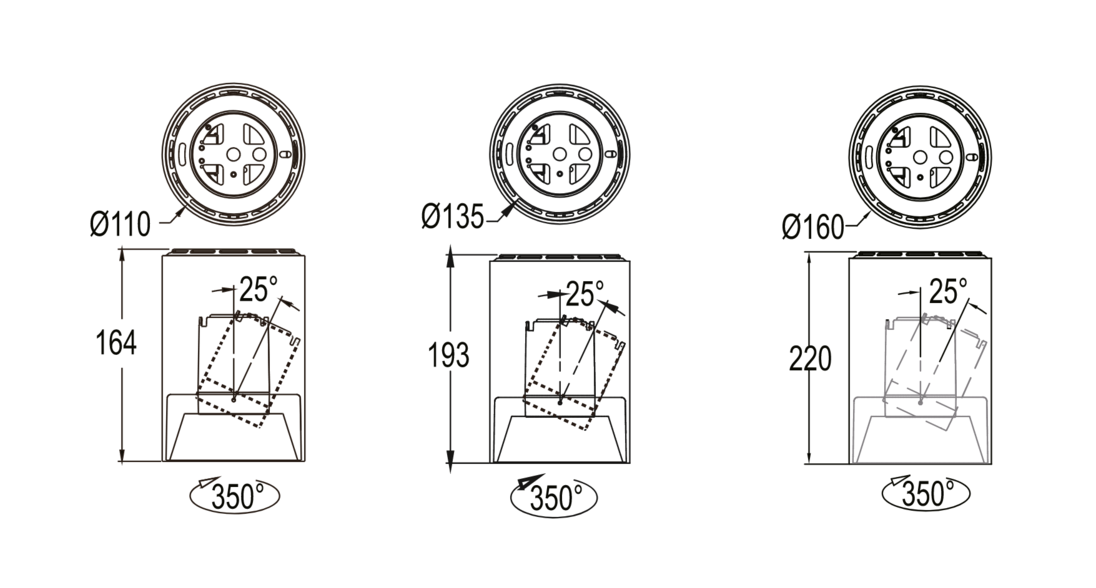

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer DALI YES

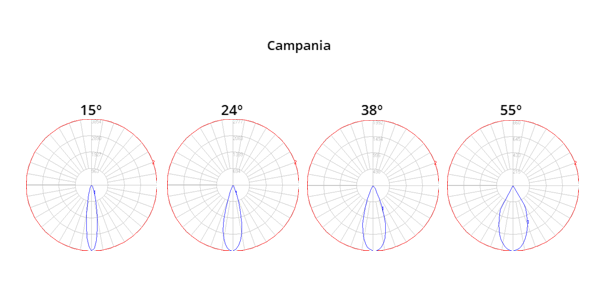

  • Photometric Data
  • Model No. & Technical Specification
    Model No. Description Power Lumens CCT Beam Angle CRI Diameter Height Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.DCP163340N DescriptionSurface Mount LED Downlight (D=160mm/H=220mm) Power33 Lumens3030 CCT4000 Beam Angle38 CRI90 Diameter160 Height220 Add to Enquiry Add Remove Remove

    Code Methodology: DCP16 = Size | 33 = Wattage | 40 = CCT | N = Dimming Type
    Variants Available:
    Size - DCP13
    Wattage - 33
    CCT - 40 = 4000K / 30 = 3000K
    Dimming type - N = Non Dim / D = DALI
    Trim Colour - White (standard) / BK = Black
    Beam Angle (38° nominated as standard) - 60 = 60 degree / 15 = 15 degree / 24 = 24 degree

Due to continued product and technology enhancements, data sourced from salcommercial.net.au shall not form part of any contract and or performance guarantee unless expressly confirmed in writing by SAL Commercial at the time of order. Products are sold in accordance with SAL Commercial Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
